HA-1000BA4

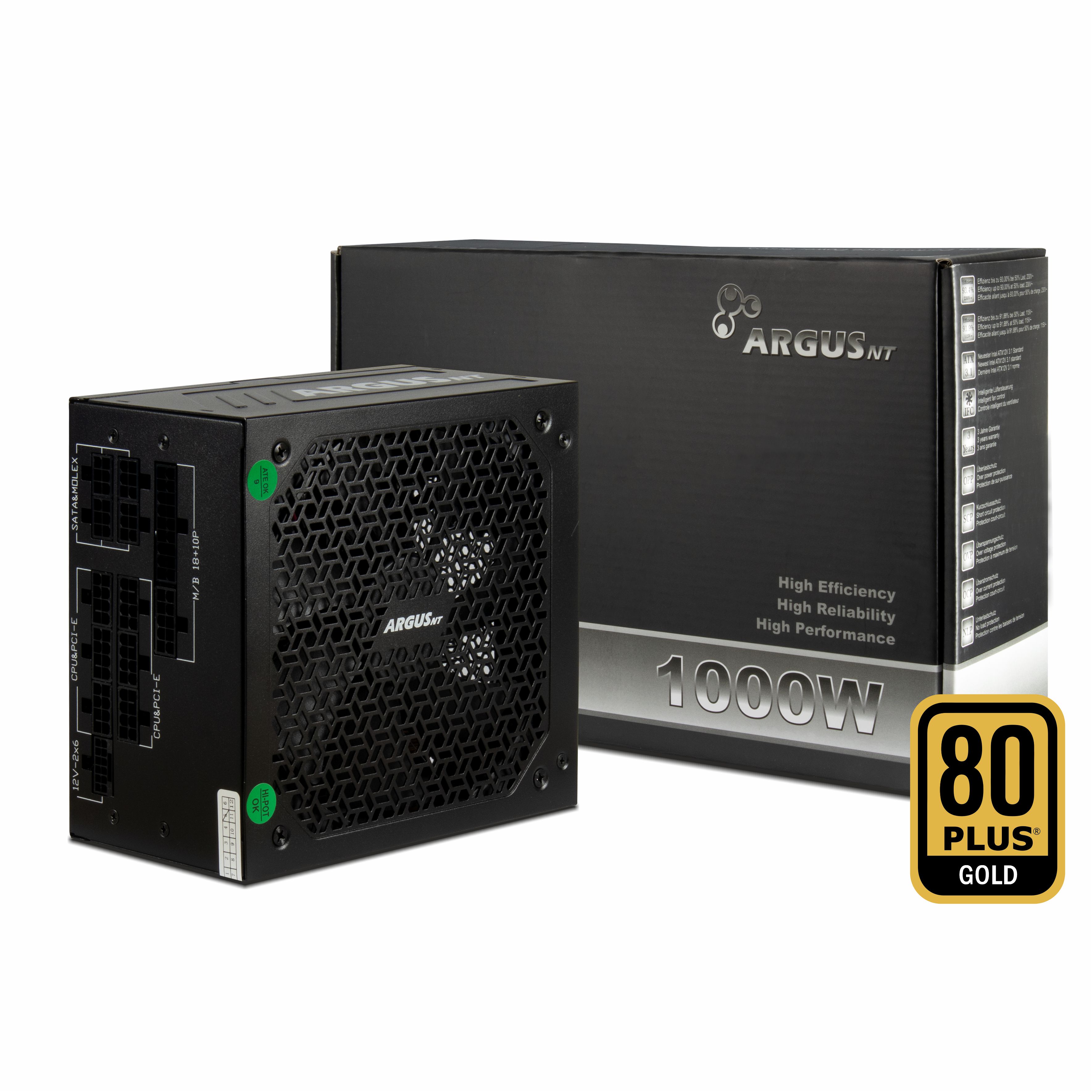

HA-1000BA4 - Powerful 1000W computer power supply with ATX 3.1 and 80 PLUS® Gold certification
The HA-1000BA4 offers reliable power for demanding systems. With an output of 1000 watts, ATX 3.1 compatibility and fully modular cable management, this power supply is aimed at PC enthusiasts, gamers and professional users who value efficiency, order and future-proofing.
Thanks to the 80 PLUS® Gold certification, the HA-1000BA4 works particularly efficiently, reduces energy losses and ensures lower heat generation. Particularly noteworthy is the 12VHPWR connection with up to 600 watts of power - ideal for the latest high-end graphics cards. The HA-1000BA4 therefore offers the necessary performance for demanding hardware without compromising on stability or security.
The fully modular design enables individual cable routing and at the same time improves air circulation in the housing. High-quality components ensure long-lasting, stable operation - even under full load.
Another highlight is the intelligent, temperature-controlled fan control:
Fanless operation up to 65 °C ensures absolutely silent operation at low loads. The high-quality fan only switches on above this threshold and adjusts the speed as required between 0 - 1200 rpm - for a perfect balance between cooling and noise.
Product-Highlights:
- 850 watts output power for powerful systems
- ATX 3.1 – Ready for modern hardware
- 80 PLUS® Gold – High Efficiency
- Fully modular - connect only the required cables
- Quiet operation thanks to intelligent fan control
- 12VHPWR-connector (600W) for High-End-GPUs
Whether gaming PC, workstation or upgrade - the HA-1000BA4 delivers stable performance, maximum efficiency and is ready for the next generation of hardware.

Features

1000Watt power supply
Intel ATX 3.1 standard
80PLUS Gold
12VHPWR connector up to 600W
Traditional PCIe connections for older graphics cards
Intelligent fan control
Numerous connections for mainboard, drives and peripherals
All connection cables completely black

Input
Input voltage
Frequency
Current
AC 100 - 240 V~
47 - 63Hz
12A @110V
6A @230V

Output
Output voltages
+ 3.3V
+ 5V
+ 12V
- 12V
+ 5Vsb
Total rated power
Rated power 3.3V + 5V
Rated power 12VHPWR
Voltage tolerance
Ripple/ Noise
Rated current
max. 20A
max. 20A
max. 83A
max. 0.3A
max. 3A
max. 1000W
max. 120W
max. 600W
+/- 5%
<50mV @ +3.3V, +5V, +5Vsb
<120mV @ +12V, -12V

Connectors
Mainboard 20+4pin
CPU 4+4pin
PCIe 12VHPWR
PCIe 6+2pin
SATA 15pin
IDE/ Molex 4pin
Floppy 4pin
1
2
1
3
8
3
1

Safety
Overload protection
Overvoltage protection
Overcurrent protection
Short-circuit protection
No Load protection
Temperature protection
+
+
+
+
+
+

Economic data
Efficiency @230V
@ 10% load
@ 20% load
@ 50% load
@ 100% load
Standby power consumption
MTBF

87.70 %
91.40 %
92.60 %
90.20 %
< 0.50 W
100.000 h @ 25°C

Environmental
Temperature

Humidity

Altitude
0°C - 40°C (operating)
-20°C - 90°C (storage)
Up to 85% (operating, noncondensing)
Up to 95% (storage, noncondensing)
0 - 5000m (operating)
0 - 5000m (storage)

Scope of delivery

Power supply
Power cord
Connection cables
Screws
Cable ties
Manual

Warranty

5 years

Logistic data
Dimension
Net weight
Gross weight
Article number
GTIN
Packing unit
150 x 165 x 86 mm
1.625 kg
2.880 kg
88882235
4260455649018
1 pcs
5 pcs (carton)



Data sheet HA-1000BA4
Download
Manual HA-1000BA4
Download
80PLUS report HA-1000BA4
Download
Declaration of conformity HA-1000BA4
Download
Pictures HA-1000BA4
Download
