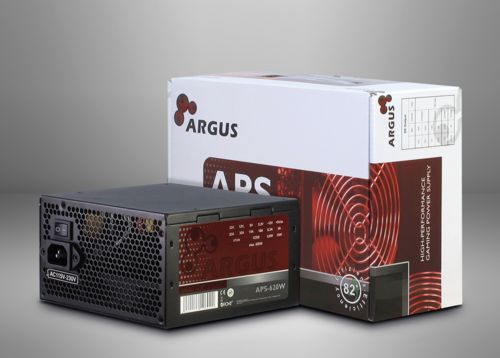

Argus APS-620W
The Argus APS-620W – ideal for sophisticated office and gaming solutions
The Argus APS-620W provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet.
Thanks to the efficient construction and the ideal configured connector layout the APS-620W provides with sufficient performance for the connected components.
The yellow 120mm fan works silently and ensures an optimal cooling of the power supply.
POWER & EFFICIENCY | |
---|---|
Output | 620Watt |
Efficiency |
|
ATX-Version | 2.31 |
CONNECTORS | |
Mainboard 20+4Pin | 1x |
4Pin / 4+4Pin / 8Pin 12V | / / |
PCI-Express 6+2Pin | 1x |
PCI-Express 6Pin | |
IDE 4Pin (Molex) | 4x |
S-ATA | 4x |
Floppy | 1x |
Fan monitoring | |
OTHER DATA | |
Fans / -size | 1x 120mm |
Fan control | auto |
Full Range Input | auto |
80PLUS® Certificate | |
Noise level | 19-21dB |
Dimension (h/w/d) | 86 x 150 x 140mm |
Guarantee | 24 months |
Safeties | OVP, SCP , OPP, UVP, OS |
SCOPE OF DELIVERY & FEATURES | |
Scope of delivery |
Power supply Argus APS-620W Retail package Screws Power cable Manual cable ties |
LOGISTICAL DATA | |
Shipping Unit | 1 Pcs |
Packing Unit | 10 Pcs |
EU palett | 280 Pcs |
Weight | net = 1.28kgs gross = 1.62kgs |
Item number | 88882118 |
EAN-Code | 4260133126022 |
PERFORMANCE DATA
AC Input | 115 - 230V 47-63Hz | ||||||
DC Output | + 3.3V | + 5V | + 12V1 | + 12V2 | - 12V | + 5VSB | |
APS-620 | Max. Current |
18A | 15A | 30A | 30A | 0.3A | 3A |
Max. Combined Power |
103W | 570W | 3.6W | 15W | |||
620W |
