POWER & EFFICIENCY | |
---|---|
Output | 300Watt |
Efficiency |
|
CONNECTORS | |
Mainboard 20+4Pin | 1x |
4Pin / 4+4Pin / 8Pin 12V | / / |
PCI-Express 6+2Pin | |
PCI-Express 6Pin | |
IDE 4Pin (Molex) | 4x |
S-ATA | 2x |
Floppy | 1x |
Fan monitoring | |
OTHER DATA | |
Fans / -size | 1x 40mm |
Fan control | auto |
Full Range Input | auto |
Redundancy | |
80PLUS® Certificate | |
Operating Temperatur | 0°C to 50°C |
Storage Temperatur | -40°C to 70°C |
Dimension (h/w/d) | 40 x 100 x 205mm |
Guarantee | 36 months |
Safeties | OVP, SCP , OPP, OCP, OTP |
MBTF | Average 100000h |
SCOPE OF DELIVERY & FEATURES | |
Scope of delivery |

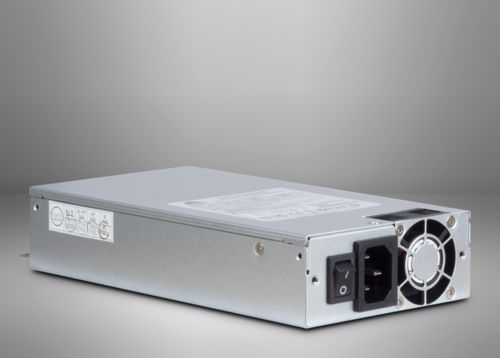

Power supply ASPOWER U1A-C20300-D |
Features | |
LOGISTICAL DATA | |
Shipping Unit | 1 Pcs |
Packing Unit | 10 Pcs |
Weight | net = 1.28kgs |
Item number | 88887225 |
EAN-Code | 4260455642248 |
PERFORMANCE DATA
AC INPUT | VOLTAGE | CURRENT | FREQUENCY | ||||||
100-240V | 5A Max. | 50/60Hz | |||||||
DC OUTPUT | + 5V | + 3.3V | + 12V | - 12V | + 5VSB | Max. 300W | |||
18A | 18A | 24A | 1A | 3A | |||||
Attention: +5V & +3.3V combined max. 120W |
