2U-2404S

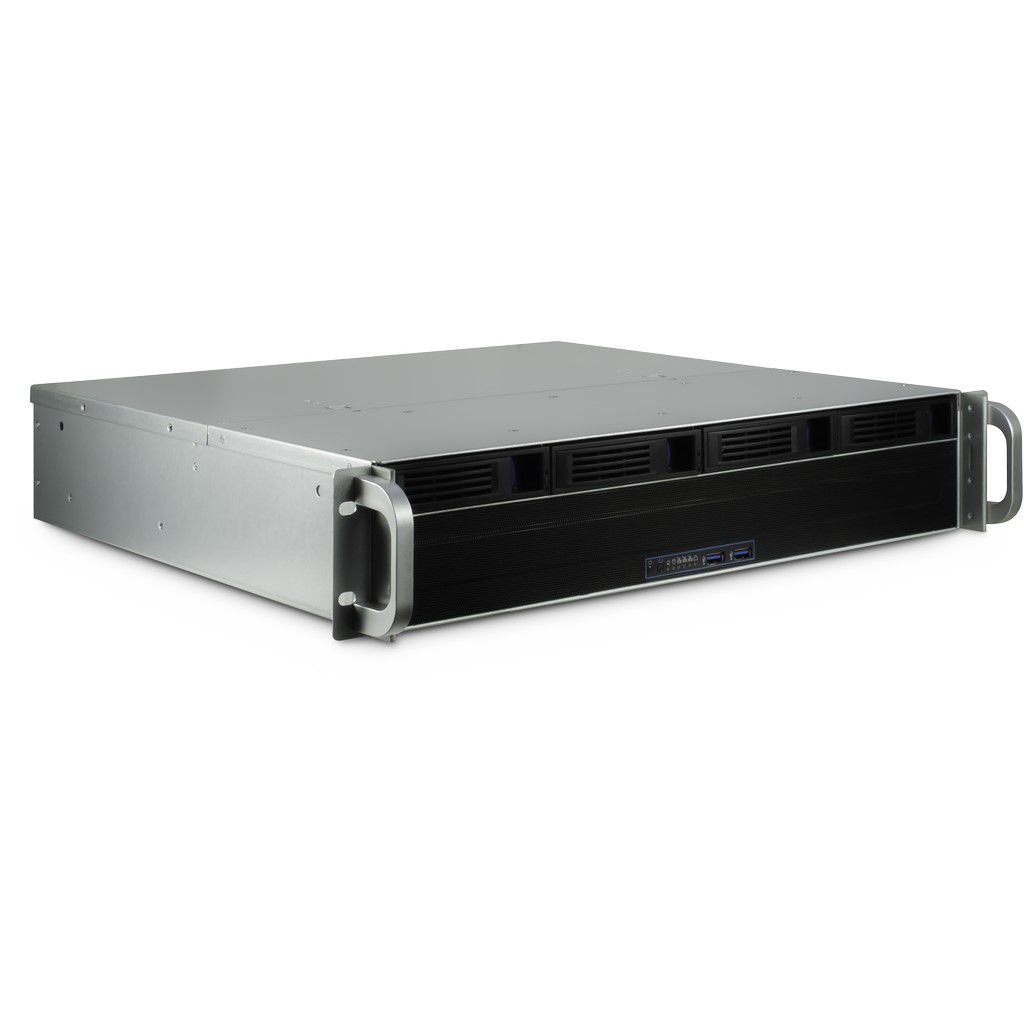

The 2U 2404S is the perfect rack for a low-priced storage system.

The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.

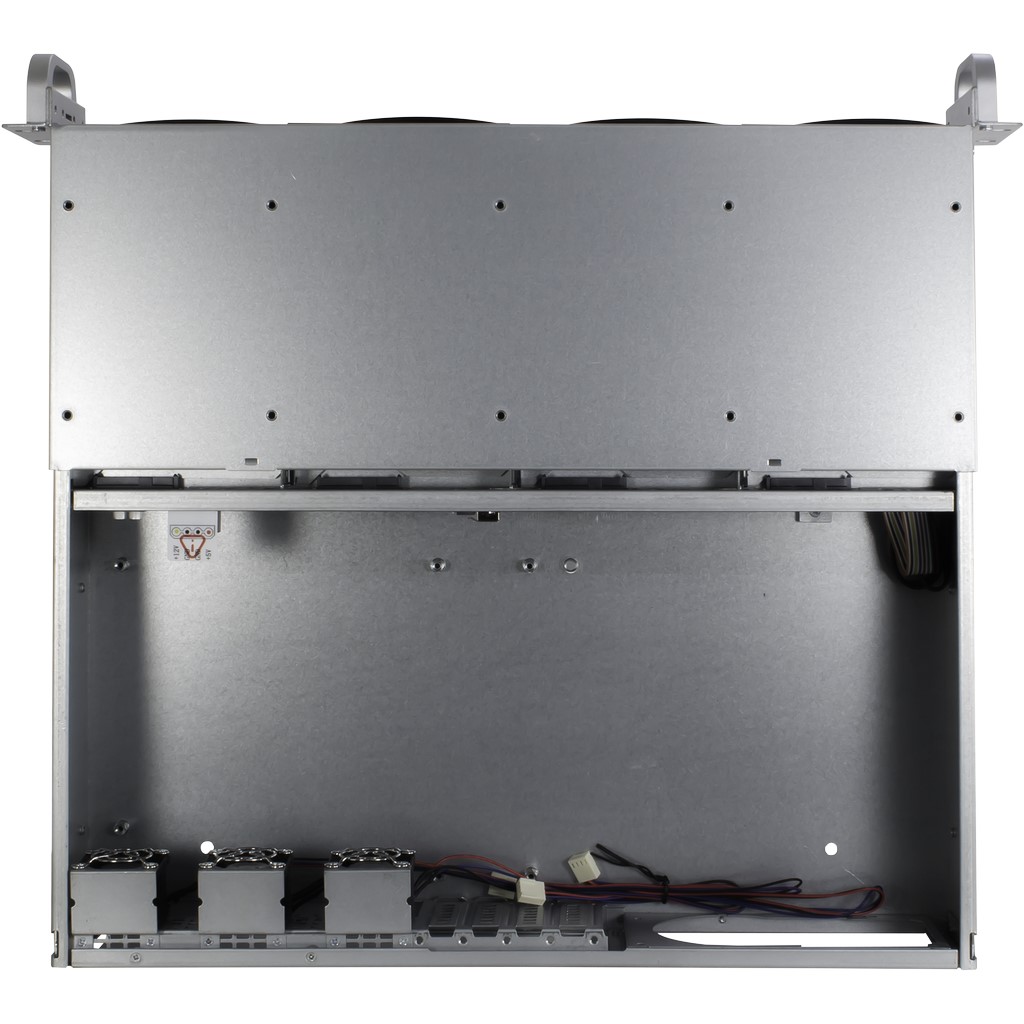

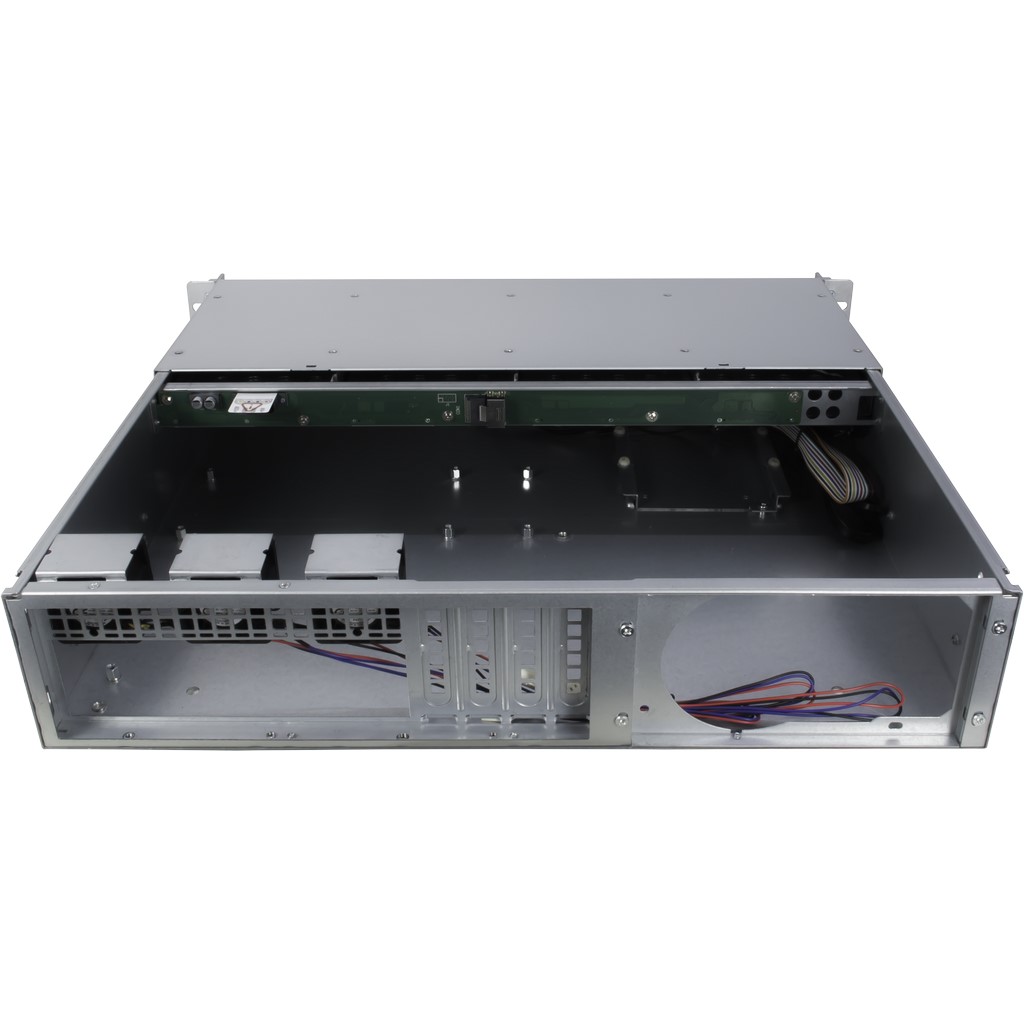

The 2U 2404S offers the possibility to mount maximal four 2.5" or 3.5" Hot-Swap HDDs and one internal 2.5" or 3.5" HDD (by using a 2.5" with 9.5mm height also a 3.5" HDD simultaneously). The 2U 2404S is equipped with three serial 40mm fans. At the rear of the chassis you can mount an ATX PSU with 80mm fan.

Now new: Backplane with NVMe Support available as an upgrade. Click here to go to the NVMe Backplane.

MOTHERBOARD
Form factor Mini ITX, μATX
max. Motherboard size 244 mm x 244mm (9.6" x 9.6")
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 32mm/65mm¹
Length graphics card (max.) 190mm
DRIVE BAYS
5.25" external
5.25" external (slim)
3.5" or 2.5" external (Hot-Swap) 4x
3.5" or 2.5" internal 1x²
FRONT CONNECTORS
USB 3.0 2x
POWER SUPPLY
ATX PSU with 80mm fan
FAN MOUNTING OPTION
Inside 3x 40mm (serial, 3pin (4pin connector))
CONTROLS & LED
Controls Power-Switch
Reset-Button
LED Power
HDD Activity
3x Network Activity
Alert
OTHER DATA
S-ATA/SAS-Backplane + SFF-8087 (max. 12Gbit/s)
Dimensions (h/w/d) 89 x 482 x 438mm
Material 1.0-1.2mm Steel
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

Screw set

Mounting frame for ATX PSU

Mounting tool

Features

Serial 3x 40mm fans

4x perforated Low-Profile slot bracket (Rear)

USB 3.0 as block connector

1x Hot-Swap backplane with one SFF-8087 socket    Important Note!

Snap-in cap

Mesh-Grid-Front with dust filter

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 21 Pcs
Weight net = 5.97kgs
gross = 7.67kgs
Item number 88887190
EAN-Code 4260133128613

¹ depending on the position of the CPU (32mm, if the CPU is under the HDD cage)
² simultaneously only if 2.5" drive with max. 9.5 mm height
