SC-2100

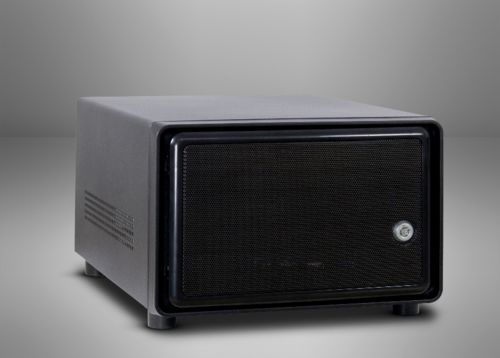

The SC-2100 is an enclosure for Mini-ITX motherboards with a dual 2.5"/ 3.5" Hot-Swap frame in the front, which is located behind a lockable front door.
Another external 2.5" Hot-Swap frame is located on the back of the enclosure cage.
The standard 60mm fan ensures clean air and thus a perfect cooling behavior inside. A slot for a Flex-ATX power supply as well as a USB 2.0 and a USB 3.0 front connector complete the package.
- 2-fold 2.5"/ 3.5" Hot-Swap cage
- separate 2.5" Hot-Swap frame on the back
- lockable front door
- 60mm fan installed as standard
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 40mm |
| Length graphics card (max.) | |
| DRIVE BAYS | |
| 3.5" or 2.5" external (Hot-Swap) | 2x |
| 2.5" external (Hot-Swap) | 1x |
| FRONT CONNECTORS | |
| USB 3.0 | 1x |
| USB 2.0 | 1x |
| POWER SUPPLY | |
| Flex ATX PSU | |
| FAN MOUNTING OPTION | |
| Rear | 1x 60mm (included, 3pin connector, without speed signal) |
| CONTROLS & LED | |
| Controls | Power-Switch Reset-Button |
| LED | 1x Power 1x Alert¹ 1x HDD 3x Network Activity² 2x HDD-Power/HDD-Activity |
| OTHER DATA | |
| S-ATA/SAS-Backplane (max. 12Gbit/s) | |
| Dimensions (h/w/d) | 140 x 205 x 260mm |
| Material | 1.0mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw set Mounting bracket for Flex-ATX PSU Stands Key Tool for thumbscrews |
| Features |
Lockable front door 2-fold HDD hot-swap cage Separate 2.5" Hot-Swap frame on the back USB 3.0 and USB 2.0 internally as a block connector |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 4 Pcs |
| Weight | net = 2.25kgs gross = 3.80kgs |
| Item number | 88887285 |
| EAN-Code | 4260455644655 |
¹ for the functionality of the alert LED the additional hardware is necessary (connectors on mainboard, fan monitoring).
² for the functionality of network activity LEDs the connectors on your mainboard are necessary.
