S-3901 IMPULSE

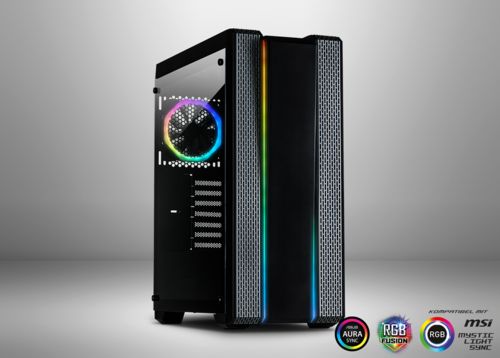

S-3901 Impulse – RGB meets Design

Are you looking for a special case, that moves your lighting concept into new spheres? Then the S-3901 Impulse is just right for you!

A slightly tinted Tempered Glass side panel and two RGB LED strips, which run over the front panel and the whole top of the case, make the S-3901 the ideal candidate for a high-end system with elaborate LED lighting. This is not only due to the standard 120mm RGB LED fan, that is installed on the rear panel, but also because of the digital 5V RGB control board, which accommodates up to 7 additional RGB fans, which are managed via the RGB motherboard control header. Space for up to four additional 3-pin fans round off the connection variety of the integrated circuit board.

In the top of the case are, in addition to the LED strips, fixed dust filter inserts and the controls. In addition tot wo USB 2.0 and USB 3.0 ports and HD audio jacks, there is a slider to set the fan speed (Off/Low/High) and a switch for manually switching through the LED effects. Another removable dust filter under the power supply and a variety of ways to lay the cables, complete the offer.


  • RGB control board (allows effects like running light or rainbow)
  • 3pin RGB header connector for digital 5V RGB motherboard control
  • Includes two RGB LED strips and a 120mm RGB fan
  • Side panel made of Tempered Glass

SIZE
Form factor ATX, μATX, ITX
Dimensions (h/w/d) 505 x 215 x 455mm
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 175mm
Length graphics card (max.) 275mm
DRIVE BAYS
5.25" external
3.5" external
3.5" internal 2x
2.5" internal 2x
FRONT CONNECTORS
USB 3.0 2x
USB 2.0 2x
Card Reader
Microphone 1x
Headphones 1x
POWER SUPPLY
ATX-PSU
FAN MOUNTING OPTION
Front 3x 120mm or 2x 140mm (optional)
Rear 1x 120mm (serial, RGB, 6pin connector)
Top 2x 120mm or 2x 140mm (optional)
GUARANTEE / WARRANTY
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

Screw set

Manual (German, English)

Features

Front panel and top with two RGB light strips

Side panel made of Tempered Glass

1x 120mm RGB fan at the rear included

3pin RGB header connector for 5V RGB motherboard control

LED switch to change colour effects

RGB control board for up to 7 additional RGB fans with specific 6pin connector and four 3pin fans

Manual fan control via slider in the top

Two 3.5" bays below the motherboard carrier with separate airflow

Place for water cooling in sizes of 120mm and 240mm

Power supply adapter in a separate cage in the bottom part

Openings for easy laying of cables

Easy removable dust filter below the power supply

Slot plates screwed and mesh grid

Stands

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 24 Pcs
Weight net = 6.78kgs
gross = 8.04kgs
Item number 88881272
EAN-Code 4260455641371



Data sheet S-3901 Impulse
Download
Manual S-3901 Impulse
Download
Picture package S-3901 Impulse
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
