C-701 PANORAMA

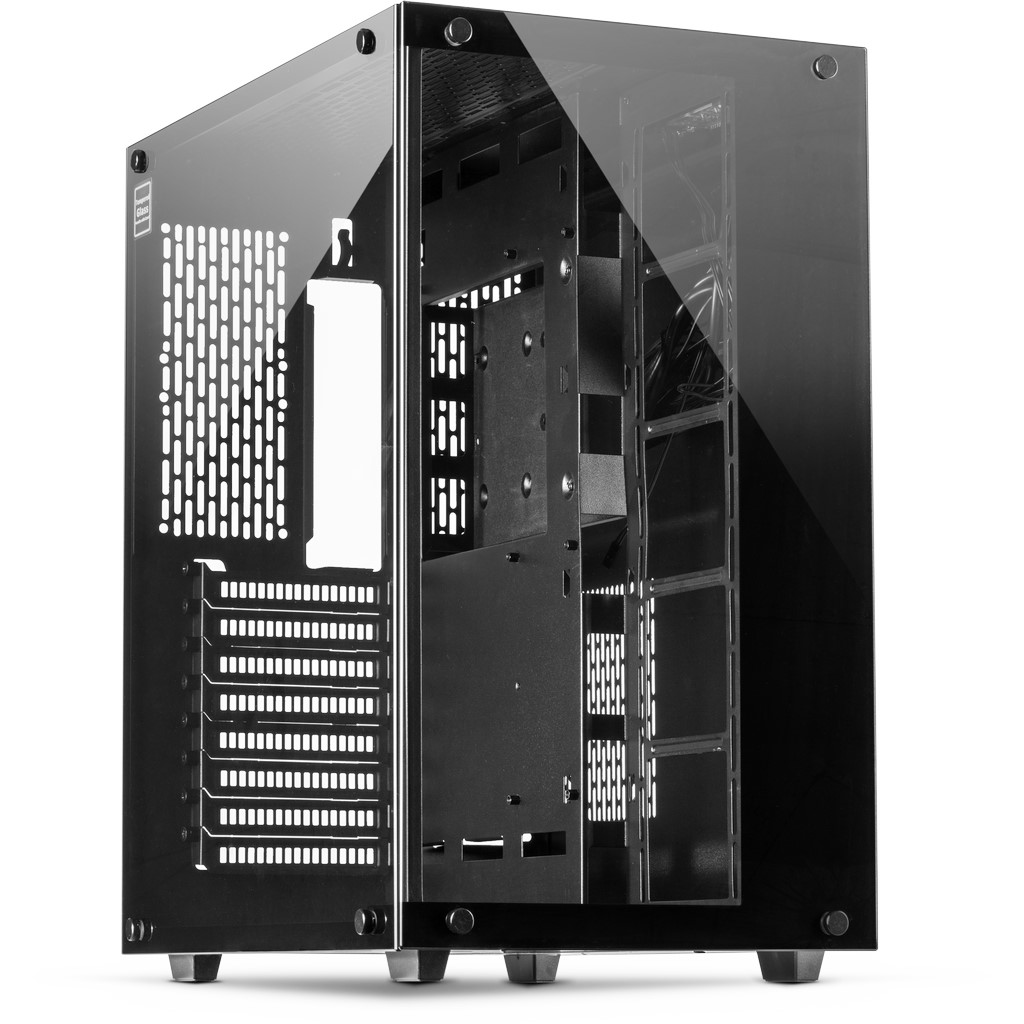

C-701 Panorama – the show case of superlatives!

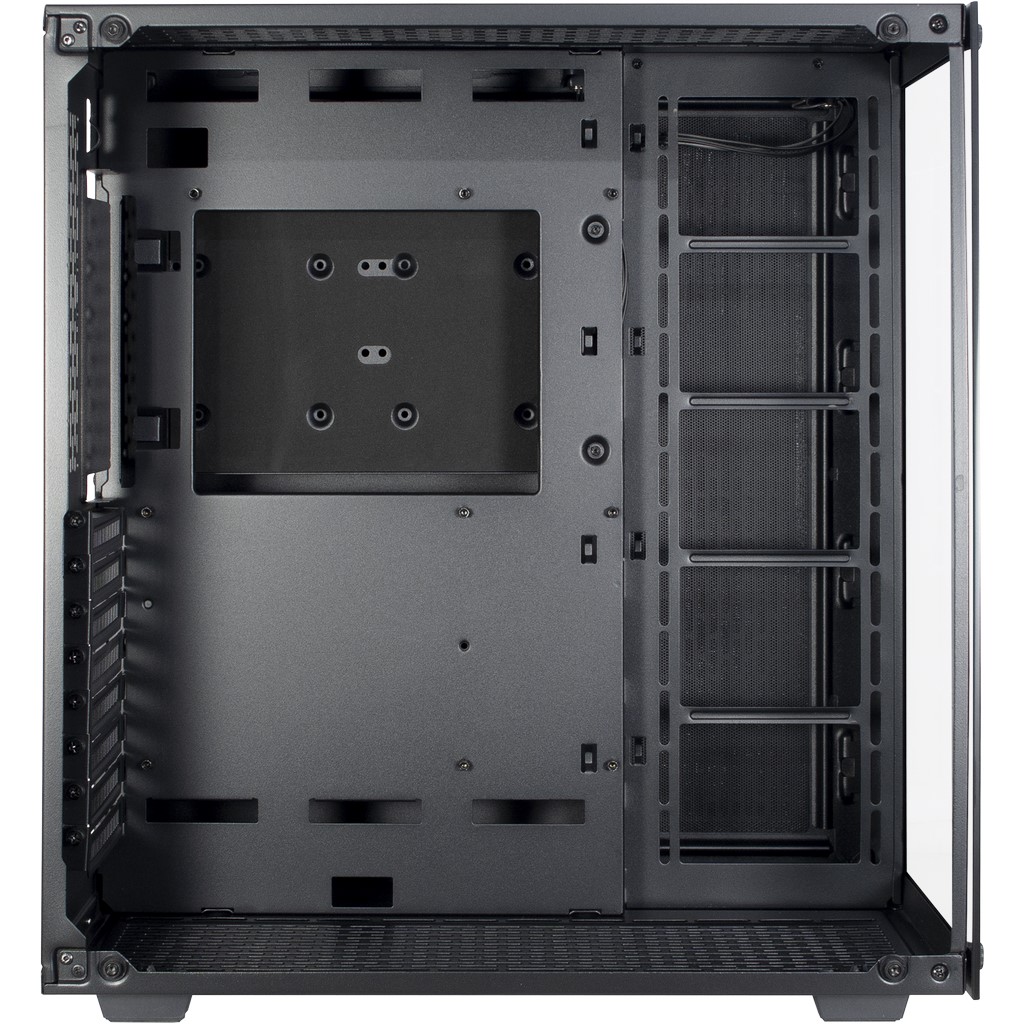

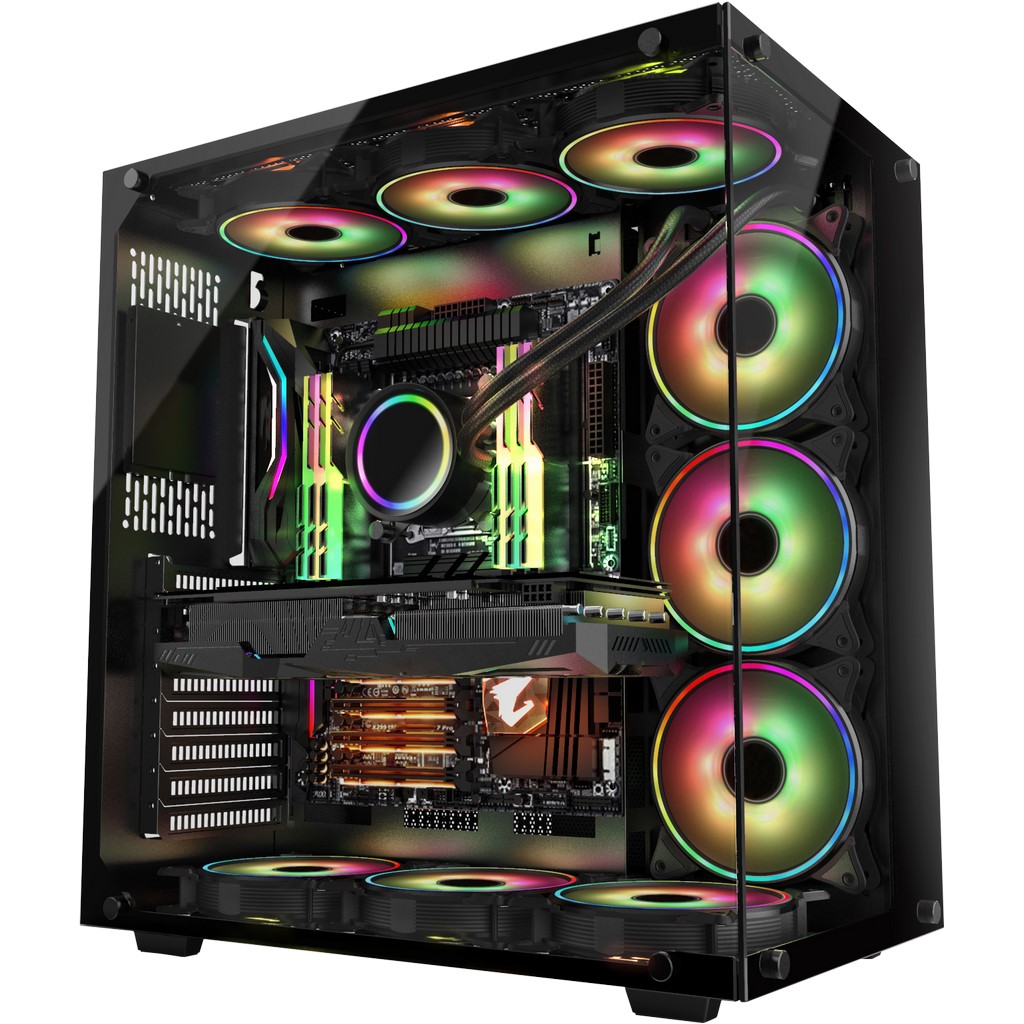

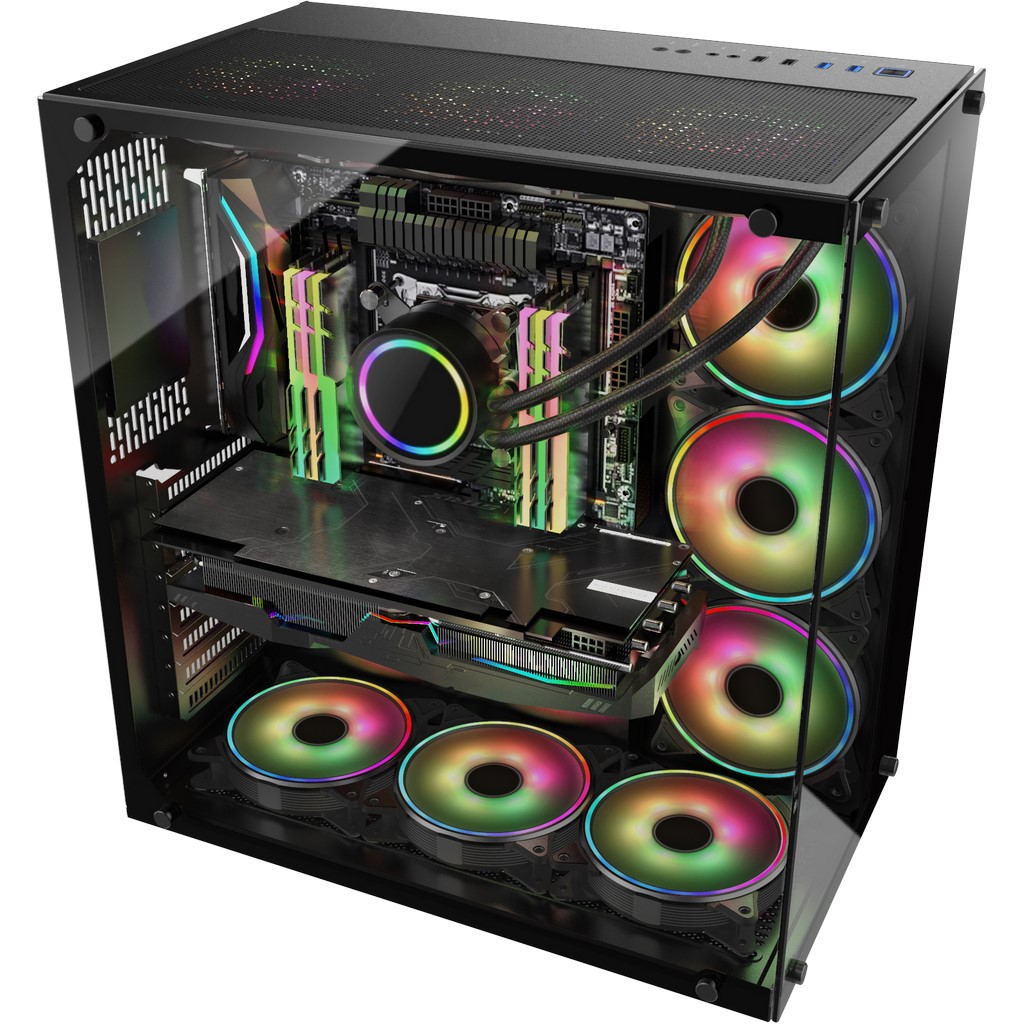

The C-701 Panorama is the perfect showcase to showcase its hardware. With the large front panel made of tempered glass and the large-surface tempered glass side panel, the case, as the name suggests, offers a great view of the inside - both from the front and from the side. The 9 slots for 120mm fans leave sufficient design freedom as to whether the interior is illuminated or optionally equipped with AiO water cooling in the sizes 120mm, 240mm or 360mm.

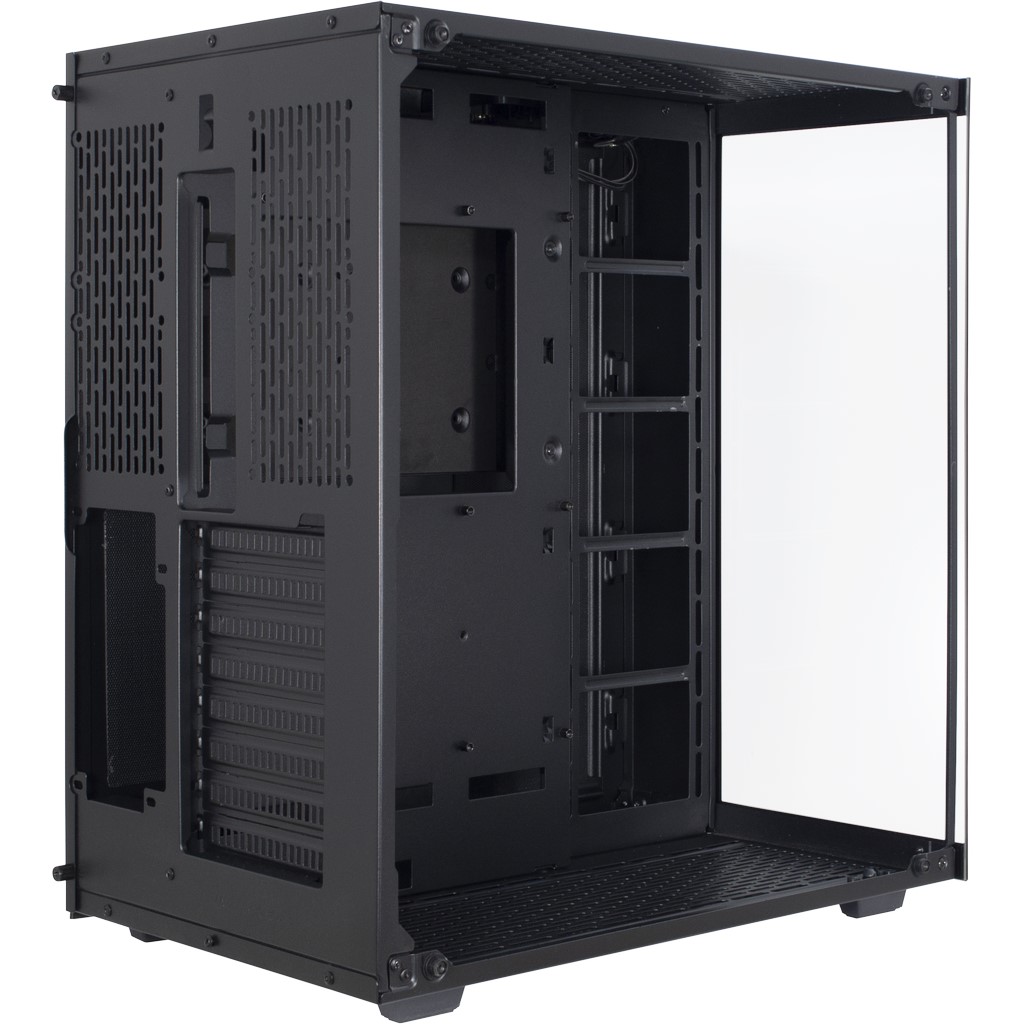

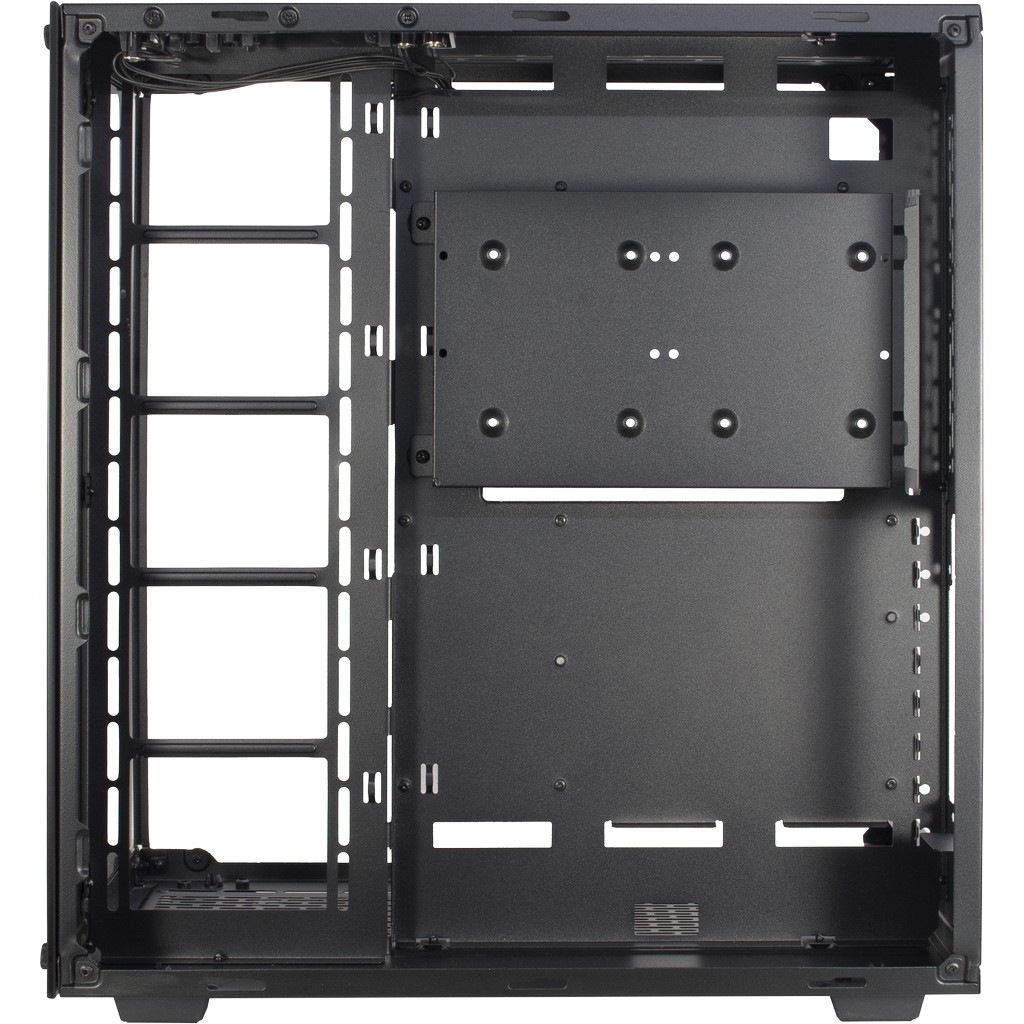

There was also no savings in the slots for 2.5" SSDs and 3.5" HDDs. The C-701 Panorama offers space in a separate, padded holder for 2x 2.5" SSD and 2x 3.5" HDD. Two additional 2.5" SSDs can be attached to the 80mm fan slots on the back, using the included SSD holders. The power supply attachment is located behind the mainboard carrier and leaves enough space to hide excessively long and leftover cables.

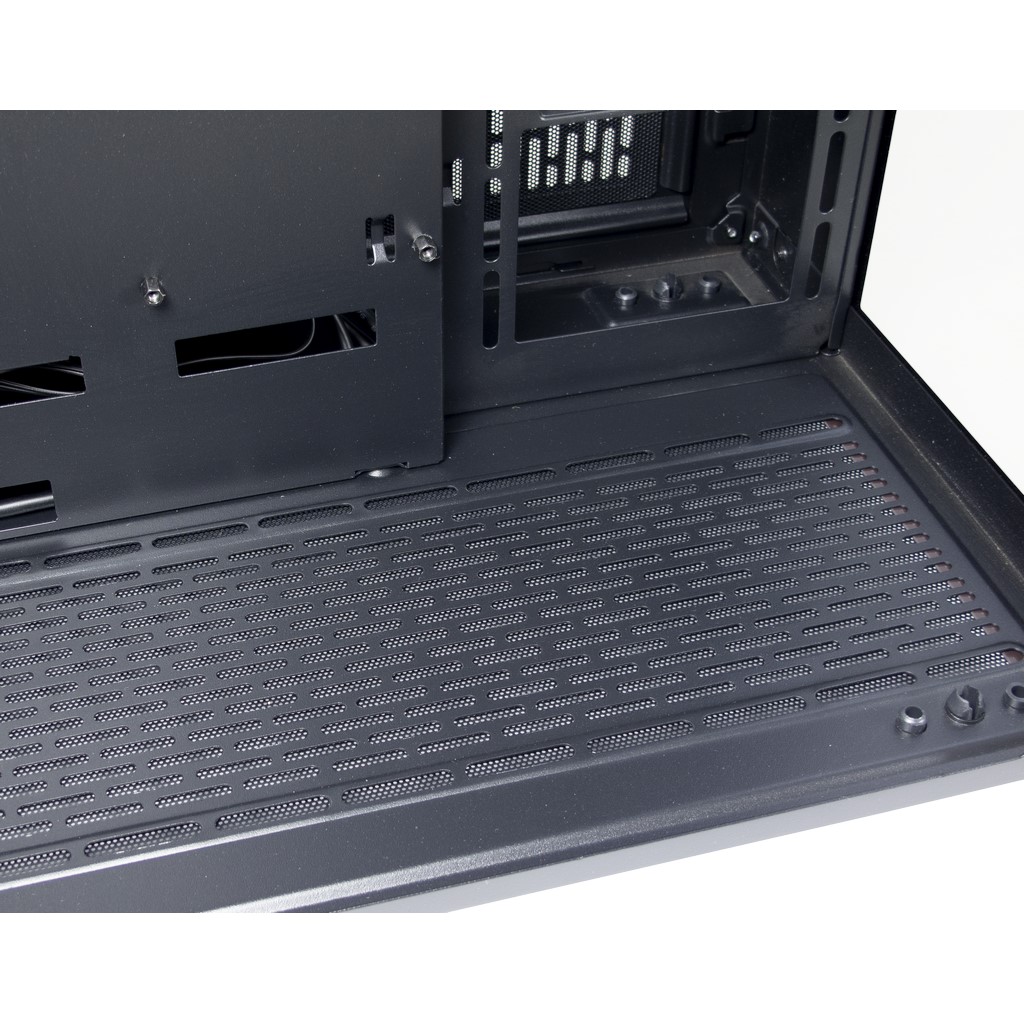

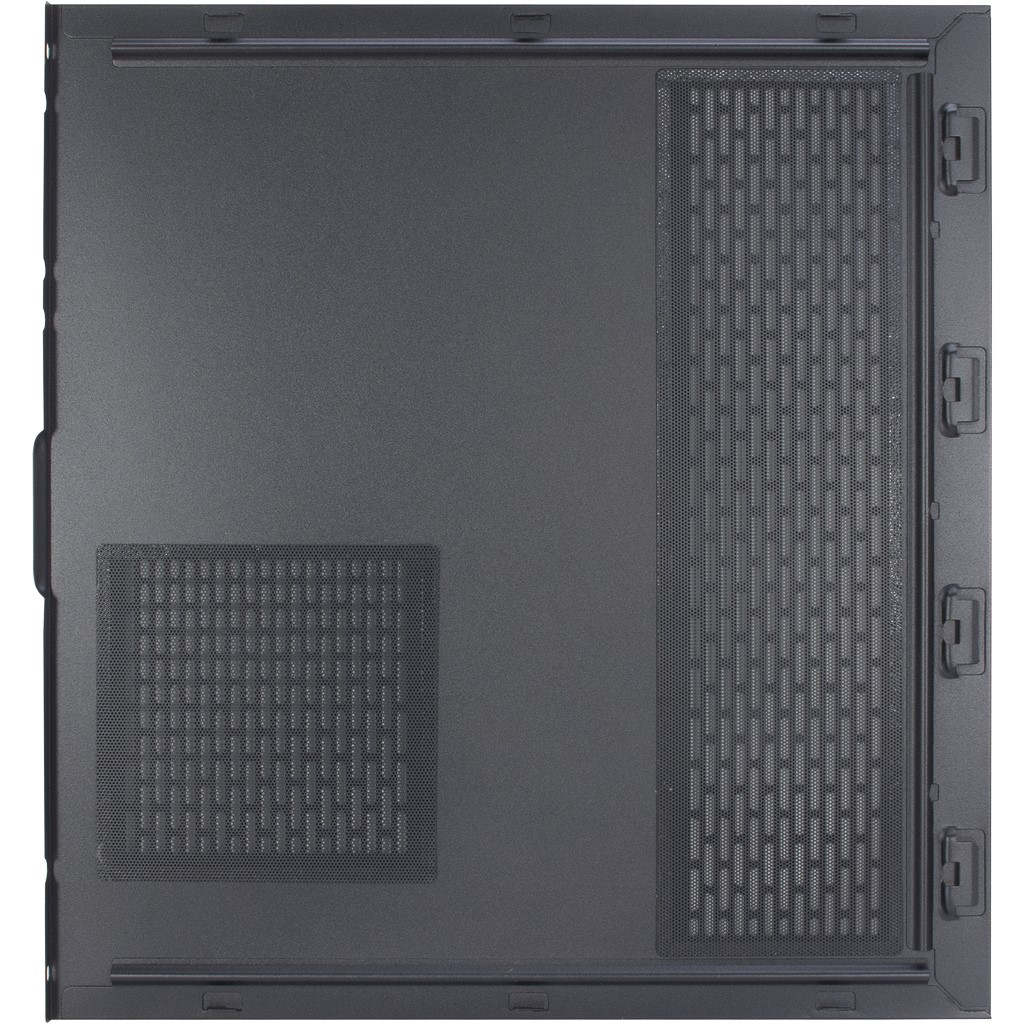

Integrated, easy-to-remove dust filters in the top and bottom, as well as two additional dust filters, which are also included, protect the spacious interior from the inconvenience of dust. The two USB 3.0 and two USB 2.0 front ports, which are located above the front, complete the overall package.


  • Large tempered glass front panel

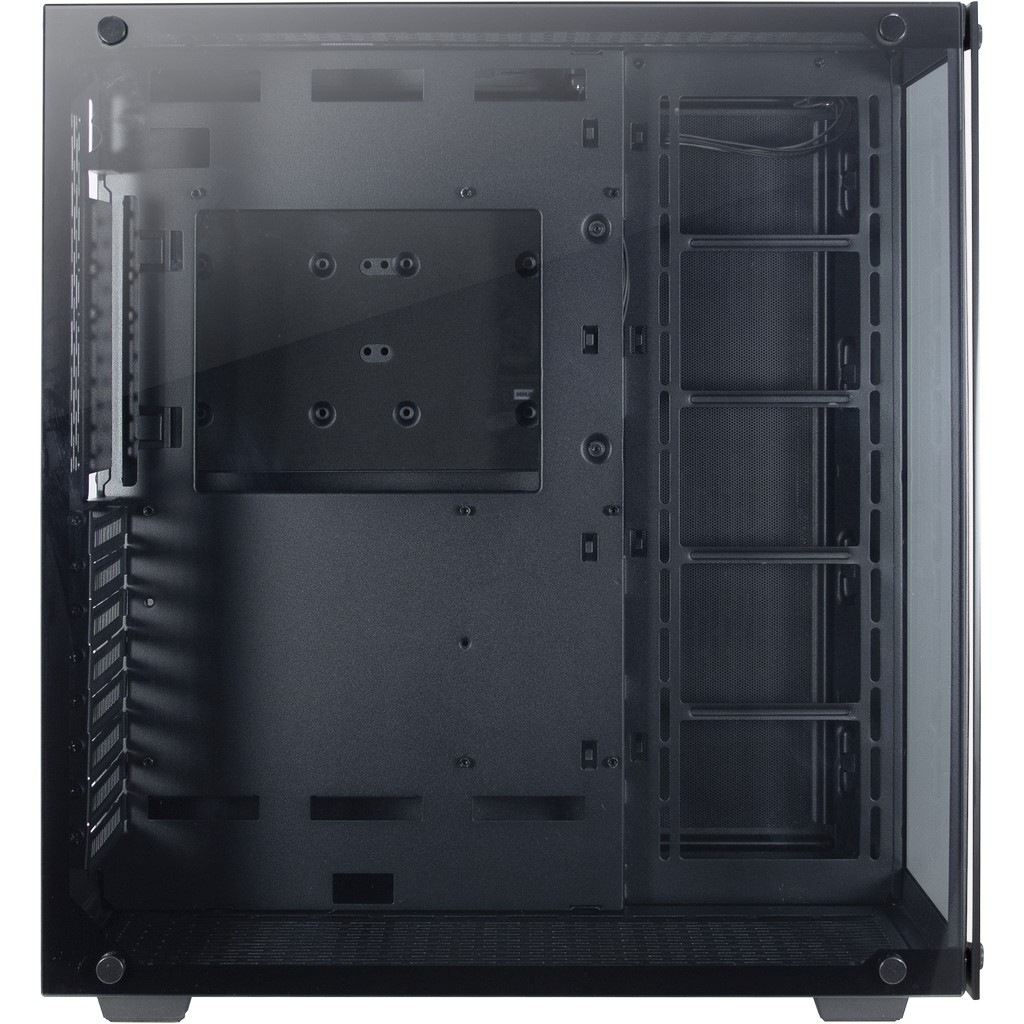

  • Large window side part made of tempered glass
  • Up to 9x 120mm fans possible
  • Up to 2x 3.5" and 4x 2.5"¹ possible

The fans shown in the video are not included.

SIZE
Form factor ATX, μATX, ITX
Dimensions (h/w/d) 450 x 260 x 420mm
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 130mm
Length graphics card (max.) 370mm
DRIVE BAYS
5.25" external
3.5" external
3.5" internal 2x
2.5" internal 4x¹
¹ can vary by using several mounting options

FRONT CONNECTORS

USB 3.0 2x
USB 2.0 2x
Card Reader
Microphone 1x
Headphones 1x
POWER SUPPLY
ATX-PSU
FAN MOUNTING OPTION
Front 3x 120mm (optional)

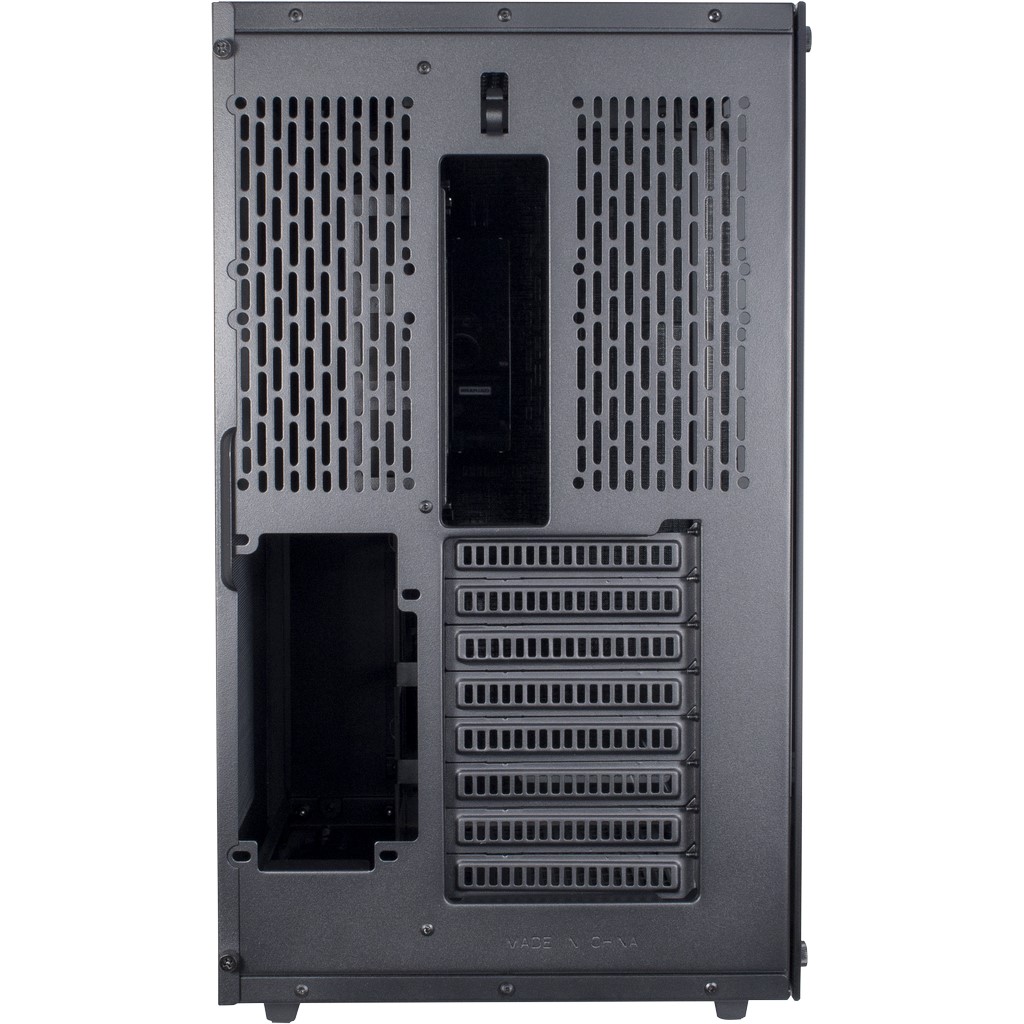

Rear 4x 80mm¹ (optional)
Top 3x 120mm (optional)
Bottom 3x 120mm (optional)
GUARANTEE / WARRANTY
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

Screw set

Dustfilter

Two mounting plates for 2.5" SSD

Cable ties

Speaker

Features

Large tempered glass front panel

Large window side part made of tempered glass

Space for 9x 120mm fans and 4x 80mm fans

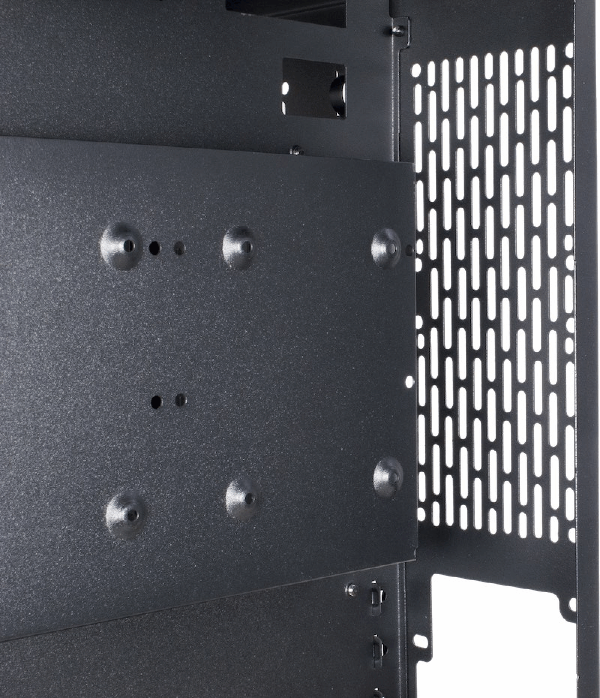

Two 2.5" SSD bays behind the mainboard

Two additional 2.5" SSDs possible instead of the 80mm fan

Space for water cooling in the sizes 120mm, 240mm and 360mm

Power supply receptacle behind the mainboard carrier

Installation options for up to four dual-slot graphics cards

Openings for easy cable laying

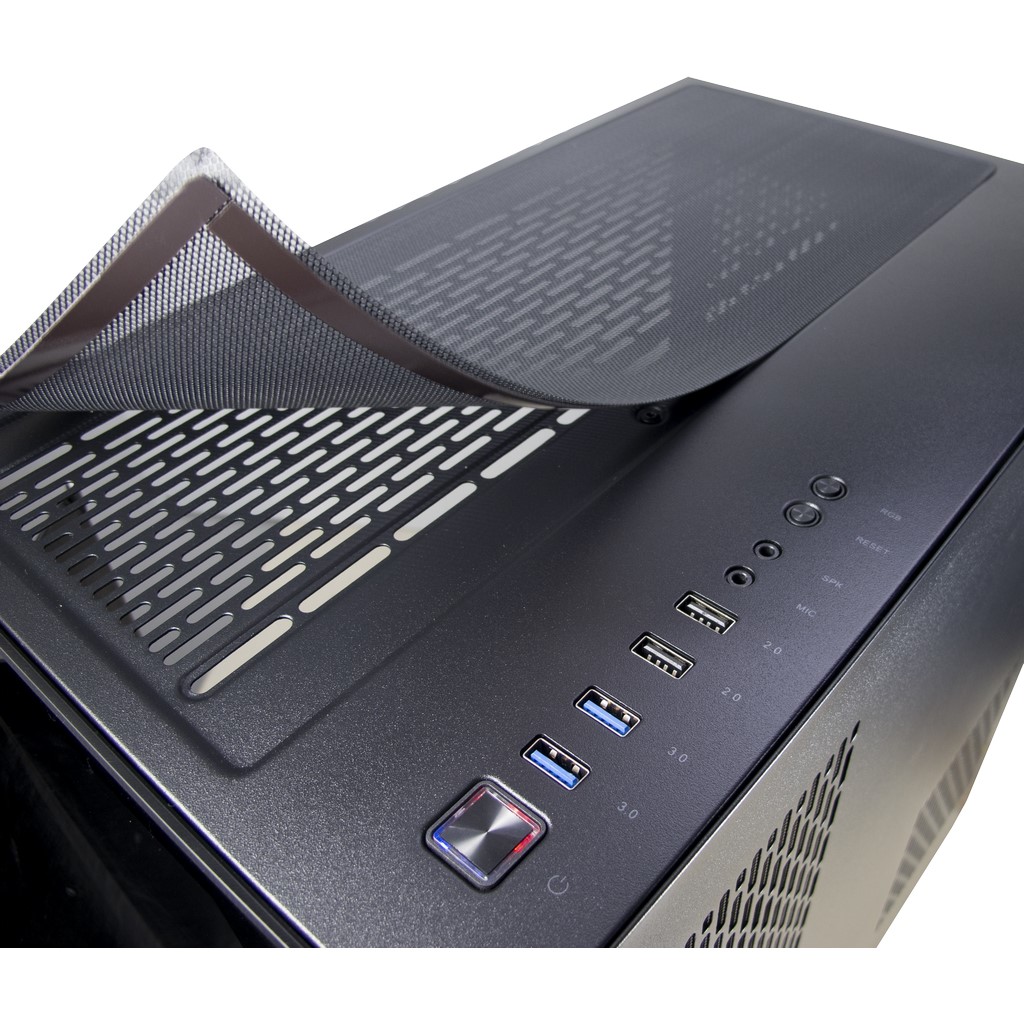

Magnetic dust filter in the top and others in the accessories

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 16 Pcs
Weight net = 6.98kgs
gross = 8.53kgs
Item number 88881327
EAN-Code 4260455645089



Data sheet C-701 Panorama
Download
Picture package C-701 Panorama
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.

Conversion kit for vertical mounting of graphic adapters
