TM-515
TM-515 – The robust high-class Micro-Tower!
With a material thickness of 0.8mm the TM-515 is the perfect Micro- Case for office - and also industrial usage.

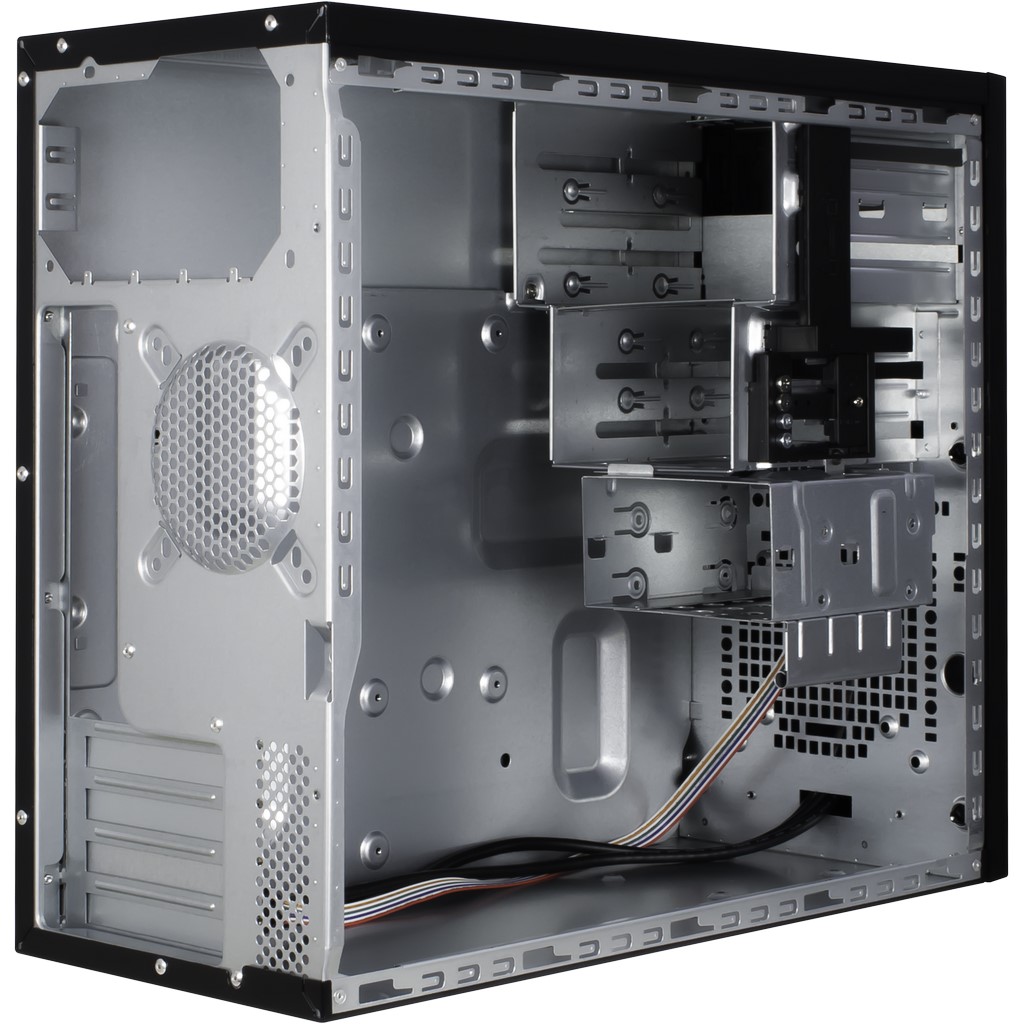

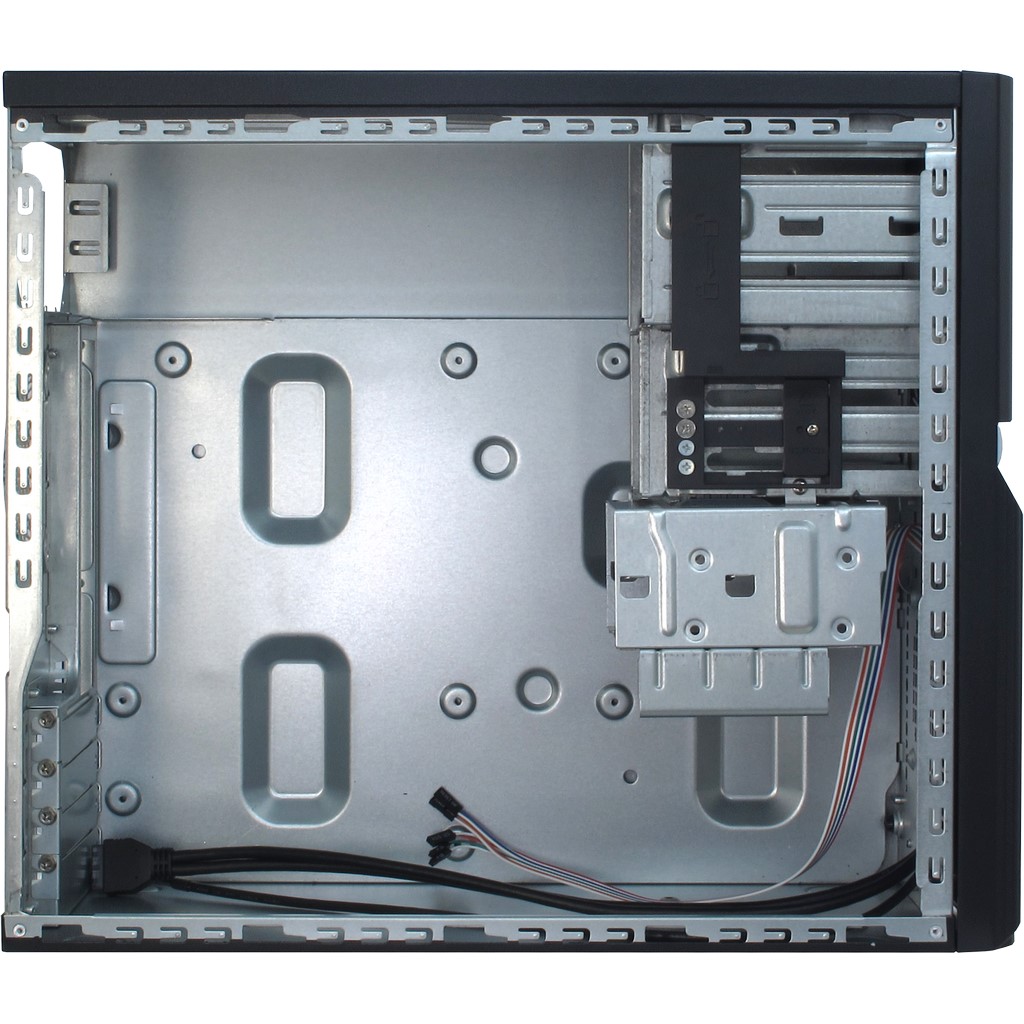

The TM-515 also convinces due to its integrated quick release fasteners which allow you to fix the external 3.5" and 5.25" drives in a trice. The internal HDD cage is removable to ensure a quick and easy mounting of your 2.5" and 3.5" HDDs.
To complete the great package of the TM-515, it offers reusable slotbrackets and two USB 3.0 front connectors.
| SIZE | |
|---|---|
| Form factor | μATX |
| Dimensions (h/w/d) | 365 x 180 x 420mm |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 135mm |
| Length graphics card (max.) | 365mm |
| DRIVE BAYS | |
| 5.25" external | 2x |
| 3.5" external | 1x |
| 3.5" internal | 3x¹ |
| 2.5" internal | 2x¹ |
| ¹ the results may differ in certain combinations
FRONT CONNECTORS |
|
| USB 3.0 | 2x |
| USB 2.0 | |
| Microphone | 1x |
| Headphones | 1x |
| POWER SUPPLY | |
| ATX-PSU | |
| FAN MOUNTING OPTION | |
| Front | 1x 80mm or 1x 120mm (optional) |
| Rear | 1x 80mm or 1x 92mm (optional) |
| GUARANTEE / WARRANTY | |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw set Look loop Speaker Manual |
| Features |
0.8mm Material thickness Quick release fastener for mounting of external drives Removable HDD cage Space for cards with a length of up to 36.5cm Rubber feet for anti-vibration Reusable slot brackets USB 3.0 and Audio plug internal as block connectors HD-Audio |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 28 Pcs |
| Weight | net = 5.01kgs gross = 5.77kgs |
| Item number | 88881249 |
| EAN-Code | 4260133129504 |
 |
