MA-01 MICRO

The MA-Series convinces with several mounting options in a small case.

Besides space for up to six HDDs, removable cage parts underline the versatile equipping options. Rubber buffers in the mounting holes for 3.5" HDDs and dumped case feet ensure a quiet operation.

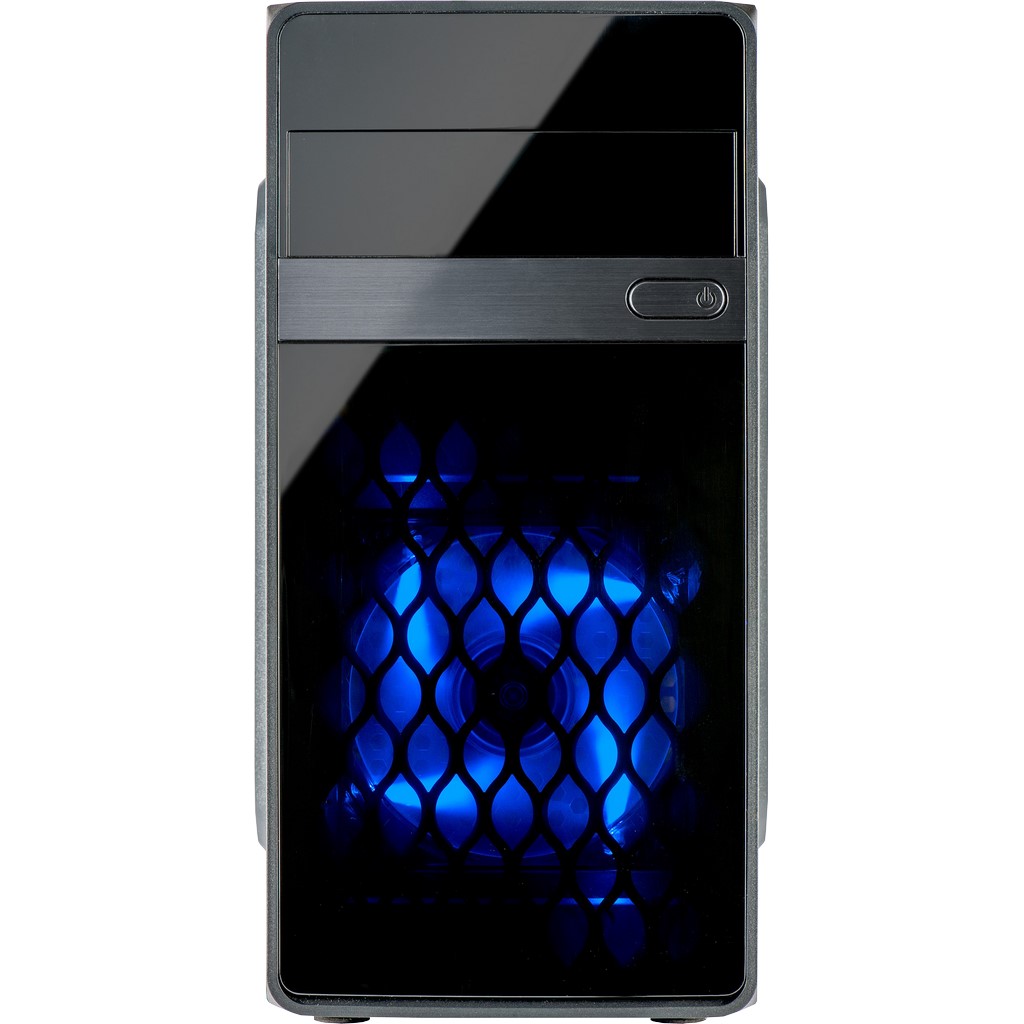

The MA-01 Micro is equipped with one USB 3.0 and two USB 2.0 front connectors. A blue illuminated 120mm fan in the front and space for graphics cards with a length of 30.5cm complete the offer.

SIZE
Form factor μATX
Dimensions (h/w/d) 360 x 190 x 370mm
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 125mm
Length graphics card (max.) 305mm
DRIVE BAYS
5.25" external 1x
3.5" external
3.5" internal 3x¹
2.5" internal 5x¹
¹ can vary by using several mounting options

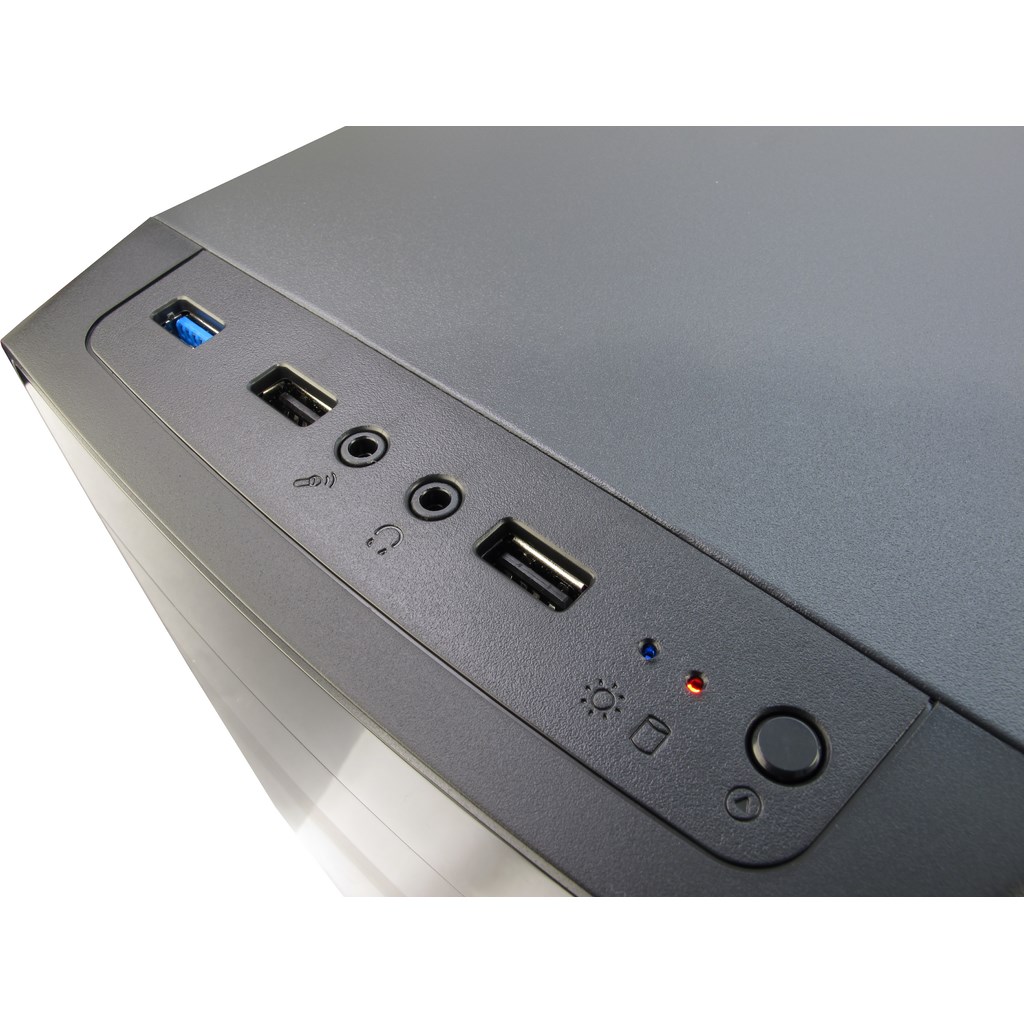

FRONT CONNECTORS

USB 3.0 1x
USB 2.0 2x
Microphone 1x
Headphones 1x
POWER SUPPLY
ATX-PSU
FAN MOUNTING OPTION
Front 1x 80mm (optional) or 1x 120mm (1x 120mm serial, blue illuminated)
Side 1x 120mm (optional)
Rear 1x 80mm (optional)
GUARANTEE / WARRANTY
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

1x 120mm LED-Fan (blue illuminated, 3Pin or 4pin Molex-connector)

Mounting angle for power supply assembly

Screw Set

Features

Vibration dumped mounting for up to two 3.5" HDDs

Translucent front panel with piano finish

Removable drive bays

Space for graphics Cards with a length of 30.5cm

Cable management

Side panel with thumb screws

USB 3.0, USB 2.0 and Audio plug internal as standard block connectors

Reset-Button

Look loop

HD-Audio

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 35 Pcs
Weight net = 2.71kgs
gross = 3.32kgs
Item number 88881263
EAN-Code 4260455640404

Data sheet MA-01 Micro
Download
Picture package MA-01 Micro
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
