H-606

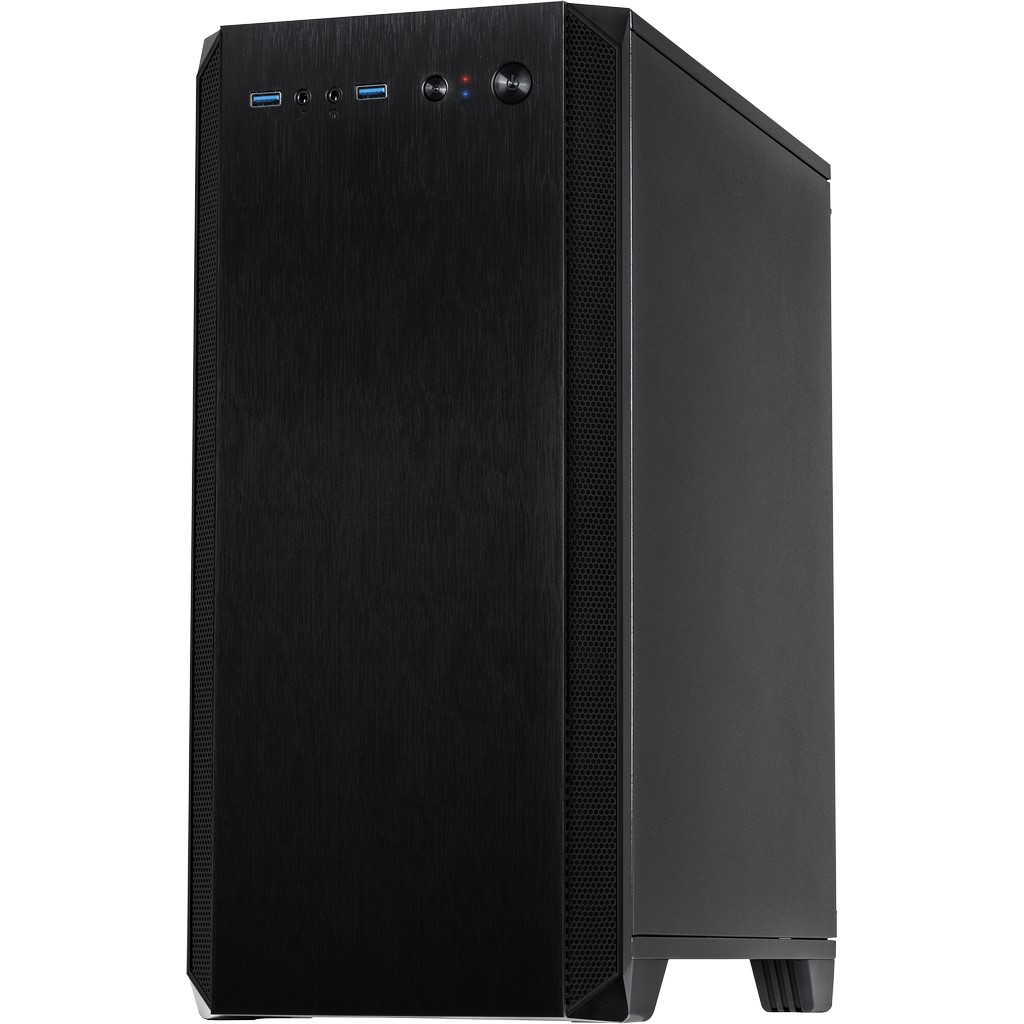

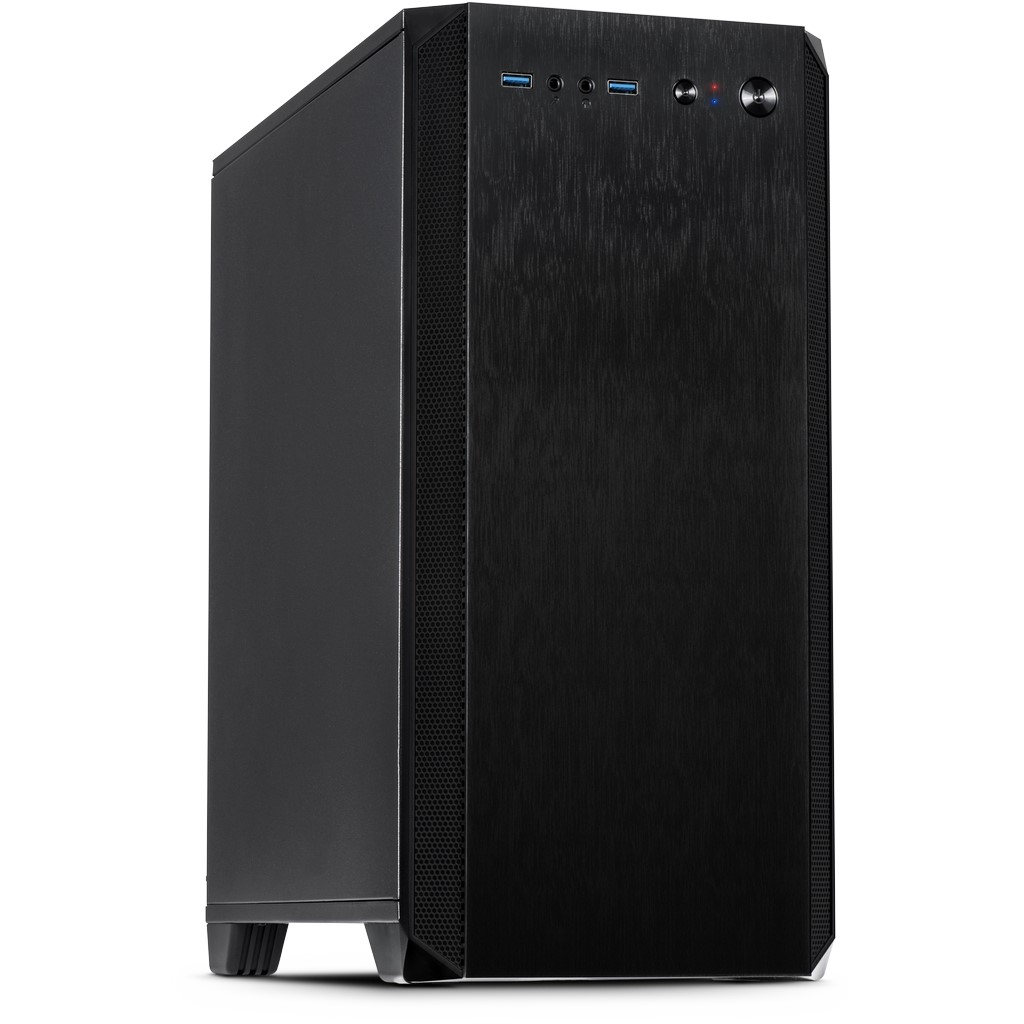

H-606 – unheard of quiet!

With its pleasing appearance, the H-606 bis the perfect basis for a silent PC system. The sound insulated case was developed for quiet systems and is therefore ideal for use in a low-noise environment.

Its compact design in the Micro-ATX standard offers, thanks to the absence of external drive bays, enough space and can also accommodate graphics cards up to a length of 32cm.

Standard insulation mats on both sides and cover, a graphics card holder and a smooth-running 120mm fan on the back ensure an extremely quiet, as well as well-cooled system.


  • both sides and cover sound insulated
  • two USB 3.0 interfaces
  • standard 120mm fan
  • rubberized power supply pads


SIZE
Form factor μATX
Dimensions (h/w/d) 405 x 190 x 390mm
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 150mm
Length graphics card (max.) 320mm
DRIVE BAYS
5.25" external
3.5" external
3.5" internal 2x¹

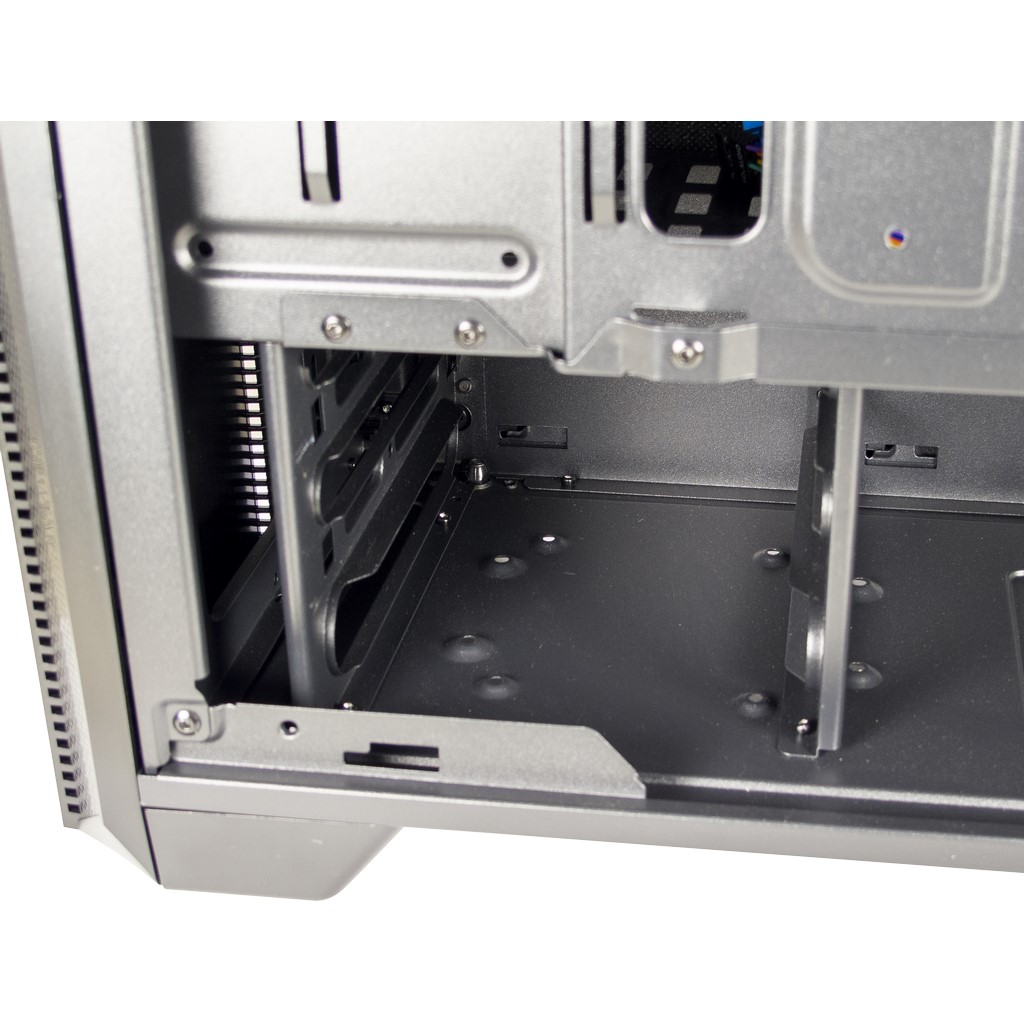

2.5" internal 5x¹
¹ can vary by using several mounting options

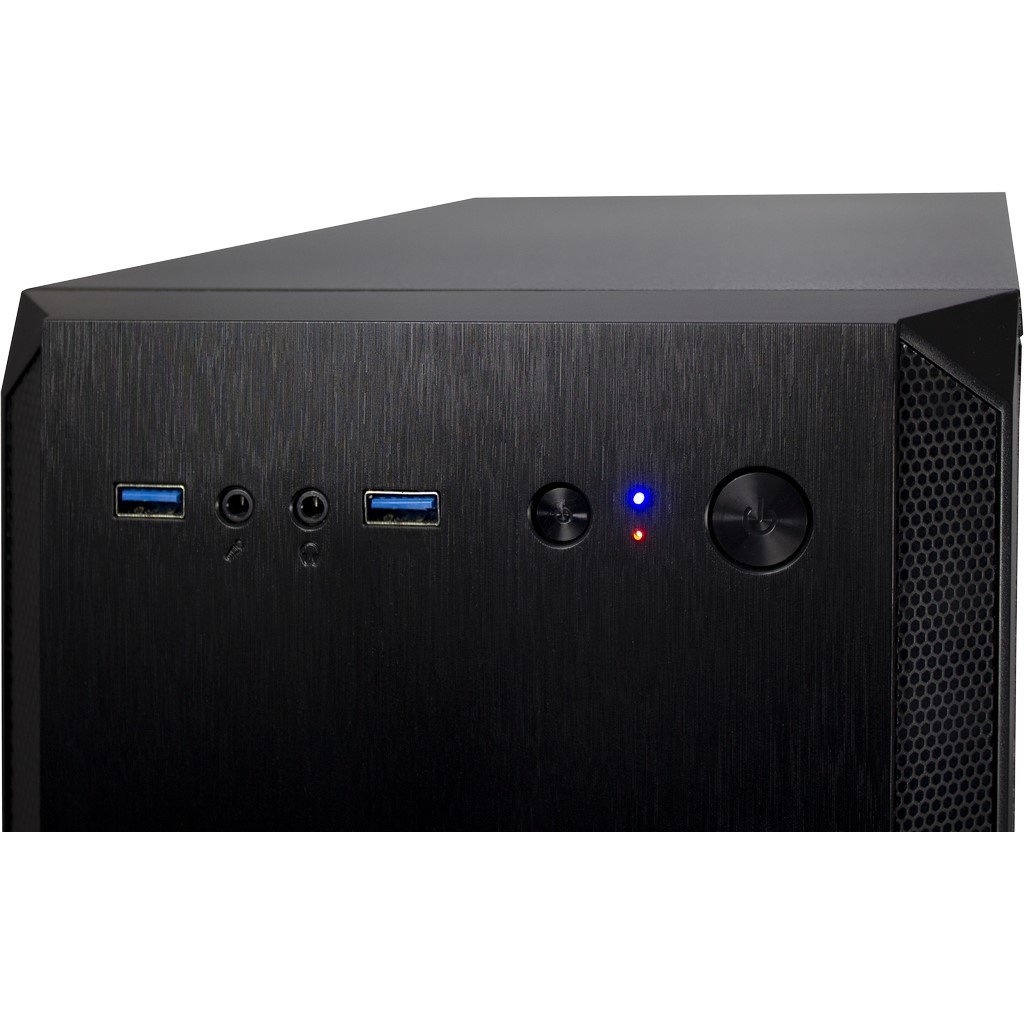

FRONT CONNECTORS

USB 3.0 2x
USB 2.0
Microphone 1x
Headphones 1x
POWER SUPPLY
ATX-PSU
FAN MOUNTING OPTION
Front 3x 120mm (optional)
Rear 1x 120mm (serial, 3Pin)
GUARANTEE / WARRANTY
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

Screw set

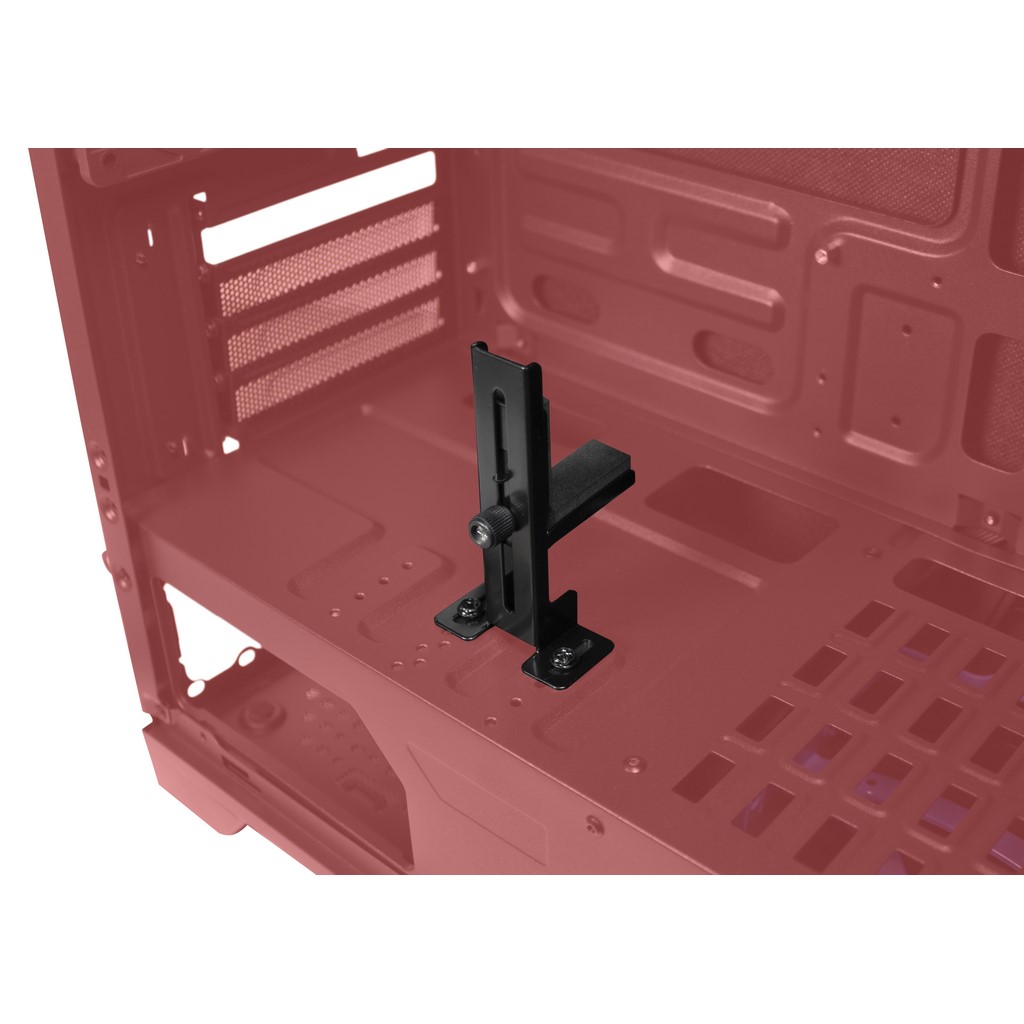

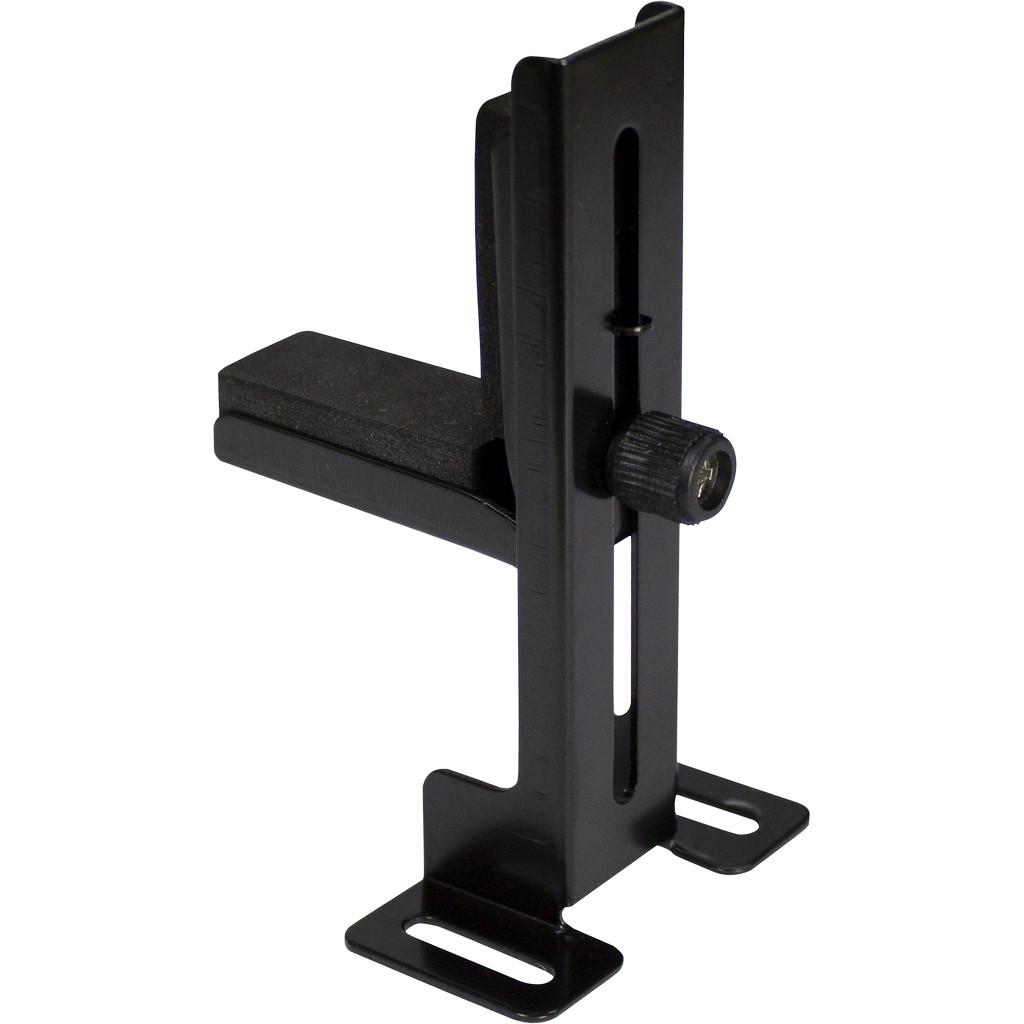

Graphics card holder

Two velcro cable ties

Installation guide

Features

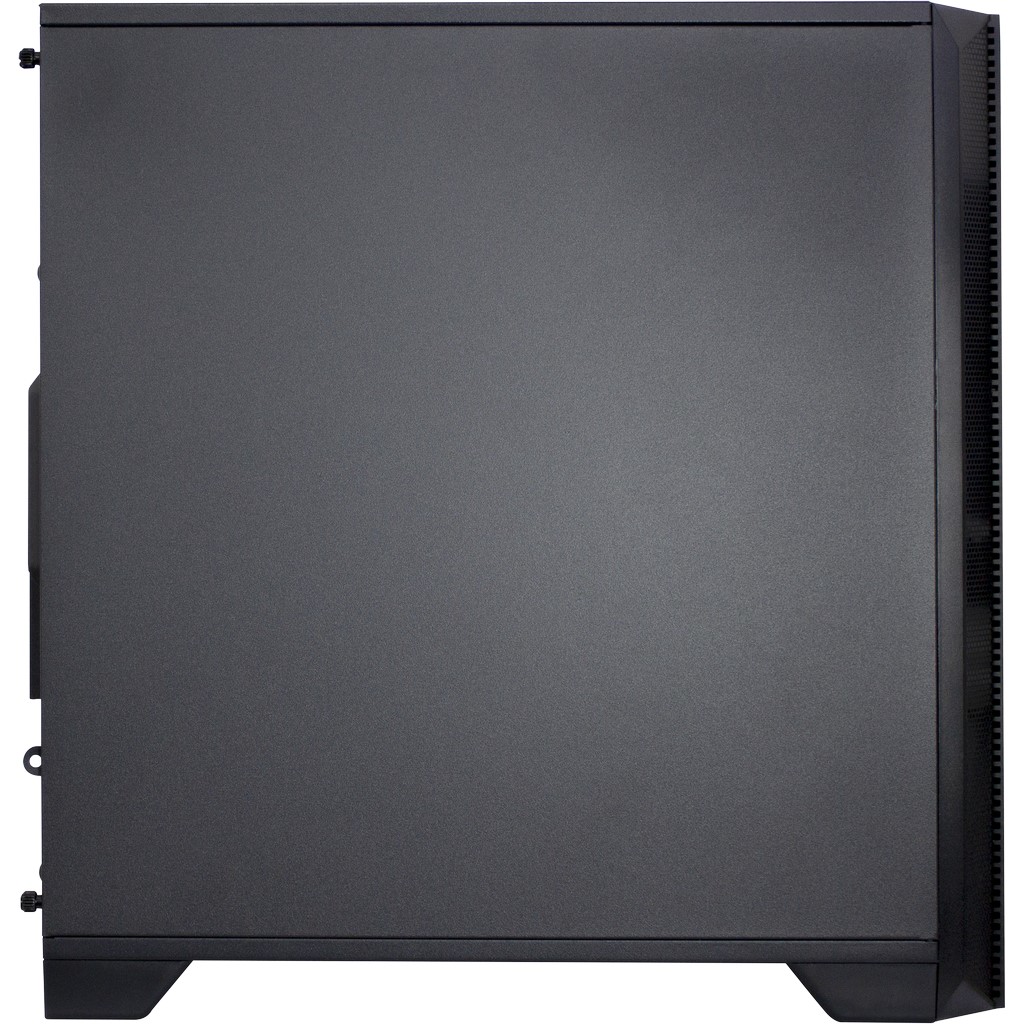

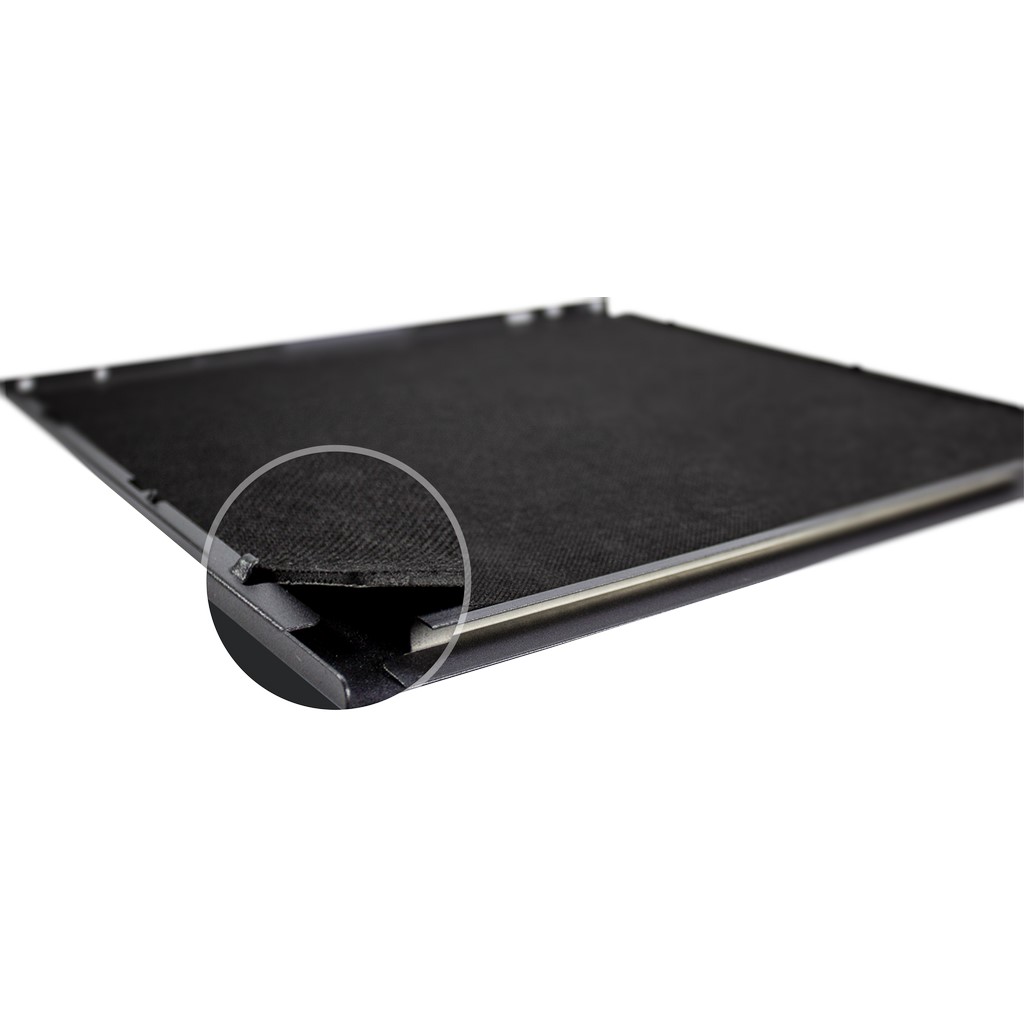

Both sides and cover sound insulated

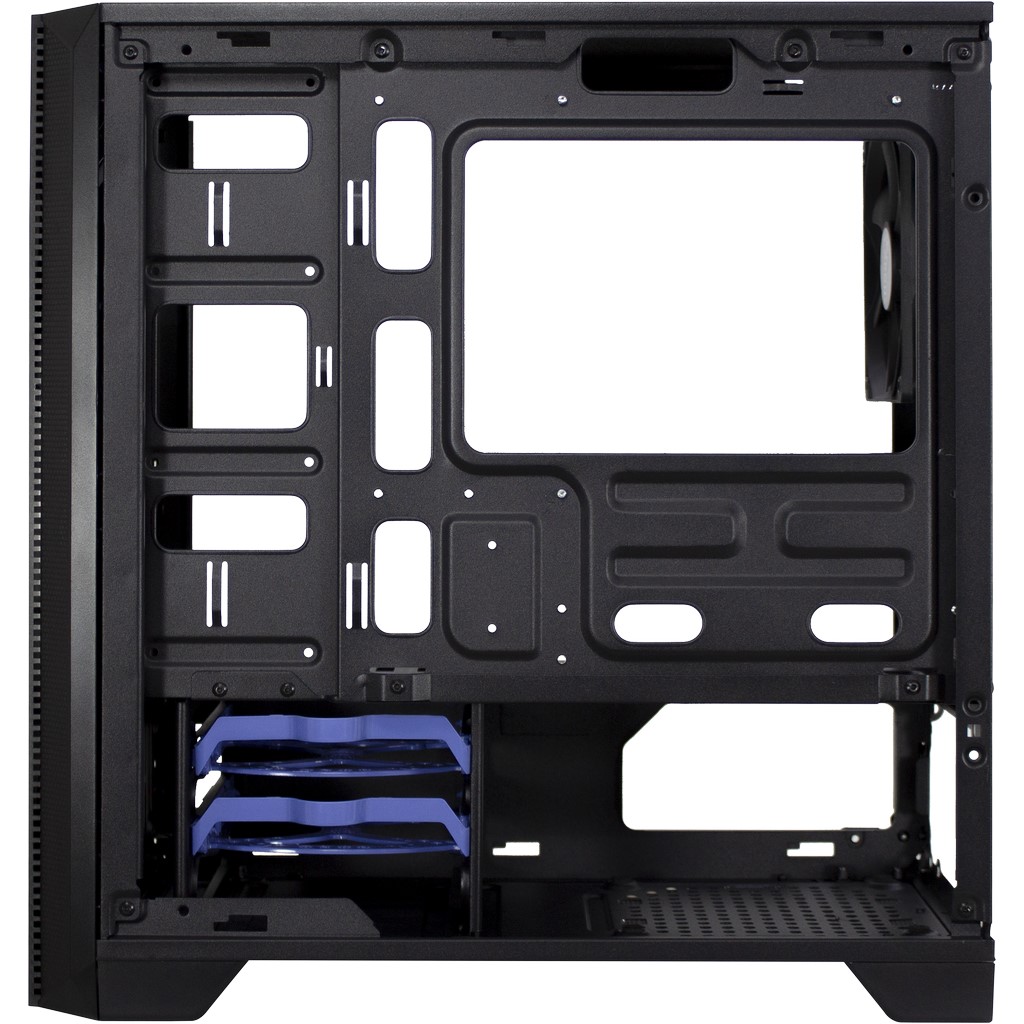

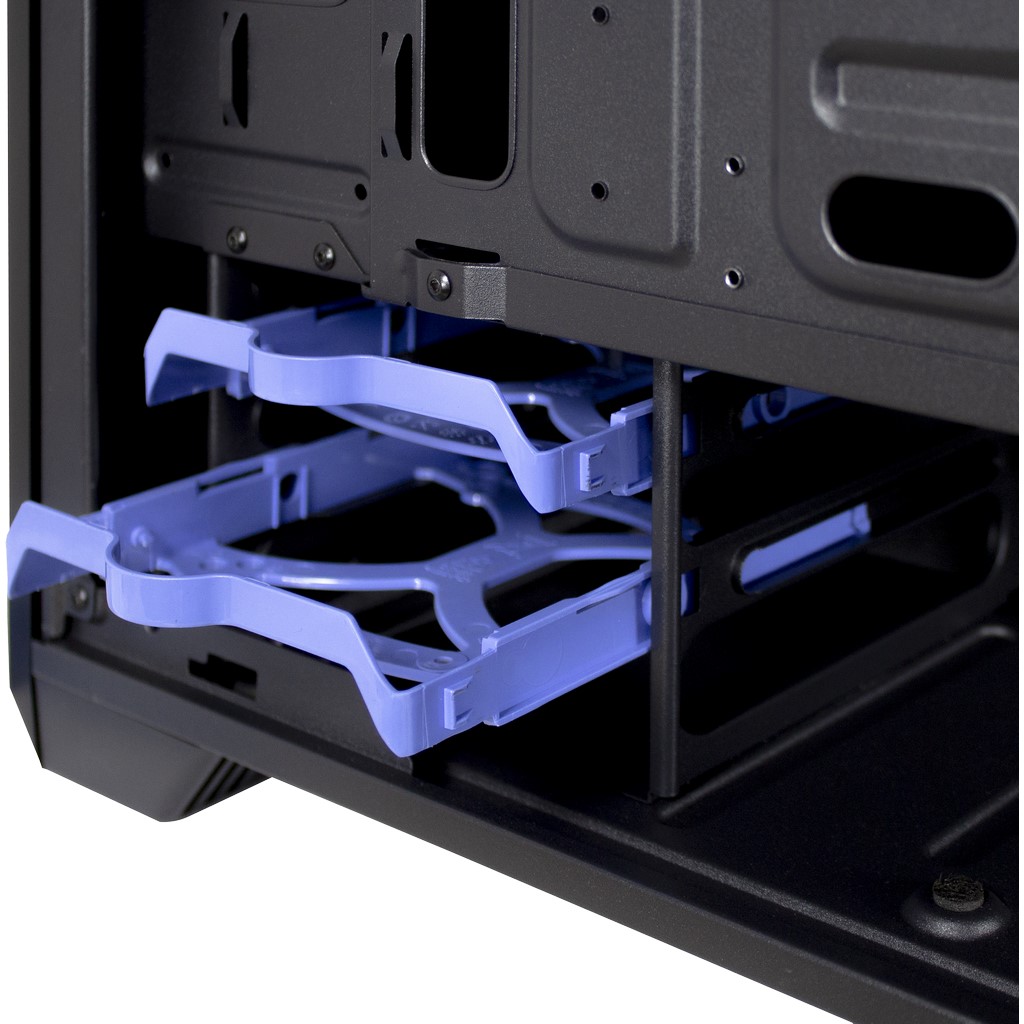

Screwless mounting for 3.5" HDDs

Reusable mesh grid slot brackets

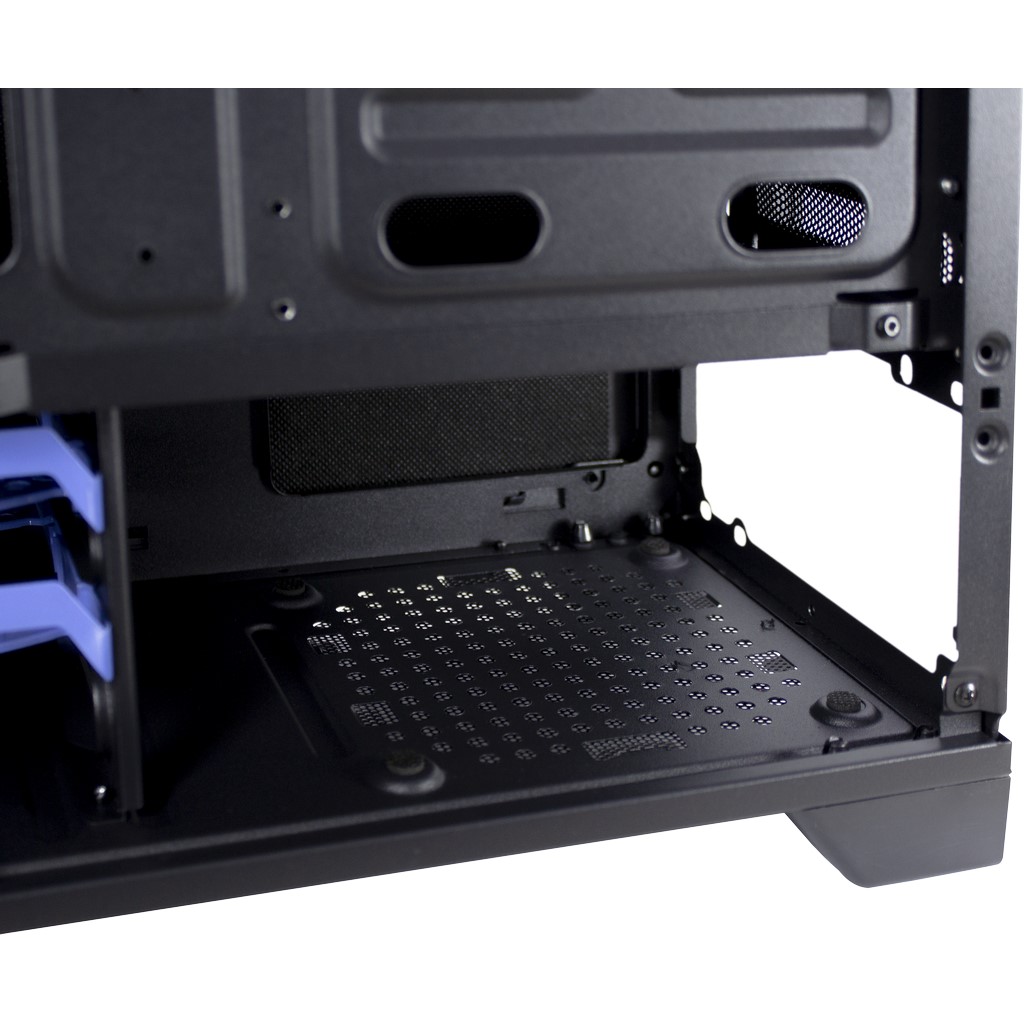

Rubberized pads for vibration-free power supply operation

Easy-to-remove dust filter below the power supply

Receptacle for water cooling in sizes 120mm and 240mm

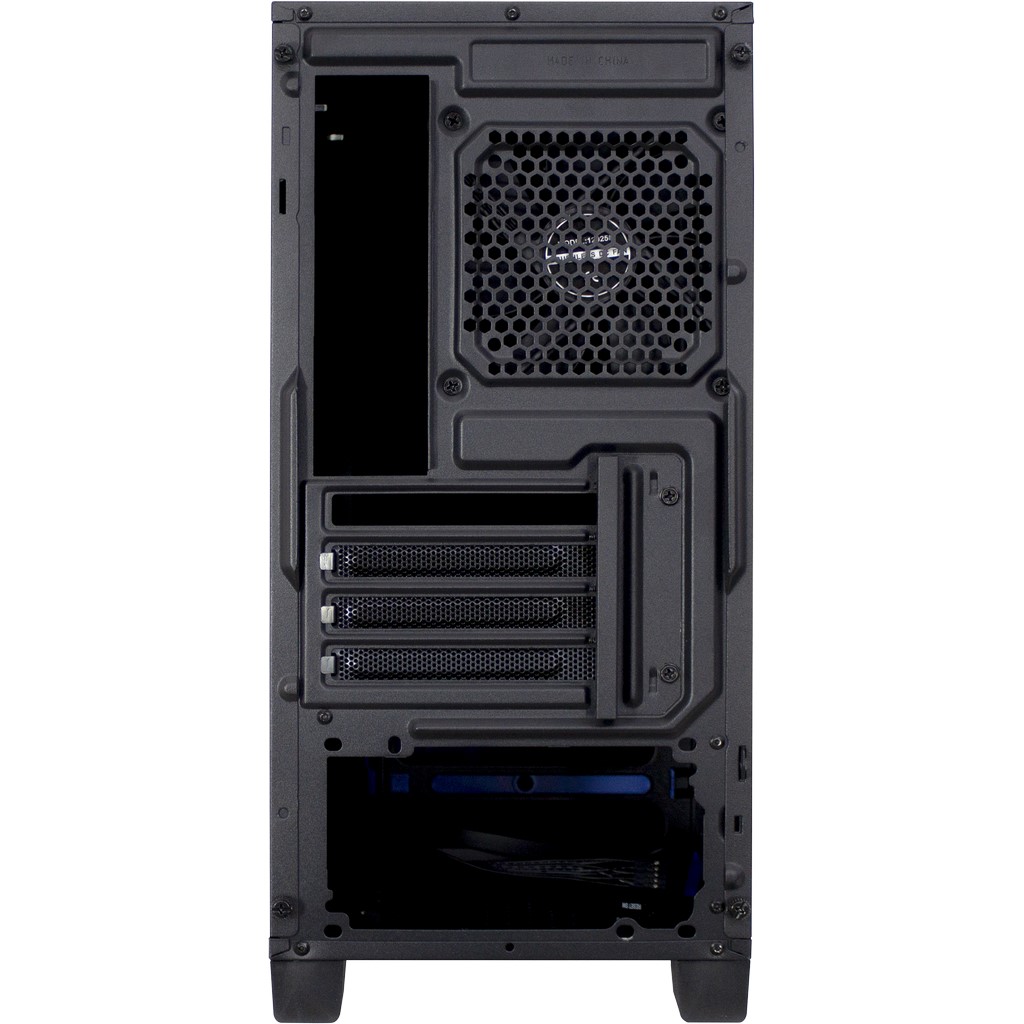

1x 120mm fan on the back installed as standard

Openings for easy laying of the cables

Side parts secured with knurled screws

USB 3.0 and audio plug internally as standardized block plug

Preparation for Kensington lock

Lock loop

Stands

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 24 Pcs
Weight net = 3.75kgs
gross = 4.45kgs
Item number 88881311
EAN-Code 4260455643788



Data sheet H-606
Download
Picture package H-606
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
