S-703

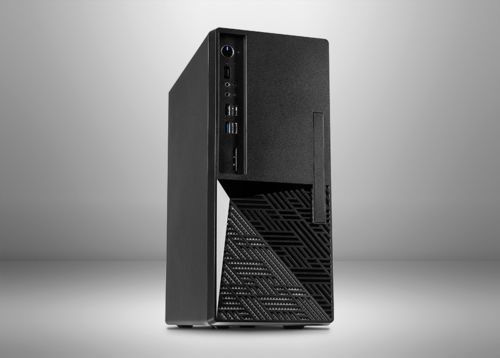

The S-703 is a high-quality desktop/micro-ATX case, which offers great design space in a compact size.
Its fold-out drive cage offers the option of easily installing a Slim-DVD drive in addition to 2.5" and 3.5" hard drives. The 3.5" hard disks are also attached vibration-damping.
A great variety of interfaces are located on the front panel. In addition to the mandatory ports for USB 2.0 and 3.0, you also have a USB 3.0 Type C port and an SDHC/MMC card reader available. The cage made of 0.8mm thick steel as well as the high-quality painting completes the package and makes the S-703 a true all-rounder.
- USB 3.0 Type C connector
- SDHC/MMC card reader
- high quality (0.8mm steel)
- can be positioned horizontally or vertically
| SIZE | |
|---|---|
| Form factor | μATX (max. 244 x 220mm/8.9"x8.6"), Mini-ITX |
| Dimensions (h/w/d) | 340 x 145 x 290mm |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 115mm |
| Length graphics card (max.) | 160mm²/240mm |
| ² without second 3.5" HDD
DRIVE BAYS |
|
| 5.25" Slim external (9.5mm height) | 1x |
| 3.5" external | |
| 3.5" internal | 2x¹ |
| 2.5" internal | 2x¹ |
| ¹ can vary by using several mounting options
FRONT CONNECTORS |
|
| USB 3.0 | 1x |
| USB 3.0 Type C | 1x |
| USB 2.0 | 1x |
| Card Reader | |
| Microphone | 1x |
| Headphones | 1x |
| POWER SUPPLY | |
| TFX-PSU | |
| FAN MOUNTING OPTION | |
| Rear | 1x 80mm (optional) |
| GUARANTEE / WARRANTY | |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw set Cable ties Mounting angles for TFX power supply and Slim-DVD Cover for Slim-DVD drive Four additional vibration dampers for hard drives Four adhesive feet for horizontal positioning of the case Manual (german) |
| Features |
15 liter case with 0.8mm steel cage Preparation for TFX power supply Can be positioned horizontally or vertically Retractable mounting cage for ODD and HDD/SSD Space for 1x Slim-DVD with 9.5mm height Vibration damper for 3.5" hard drives SDHC/MMC Card Reader Upper slot bracket reusable USB Type C internally as USB 3.0 connector Preparation for Kensington-Lock Rubberized feet Lock loop HD-Audio |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 40 Pcs |
| Weight | net = 4.21kgs gross = 4.86kgs |
| Item number | 88881247 |
| EAN-Code | 4260455644716 |
