IT-607 DESKTOP

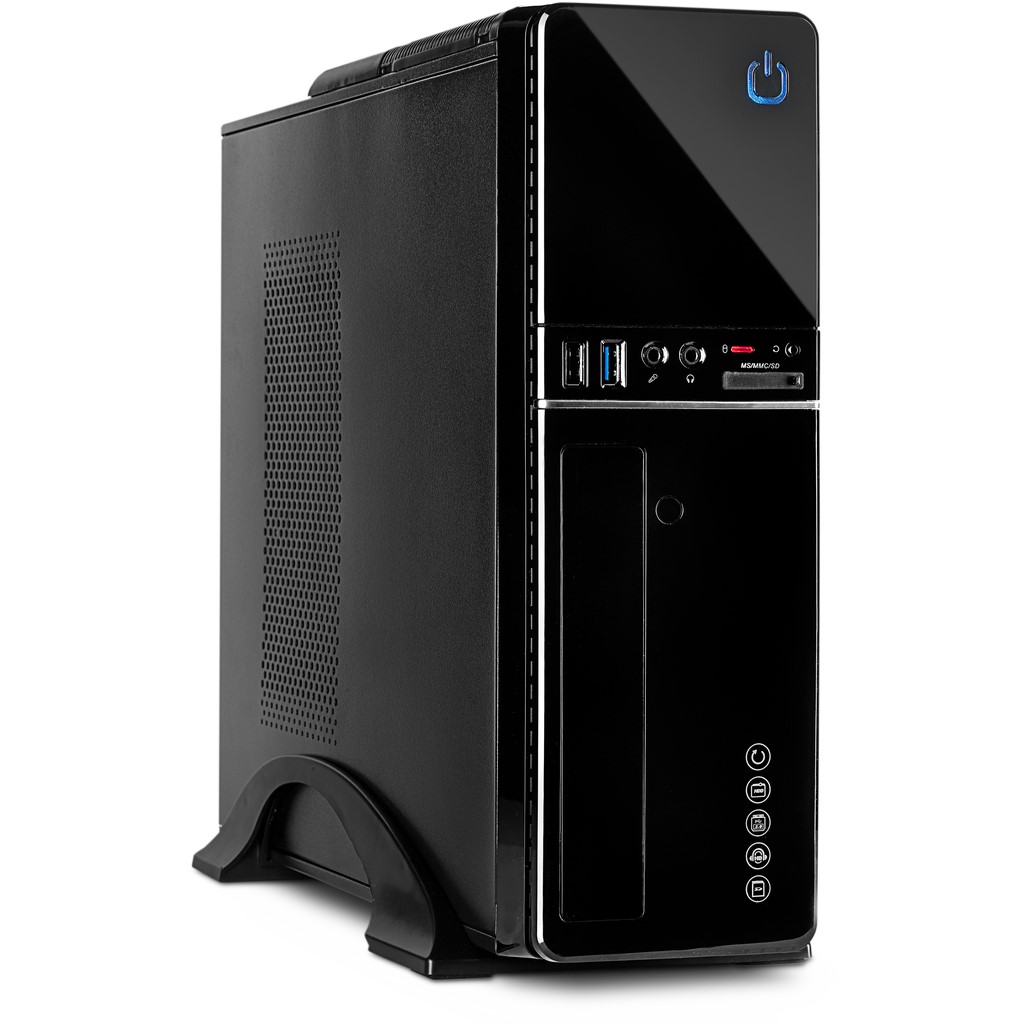

IT-607 Desktop - Innovative concepts on small space!

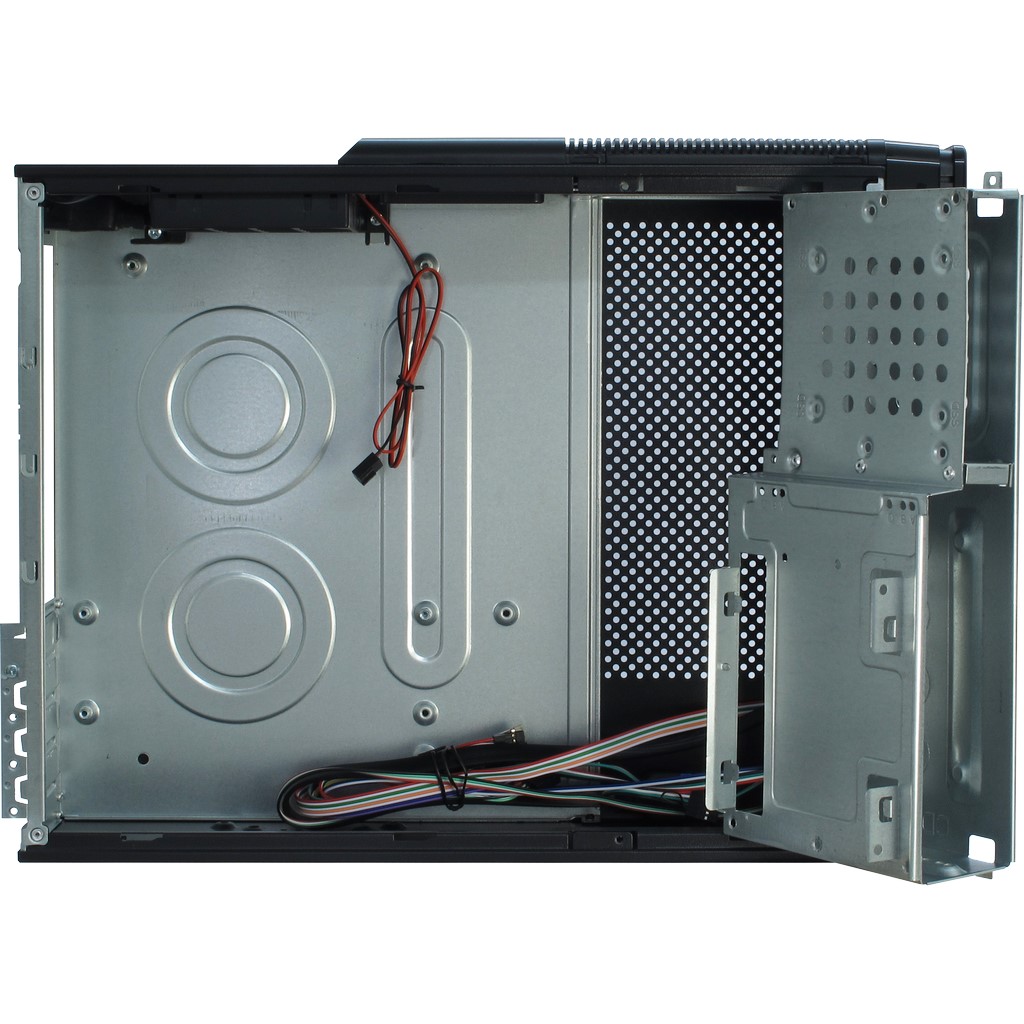

Starting with a mounting cage, which can be turned out 90° for easy mounting of all components over an additional mounting option in the bottom of the case, which can hold a 2.5" HDD or a 60mm fan.

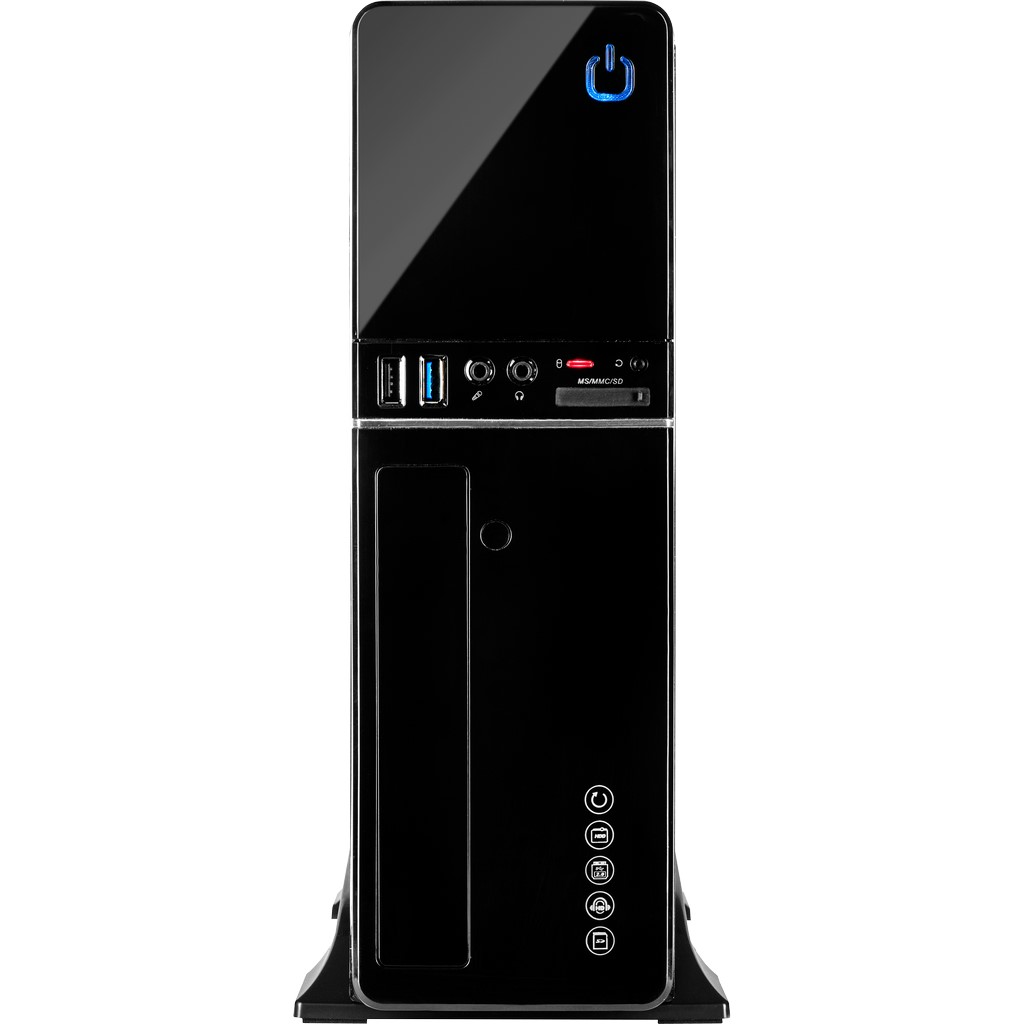

The IT-607 Desktop is space-saving mounted on the enclosed feet. With its two USB front connectors, 1x USB 3.0 and 1x USB 2.0, and a SD/MMC/MS-Card Reader, the case offers several options for external devices and memory cards.
| SIZE | |
|---|---|
| Form factor | Mini-ITX, μATX |
| Dimensions (h/w/d) | 307 x 100 x 415mm |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 70mm |
| Length graphics card (max.) | 225mm |
| DRIVE BAYS | |
| 5.25" external | 1x |
| 3.5" external | |
| 3.5" internal | 2x |
| 2.5" internal | 2x¹ |
| ¹ can vary by using several mounting options
FRONT CONNECTORS |
|
| USB 3.0 | 1x |
| USB 2.0 | 1x |
| Card Reader | |
| Microphone | 1x |
| Headphones | 1x |
| POWER SUPPLY | |
| SFX-PSU | |
| FAN MOUNTING OPTION | |
| Side | 1x 60mm¹ or 1x 80mm (1x 80mm serial, 3pin connector) |
| GUARANTEE / WARRANTY | |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Foot Screw Set Power cord Manual |
| Features |
SD/MMC/MS–Card Reader Carrying handle for easy transport Turnable mounting cage for ODD and HDD/SSD Front panel with piano finish Upper slot bracket reusable USB 3.0, USB 2.0 and Audio plug internal as standard block connectors Space for up to four low-profile cards Reset-Button Lock Loop HD-Audio |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 55 Pcs |
| Weight | net = 2.42kgs gross = 3.02kgs |
| Item number | 88881223 |
| EAN-Code | 4260133126305 |
