IT-502 DESKTOP

IT-502 Desktop - Innovative concepts on small space!

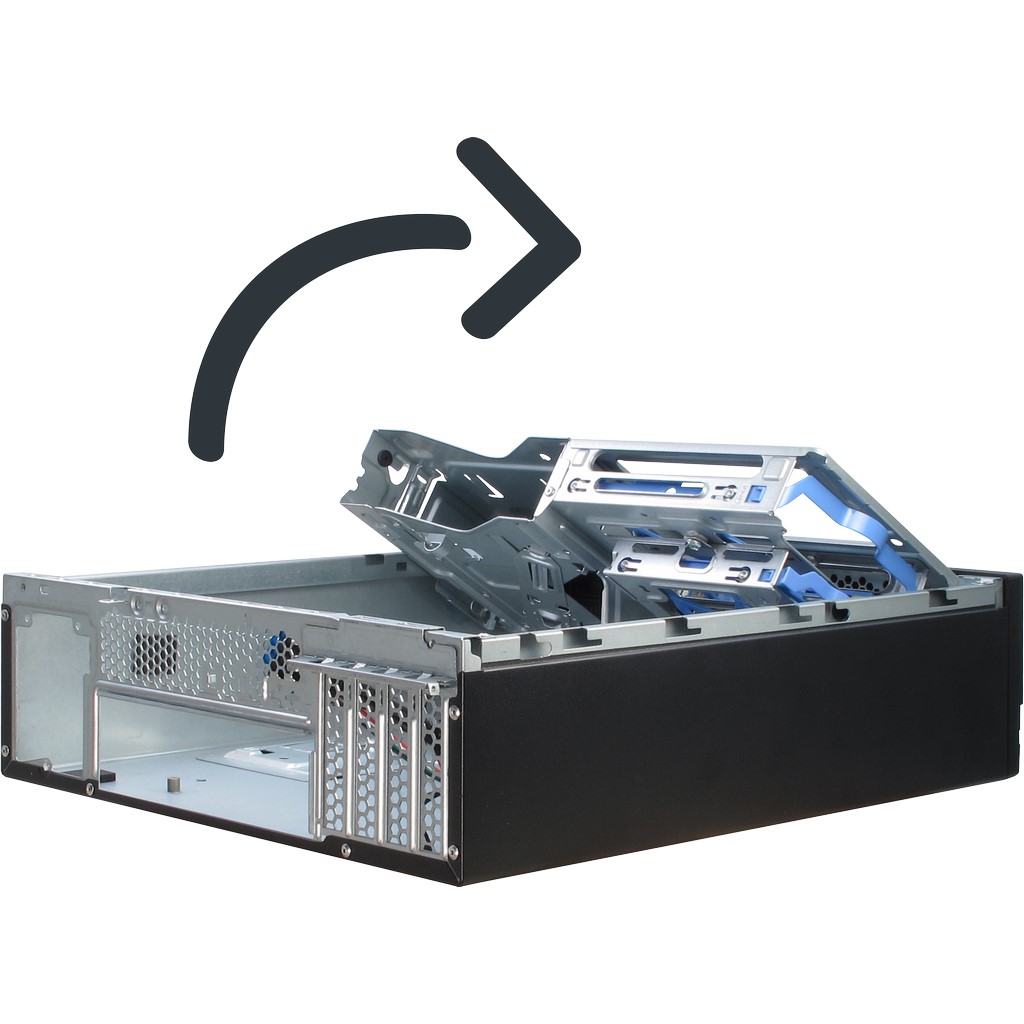

Starting with the cap, which has a special locking mechanism, over a mounting cage, which can be turned out 90° for easy and screwless mounting of all components up to the integrated cable ducts, which ensure a structured cable management and prevent heat accumulation.

The IT-502 Desktop can be placed horizontally or vertically and offers four USB front connectors, 2x USB 3.0 and 2x USB 2.0, for external devices.

SIZE
Form factor Mini-ITX, μATX
Dimensions (h/w/d) 340 x 105 x 380mm
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 70mm
Length graphics card (max.) 195mm
DRIVE BAYS
5.25" external 1x
3.5" external 1x
3.5" internal 1x
2.5" internal 1x
FRONT CONNECTORS
USB 3.0 2x
USB 2.0 2x
Microphone 1x
Headphones 1x
POWER SUPPLY
TFX-PSU
FAN MOUNTING OPTION
Front 1x 60mm (optional)
GUARANTEE / WARRANTY
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

Foot

Screw Set

Mounting bracket for external 3.5" drive

Manual

Features

TFX PSU slot

Horizontal or vertical positionable

Turnable mounting cage for ODD and HDD/SSD

Screwless, decoupled mounting of HDD/SSD

Screwless mounting of Low-Profile cards

Reusable slot brackets

Cable management

USB 3.0, USB 2.0 and Audio plug internal as standard block connectors

Lock Loop

HD-Audio

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 40 Pcs
Weight net = 2.98kgs
gross = 3.63kgs
Item number 88881234
EAN-Code 4260133128873
