S38

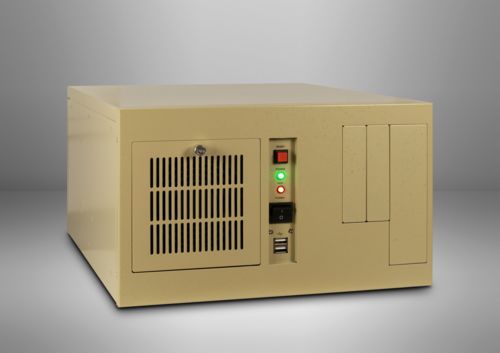

The IPC S34 is a perfect case for a cost-efficient Mini Server System. Using high-level material combined with excellent workmanship we created a variable and reliable industrial case.
So the IPC S34 supports ITX, Micro-ATX and ATX Mainboards, provides bays for two external 3,5" and one external 2,5" devices as well as cutouts for five DB9/DB15 ports and one Printer-port at the backside of the case.
Furthermore the case has one 120mmn fan with exchangeable dust filter in the front and screwed slot brackets.
Two USB 2.0 ports at the front and a DC output at the backside complete that total package.



Features



One 120mm fan serial
Exchangeable dust filter
HDD cageremovable and decoupled
Internal 3,5" device separately decoupled
Internal speaker serial
Cutouts for five DB9/ DB15 ports
Cutout for one DB25/ printer port
Seven Full-Size PCI-slots
Screwed slot brackets

Size
Mainboard
Case
Mini-ITX, Micro-ATX, ATX (max. 305 x 244mm - 12"x9,6")
330 x 205 x 405mm

HDD/ ODD Mounting space


5,25" external
3,5" external
3,5" internal
2,5" internal
3,5" or 2,5" internal
PCIe
1
2
1
1
-
7 Full-size

Front connectors

USB A 3.0
USB A 2.0
USB Type C
Headphone
Microphone
Card Reader
DC-OUtput
-
2
-
-
-
-
1 (Power switch looped through, suitable plug included)

Mounted fans

200mm
140mm
120mm
80mm
-
-
1
-

General mounting options

Power supply
CPU cooler
Graphic adapter
Fans
External
ATX
max. 85mm
max. 330mm
-
5x DB9/DB15
1x DB25/Printer

Scope of delivery


Case
Wall mounting
4 stands
Screws
Suitable plug for DC-output port

Warranty

24 months

Logistic data
Net weight
Gross weight
Article number
GTIN
Packing unit
7,320 kgs
9,850 kgs
88887314
4260455646062
1 pcs
16 pcs (pallet)



Actually no tests available

Data sheet S38
Download
Declaration of conformity S38
Download
Technical drawing S38
Download
Picture package S38
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.

No specific accessories available
