ITX A80 BLACK

The Mini-ITX case A80 by Inter-Tech - modern, stylish and strikingly practical.

Completely made of aluminum, it also offers a perfect, thermal relief through various ventilation openings. Its simple design language also makes it look timelessly elegant.

Systems based on Mini-ITX can be designed very energy-saving, so that the standard, external 60W power supply is usually sufficient to run a powerful ITX computer. However, the internal Mini-ITX PSU board is able to handle input voltages of up to 120W.


  • Robust full aluminum case
  • 2x USB 3.0
  • including 60W power supply
  • high quality feet, chrome plated

SIZE
Form factor ITX
Dimensions (h/w/d) 88 x 200 x 200mm
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 40mm²/30mm³
Length graphics card (max.)
² without drives
³ with drives

DRIVE BAYS

5.25" Slim external
3.5" external
3.5" internal 1x/ ¹
2.5" internal / 2x¹
¹ can vary by using several mounting options

FRONT CONNECTORS

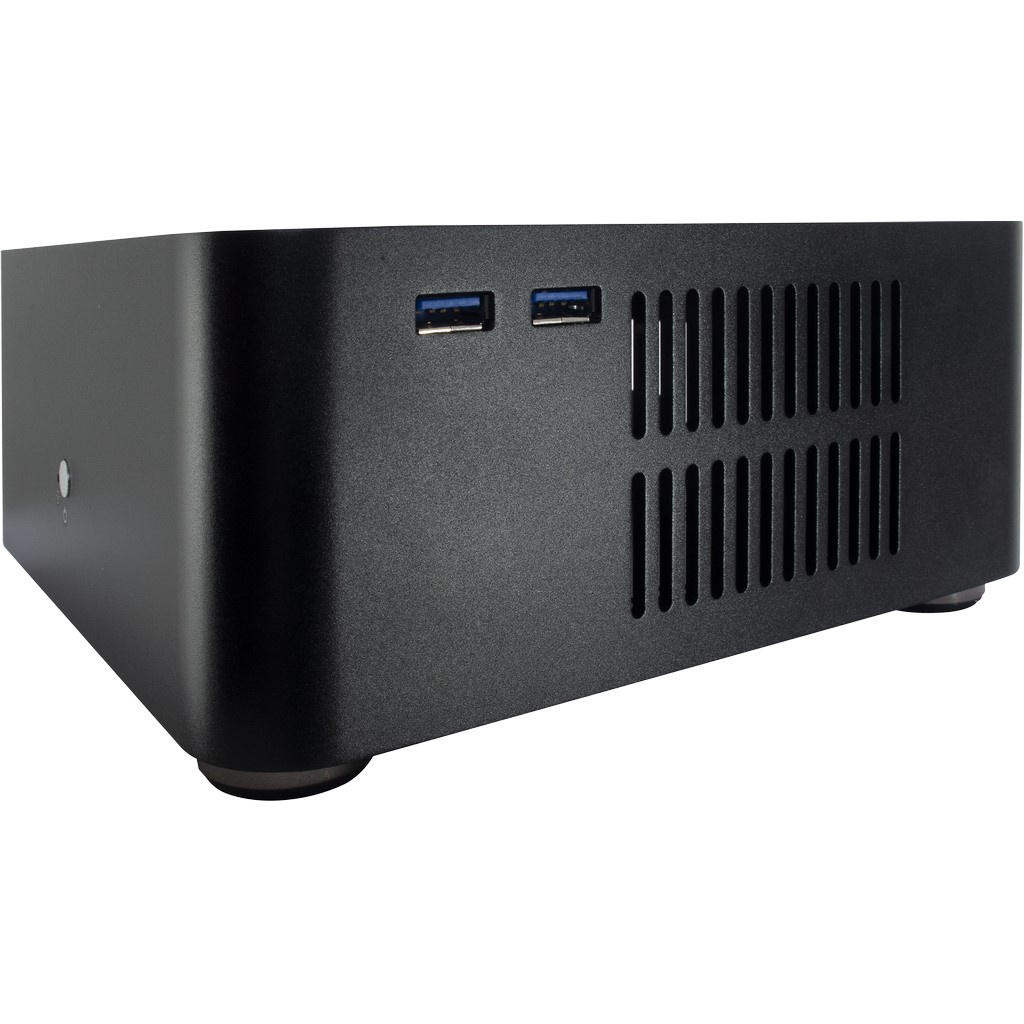

USB 3.0 2x
USB 2.0
Microphone
Headphones
CASE OPENING
WLAN-Antenna 2x
COM-Port 3x
POWER SUPPLY
Power supply 60W external PSU (serial)
Connector 12V plug with dimensions of 5.5 x 2.5 x 10.7mm
FAN MOUNTING OPTION

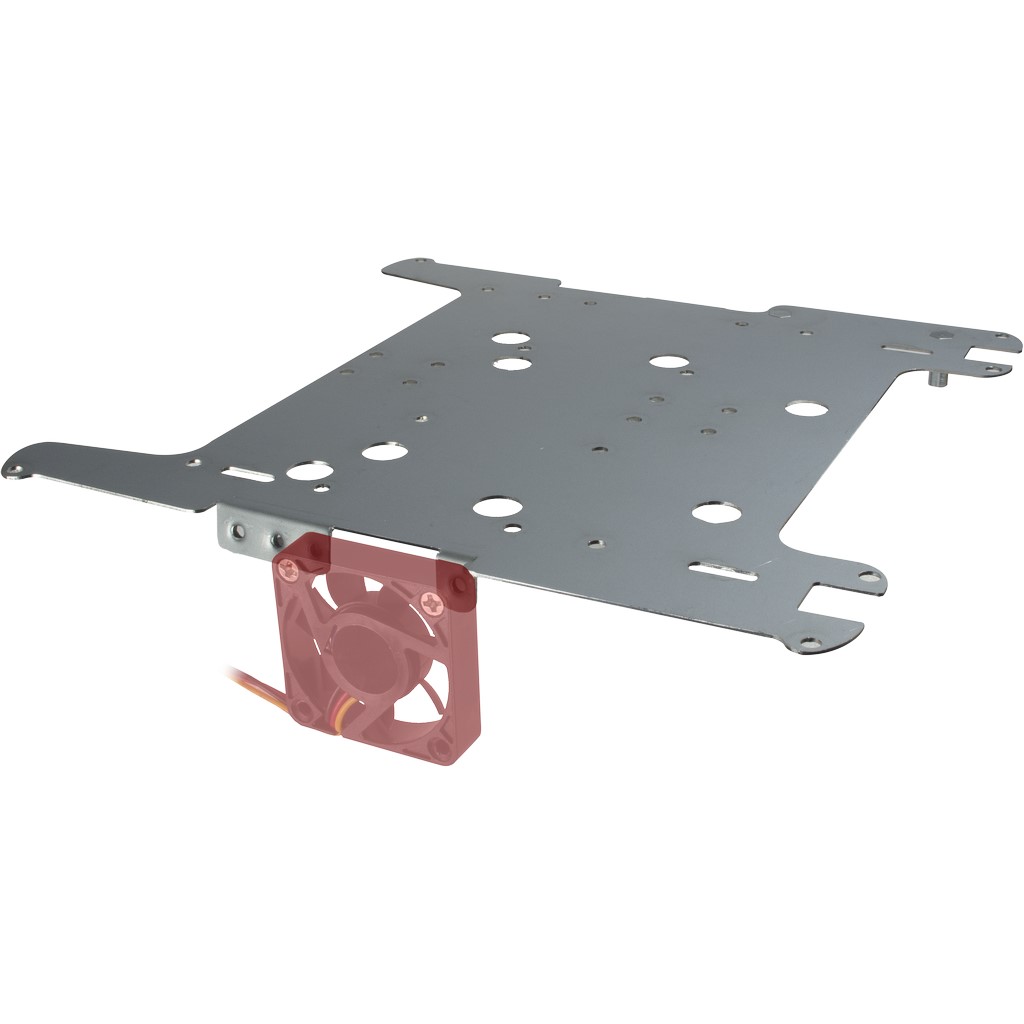

HDD-Tray laterally 2x 40x40x10mm or 2x 50x50x10mm or 2x 60x60x10mm (optional)
GUARANTEE / WARRANTY
Guarantee and Warranty Case 24 Months Warranty
Power Supply 24 Months Guarantee
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

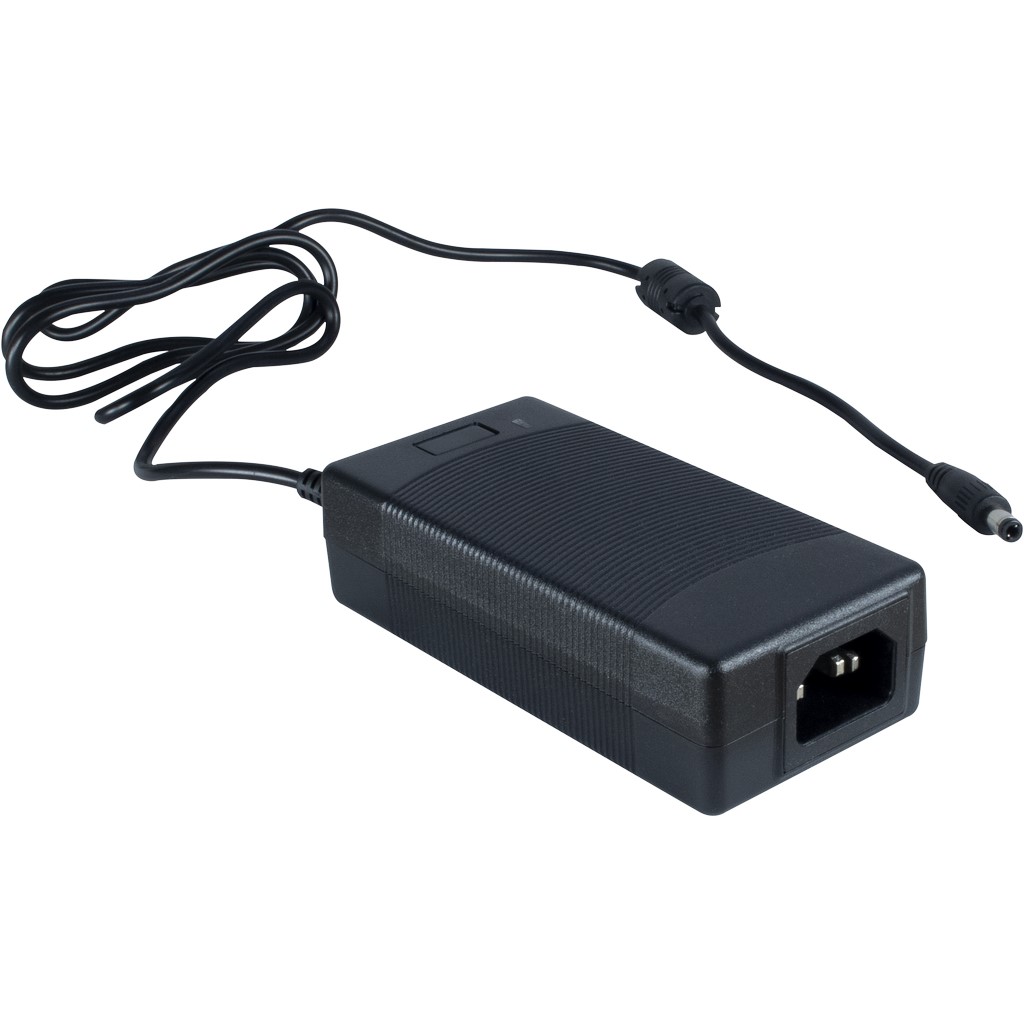

External 60W Power Supply

Mini-ITX PSU max. 120W, 90°

Power cord

Cable ties

Screw Set

Features

External 60W Power Supply

Mini-ITX PSU supports 12V power supplies up to 120W

Preparation for VESA mount 75x75mm

Stands

LOGISTICAL DATA
Shipping Unit 1 Pcs
Packing Unit 6 Pcs
Weight net = 1.07kgs
gross = 1.79kgs
Item number 88881302
EAN-Code 4260455643399

Data sheet ITX A80 Black
Download
Picture package ITX A80 Black
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
