IPC 1U-10265

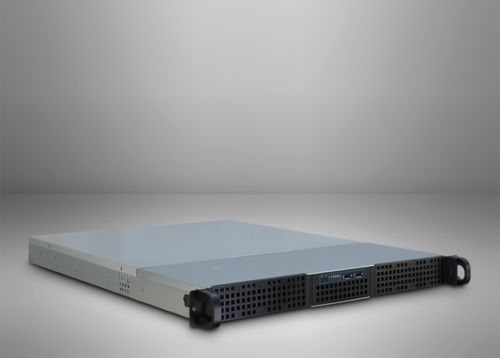

The 1U 10265 is the perfect rack for a low-priced server system.

The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.

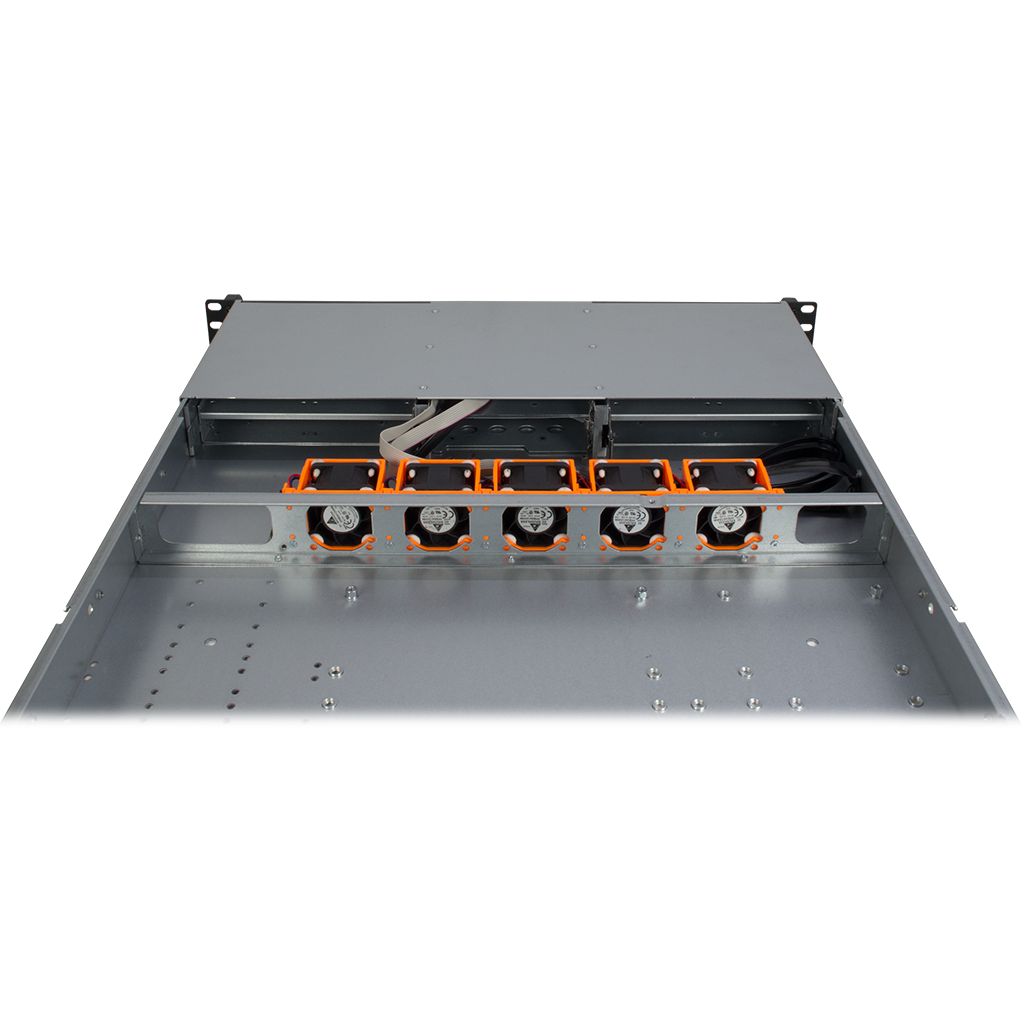

The 1U 10265 provides the possibility to mount nine 2.5" and three 3.5" internal hard drives. Five standard 40mm fans guarantee an optimal cooling.

Additional extras like easily reachable USB 3.0 connectors and the universal ATX I/O plate complete this total package.

MOTHERBOARD
Form factor Mini ITX, mATX, μATX, ATX, eATX, SSI EEB
max. Motherboard size 305mm x 340mm (12" x 13.3")
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 32mm
Length graphics card (max.) 340mm
DRIVE BAYS
5.25" external 2x¹
5.25" external (slim) 1x¹
3.5" external
3.5" internal 3x¹
2.5" internal 9x¹
¹ can vary by using several mounting options

FRONT CONNECTORS

USB 3.0 2x
USB 2.0
POWER SUPPLY
1U Server PSU
FlexATX PSU
FAN MOUNTING OPTION
Inside 10x 40mm (5x included, Molex connector)
CONTROLS & LED
Controls Power-Switch
Reset-Button
LED Power
HDD Activity
3x Network Activity
Alert
OTHER DATA
Dimensions (h/w/d) 44.5 x 482 x 678mm
Material 1.0-1.2mm Steel
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

Screw Set

Mounting frame 5.25" to Slim-DVD/3.5"

Features

5x 40mm fan included

IPC I/O Shield 8 (Universal for cut out)

1x Riser slot, screwless mounting, convertible for left and right mounting direction

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 27 Pcs
Weight net = 7.80kgs
gross = 10.41kgs
Item number 88887102
EAN-Code 4260133126237

Data sheet 1U-10265
Download
Technical drawing 1U-10265
Download
Picture package 1U-10265
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
