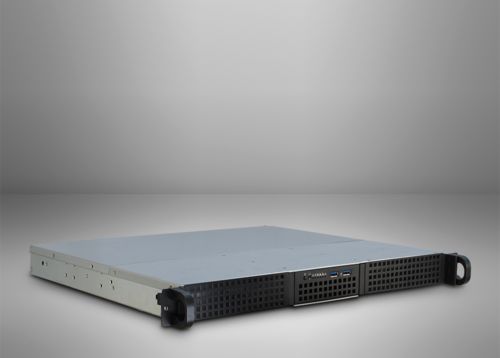

IPC 1U-10240
The 1U 10240 is the perfect rack for a low-priced server system.
The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.
The 1U 10240 provides the possibility to mount maximal eight 2.5" or two 3.5" internal hard drives. Two standard 40mm fans guarantee an optimal cooling.
Additional extras like easily reachable USB connectors and the universal slot bracket complete this total package.
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, mATX², FlexATX, μATX², ATX² |
| max. Motherboard size | 305mm x 191mm (12" x 7.5") |
| ² maximal 191mm mounting depth
INSTALLATION DIMENSIONS |
|
| Height CPU cooler (max.) | 32mm |
| Length graphics card (max.) | 191mm |
| DRIVE BAYS | |
| 5.25" external | 2x¹ |
| 5.25" external (slim) | |
| 3.5" external | |
| 3.5" internal | 2x¹ |
| 2.5" internal | 8x¹ |
| ¹ can vary by using several mounting options
FRONT CONNECTORS |
|
| USB 3.0 | 2x |
| POWER SUPPLY | |
| 1U Server PSU | |
| FlexATX PSU | |
| FAN MOUNTING OPTION | |
| Inside | 2x 40mm (serial, 3pin (4pin connector)) |
| CONTROLS & LED | |
| Controls | Power-Switch Reset-Button |
| LED | Power HDD Activity 3x Network Activity Alert |
| OTHER DATA | |
| Dimensions (h/w/d) | 44.5 x 482 x 428mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw Set Mounting bracket for FlexATX PSU |
| Features |
2x 40mm fan included Universal ATX I/O plate 1x Riser slot |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 42 Pcs |
| Weight | net = 5.00kgs gross = 6.60kgs |
| Item number | 88887099 |
| EAN-Code | 4260133126206 |
 |
