IPC 2U 2098-SL
The 2U 2098-SL - Classic 19" Rack with a lot of space for different drives.

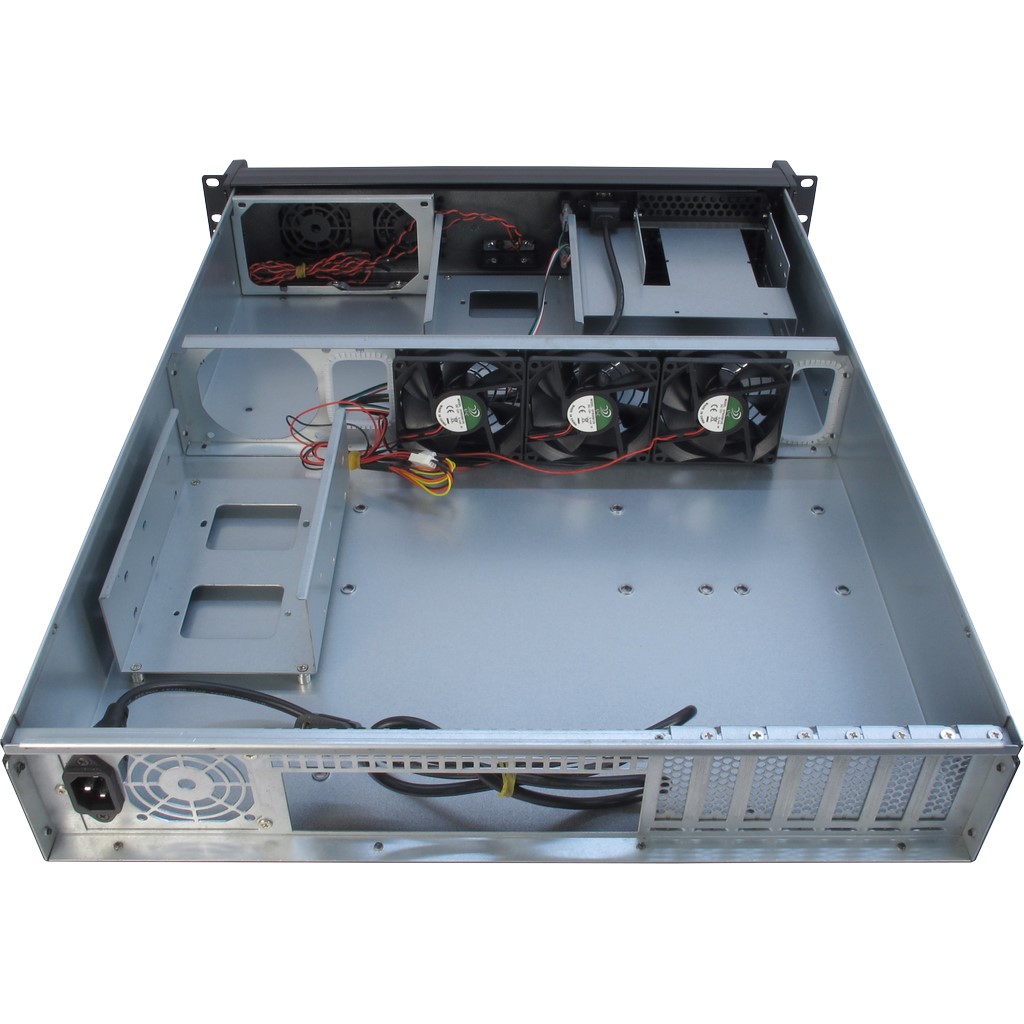

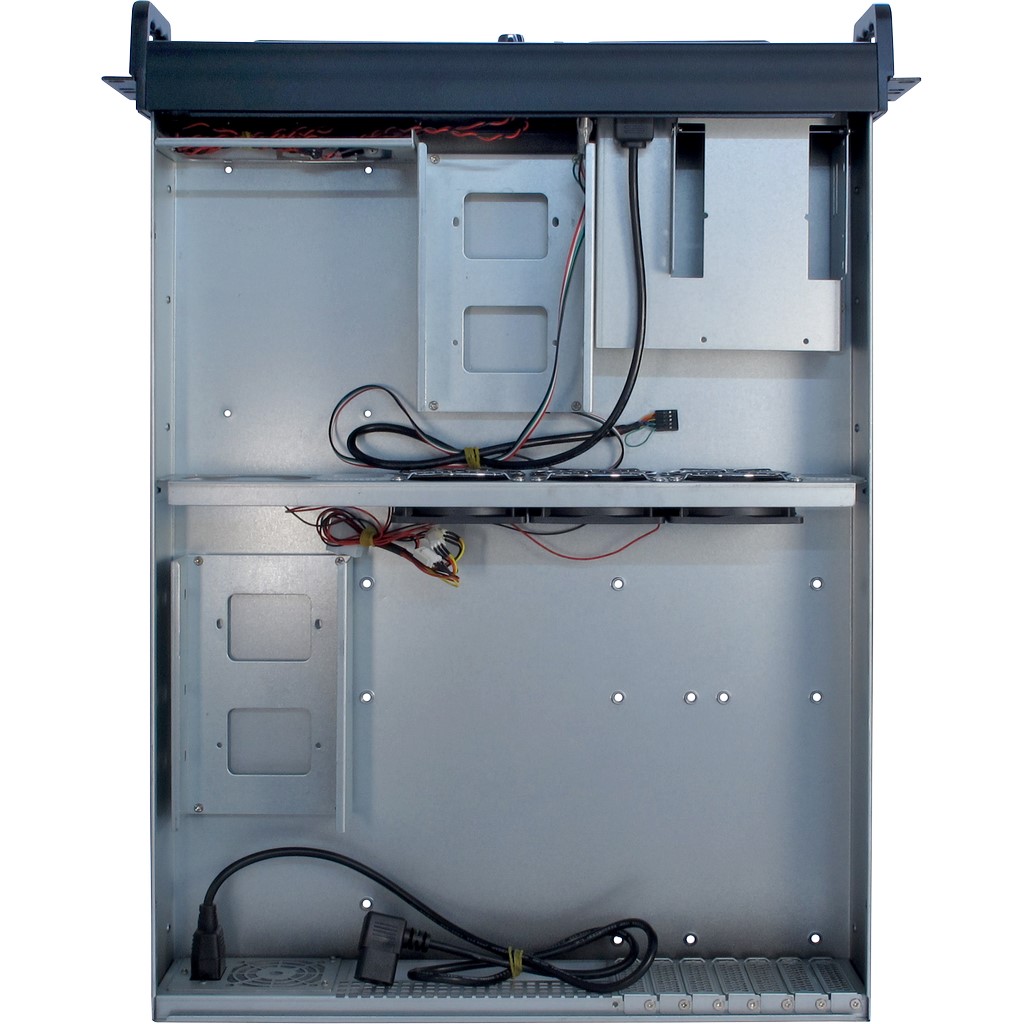

You can remove the HDD cages with a few steps for easy mounting of internal devices.
On top you can mount an ATX PSU with 80mm fan to get a costefficient and professional solution.
Alternatively you can mount a 2U PSU.
The lockable doors in front of the slots prevent, unauthorized access.
Integrated air filters ensure clean air and a flawless cooling.
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, mATX, μATX, ATX |
| max. Motherboard size | 305mm x 290mm (12" x 11.4") |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 65mm |
| Length graphics card (max.) | 290mm |
| DRIVE BAYS | |
| 5.25" external | 1x |
| 5.25" external (slim) | |
| 3.5" external | 1x¹ |
| 3.5" internal | 5x¹ |
| 2.5" internal | 3x¹ |
| ¹ can vary by using several mounting options
FRONT CONNECTORS |
|
| USB 3.0 | 2x |
| USB 2.0 | - |
| POWER SUPPLY | |
| ATX PSU with 80mm fan | |
| 2U Server PSU | |
| FAN MOUNTING OPTION | |
| Front | 2x 60mm (optional) |
| Inside | 4x 80mm (3x included, Molex connector, 1x optional) |
| CONTROLS & LED | |
| Controls | Power-Switch Reset-Button |
| LED | Power HDD Activity |
| OTHER DATA | |
| Dimensions (h/w/d) | 89 x 485 x 615mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Keys Screw Set |
| Features |
Air filter Removable HDD cages 4x screwed Low Profile brackets (backside) Lockable front doors 2x USB 3.0 internal as block connector |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 20 Pcs |
| Weight | net = 8.72kgs gross = 10.80kgs |
| Item number | 88887127 |
| EAN-Code | 4260133128071 |
 |
