IPC 3U 3098-S

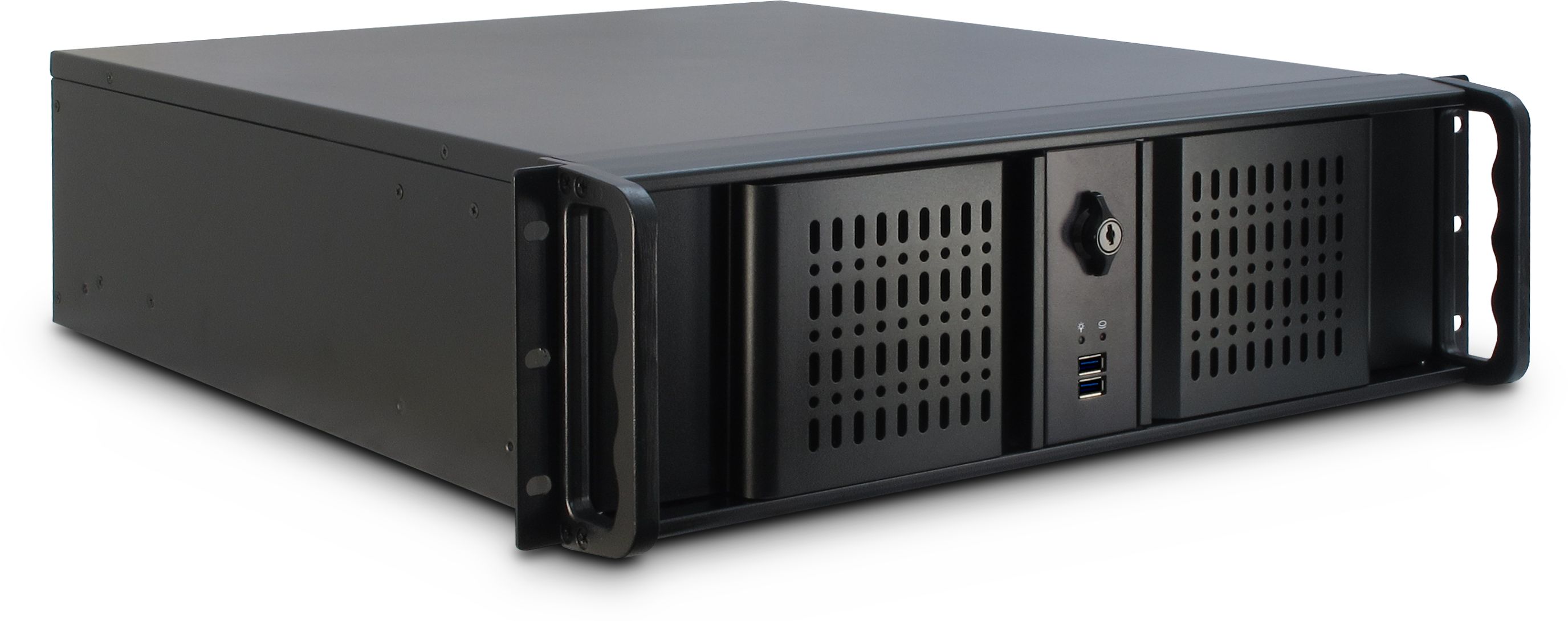

The 3U 3098-S - Classic 19" Rack with a lot of space for different drives.

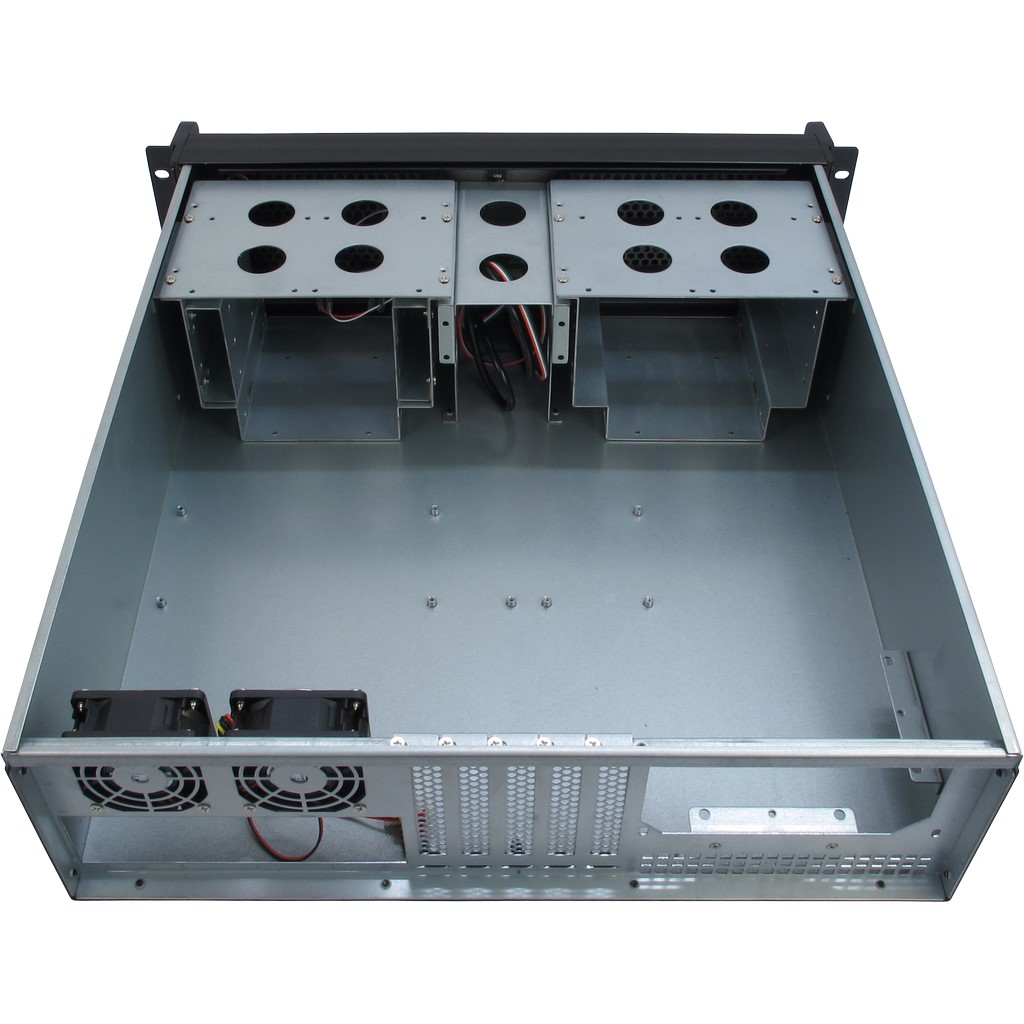

You can remove the HDD cages with a few steps for easy mounting of internal devices.
5 mounting slots with full height and the possibility to mount an ATX-PSU ensures a professional and cost efficient solution.

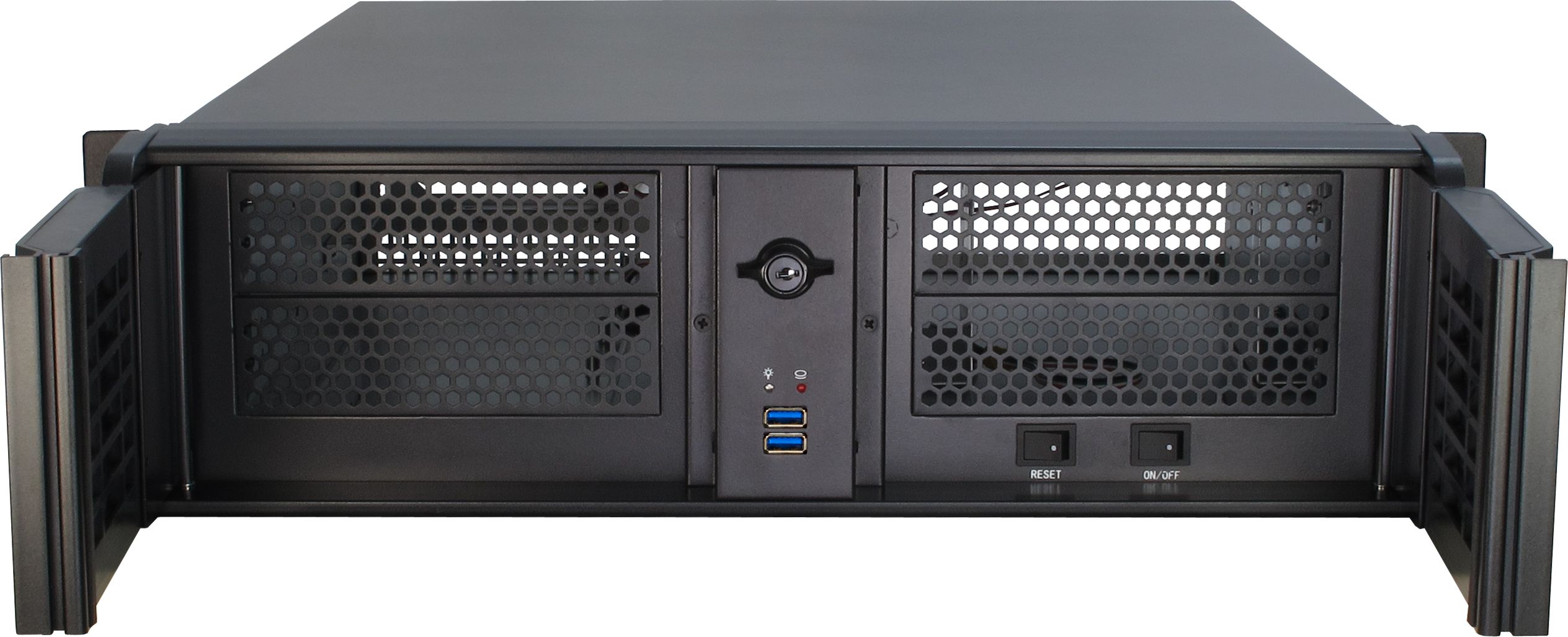

The lockable doors in front of the slots prevent, unauthorized access.
Integrated air filters ensure clean air and a flawless cooling.
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, mATX, μATX, ATX |
| max. Motherboard size | 305mm x 300mm (12" x 11.8") |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 113mm |
| Length graphics card (max.) | 300mm |
| DRIVE BAYS | |
| 5.25" external | 4x |
| 5.25" external (slim) | |
| 3.5" external | |
| 3.5" internal | 5x¹ |
| 2.5" internal | 6x¹ |
| ¹ can vary by using several mounting options
FRONT CONNECTORS |
|
| USB 3.0 | 2x |
| USB 2.0 | - |
| POWER SUPPLY | |
| ATX PSU | |
| FAN MOUNTING OPTION | |
| Rear | 2x 60mm (serial, Molex connector) |
| CONTROLS & LED | |
| Controls | Power-Switch Reset-Button |
| LED | Power HDD Activity |
| OTHER DATA | |
| Dimensions (h/w/d) | 133 x 485 x 530mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Key Screw Set |
| Features |
Air filter Removable HDD cages 4x screwed brackets (backside) Lockable front doors |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 23 Pcs |
| Weight | net = 9.34kgs gross = 11.12kgs |
| Item number | 88887176 |
| EAN-Code | 4260133128088 |
 |
