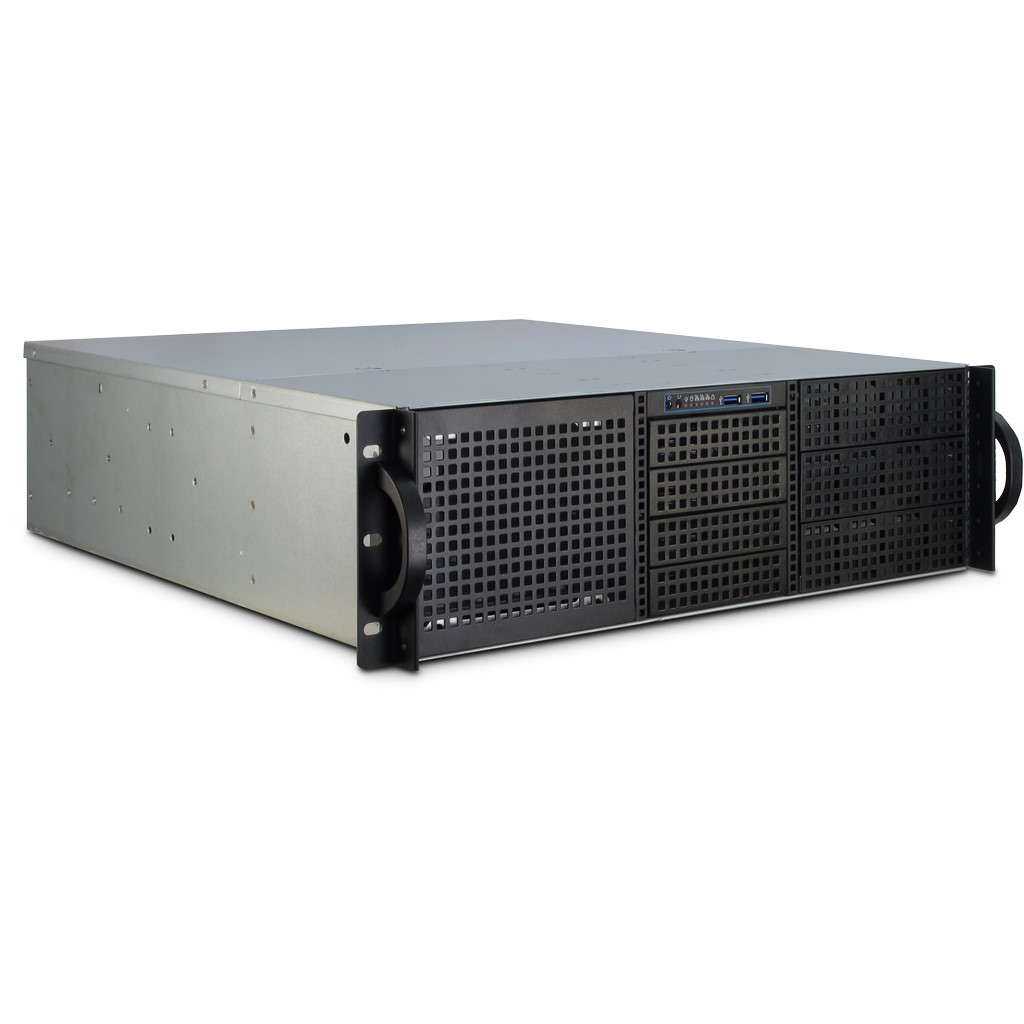

IPC 3U-30248
The 3U 30248 is the perfect rack for a low-priced server system.
The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.

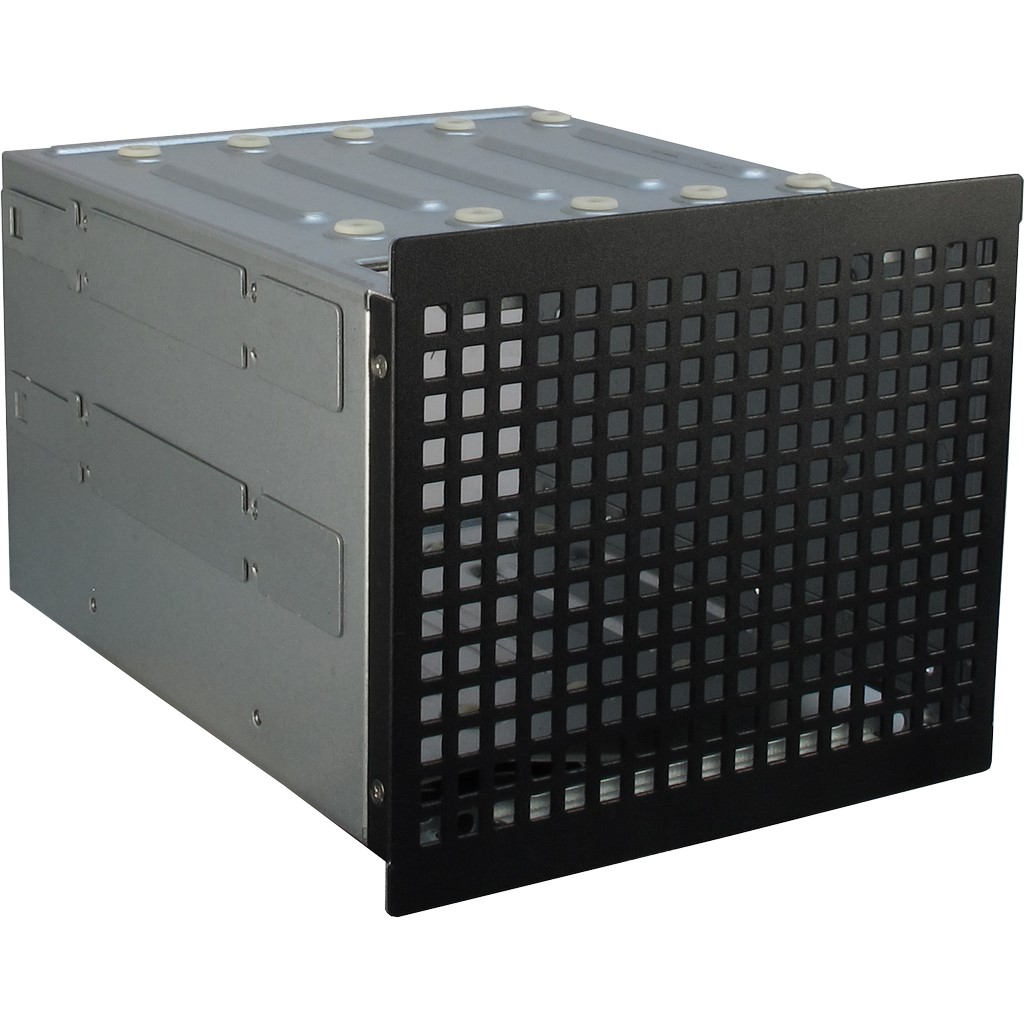

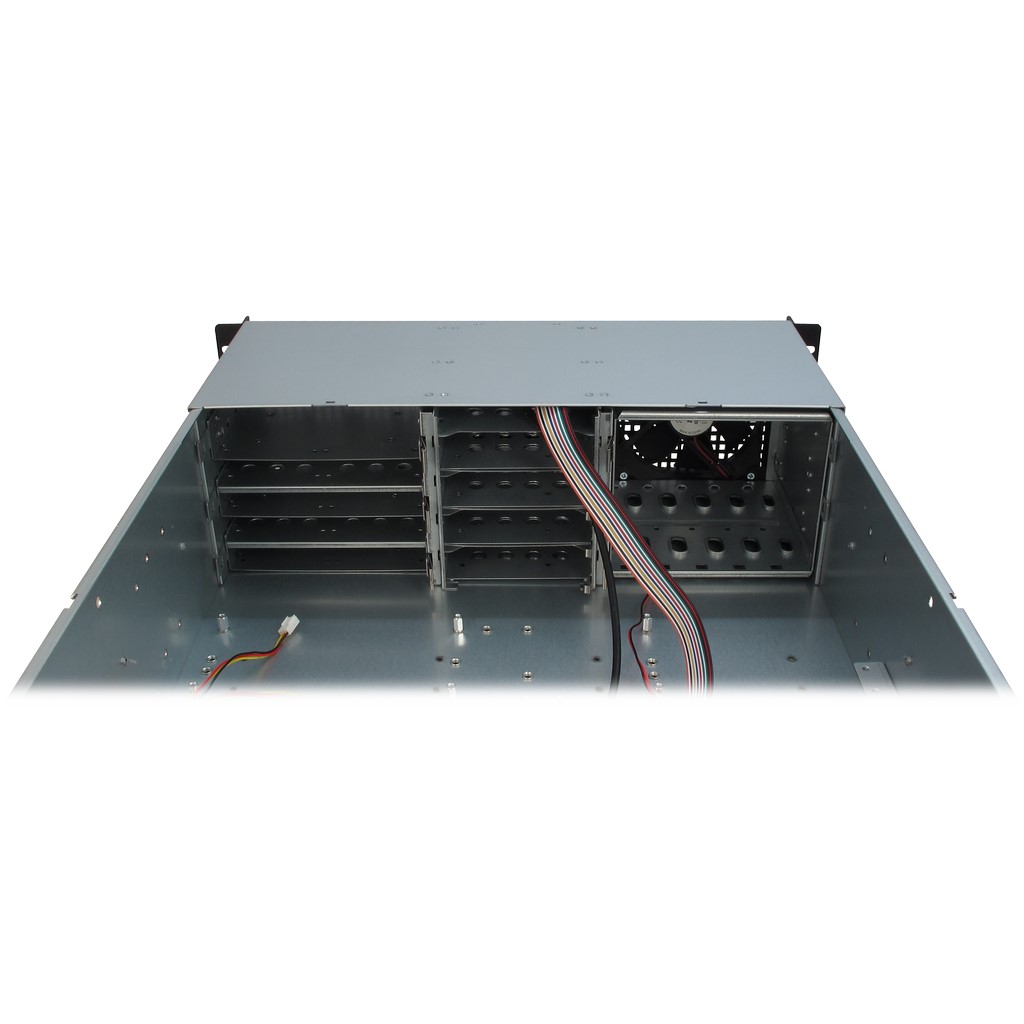

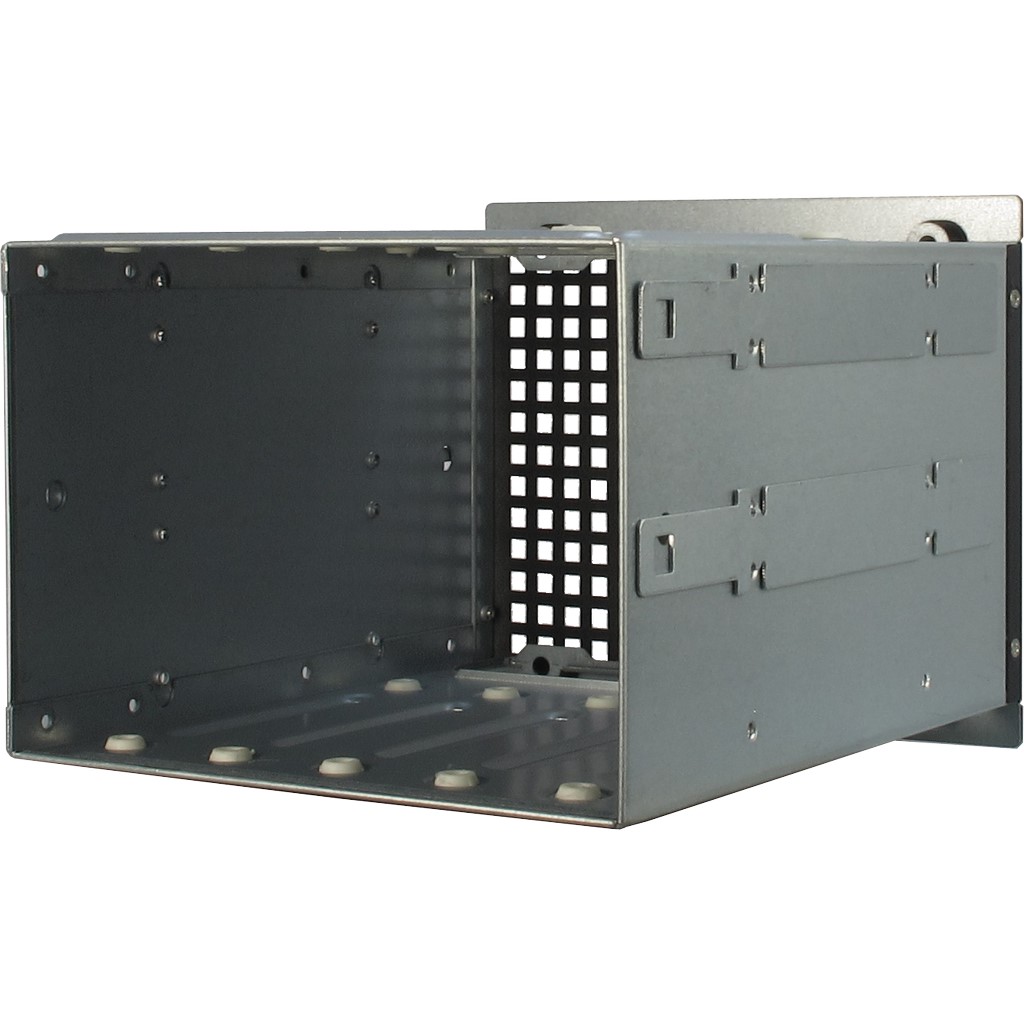

The 3U 30248 provides the possibility to remove the two HDD cages on both sides and therefore to mount up to six 5.25" external hard drives. In the middle four external 3.5" HDDs are also available.
One 120mm and two 60mm fans guarantee an optimal cooling.

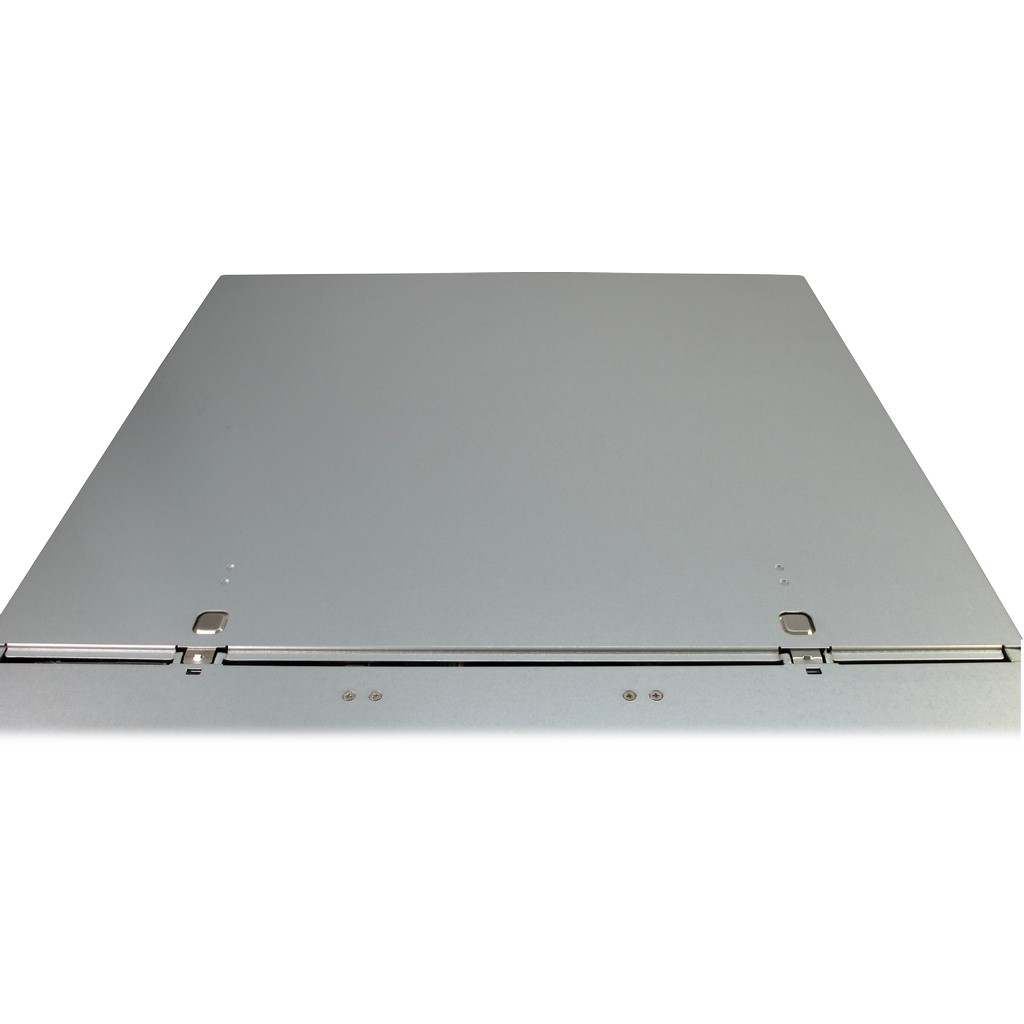

Additional extras like easily reachable USB 3.0 connectors and the lid with the snap locks complete this total package.
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, mATX, μATX, ATX, SSI CEB |
| max. Motherboard size | 305mm x 270mm (12" x 10.6") |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 113mm |
| Length graphics card (max.) | 270mm |
| DRIVE BAYS | |
| 5.25" external | 6x¹ |
| 5.25" external (slim) | |
| 3.5" external | |
| 3.5" internal | 12x¹ |
| 2.5" internal | 14x¹ |
| ¹ can vary by using several mounting options
FRONT CONNECTORS |
|
| USB 3.0 | 2x |
| USB 2.0 | |
| POWER SUPPLY | |
| ATX PSU | |
| FAN MOUNTING OPTION | |
| Front | 1x 120mm (serial, 3pin connector) and 6x 40mm (optional in the 5.25" drive front bezel) |

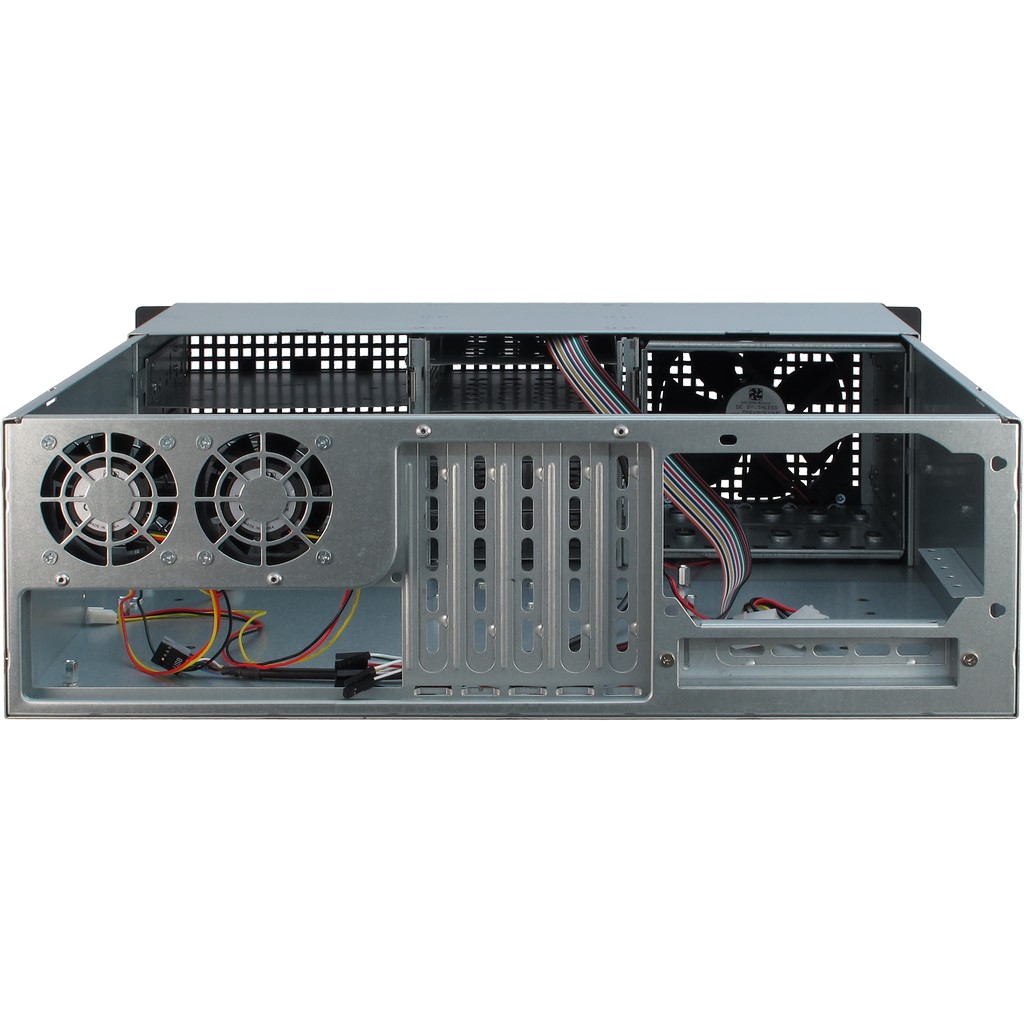

| Rear | 2x 60mm (serial, 3pin connector) |
| CONTROLS & LED | |
| Controls | Power-Switch Reset-Button |
| LED | Power HDD Activity 3x Network Activity Alert |
| OTHER DATA | |
| Dimensions (h/w/d) | 133.5 x 482 x 518mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw Set Mounting rails for 3.5" hard drives |
| Features |
HDD cages removable and optional positionable Only 5 slot openings + 1 slot with optional Riser Card 1x 120mm and 2x 60mm fan included USB 3.0 as block connector Lid with snap locks |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 18 Pcs |
| Weight | net = 9.48kgs gross = 11.75kgs |
| Item number | 88887107 |
| EAN-Code | 4260133126282 |
 |
