IPC 4U-4129L

The IPC 4U 4129L is a 4U case with a depth of 695mm and thus offers sufficient space for high-performance server systems.

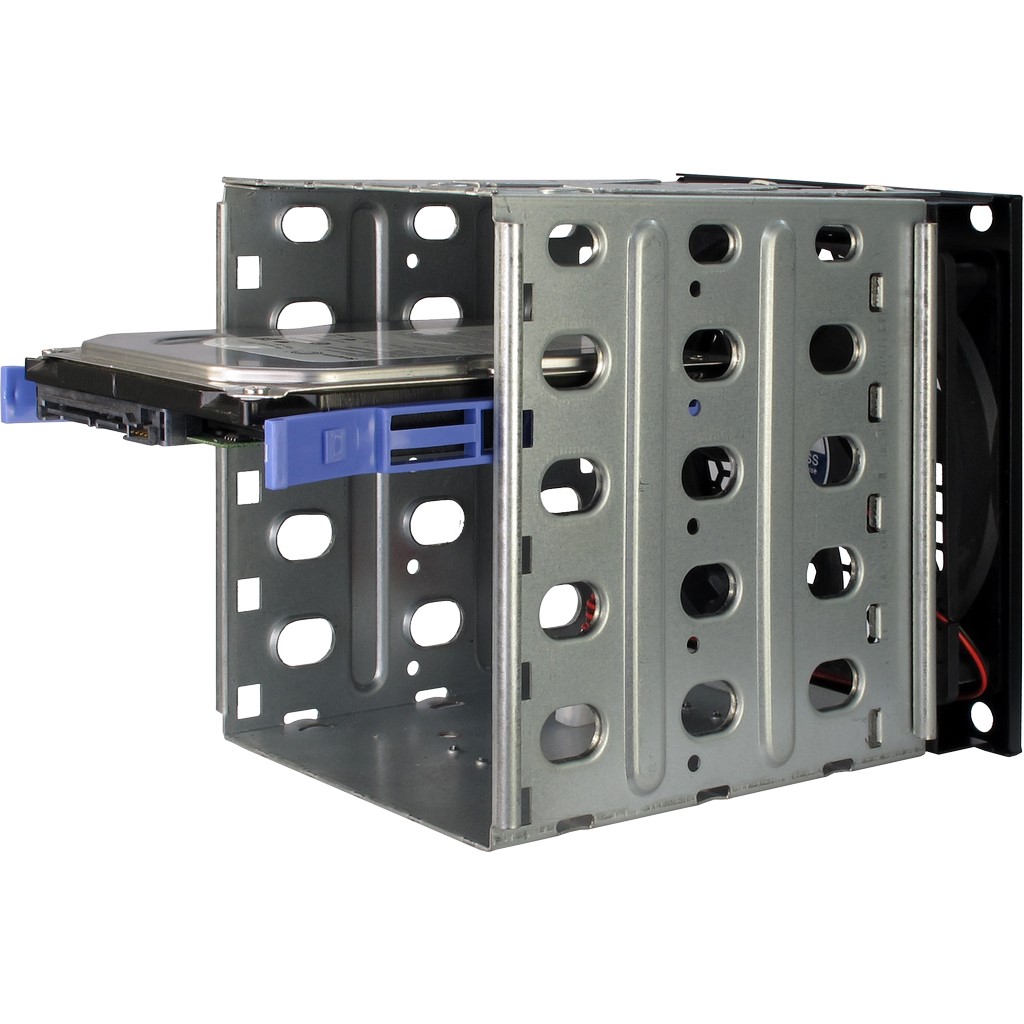

In the front are two removable drive cages mounted with integrated 120mm fans, of which each offers space for up to 5x 3.5" hard drives, which can be installed without screws. 3x 5.25" removable frames can be easily installed per drive cage, which can provide easier access to the the hard drives (optionally available).

Five additional fans in the center bar and on the back also ensure optimal cooling of the entire system.

MOTHERBOARD
Form factor Mini ITX, mATX, μATX, ATX, eATX, SSI EEB
max. Motherboard size 305mm x 355mm (12" x 13.9")
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 145mm
Length graphics card (max.) 320mm
DRIVE BAYS
5.25" external 3x¹
3.5" external
3.5" internal 10x¹
2.5" internal
¹ can vary by using several mounting options

FRONT CONNECTORS

USB 3.0 1x
USB 2.0 1x
POWER SUPPLY
PS2/mini redundant PSU
ATX PSU
FAN MOUNTING OPTION
Front 2x 120mm (serial, Molex connector)
Internal 3x 120mm (serial, Molex connector)
Rear 2x 80mm (serial, Molex connector)
CONTROLS & LED
Controls Power Button
Reset Button
LED Power
HDD activity
2x network activity
OTHER DATA
Dimensions (h/w/d) 178 x 482 x 695mm
Material 1.0-1.2mm Steel
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

Keys

Screws

Speaker

Mounting rails for HDDs

Features

Screwless HDD assembly

Two drive cages with integrated 120mm fans

4x retaining springs for installation cards

Front door lockable with dust filter

Screwed slot bracket (rear)

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 14 Pcs
Weight net = 13.22kgs
gross = 15.06kgs
Item number 88887007
EAN-Code 4260133122611

Data sheet 4U-4129L
Download
Technical drawing 4U-4129L
Download
Picture package 4U-4129L
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
