4U-K-439L
The 4U-K-439L is a perfect case for a cost-efficient Mini Server System. Using high-level material combined with excellent workmanship we created a variable and reliable industrial case.
So the 4U-K-439L supports ATX and PS/2 redundant power supplies, up to three 3,5“ internal devices, one external 5,25“ device and mainboards up to E-ATX size.

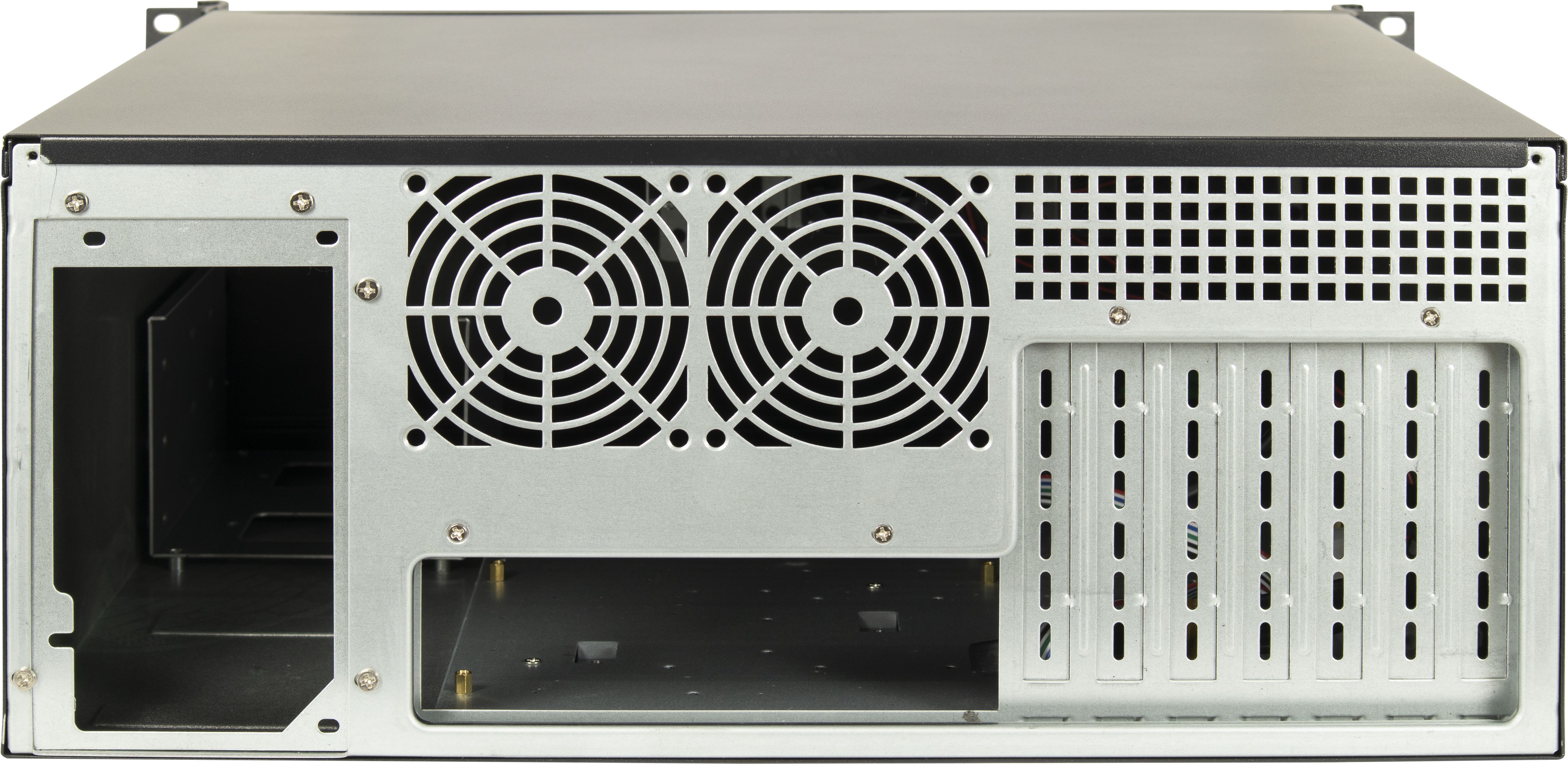

Furthermore the case has two 80mm fans and two USB 3.2 Gen1 front ports.
Features |
Mainboards up to E-ATX
|
|
Size |
MainboardCase |
Mini-ITX, Micro-ATX, ATX, E-ATX (max. 305 x 330mm, 12" x 13")482 x 425 x 178mm (wxdxh) |
HDD/ ODD Mounting space |
5,25" external3,5" external3,5" or 2,5" external3,5" internal2,5" internal3,5" or 2,5" internal |
1--2-1 |
Front connectors |
USB A 3.0USB A 2.0USB Type CHeaphoneMicrophoneCard Reader |
2x 3.2 Gen1----- |
Mounted fans |
200mm140mm120mm80mm60mm |
---2 (Front, Molex connectors)- |
Further mounting options |
Power supplyCPU coolerGraphic adapterFans |
ATX, PS/2 redundantmax. 150mmmax. 330mm2x 80mm (rear) |
Scope of delivery |
|
Case
|
Warranty |
|
24 Months |
Logistic data |
Net weightGross weightArticle numberGTINPacking unit |
8,815 kgs7,160 kgs8888733342604556464061 pcs
|
