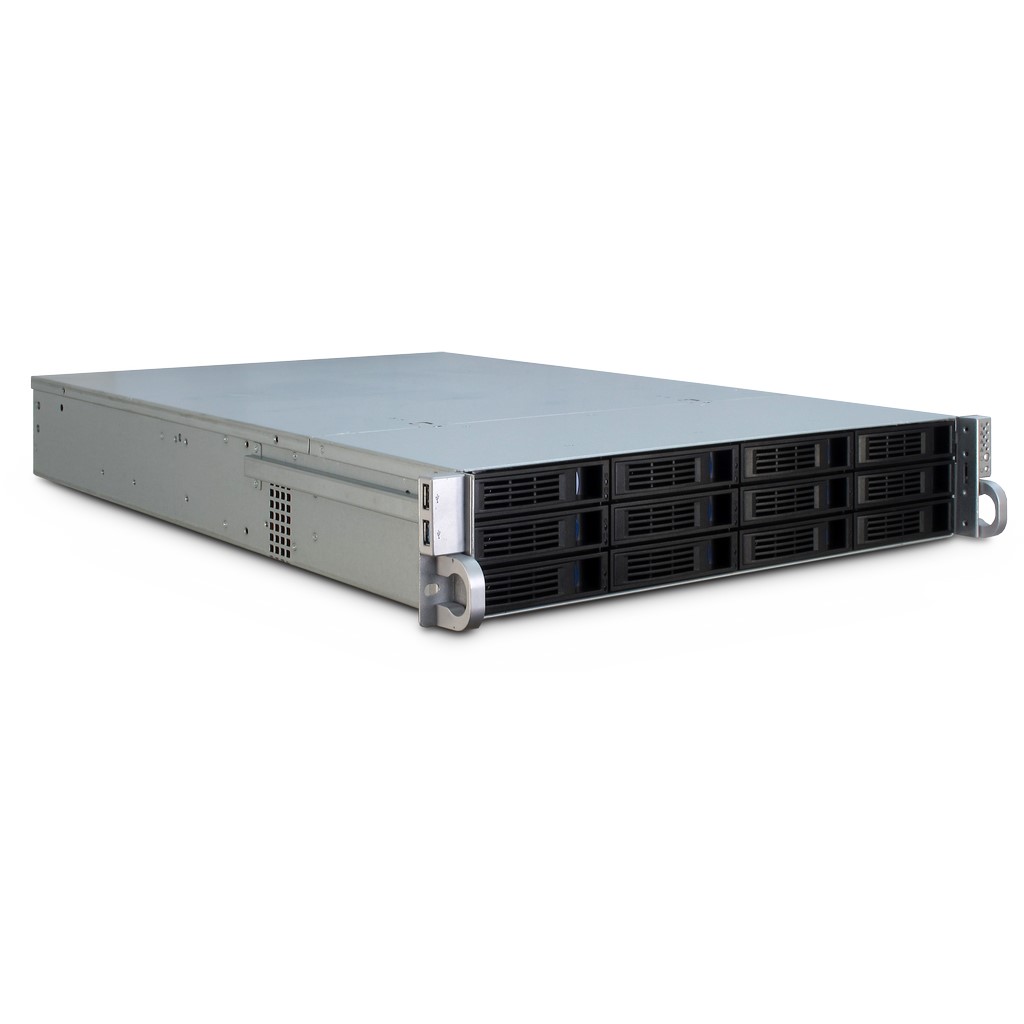

IPC 2U-2412
The 2U 2412 is the ideal case for a small and cheap server solution.
With its excellent quality and finish, Inter-Tech established the basis for a very variable case.

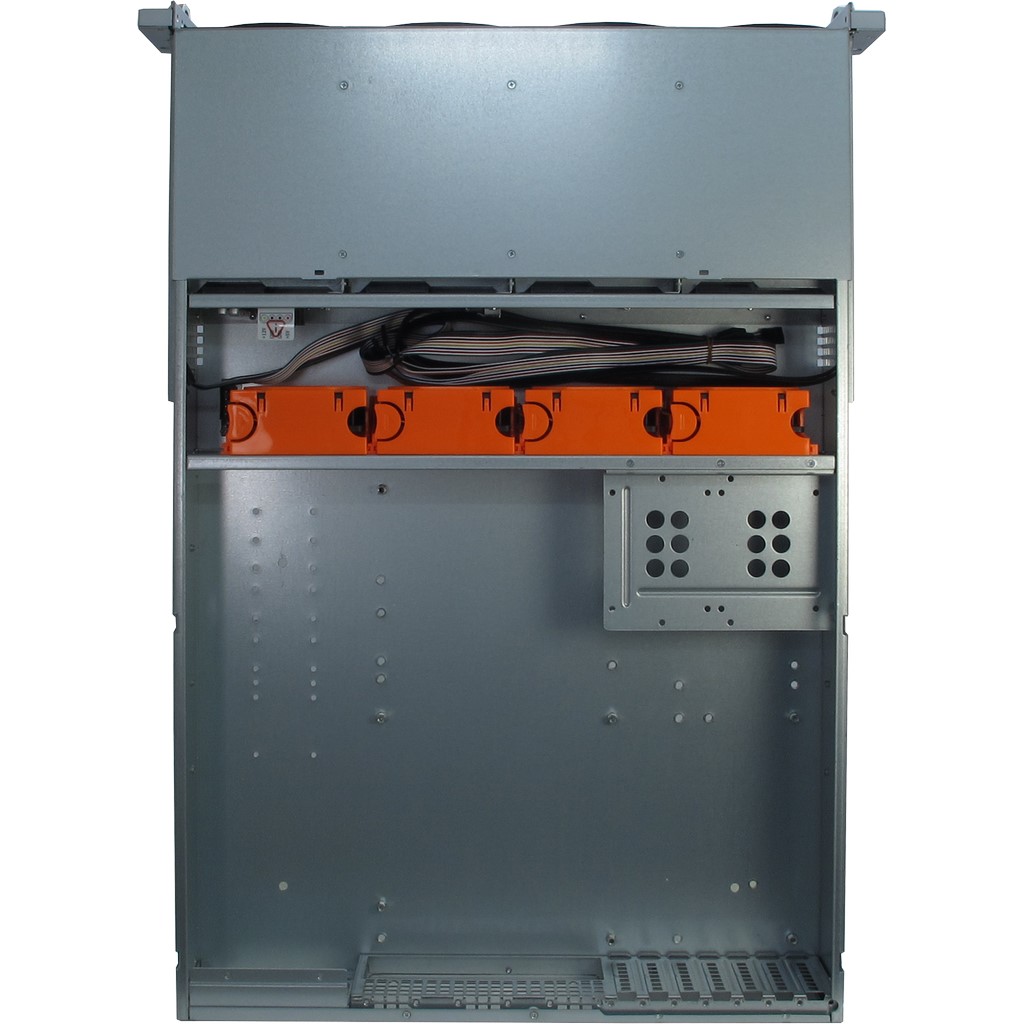

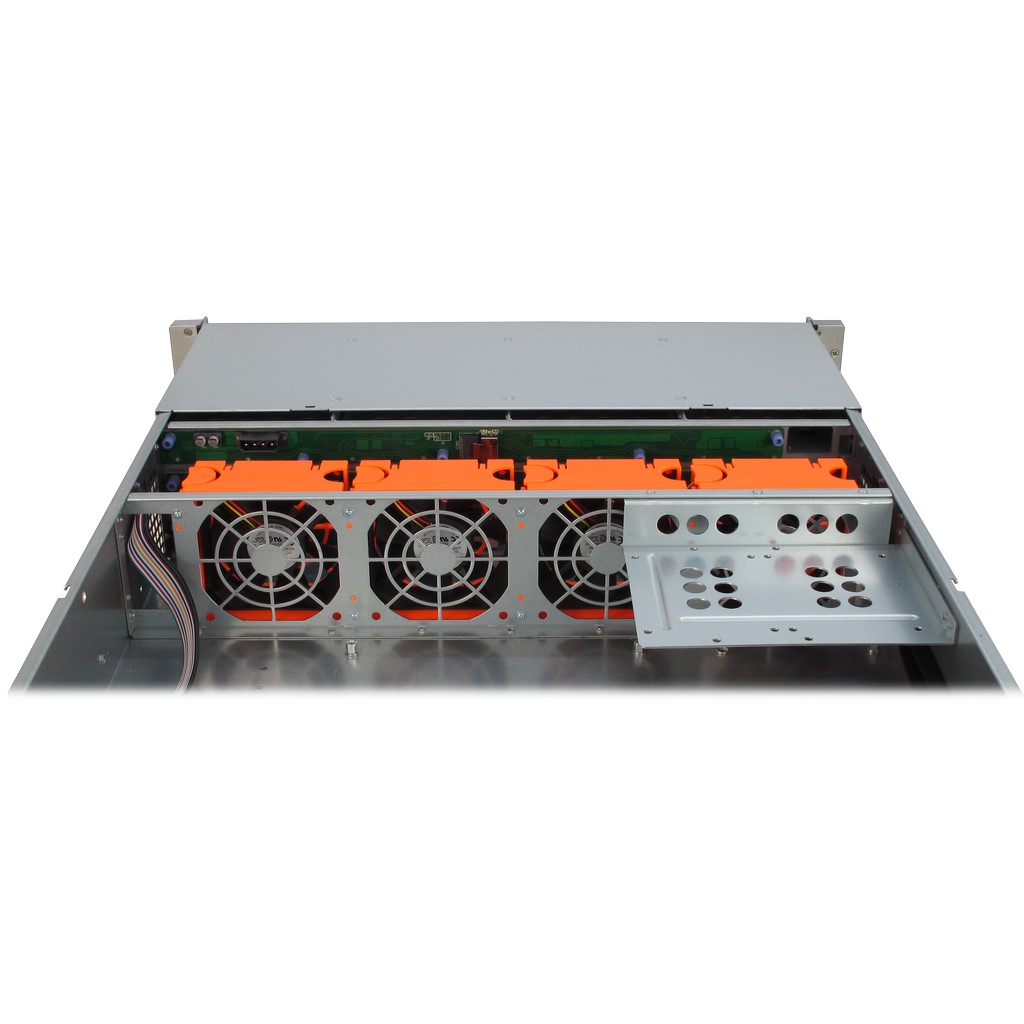

The 2U 2412 offers the possibility to install maximal twelve 2.5" or 3.5" Hot-Swap, two 2.5" or one 3.5" HDD. The 2U 2412 has four 80mm fans, which are mounted directly at the back of the drive brackets and ensure a reliable and optimal cooling.
Additional extras like the reusable and perforated slot brackets, the USB 3.0 connectors and the lid with the snap lock round off the picture.
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, μATX, ATX, eATX, SSI EEB |
| max. Motherboard size | 305mm x 345mm (12" x 13.5") |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 65mm |
| Length graphics card (max.) | 345mm |
| DRIVE BAYS | |
| 5.25" external | |
| 5.25" external (slim) | |
| 3.5" or 2.5" external (Hot-Swap) | 12x |
| 3.5" internal | 1x¹ |
| 2.5" internal | 2x¹ |
| ¹ can vary by using several mounting options
FRONT CONNECTORS |
|
| USB 3.0 | 2x |
| USB 2.0 | |
| POWER SUPPLY | |
| 2U Server PSU | |
| FAN MOUNTING OPTION | |
| Inside | 4x 80mm (serial, Molex connector) |
| CONTROLS & LED | |
| Controls | Power-Switch Reset-Button |
| LED | Power HDD Activity 3x Network Activity Alert Temperature alert |
| OTHER DATA | |

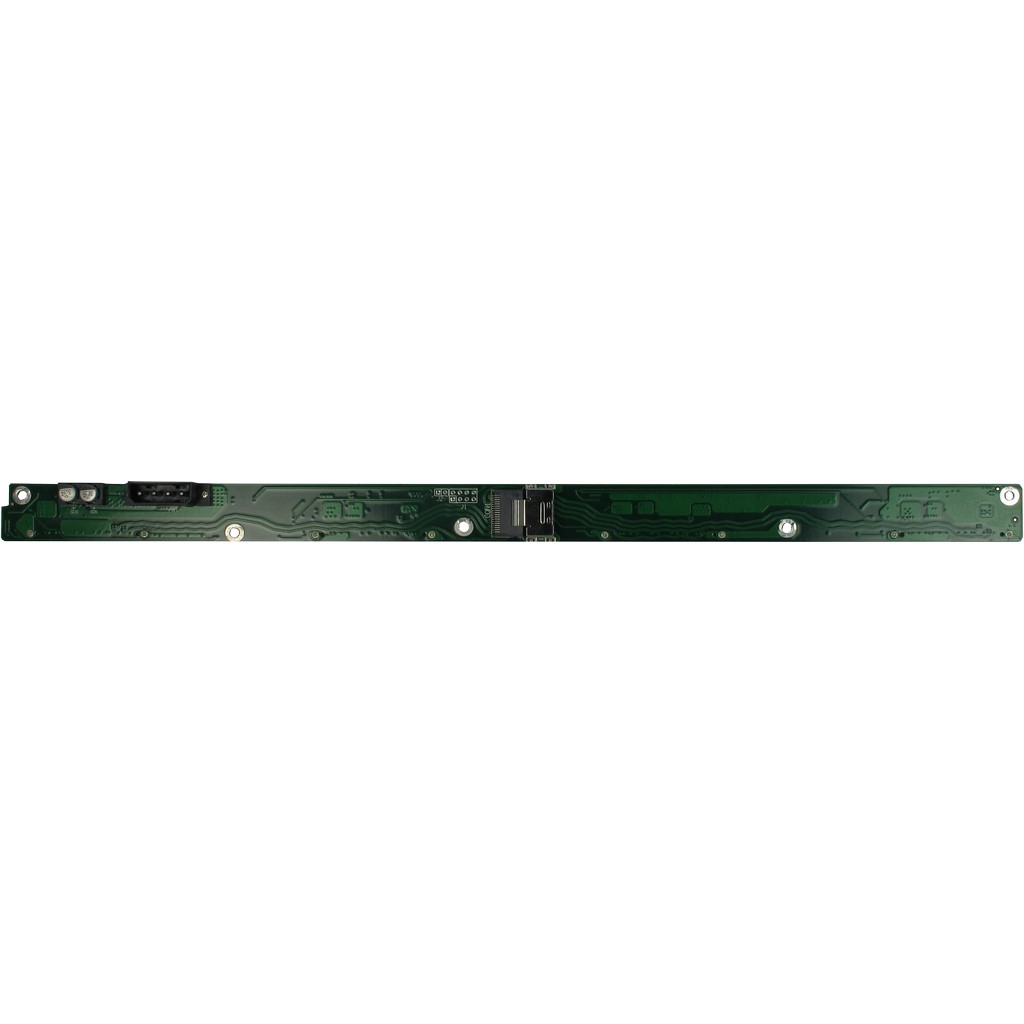

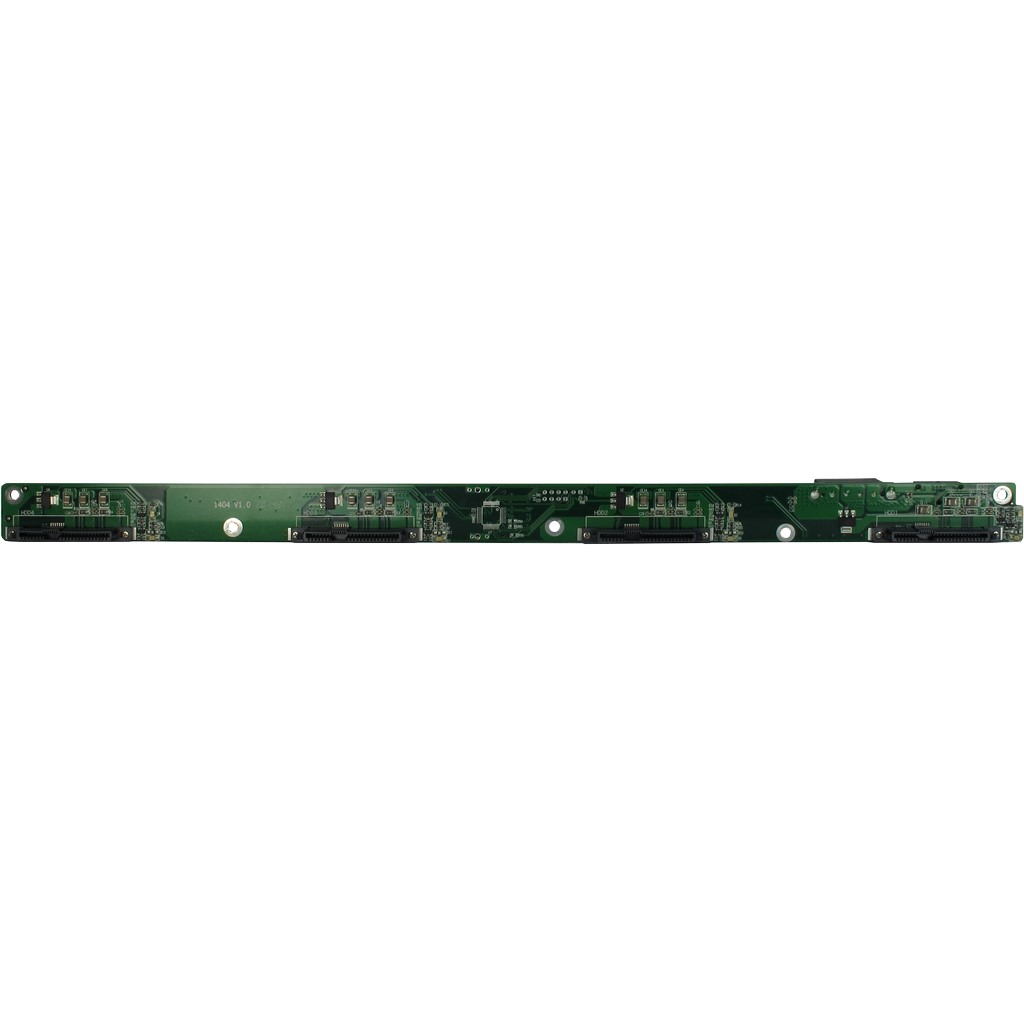

| S-ATA/SAS-Backplane + SFF-8087 (max. 12Gbit/s) | |
| Dimensions (h/w/d) | 89 x 481 x 680mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw set Mounting brackets for 2HU PSU Mounting tool |
| Features |
4x 80mm fan included Reusable Low Profile slot brackets USB 3.0 as block connector Lid with snap lock 3x Hot-Swap backplanes with one SFF-8087 socket each Important Note! |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 21 Pcs |
| Weight | net = 10.50kgs gross = 12.72kgs |
| Item number | 88887118 |
| EAN-Code | 4260133126398 |
 |
