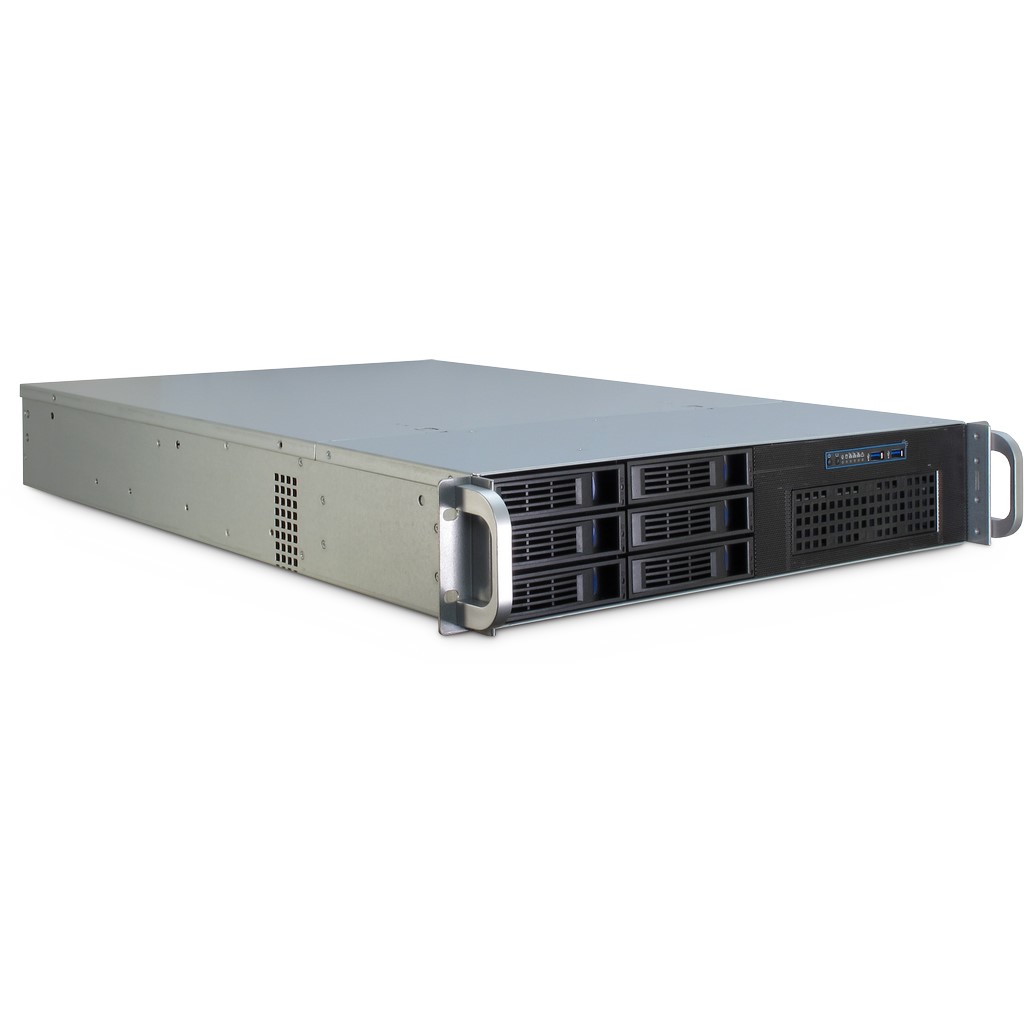

IPC 2U-2406
The 2U 2406 is the perfect rack for a low-priced storage system.
The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.

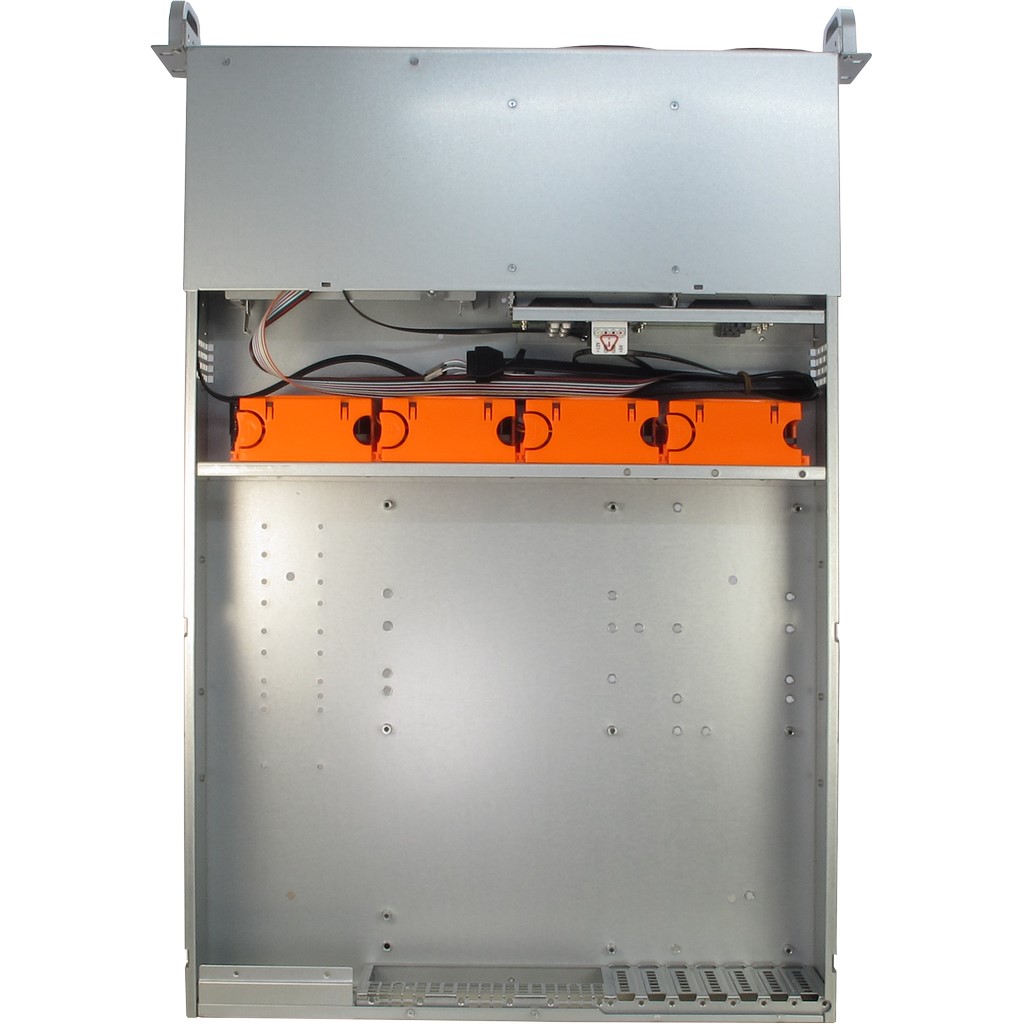

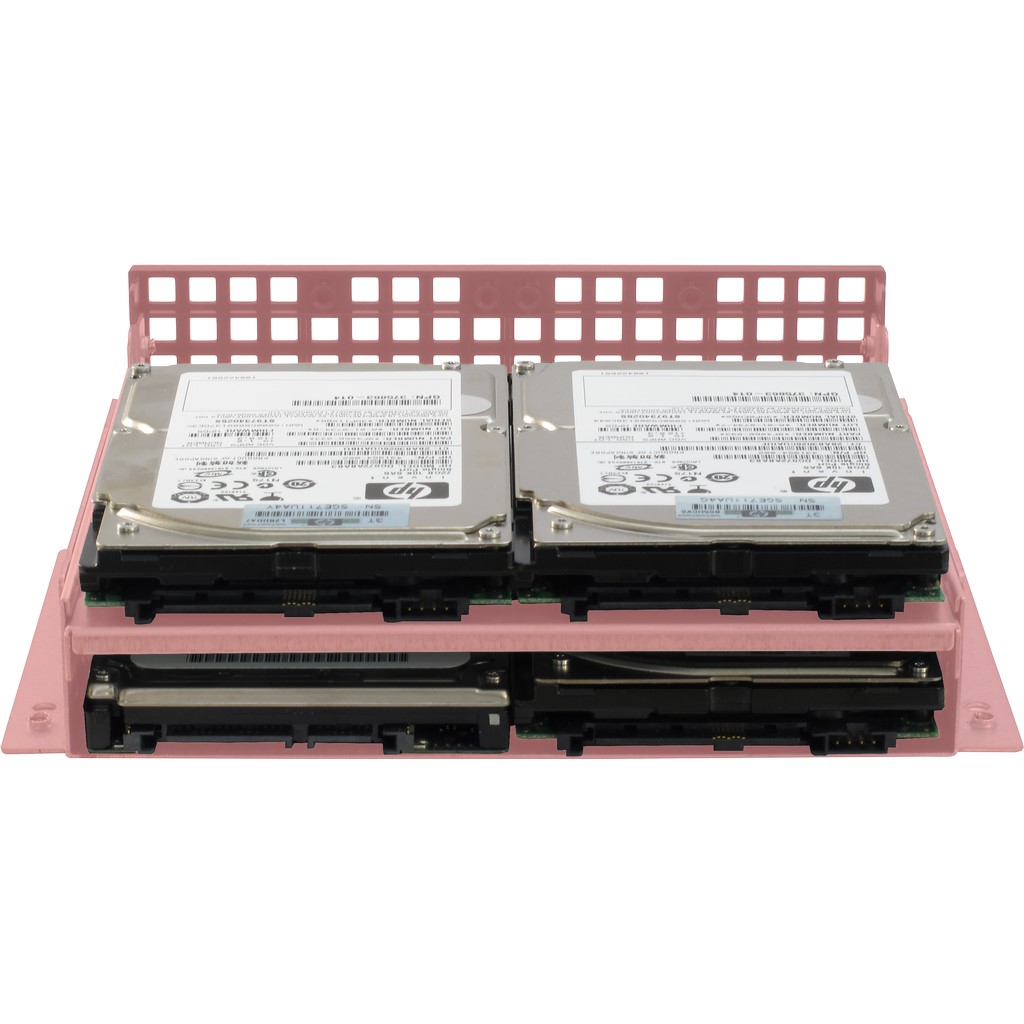

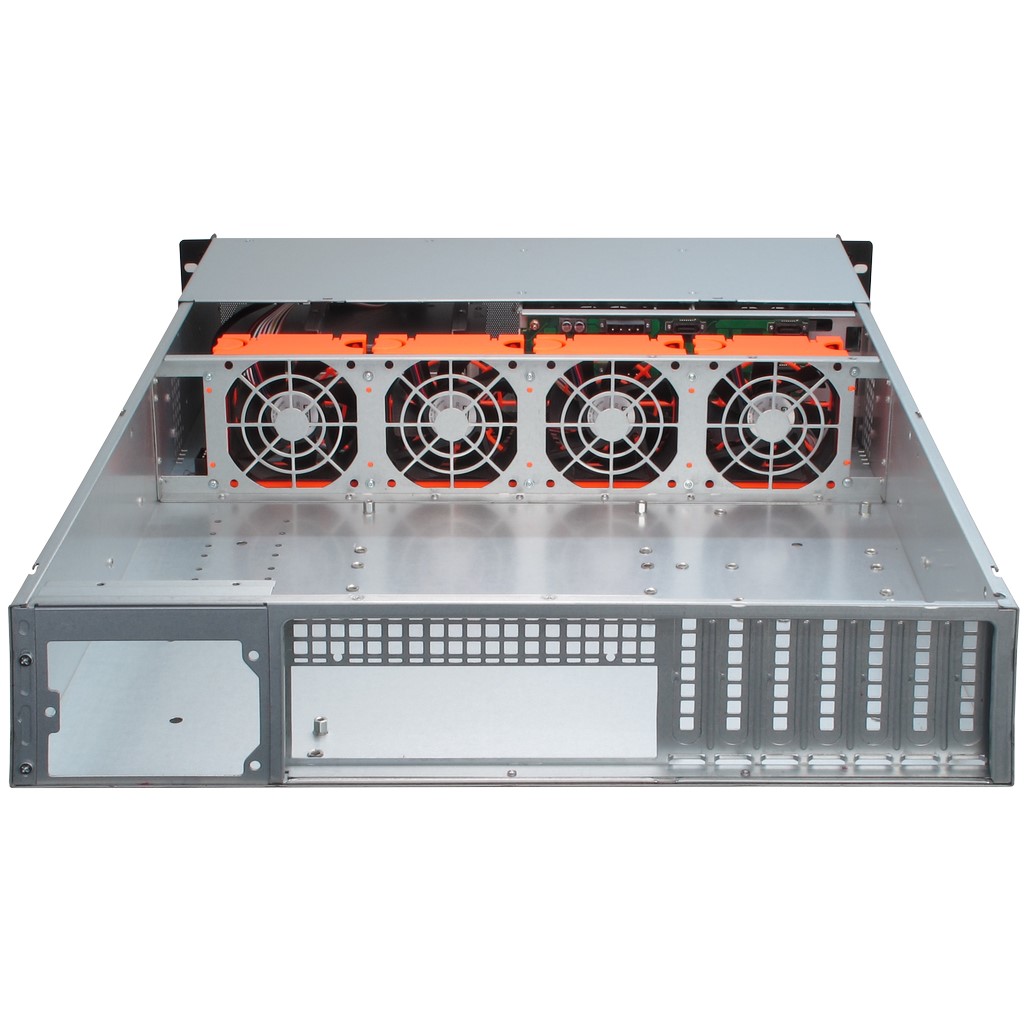

The 2U 2406 offers the possibility to mount maximal six 2.5" or 3.5" Hot-Swap HDDs, one 5.25" external drive and one 2.5" internal drive. In scope of delivery is a 5.25" drive bay to mount 4x 2.5" or 1x 3.5" HDDs, if you don ́t need a 5.25" drive. The 2U 2406 is equipped with four serial 80mm fans behind the drive bays to ensure a solid cooling.
Both serial USB 3.0 front connectors round off the whole package.
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, μATX, ATX, eATX, SSI EEB |
| max. Motherboard size | 305mm x 345mm (12" x 13.5") |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 65mm |
| Length graphics card (max.) | 345mm |
| DRIVE BAYS | |
| 5.25" external | 1x¹ |
| 5.25" external (slim) | |
| 3.5" or 2.5" external (Hot-Swap) | 6x |
| 3.5" internal | 1x¹ |
| 2.5" internal | 5x¹ |
| ¹ can vary by using several mounting options
FRONT CONNECTORS |
|
| USB 3.0 | 2x |
| USB 2.0 | |
| POWER SUPPLY | |
| 1U or 2U Server PSU | |
| FAN MOUNTING OPTION | |
| Inside | 4x 80mm (serial, Molex connector) |
| CONTROLS & LED | |
| Controls | Power-Switch Reset-Button |
| LED | Power HDD Activity 3x Network Activity Alter |
| OTHER DATA | |
| S-ATA/SAS-Backplane (max. 12Gbit/s) | |
| Dimensions (h/w/d) | 89 x 481 x 688mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw set Mounting rail for 5.25" drive 5.25" frame Mounting bracket for 1U- and 2U-PSU Mounting tool |
| Features |

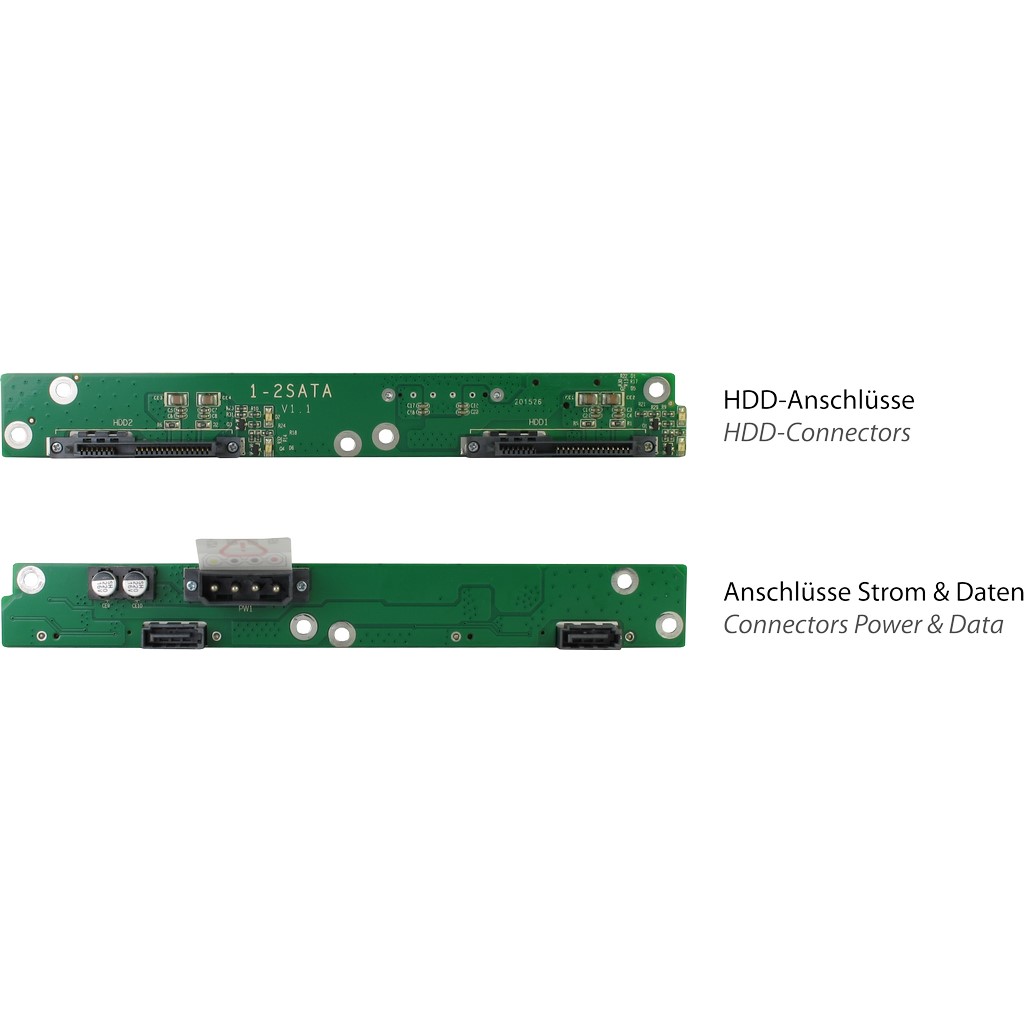

Serial 4x 80mm fans 7x perforated Low-Profile slot brackets (Rear) USB 3.0 as block connector Snap-in cap Mesh-Grid-Front 3x Hot-Swap backplanes with two S-ATA sockets each Important Note! |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 21 Pcs |
| Weight | net = 9.65kgs gross = 12.05kgs |
| Item number | 88887196 |
| EAN-Code | 4260133128729 |
 |
