2U-2404L S-ATA

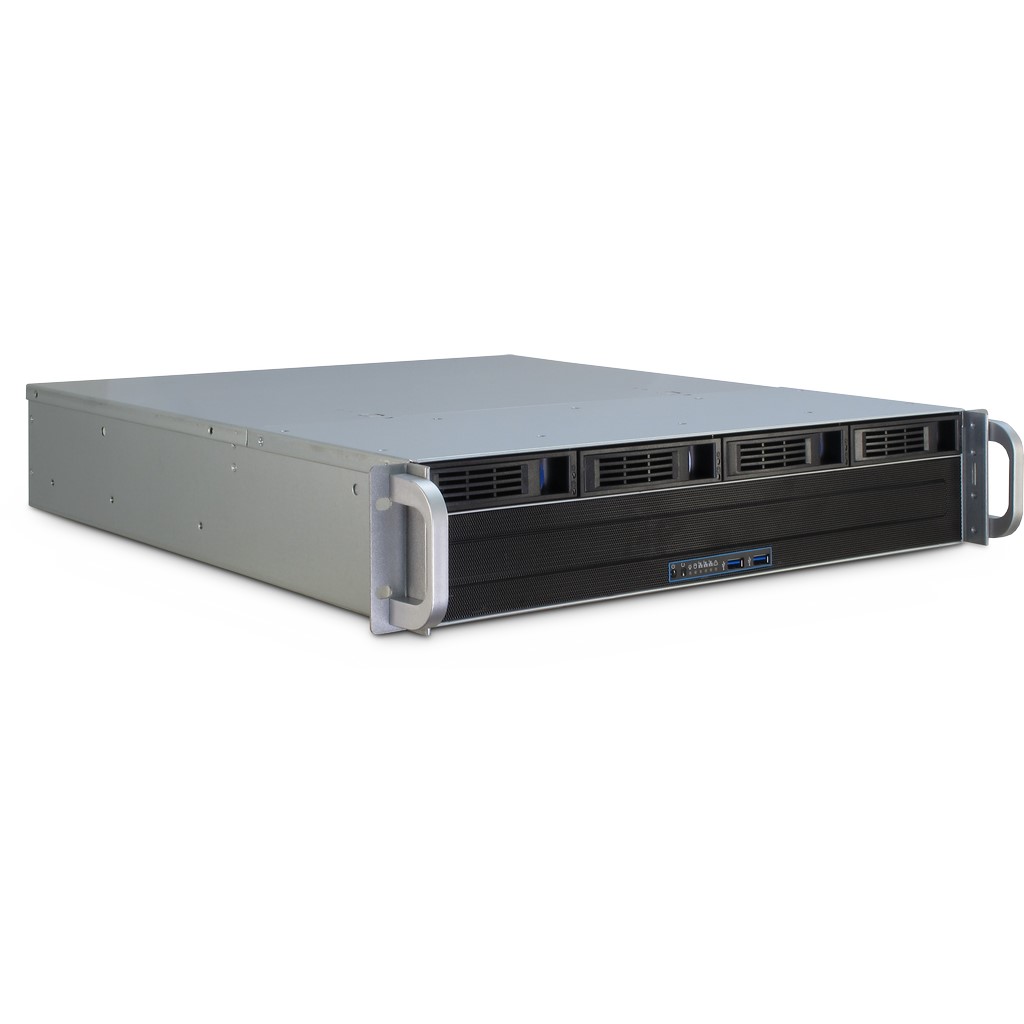

The IPC 2U-2404L S-ATA is the perfect rack for a low-priced storage system.
The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.

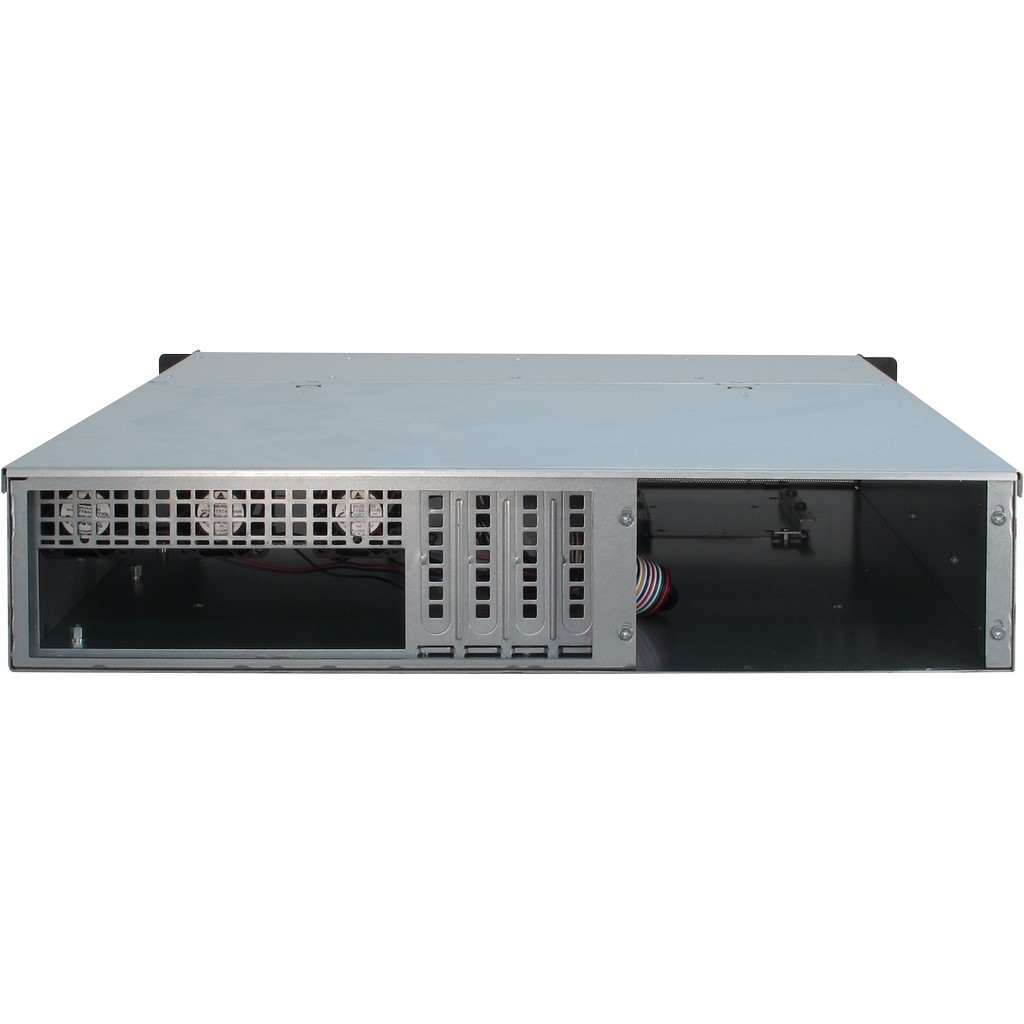

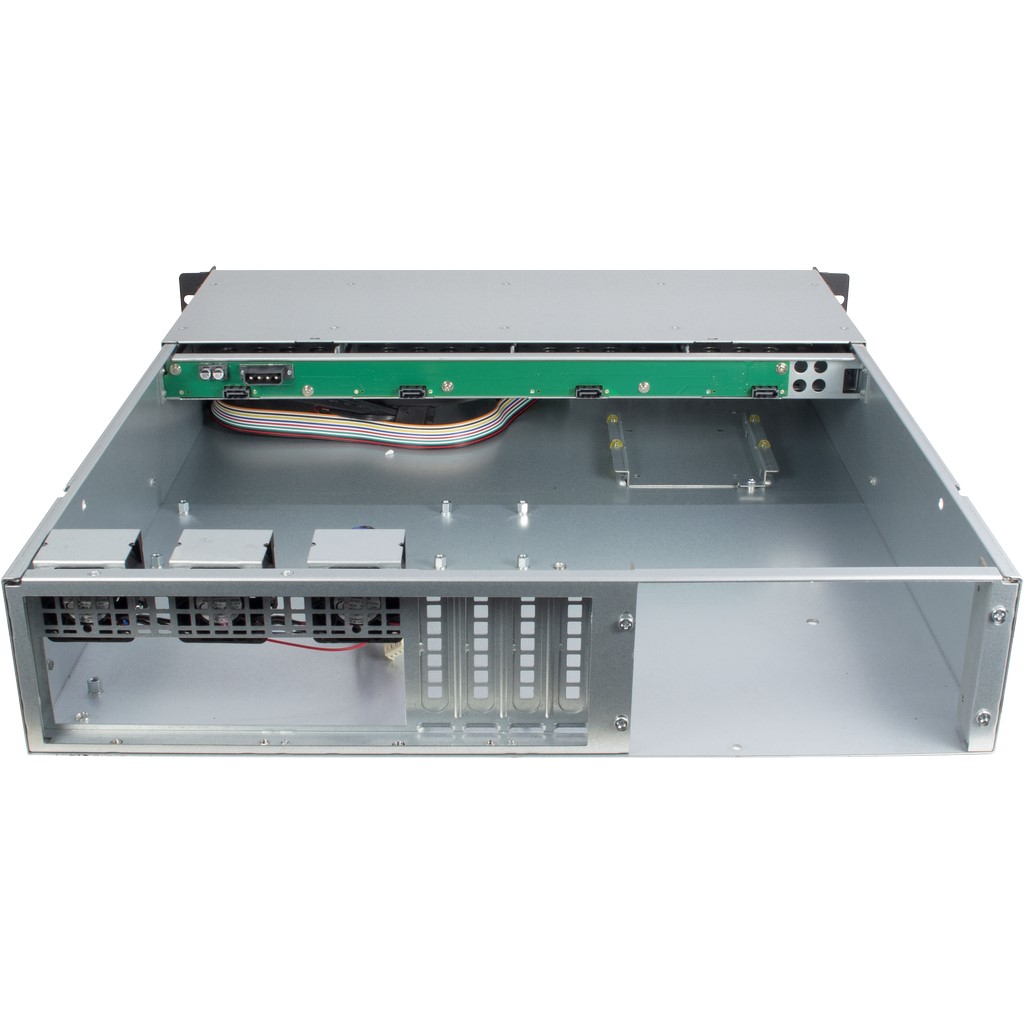

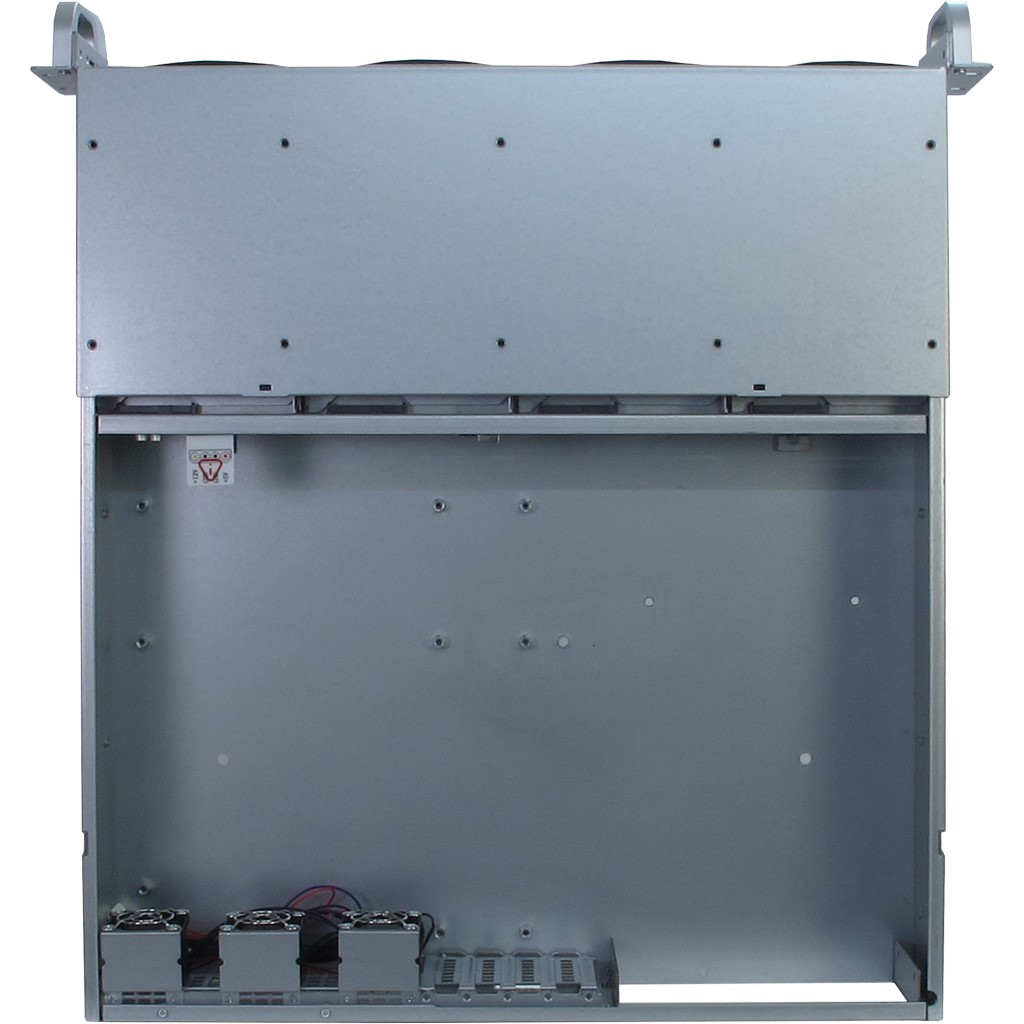

The IPC 2U-2404L S-ATA offers the possibility to mount maximal four 2.5" or 3.5" Hot-Swap HDDs and one internal 2.5" or 3.5" HDD (by using a 2.5" with 9.5mm height also a 3.5" HDD simultaneously). The IPC 2U-2404L S-ATA is equipped with three serial 40mm fans. At the rear of the chassis you can mount an ATX PSU with 80mm fan or a Mini-Redundant PS/2 PSU.
Both serial USB 3.0 front connectors round off the whole package.
Now new: Backplane with NVMe Support available as an upgrade. Click here to go to the NVMe Backplane.
Choose here
|
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, μATX |
| max. Motherboard size | 244 mm x 244mm (9.6" x 9.6") |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 32mm/65mm¹ |
| Length graphics card (max.) | 270mm |
| DRIVE BAYS | |
| 5.25" external | |
| 5.25" external (slim) | |
| 3.5" or 2.5" external (Hot-Swap) | 4x |
| 3.5" or 2.5" internal | 1x² |
| FRONT CONNECTORS | |
| USB 3.0 | 2x |
| POWER SUPPLY | |
| PS2/mini redundant PSU | |
| ATX PSU with 80mm fan | |
| FAN MOUNTING OPTION | |
| Inside | 3x 40mm (serial, 3pin (4pin connector)) |
| CONTROLS & LED | |
| Controls | Power-Switch Reset-Button |
| LED | Power HDD Activity 3x Network Activity Alert |
| OTHER DATA | |
| S-ATA/SAS-Backplane + SFF-8087 (max. 12Gbit/s) | |
| Dimensions (h/w/d) | 89 x 482 x 518mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw set Mounting frame for ATX PSU Mounting tool |
| Features |
Serial 3x 40mm fans 4x perforated Low-Profile slot bracket (Rear) 1x Hot-Swap backplane with S-ATA socket (max. 6G) Important Note! Mesh-Grid-Front with dust filter |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 21 Pcs |
| Weight | net = 6.72kgs gross = 8.75kgs |
| Item number | 88887348 |
| EAN-Code | 4260133128453 |
¹ depending on the position of the CPU (32mm, if the CPU is under the HDD cage)
² simultaneously only if 2.5" drive with max. 9.5 mm height
 |
