4U-4508

The IPC 4U-4508 is a perfect case for a cost-efficient Mini Server System. Using high-level material combined with excellent workmanship we created a variable and reliable industrial case.
So the 4U-4508 supports ATX or PS/2 redundant power supplies, up to eight 2,5“/3,5“ Hot-Plug hard disks, two internal 2,5“ and two external 5,25“ devices and mainboards up to E-ATX size.
Furthermore the case has two 80mm fans , space for two additional 80mm fans and two USB 3.0 front ports.



Features


8 Hot-Swap HDD frames
HDD Frames lockable
Serial two 80mm fans
Perforated slot brackets

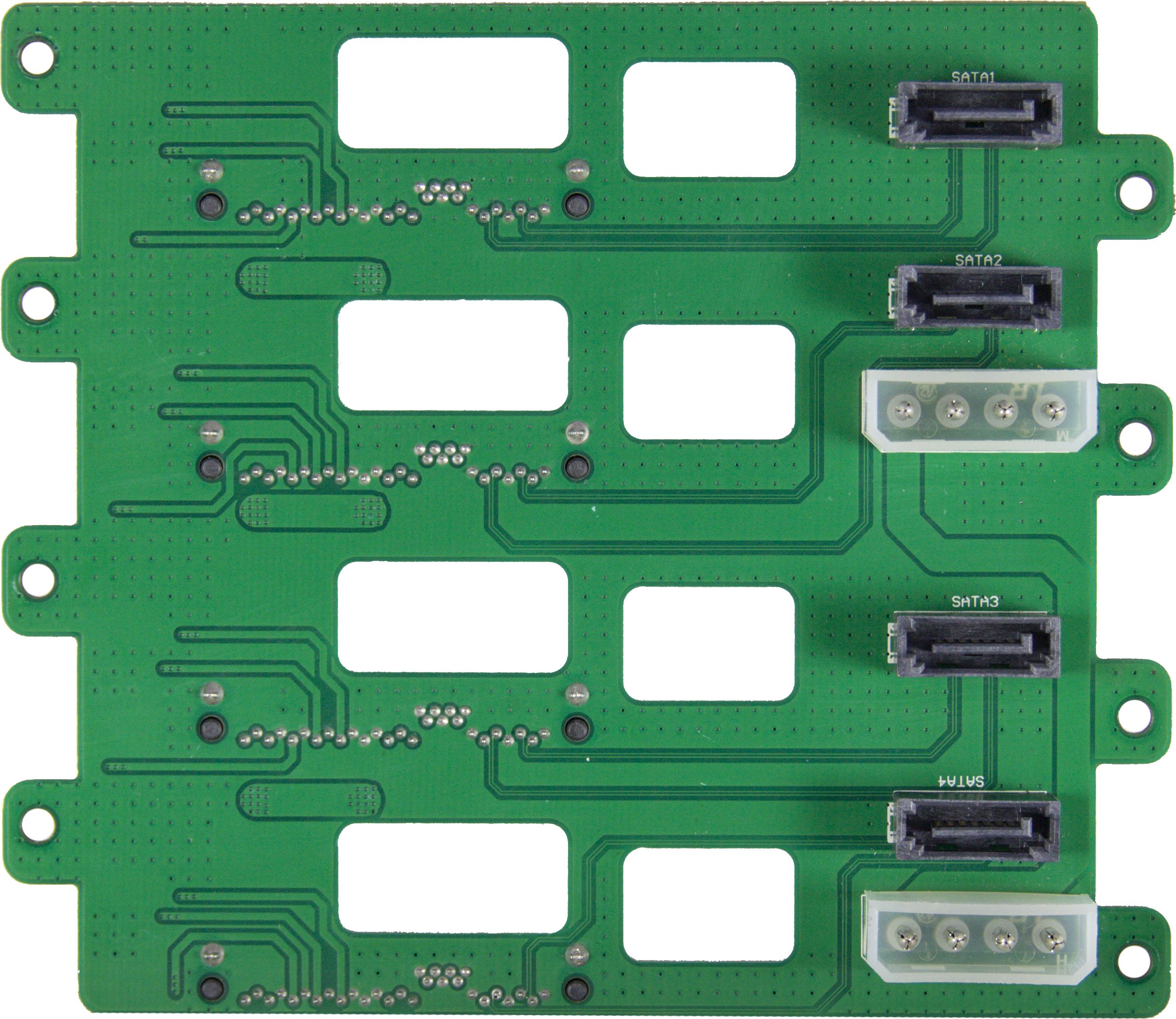

Backplane
Quantity Backplanes
Quantity hard disks
Transfer speed
Data connection
Electrical connection
2
8
6GB/s
4x SATA/ Backplane
2x Molex/ Backplane

Size
Mainboard

Case
Mini-ITX, Micro-ATX, ATX, E-ATX, SSI EEB (max. 305 x 345mm - 12" x 13,5")
E-ATX and SSI Mainboards must not have parts in the front area with height of more than 3 cm.
480 x 530 x 178mm (wxdxh)

HDD/ ODD Mounting space
5,25" external
3,5" external
3,5" or 2,5" external
3,5" internal
2,5" internal
3,5" or 2,5" internal
2
-
8 (Hot-Swap HDD frames)
-
2
-

Front connectors
USB A 3.0
USB A 2.0
USB Type C
Headphone
Microphone
Card Reader
2
-
-
-
-
-

Mounted fans
200mm
140mm
120mm
80mm
60mm
-
-
-
2 (Molex)
-

Further mounting options
Power supply
PCIe
CPU cooler
Graphic adapter
Fans
ATX
7
max. 115mm
max. 250mm
2x 80mm (rear)

Scope of delivery

Case
Power supply mounting for ATX (pre-installed)Screws

Warranty

24 Months

Logistic data
Net weight
Gross weight
Article number
GTIN
Packing unit
11,300 kgs
14,570 kgs
88887336
4260455646437
1 pcs
12 pcs (pallet)



Actually no tests available



Data sheet 4U-4508

Picture package 4U-4508

Manual 4U-4508



No specific accessories available
