4U-4416
The 4U 4416 is the ideal case for a small and cheap server solution.
With its excellent quality and finish, Inter-Tech established the basis for a very variable case.
The 4U 4416 offers the possibility to install sixteen 2.5" or 3.5" Hot-Swap HDDs, two 5.25" external drives or eight internal 2.5", alternatively 3.5" HDDs.

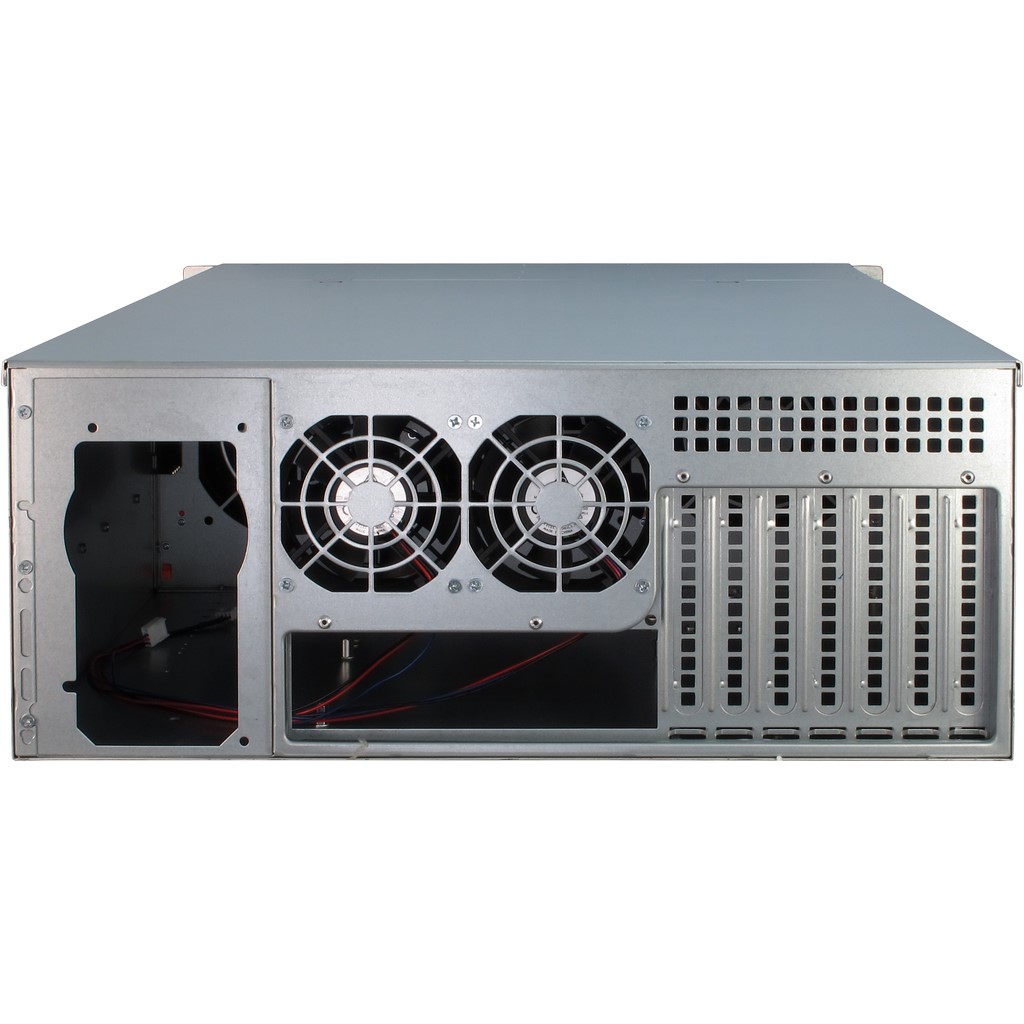

The 4U 4416 has five fans as standard, from which are three 120mm fans are mounted directly at the back of the drive brackets. In addition, two 80mm fans at the back ensure a reliable and optimal cooling.
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, μATX, ATX, eATX, SSI EEB |
| max. Motherboard size | 305mm x 345mm (12" x 13.5") |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 155mm |
| Length graphics card (max.) | 345mm |
| DRIVE BAYS | |
| 5.25" external | 2x¹ |
| 5.25" external (slim) | |
| 3.5" or 2.5" external (Hot-Swap) | 16x |
| 3.5" internal | 2x¹ |
| 2.5" internal | 8x¹ |
| FRONT CONNECTORS | |
| USB 3.0 | 1x |
| USB 2.0 | 1x |
| POWER SUPPLY | |
| PS2/mini redundant PSU | |
| ATX PSU | |
| FAN MOUNTING OPTION | |
| Front | 4x 40mm (optional) |
| Inside | 3x 120mm (serial, Molex connector, hot pluggable) |
| Rear | 2x 80mm (serial, Molex connector) |
| CONTROLS & LED | |
| Controls | Power-Switch Reset-Button |
| LED | Power HDD Activity 3x Network Activity Alert |
| OTHER DATA | |
| S-ATA/SAS-Backplane + SFF-8087 (max. 12Gbit/s) | |
| Dimensions (h/w/d) | 178 x 481 x 688mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw set Mounting bracket for ATX (preassembled), 4HU redundant and 3HU triple redundant PSU Adapter for 2HU PSU + optional 80mm fan bracket Mounting bracket for diverse PSU Assembly tool |
| Features |
2x 80mm fan and 3x 120mm fan included (3x 120mm fan hot pluggable) Drive brackets removable USB 3.0 and USB 2.0 as block connector 4x Hot-Swap backplanes with one SFF-8087 socket each Important Note! |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 14 Pcs |
| Weight | net = 15.14kgs gross = 17.73kgs |
| Item number | 88887120 |
| EAN-Code | 4260133126411 |
¹ can vary by using several mounting options
 |
