4U-4410

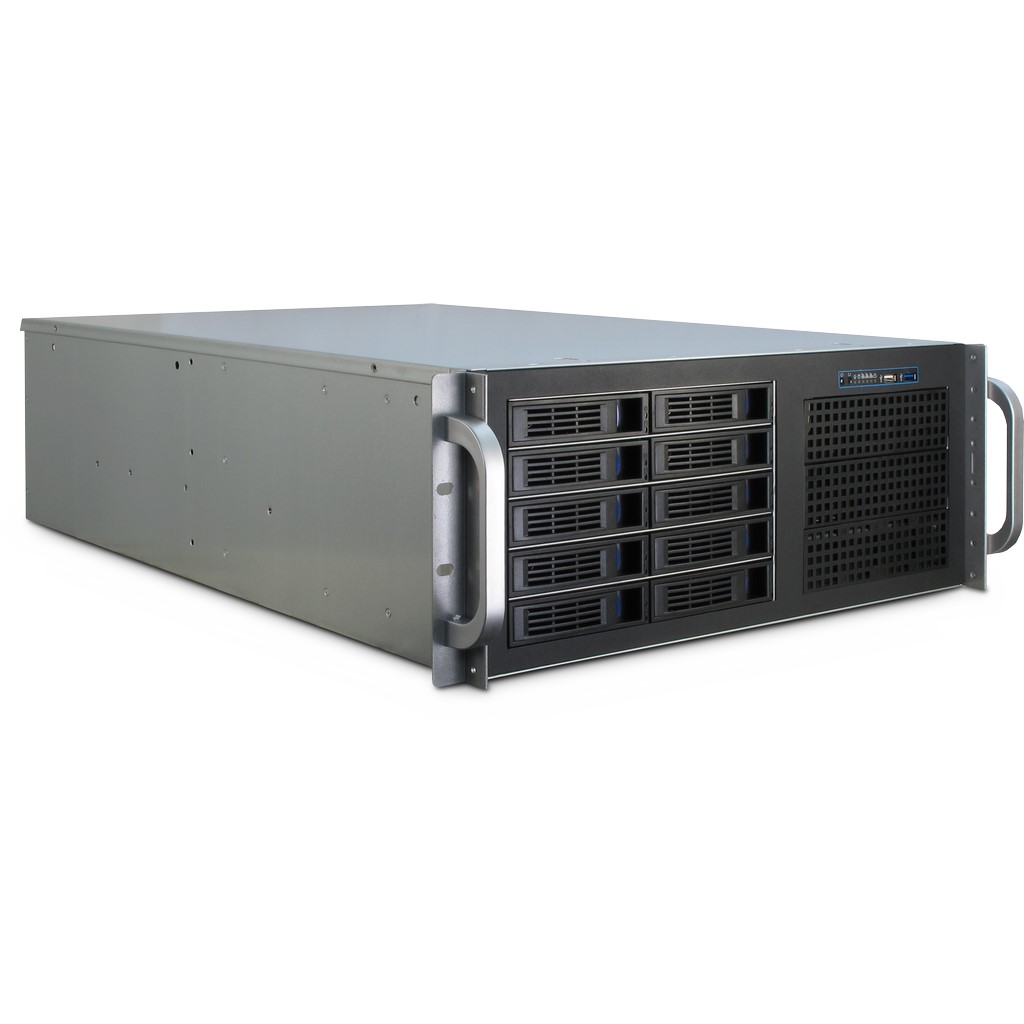

The 4U 4410 is the perfect rack for a low-priced storage system.

The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.

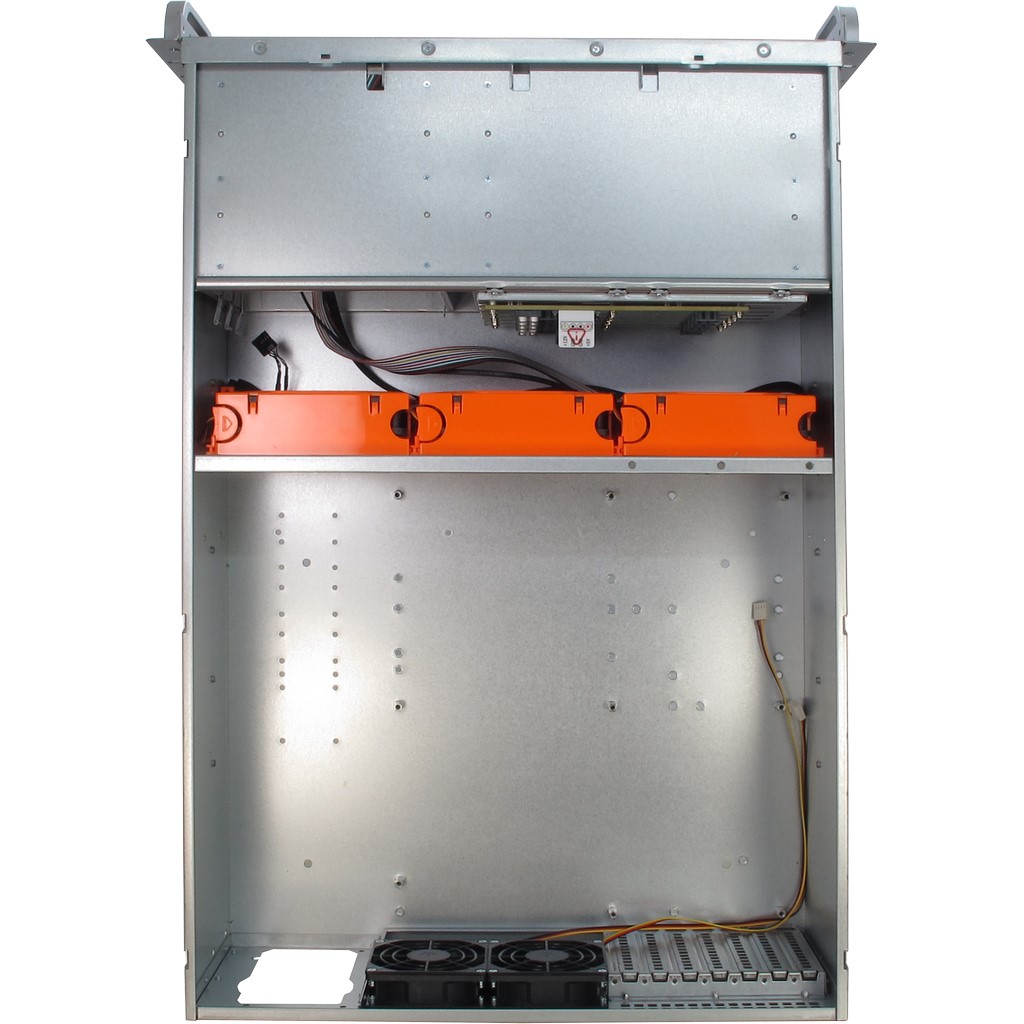

The 4U 4410 offers the possibility to mount a maximum of ten 2.5" or 3.5" Hot-Swap HDDs, four internal 2.5" HDDs and three external 5.25" drives. The 4U 4410 is equipped with three serial 120mm Hot-Swap fans behind the drive bays. Two further 80mm fans in the rear of the case ensure optimal cooling.

MOTHERBOARD
Form factor Mini ITX, μATX, ATX, eATX, SSI EEB
max. Motherboard size 305mm x 345mm (12" x 13.5")
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 155mm
Length graphics card (max.) 345mm
DRIVE BAYS
5.25" external 3x¹
5.25" external (slim)
3.5" or 2.5" external (Hot-Swap) 10x
3.5" internal 1x¹
2.5" internal 4x¹
FRONT CONNECTORS
USB 3.0 1x
USB 2.0 1x
POWER SUPPLY
PS2/mini redundant PSU
ATX PSU
FAN MOUNTING OPTION
Front 2x 40mm (optional)
Inside 3x 120mm (serial, Molex connector)
Rear 2x 80mm (serial, Molex connector)
CONTROLS & LED
Controls Power-Switch
Reset-Button
LED Power
HDD Activity
3x Network Activity
Alert
OTHER DATA
S-ATA/SAS-Backplane (max. 12Gbit/s)
Dimensions (h/w/d) 178 x 481 x 688mm
Material 1.0-1.2mm Steel
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

Screw set

Frame for ATX-PSU (fixed)

4U redundant and 3U 3x redundant PSU

Adapter for 2U PSU

Optional 80mm fan mounting for 2U PSU

Mounting frame for several PSU

6x Drive rails (2x fixed)

Features

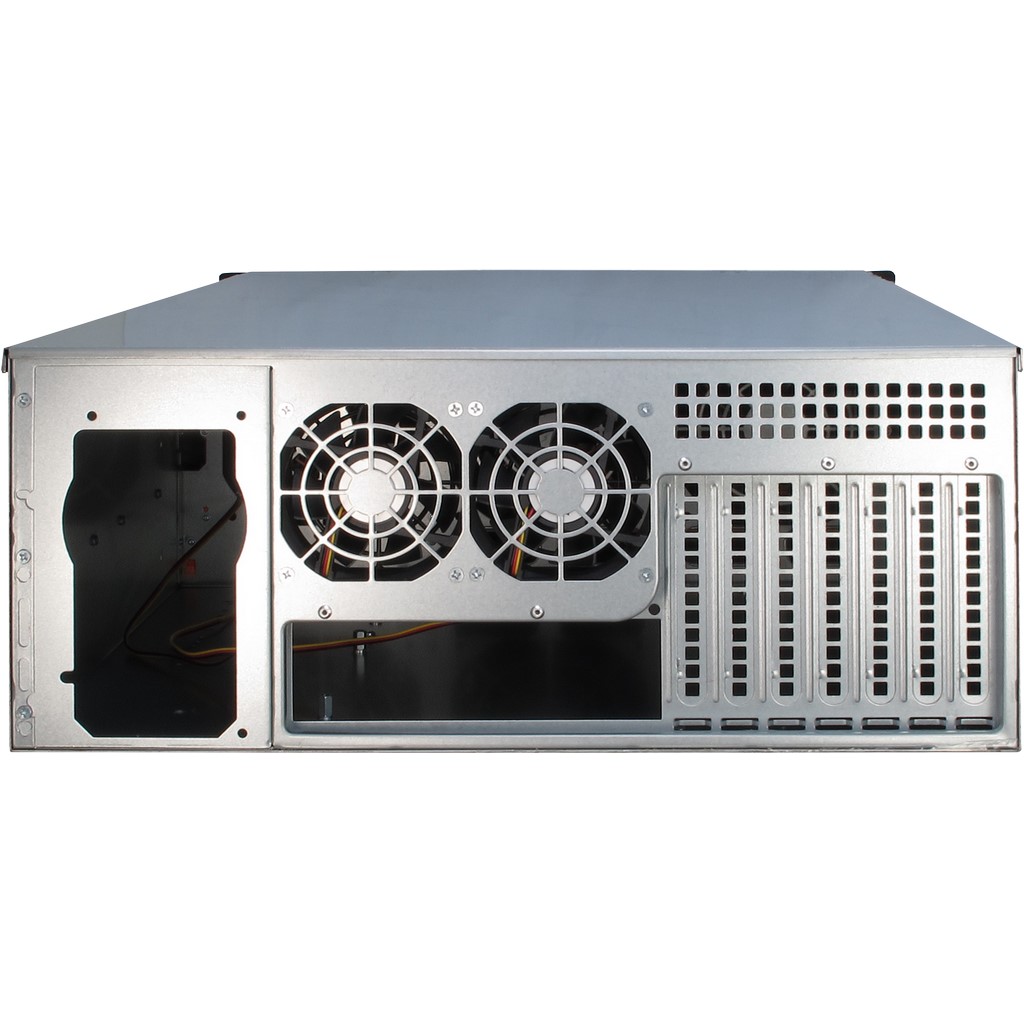

Serial 2x 80mm fan at the rear

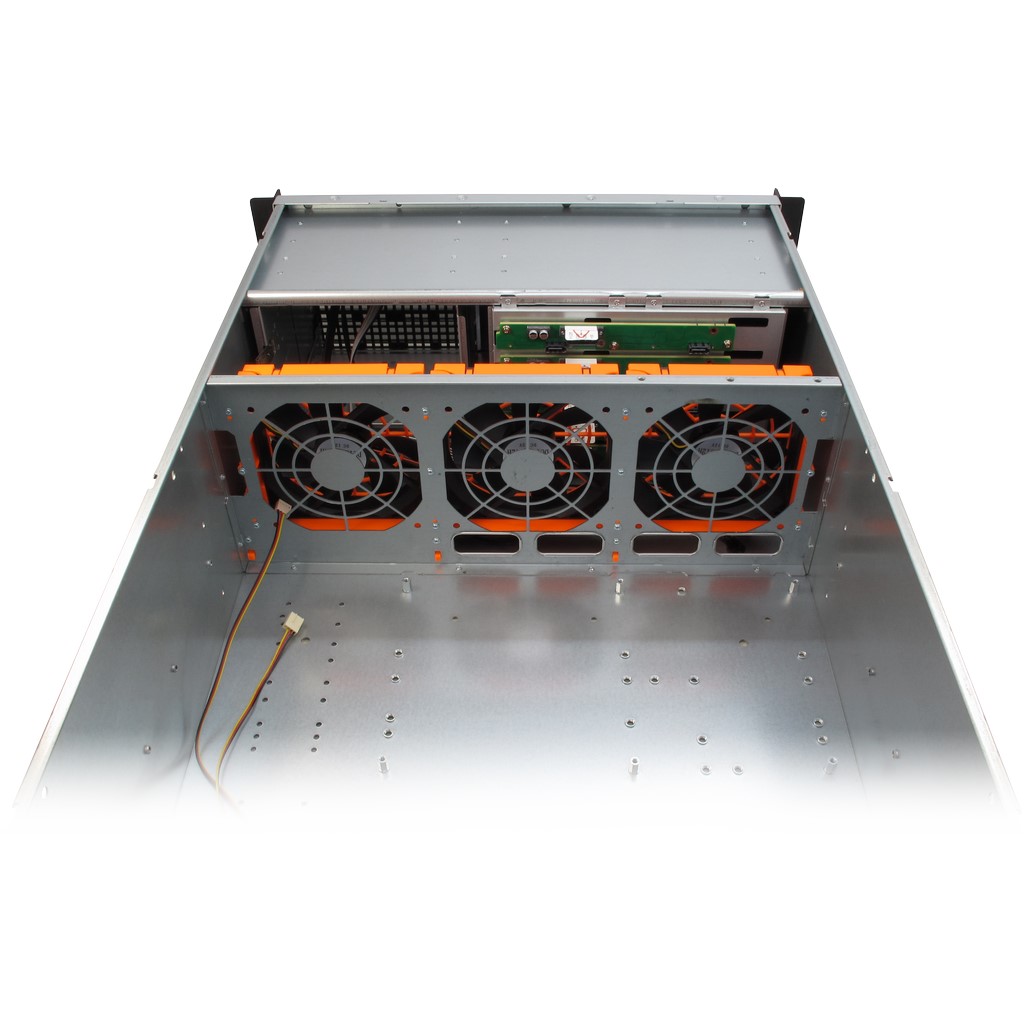

Serial 3x 120mm Hot-Swap fan in the middle

Removable drive bays

USB 2.0 and USB 3.0 internal as block connector

5x Hot-Swap backplanes with two S-ATA sockets each    Important Note!

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 12 Pcs
Weight net = 14.85kgs
gross = 17.34kgs
Item number 88887203
EAN-Code 4260133129634

¹ can vary by using several mounting options

Data Sheet 4U-4410
Download
Technical drawing 4U-4410
Download
Picture package 4U-4410
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.



Telescopic Slides:

2U Telescopic Slides 650mm
2U Telescopic Slides 455mm


Frontgrid:

4U Frontgrid black
4U Frontgrid silver


Server-PSU:

2U red. R2A-MV0700
2U red. R2A-MV0550
2U red. R2A-MV0450
2U red. R2A-DV0800-N
2U red. R2A-DV0550-N




Extender:

Extender PCIe x4 50mm
Extender PCIe x8 100mm
Extender PCIe x16 150mm
Extender PCIe x16 200mm
Extender PCIe x1 to x16 150mm
Extender PCI 100mm


Mounting Frames:

X-3531
WR-4000
Raid ST-1040 SR

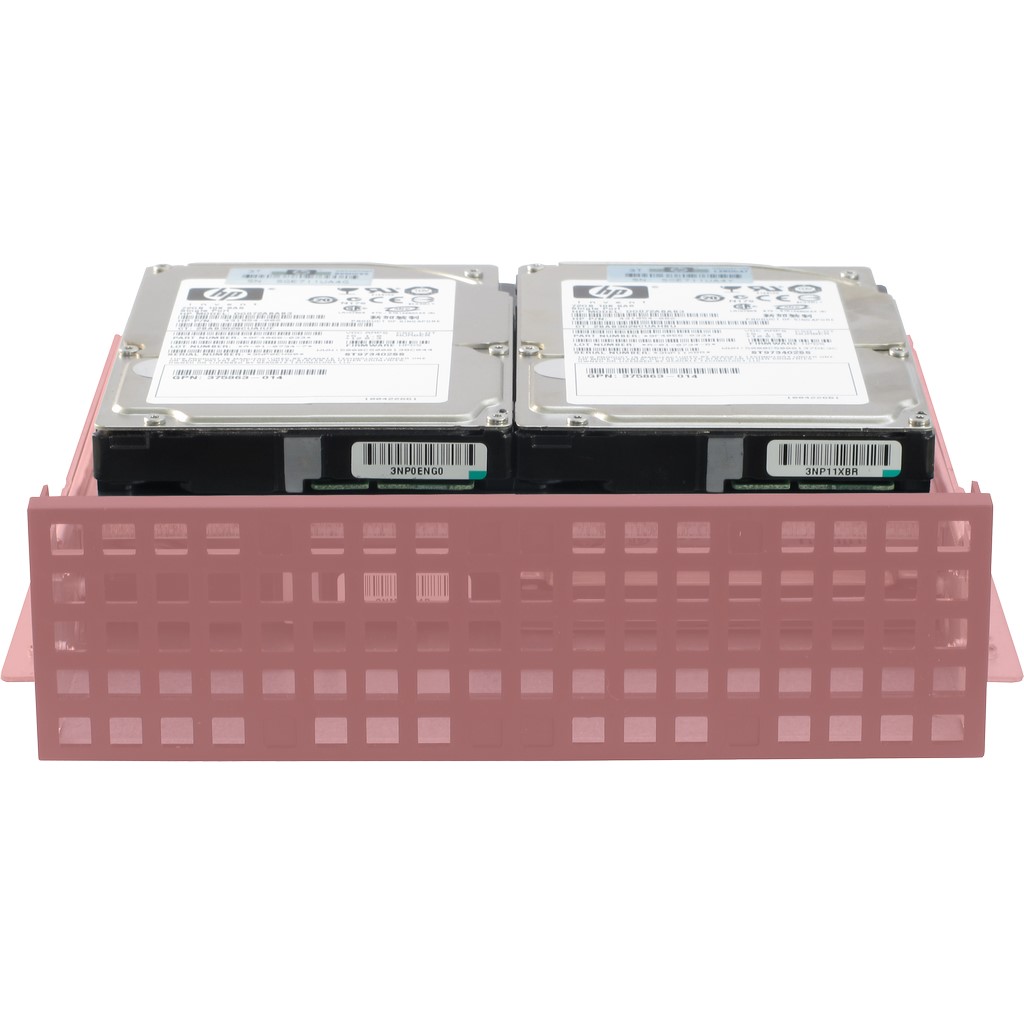

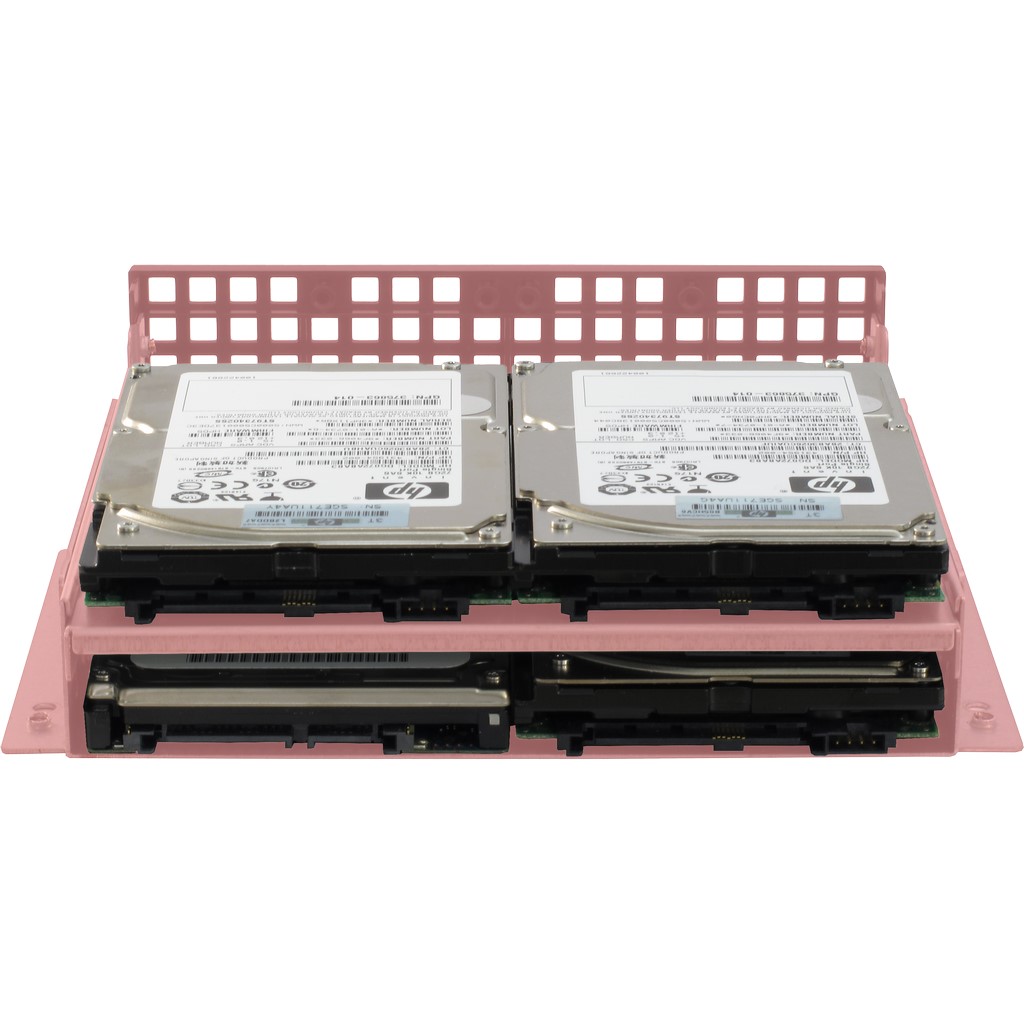

Mounting Frame 5.25" to 4x 2.5" or 1x 3.5"
