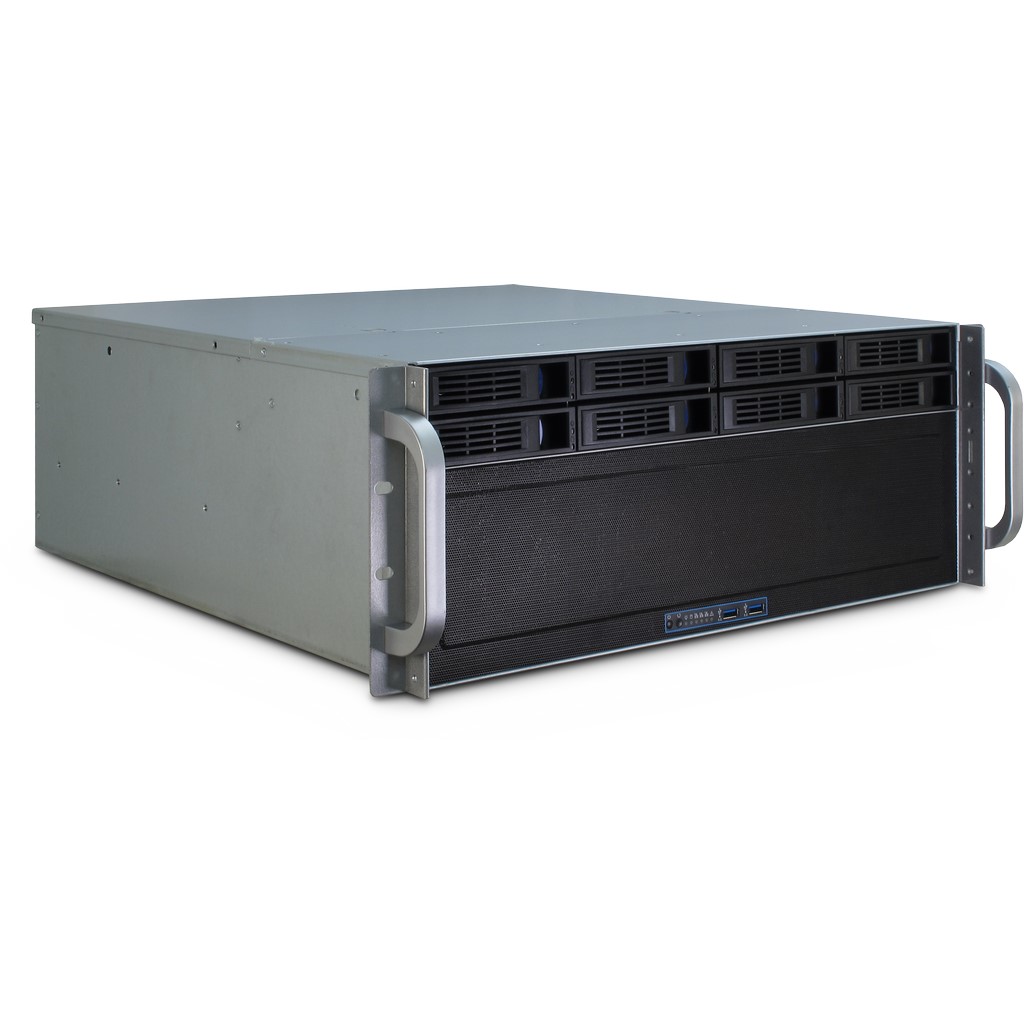

4U-4408
The 4U 4408 is the perfect rack for a low-priced storage system.
The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.
The 4U 4408 offers the possibility to mount maximal eight 2.5" or 3.5" Hot-Swap HDDs and one internal 2.5" or 3.5" HDD (by using a 2.5" with 9.5mm height also a 3.5" HDD simultaneously). The 4U 4408 is equipped with two serial 80mm fans.
Now new: Backplane with NVMe Support available as an upgrade. Click here to go to the NVMe Backplane.
Choose here
|
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, μATX, ATX, eATX, SSI EEB |
| max. Motherboard size | 305mm x 345mm (12" x 13.5") |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 80mm/155mm¹ |
| Length graphics card (max.) | 190mm |
| DRIVE BAYS | |
| 5.25" external | |
| 5.25" external (slim) | |
| 3.5" or 2.5" external (Hot-Swap) | 8x |
| 3.5" or 2.5" internal | 1x² |
| FRONT CONNECTORS | |
| USB 3.0 | 2x |
| USB 2.0 | |
| POWER SUPPLY | |
| PS2/mini redundant PSU | |
| ATX PSU | |
| FAN MOUNTING OPTION | |

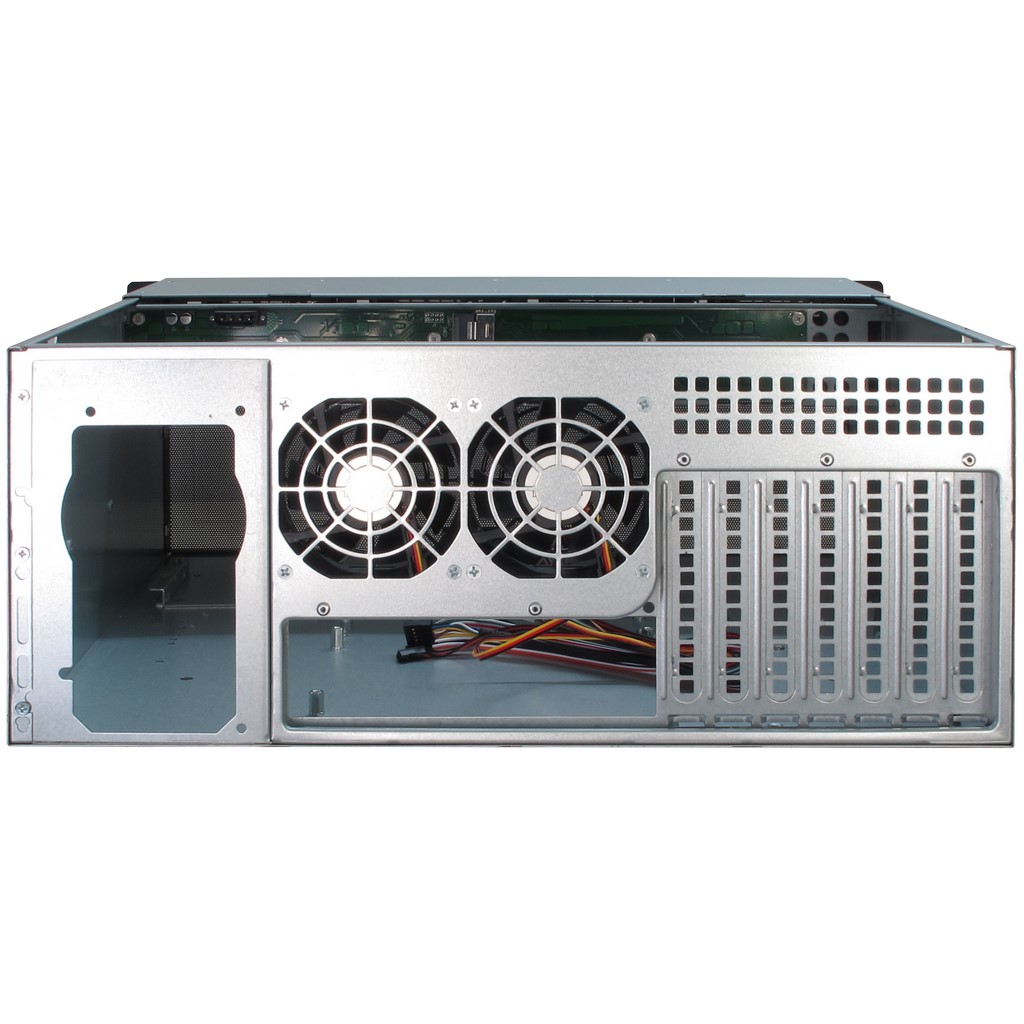

| Rear | 2x 80mm (serial, 3pin (4pin connector)) |
| CONTROLS & LED | |
| Controls | Power-Switch Reset-Button |
| LED | Power HDD Activity 3x Network Activity Alert |
| OTHER DATA | |
| S-ATA/SAS-Backplane + SFF-8643 (max. 12Gbit/s) | |
| Dimensions (h/w/d) | 178 x 480 x 520mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |

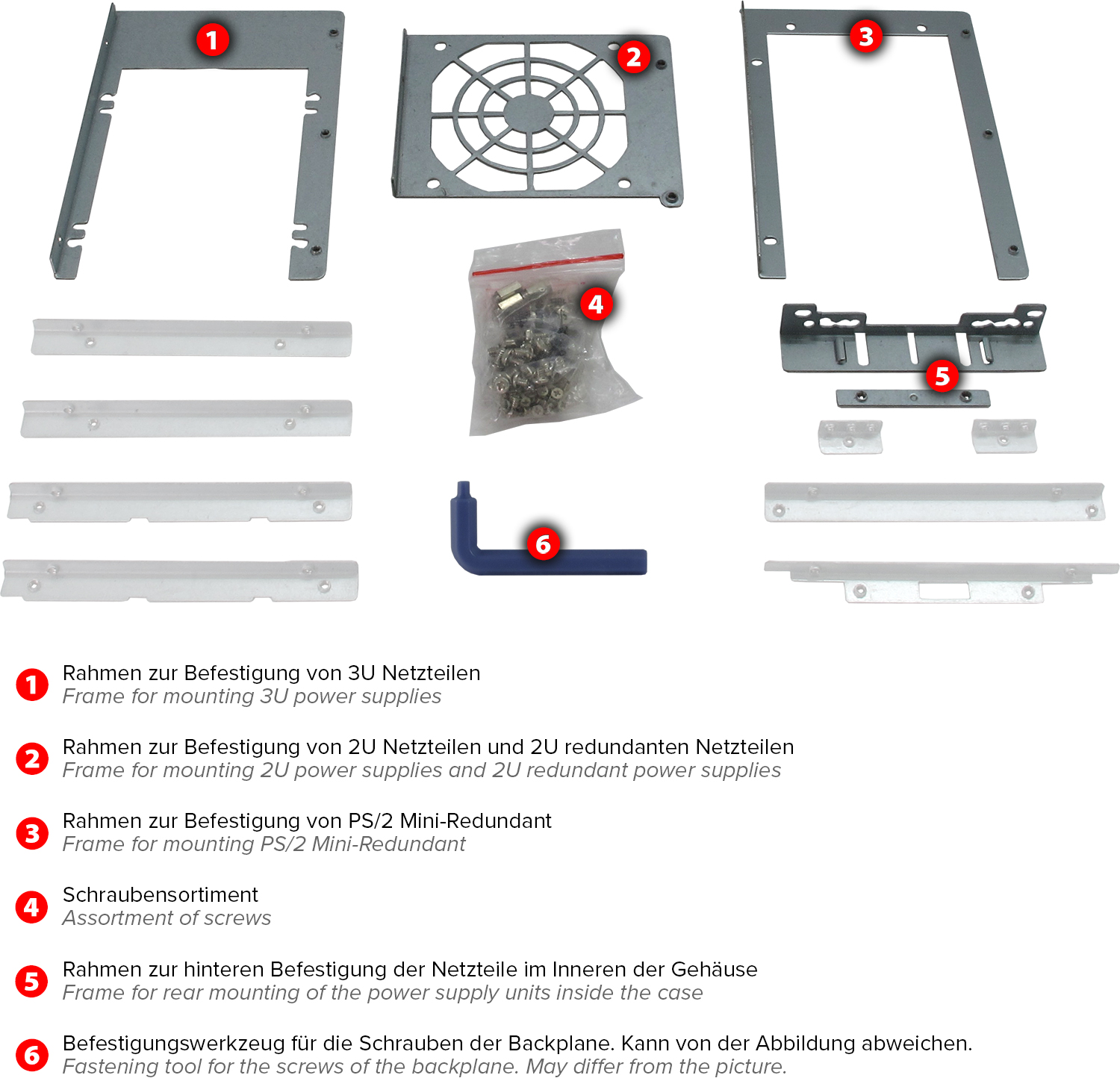

| Scope of delivery |
Case Retail packaging Screw set Frame for ATX PSUs (fixed) and redundant 4U-PSU Adapter for 2U-PSU + optional 80mm fan bracket Mounting frame for several PSU Mounting tool |
| Features |
Serial 2x 80mm fans Removable drive bays USB 3.0 as block connector 2x Hot-Swap backplanes with one SFF-8643 socket each Snap-in cap Mesh-Grid-Front with dust filter |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 14 Pcs |
| Weight | net = 9.06kgs gross = 11.32kgs |
| Item number | 88887191 |
| EAN-Code | 4260133128620 |
¹ depending on the position of the CPU (80mm, if the CPU is under the HDD cage)
² simultaneously only if 2.5" drive with max. 9.5 mm height
 |
