4U-4408L

Article No.
88887427
This high-performance 4U storage enclosure was specifically designed for professional server, storage, and data center applications.
Thanks to its high drive capacity, optimal cooling, and flexible expansion options, the enclosure is ideal for NAS, backup, virtualization, and storage servers.
The eight front-panel hot-swap bays allow for quick, tool-free replacement of 2.5-inch or 3.5-inch hard drives while the system is running. The system is complemented by an additional 2.5-inch hot-swap bay on the rear panel — ideal for system drives or cache SSDs.
Additional internal drive bays provide greater flexibility when configuring SSDs or HDDs.
Ensure reliable cooling by:
- 2x 80-mm fans behind the front doors
- Fans can be removed from the front, making them particularly easy to maintain
- 3x dust filters behind the front panel to reduce dust buildup
- 3x 120-mm fans in the center panel for optimized airflow
The sophisticated cooling design ensures a stable system temperature even with a high number of drives installed.

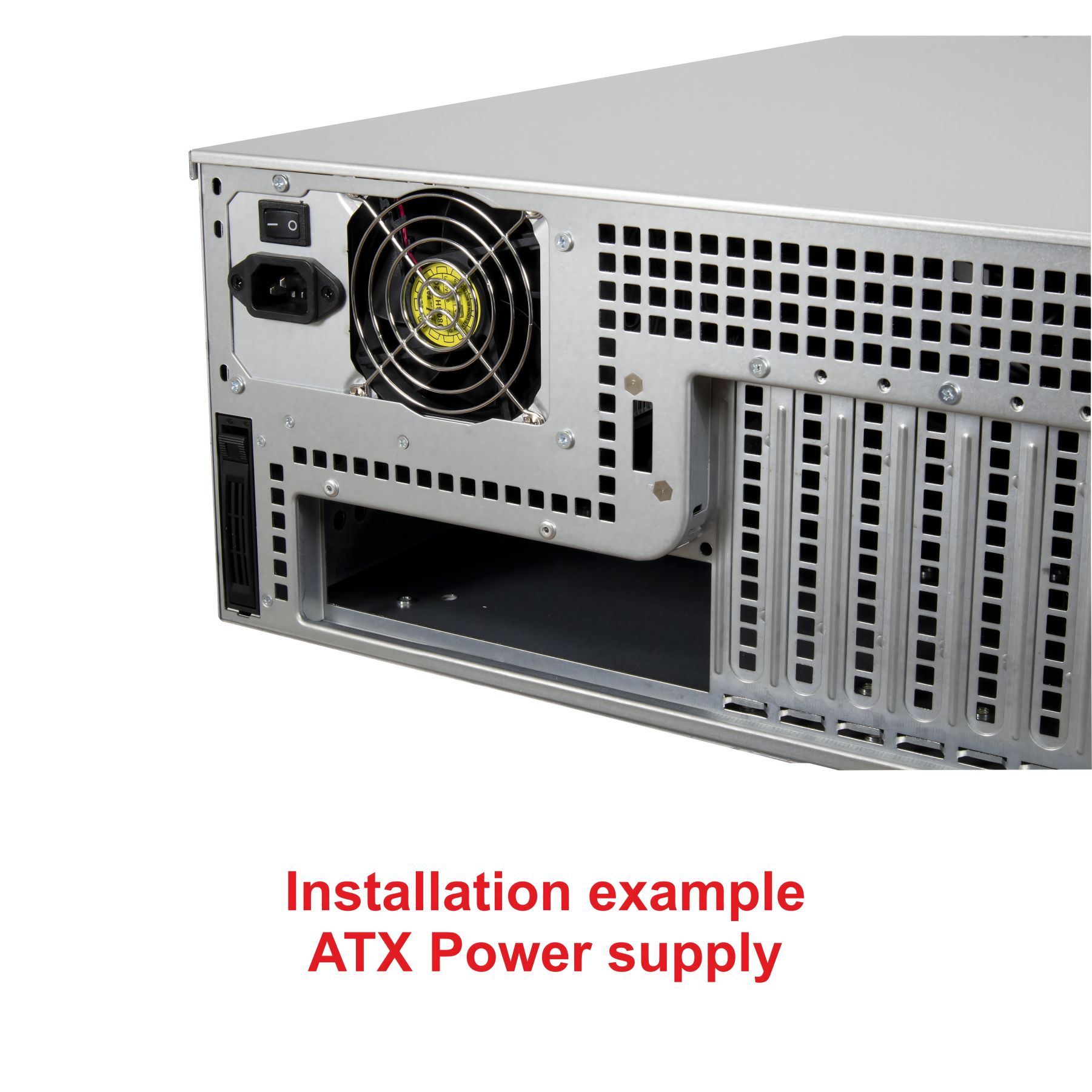

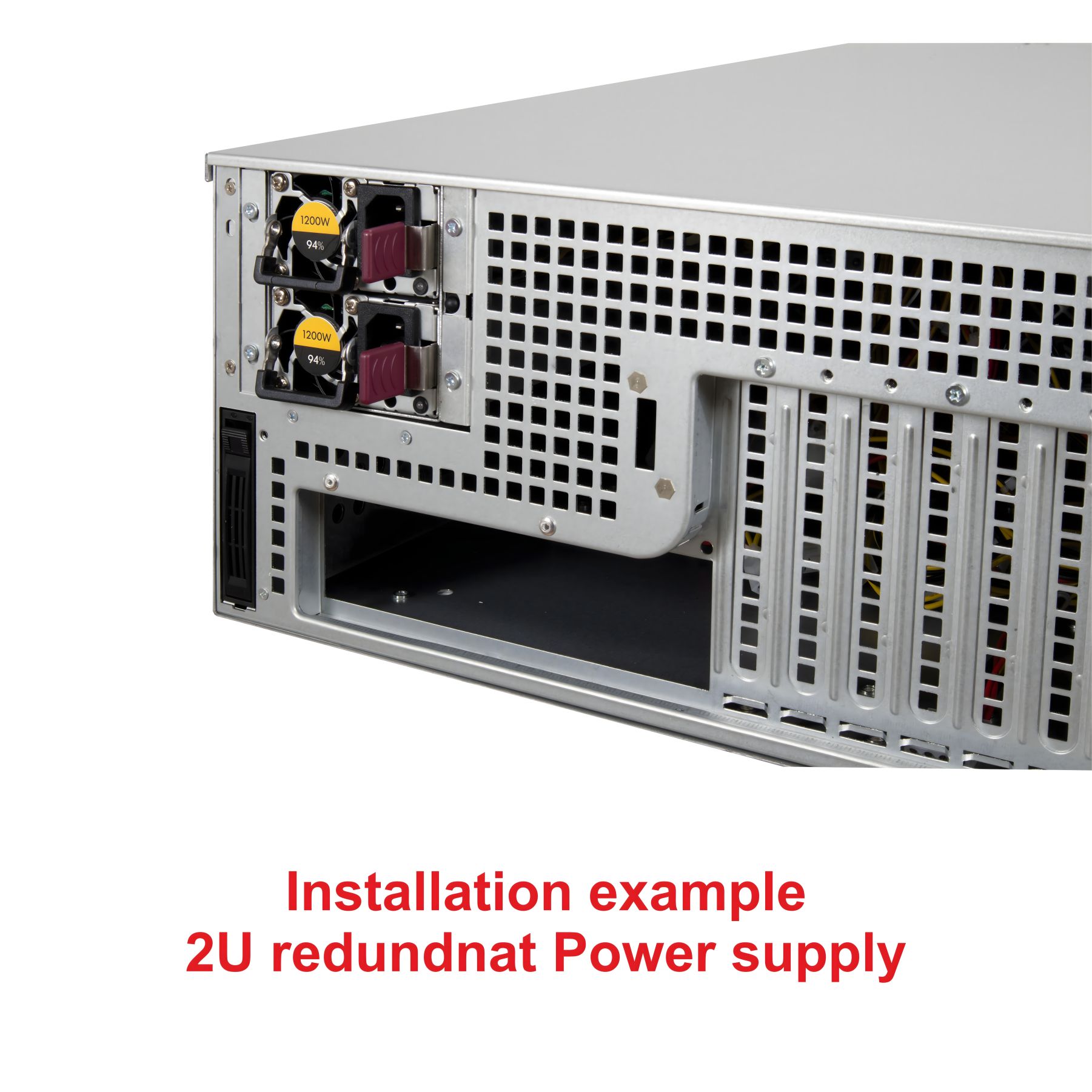

The integrated backplane supports standard ATX power supplies. Alternatively, for maximum reliability in professional environments, an optional backplane for redundant 2U power supplies is available.

Features

- 8 hot-swap drive bays for 2.5“ or 3.5” hard drives
- 1 additional hot-swap drive bay on the back panel for 2.5" drives
- 2x drive bays, each accommodating 2x 2.5“ HDD/SSD or, alternatively, 1x 3.5” HDD
- Support for up to 11 expansion cards
- Optimized cooling system with multiple fan zones
- Support for ATX power supplies or, optionally, for redundant 2U power supplies
- Optional back panel for redundant power supplies available
- Front ports with 2x USB 3.0
- Robust 4U rackmount design with 65 cm depth

Backplane
Backplane quantity
Hard disk quantity
Transfer speed

Data connector
Power connector
2
4/ Backplane
SAS 12 Gb/s
2x SATA/SAS (SFF8643)
1x 4-Pin Molex/ Backplane

Size
Mainboard

Case
Cage
Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB
max. 335 x 386 mm
485 x 690 x 178mm (wxdxh)
435 x 445 x 177,6mm (wxdxh)

HDD/ ODD Mounting space
5.25" external
3.5" external
2.5" external
3.5" external or 2.5"
3.5" internal
2.5" internal
3.5" od. 2.5" internal
-
-
1 (Hot-Swap, rear)
8 (Hot-Swap)
-
-
2x (2x2.5" or 1x3.5")

Front connectors

USB A 3.0
USB A 2.0
USB Type C
Heaphone
Microphone
Card Reader
2x 3.2 Gen1
-
-
-
-
-

Mounted fans
200mm
140mm
120mm
80mm
60mm
-
-
3x 4pin to one backplane
2x 3pin
-

Further mounting options

Power supply
CPU cooler
Graphic adapter
Fans
ATX (2U redundant with optional back panel)
max. 145 mm
max. 330 mm
-

Scope of delivery

Case
Screws
Keys

Warranty

24 Months

Logistic data

Net weight
Gross weight
Article number
GTIN
Packing unit
13.340 kgs
15.630 kgs
88887427
4262531060014
1 pcs
12 pcs (pallet)
