6U-6606

Article No.

88887339

The IPC 6U-6606 is a perfect case for a cost-efficient Mini Server System. Using high-level material combined with excellent workmanship we created a variable and reliable industrial case.

So the 6U-6606 supports ATX or PS/2 redundant power supplies, up to six 2,5“/3,5“ Hot-Plug hard disks, seven internal 2,5“ and nine internal 3,5" devices, one external 5,25“ devices and mainboards up to E-ATX size.

The extricable mainboard holder eases mounting of components and supports mounting of two 80mm fans and cutouts for two DB9/ DB15 ports.

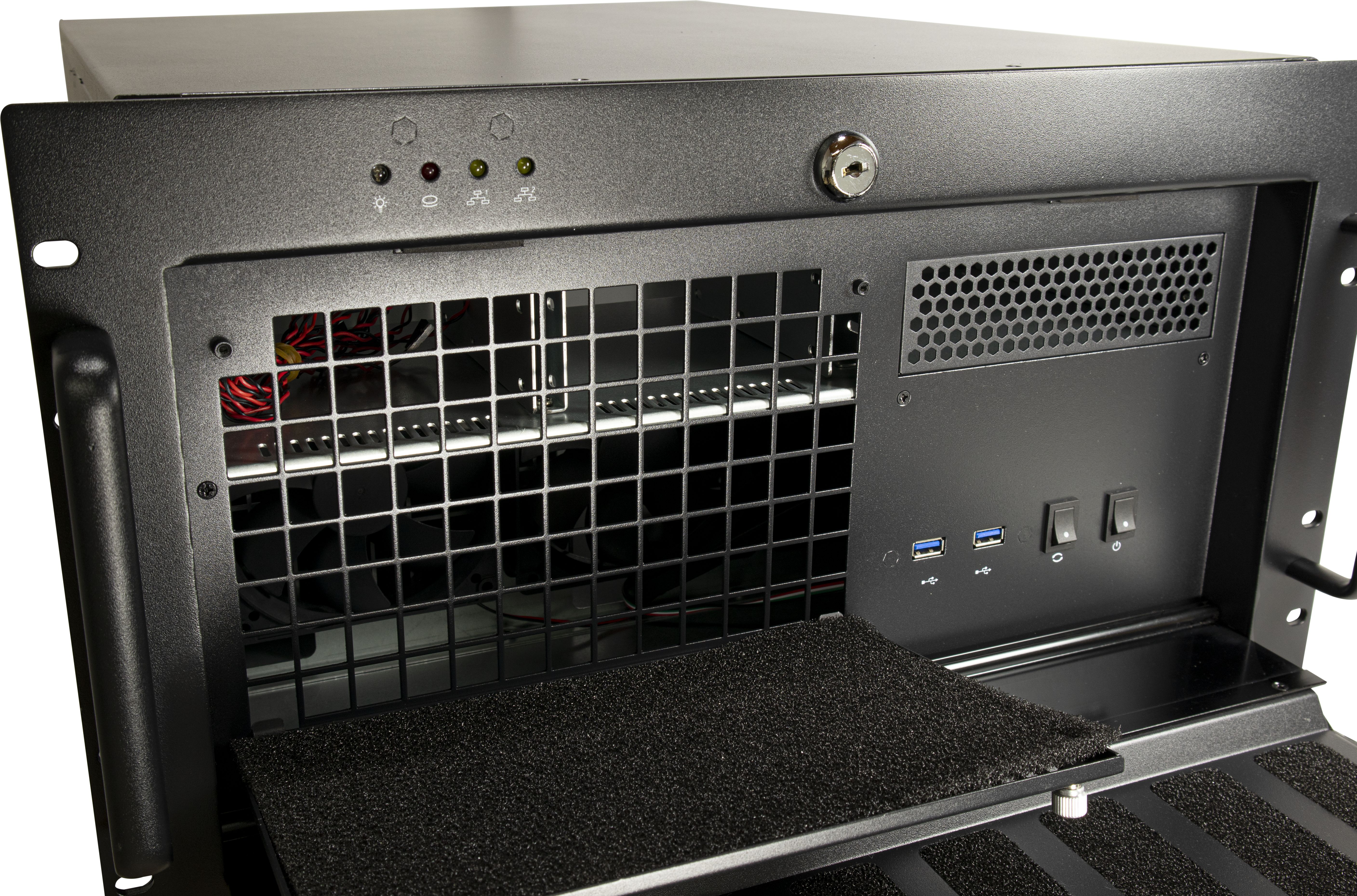

The rear HDD Hot-Swap frames as well as the front door are lockable to protect your hardware and data.

Additional three 120mm fans and perforated slot brackets optimize air flow.

Serial USB 3.2 Gen1 front connectors round up the case.

Features		6 Hot-Swap HDD Frames HDD frames loackable Extricable Mainboard holder Lockable front door Serial three 120mm fans Perforated slot brackets

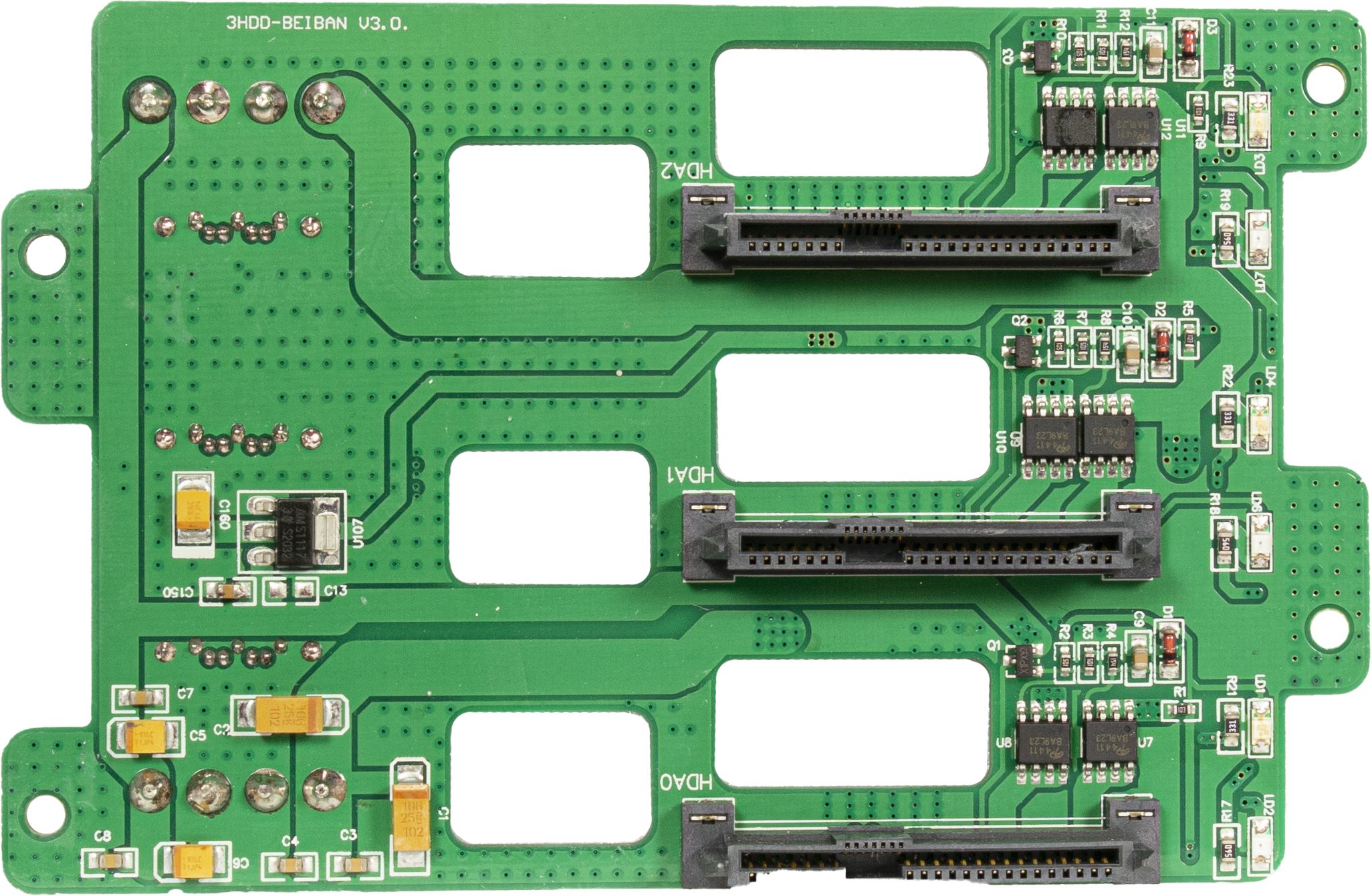

Backplane	Quantity Backplanes Quantity hard disks Transfer speed Data connection Electrical connection	2 6 6Gb/s 3x SATA/ Backplane 2x Molex/ Backplane

Size	Mainboard Case	ITX, Micro-ATX, ATX, eATX (max. 305 x 330mm - 12" x 13") 482 x 600 x 285 mm

HDD/ ODD Mounting space	5,25" external 3,5" external 2,5" or 3,5" external 3,5" internal 2,5" internal 3,5" or 2,5" internal	1 - 6 (Hot-Swap HDD frames) 9 7 (4 of these on the middle bracket, max. height 7mm) -

Front connectors	USB A 3.0 USB A 2.0 USB Type C Headphone Microphone Card Reader	2x 3.2 Gen1 - - - - -

Mounted fans	200mm 140mm 120mm 80mm	- - 3 (Molex) -

Further mounting space	Power supply PCIe CPU cooler Graphic adapter Fans Extern	ATX or Mini-Redundant PS/2 7 max. 135mm max. 330mm 2x 80mm (rear) 2x DB9/DB15

Scope of delivery		Case Power supply mounting for ATX (pre-installed) Screws

Warranty		24 Months

Logistic data	Net weight Gross weight Article number GTIN Packing unit	20,140 kgs 23,760 kgs 88887339 4260455646468 1 pcs 10 pcs (pallet)

Actually no tests available

Data Sheet 6U-6606	Download
Technical drawing 6U-6606	Download
Picture package 6U-6606	Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.

	18" x 10mm Telescopic rail

	20" x 10mm Telescopic rail

	26" x 10mm Telescopic rail

	HDD frame ES-3525-MAS

	ASPOWER R2A-MV0450, Redundant

	ASPOWER R2A-MV0550, Redundant

	ASPOWER R2A-MV0700, Redundant

	PSU adapter ATX-01, ATX - SFX

	PSU adapter ATX-02, ATX - FlexATX

	PSU adapter ATX-03, ATX - DC-Output

	PSU adapter ATX-04, ATX - TFX

	Ventilation set FB-380 (Spare part, already included twice)
