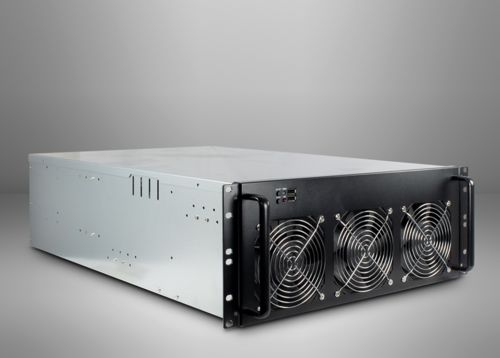

IPC 4W40 MINING-RACK
The 4W40 is a 4U-rack is designed to mount up to 14 graphics cards and 2 power supply units.
Thanks to the superb workmanship it is the ideal case for your sensitive hardware.
Six pre-installed 120mm fans ensure an optimal airflow and cooling of your components. Two USB 2.0 ports complete the offer.
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, μATX, ATX |
| max. Motherboard size | 305mm x 244mm (12" x 9.6") |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 155mm |
| Length graphics card (max.) | 350mm |
| DRIVE BAYS | |
| 5.25" external | |
| 3.5" external | |
| 3.5" internal | |
| 2.5" internal | |
| FRONT CONNECTORS | |
| USB 3.0 | |
| USB 2.0 | 2x |
| POWER SUPPLY | |
| ATX PSU | 2x |
| FAN MOUNTING OPTION | |
| Front | 3x 120mm (serial, Molex connector) |
| Inside | 3x 120mm (serial, Molex connector) |
| CONTROLS & LED | |
| Controls | Power-Button Reset-Button |
| LED | Power HDD Activity |
| OTHER DATA | |
| Dimensions (h/w/d) | 179 x 482 x 705mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw Set Mounting rail for 6 dual-slot graphics cards (pre-mounted) Mounting rail for 8 single-slot graphics cards Adhesive tape made of foam |
| Features |
Mountingoption for 2 x ATX-PSU Mounting rail for 6 dual-slot graphics cards Mounting rail for 8 single-slot graphics cards Mounting option for up to 14 single-slot graphics cards 6 pre-mounted 120mm fans in the front and middle USB 2.0 internal as block connector |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 12 Pcs |
| Weight | net = 9.67kgs gross = 11.65kgs |
| Item number | 88887374 |
| EAN-Code | 4260455647779 |
 |
