IPC 4F28 MINING-RACK

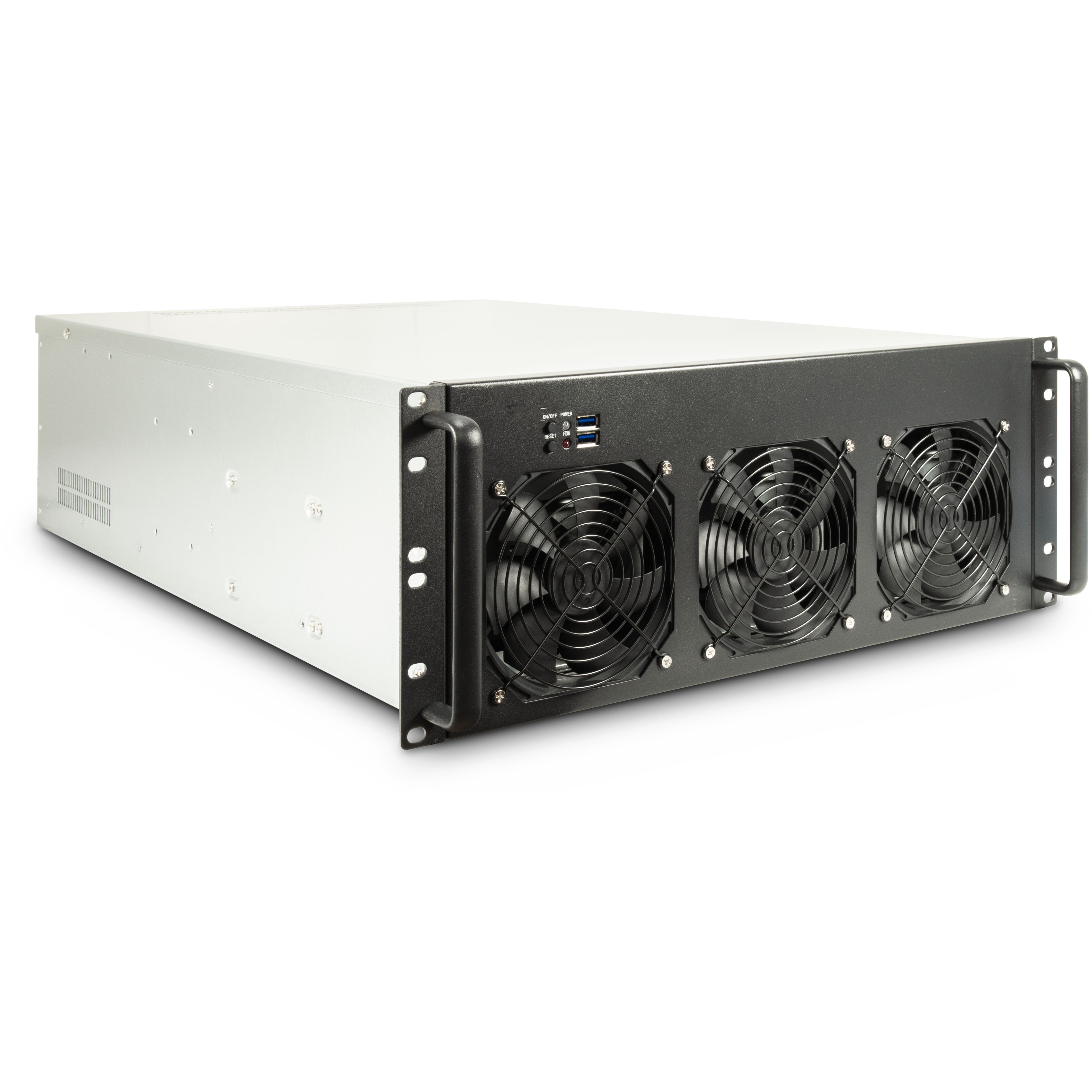

The 4F28 Mining is a 19" rack case with 4U and an installation depth of 650mm.

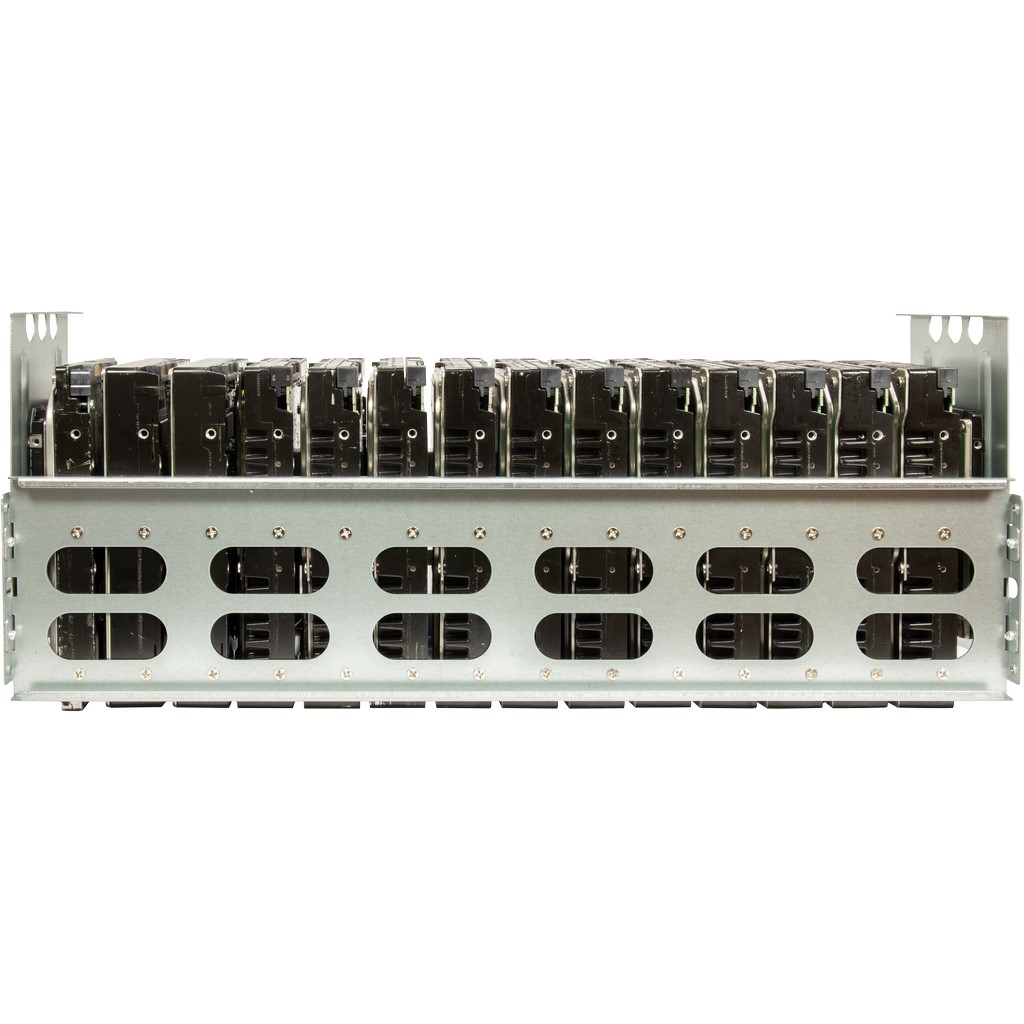

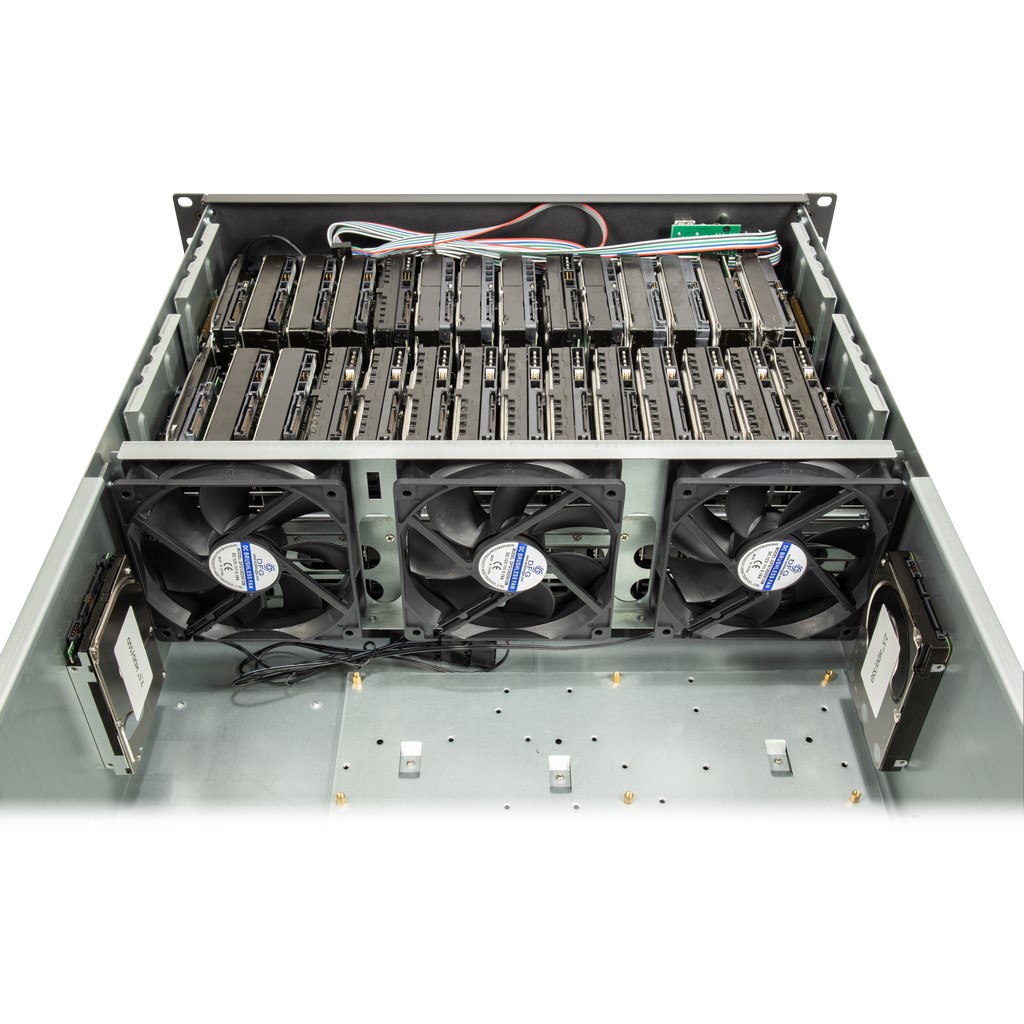

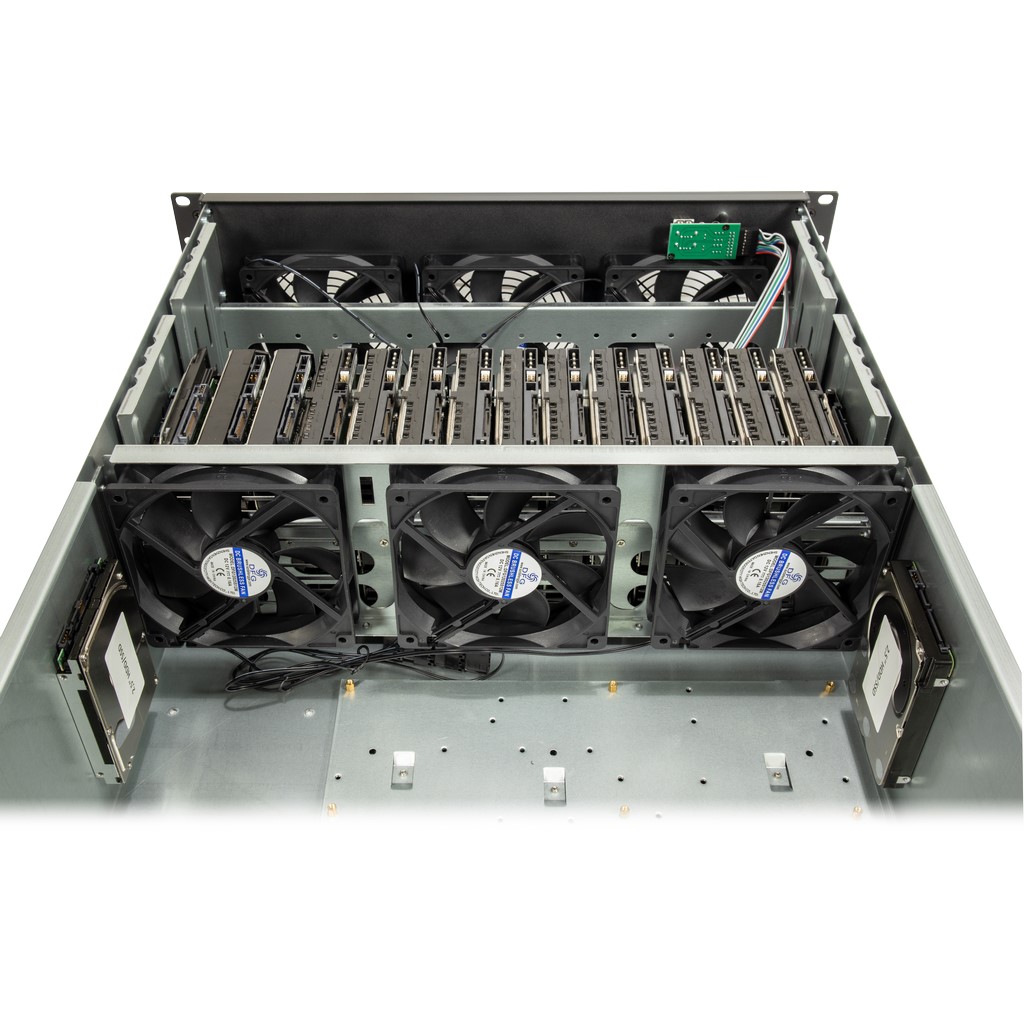

In addition to accommodating a motherboard with a maximum of 12" x 13", it offers space for up to 28x 3.5" HDD and up to 4x 2.5" or 6x¹ 2.5" SSD. Thanks to its robust construction, the case offers the necessary support for your sensitive hardware.

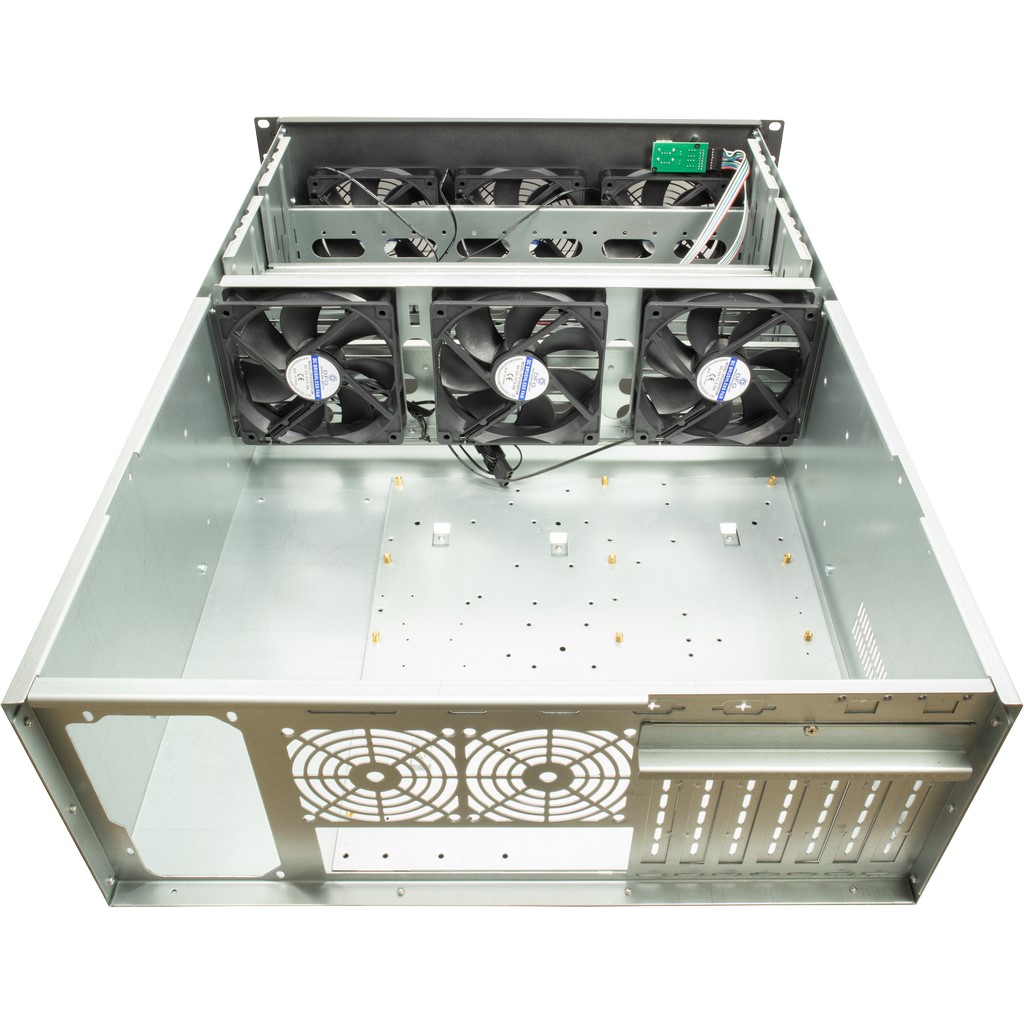

Six powerful 120mm case fans are preinstalled for optimal cooling of the hardware, three of them in the front and three more in the middle bar. Two USB 2.0 front connections complete the offer.

MOTHERBOARD
Form factor Mini ITX, μATX, ATX, eATX
max. Motherboard size 305mm x 330mm (12" x 13")
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 155mm
Length graphics card (max.) 310mm
DRIVE BAYS
5.25" external
3.5" external
3.5" internal 28x
2.5" internal 4x / 6x¹
¹ 6 pieces only possible with half-height 3.5" hard drives

FRONT CONNECTORS

USB 3.0
USB 2.0 2x
POWER SUPPLY
ATX PSU
FAN MOUNTING OPTION
Front 3x 120mm (serial, Molex connector)
Inside 3x 120mm (serial, Molex connector)
Rear 2x 80mm (optional)
CONTROLS & LED
Controls Power-Button
Reset-Button
LED Power
HDD Activity
OTHER DATA
Dimensions (h/w/d) 178 x 482 x 688mm
Material 1.0-1.2mm Steel
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Case

Retail packaging

Screw Set

Two slot brackets

Features

6x 120mm fans in the front and in the middle bar

Space for up to 28x 3.5" HDD and 4x or 6x¹ 2.5" SSD

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 12 Pcs
Weight net = 11.36kgs
gross = 13.20kgs
Item number 88887352
EAN-Code 4260455647182

Data sheet 4U-4F28
Download
Technical drawing 4U-4F28
Download
Picture package 4U-4F28
Download
