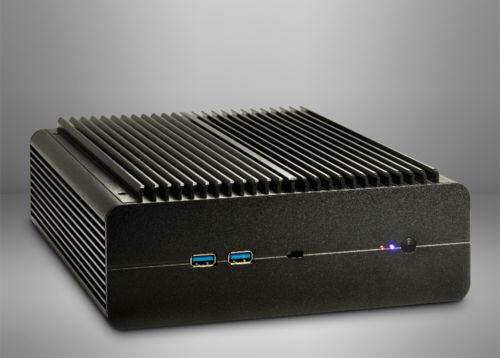

IP-60
The IP-60 is a case for Mini-ITX mainboards with external power supply and I/O shields in normal height.
Thanks to the closed design and the integrated cooling fins, it is the ideal candidate for a system with passive cooling. In conjunction with the optional IP-3 cooler, CPUs with a TDP of up to 70W can be installed and operated entirely without active fan elements. Alternatively, other CPU coolers up to 43mm in height can also be installed.
The case can be attached to almost any supporting surface (e.g. on the wall) using the standard mounting brackets, optionally using the additionally available VESA mount behind the monitor or as a standing device with four feet. Data can also be conveniently uploaded via the two integrated USB 3.0 front connections.
- Compact Mini-ITX housing made of aluminum
- Integrated cooling fins for heat dissipation
- Wall mounting via standard rails
- Two USB 3.0 front ports
| SIZE | |
|---|---|
| Motherboard | Mini-ITX Maximum board dimensions WxD: 170mm x 170mm , 6.7" x 6.7" |
| Dimensions (h/w/d) | 77 x 210 x 240mm |
| DRIVE BAYS | |
| 5.25" external | |
| 3.5" external | |
| 3.5" internal | |
| 2.5" internal | 2x |
| FRONT CONNECTORS | |
| USB 3.0 | 2x |
| USB 2.0 | |
| Microphone | |
| Headphones | |
| OTHER DATA | |
| Fan mounting option | |
| Max. CPU cooler height | 43mm |
| Control element | Power button |
| LED | Power HDD activity |
| Power supply | Mini-ITX PSU |
| Material | Aluminum |
| GUARANTEE / WARRANTY | |
| Warranty | 24 Months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case IP-60 Retail packaging Screw Set Wall mount Four feet Manual (english) Mounting bracket for IP-3 Mini-ITX-PSU 120W |
| Features |
Possibility on the back for 1x serial port Possibility on the back for 1x WLAN Possibility for optional USB 3.2 Type C socket |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 6 Pcs |
| EU palett | 120 Pcs |
| Weight | net = 1.68kgs gross = 2.05kgs |
| Item number | 88887372 |
| EAN-Code | 4260455647618 |
