IP-40

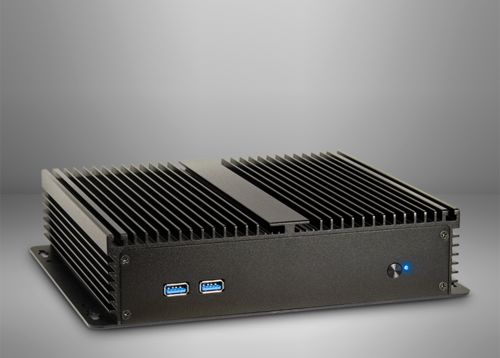

The IP-40 is a half-height housing for Thin Mini-ITX mainboards with integrated power supply and I/O shields.
Thanks to the closed design and the integrated cooling fins, it is the ideal candidate for a system with passive cooling. In conjunction with the optional IP-3 cooler, CPUs with a TDP of up to 70W can be installed and operated entirely without active fan elements.
The case can be attached to almost any supporting surface (e.g. on the wall) using the standard mounting brackets, optionally using the additionally available VESA mount behind the monitor. Data can also be conveniently uploaded via the two integrated USB 3.0 front connections.
- Compact Thin Mini-ITX case made of aluminum
- Integrated cooling fins for heat dissipation
- Wall mounting via standard rails
- Two USB 3.0 front ports
| SIZE | |
|---|---|
| Motherboard | Thin Mini-ITX (only with integrated power supply and half-height I/O shield) Maximum board dimensions WxD: 170mm x 170mm , 6.7" x 6.7" |
| Dimensions (h/w/d) | 58 x 235 x 200mm |
| DRIVE BAYS | |
| 5.25" external | |
| 3.5" external | |
| 3.5" internal | |
| 2.5" internal | 1x |
| FRONT CONNECTORS | |
| USB 3.0 | 2x |
| USB 2.0 | |
| Microphone | |
| Headphones | |
| OTHER DATA | |
| Fan mounting option | |
| Control element | Power button |
| LED | Power |
| Power supply | About opt, built-in motherboard |
| Material | Aluminum |
| GUARANTEE / WARRANTY | |
| Warranty | 24 Months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case IP-40 Retail packaging Screw set Mounting bracket for IP-3 Manual (english) |
| Features |
|
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 6 Pcs |
| EU palett | 180 Pcs |
| Weight | net = 1.42kgs gross = 1.73kgs |
| Item number | 88887371 |
| EAN-Code | 4260455647601 |
