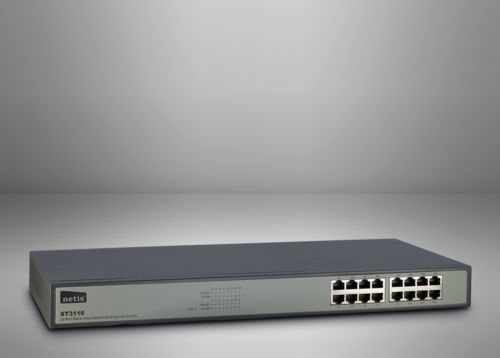

ST3116
SALE 16 Port Fast Ethernet Rackmount Switch
The netis ST3116 Fast Ethernet Rackmount Switch provides 16 10/100Mbps Auto‐Negotiation RJ45 ports. It is ideal for the small and medium office use. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports.
The 16 Port Fast Ethernet Rackmount Switch provides you with high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network.
- 16x 10/100Mbps RJ45 ports
- Supports MAC address self-learning and auto MDI/MDIX
- Green Ethernet technology link down power saving and link on various cable length power saving
- Supports Jumbo frame
- Supports 8K MAC address table
- 3.2Gbps Switching Capacity
- Fanless design to make sure it works quietly without disturbing the department or office use
- Standard 19-inch steel case
- Plug and play, no configuration required
HARDWARE | |
---|---|
Interface | 16x 10/100Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX |
LED | Power 1-16 10/100M 1-16 LNK/ACT |
Power Supply | 100-240V AC/50-60Hz |
SWITCHING FEATURES | |
Standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control IEEE 802.3az |
Switching Fabric Capacity | 3.2Gbps |
Jumbo Frame | 2K |
Transmission Method | Store and Forward |
Built-in Buffer | 2Mbits |
MAC Address Table | 8K, auto-learning & auto-aging |
Access Method | CSMA/CD |
Data Transmission Rate | 10/100Mbps (Half-duplex) 20/200Mbps (Full-duplex) |
OTHER DATA | |
Certification | FCC, CE, BSMI |
Environment | Operating temperature: 0°C~40°C Storage temperature: -20°C~70°C Operating humidity: 10%~90% non condensed Storage humidity: 5%~90% non condensed |
Dimension (l/w/h) | 432 x 200 x 44mm |
Guarantee | 36 months |
SCOPE OF DELIVERY & FEATURES | |
Scope of delivery |
ST3116 Retail packaging Power cord Brackets Quick Installation Guide |
Features | |
LOGISTICAL DATA | |
Shipping Unit | 1 Pcs |
Packing Unit | 5 Pcs |
Weight | net = 2.09kgs gross = 2.76kgs |
Item number | 88883017 |
EAN-Code | 6951066951017 |
