Features
|
|

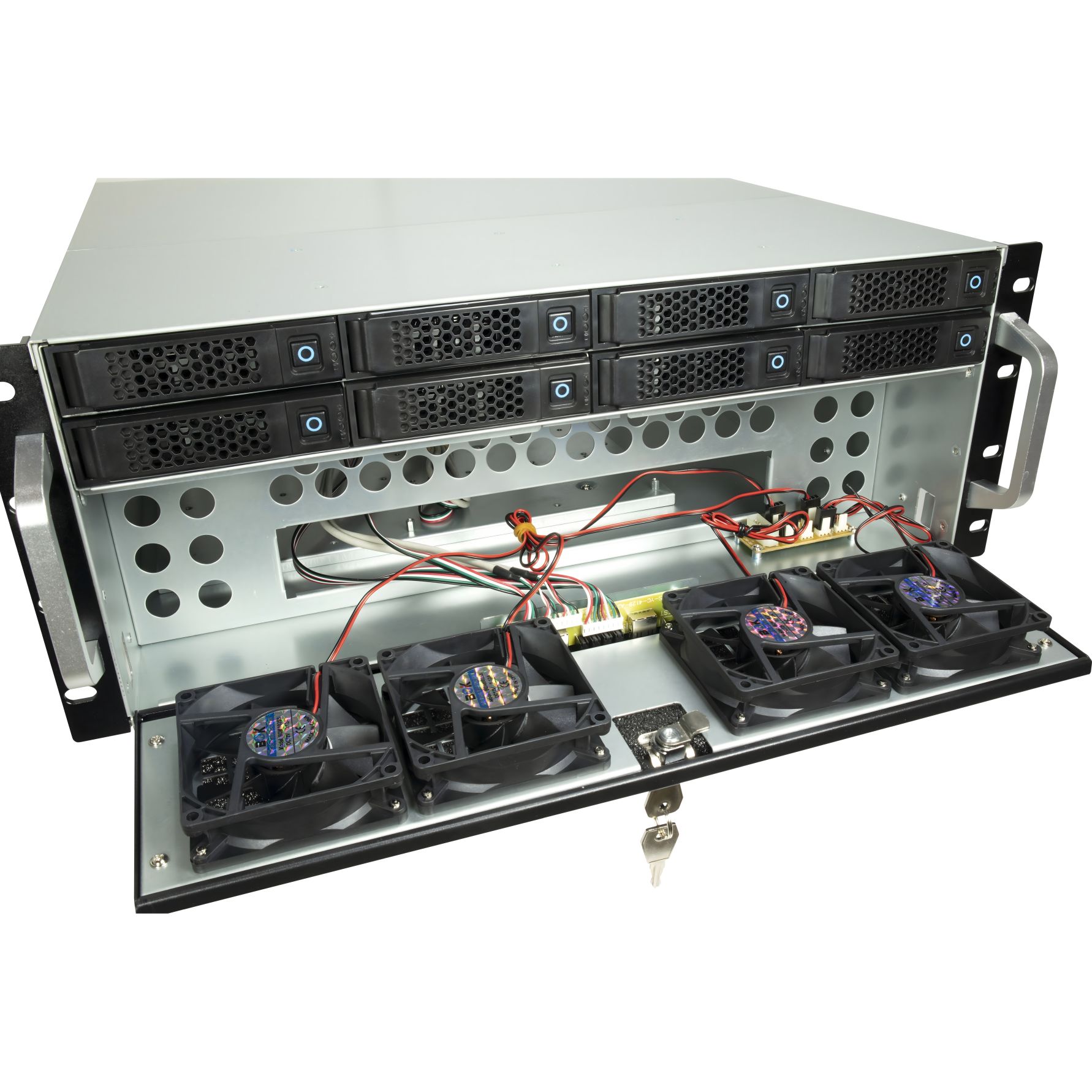

6x 80 mm fans serial

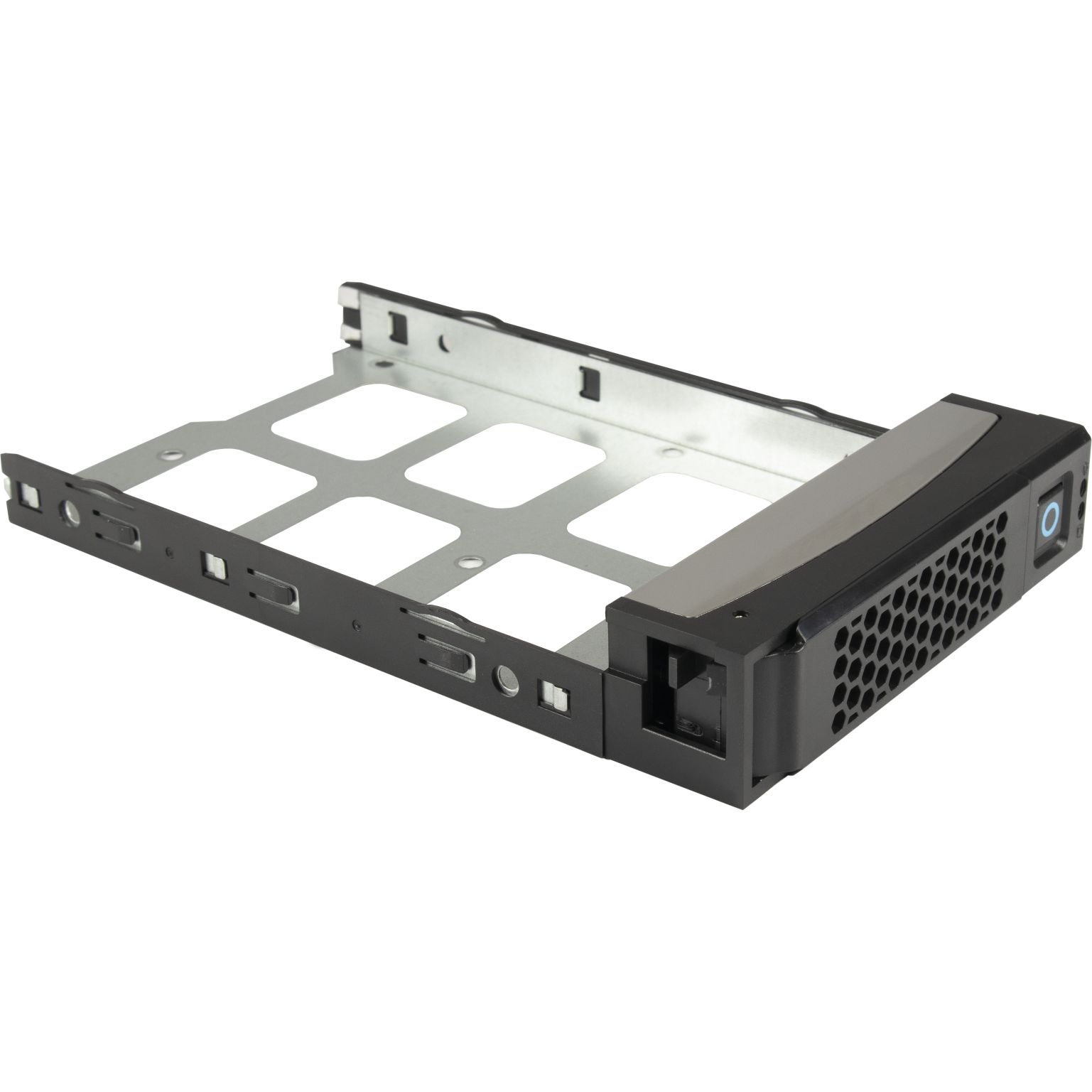

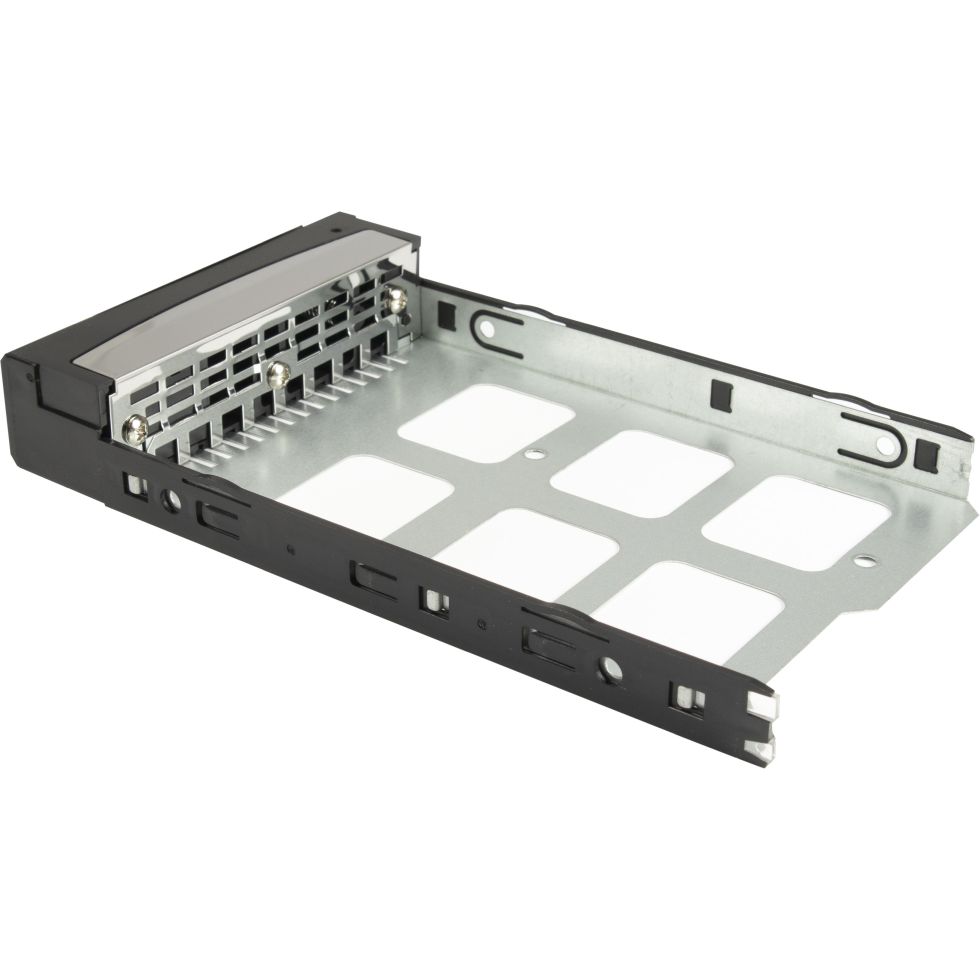

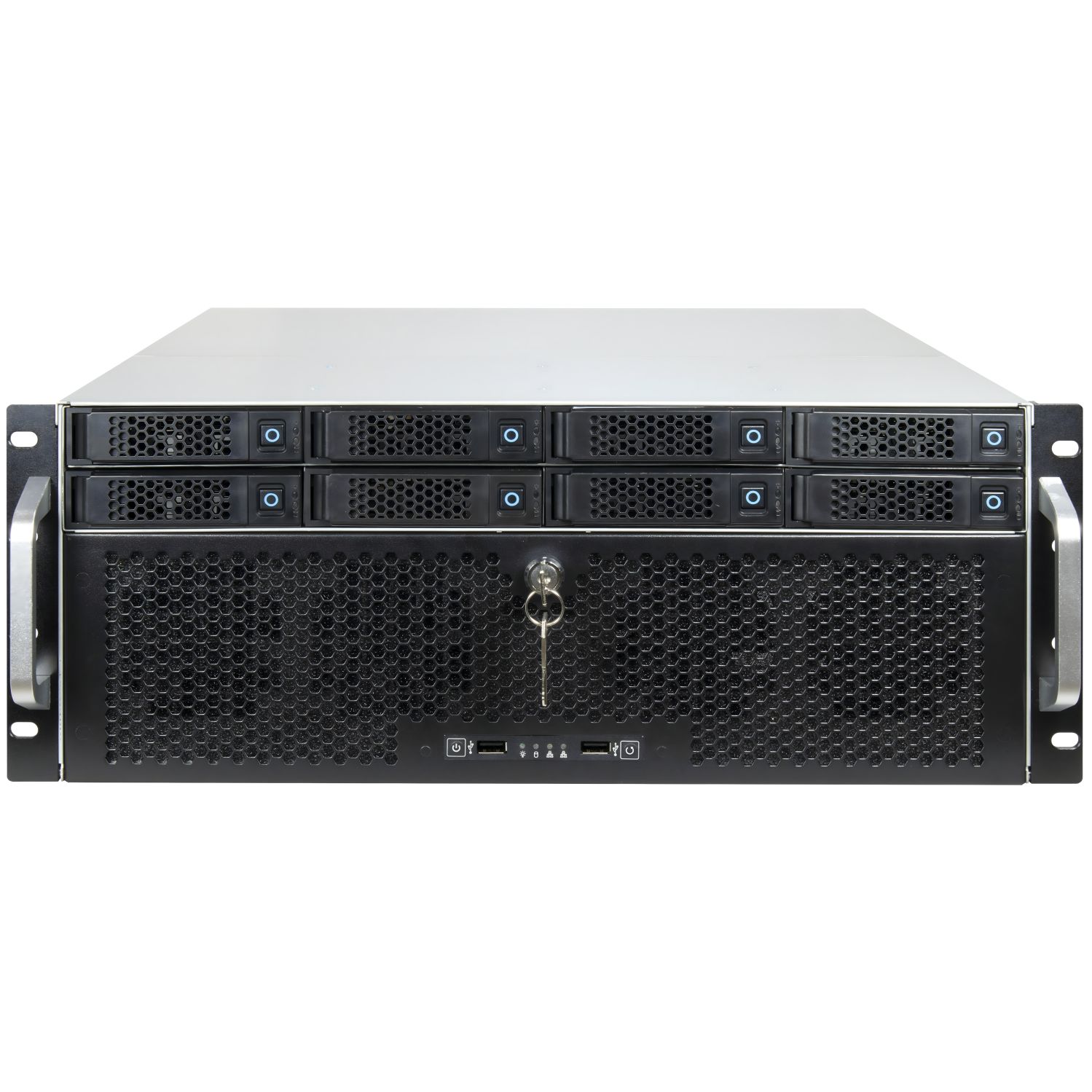

8 Hot-Swap frames
Supports 4x NVMe up to 16G
|
| |
|
|

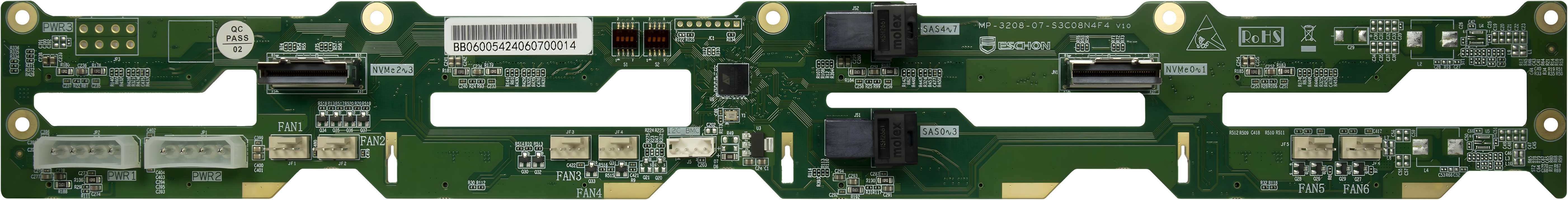

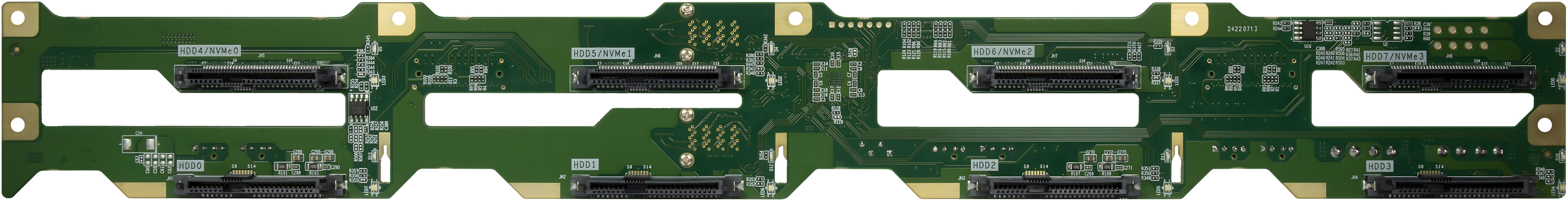

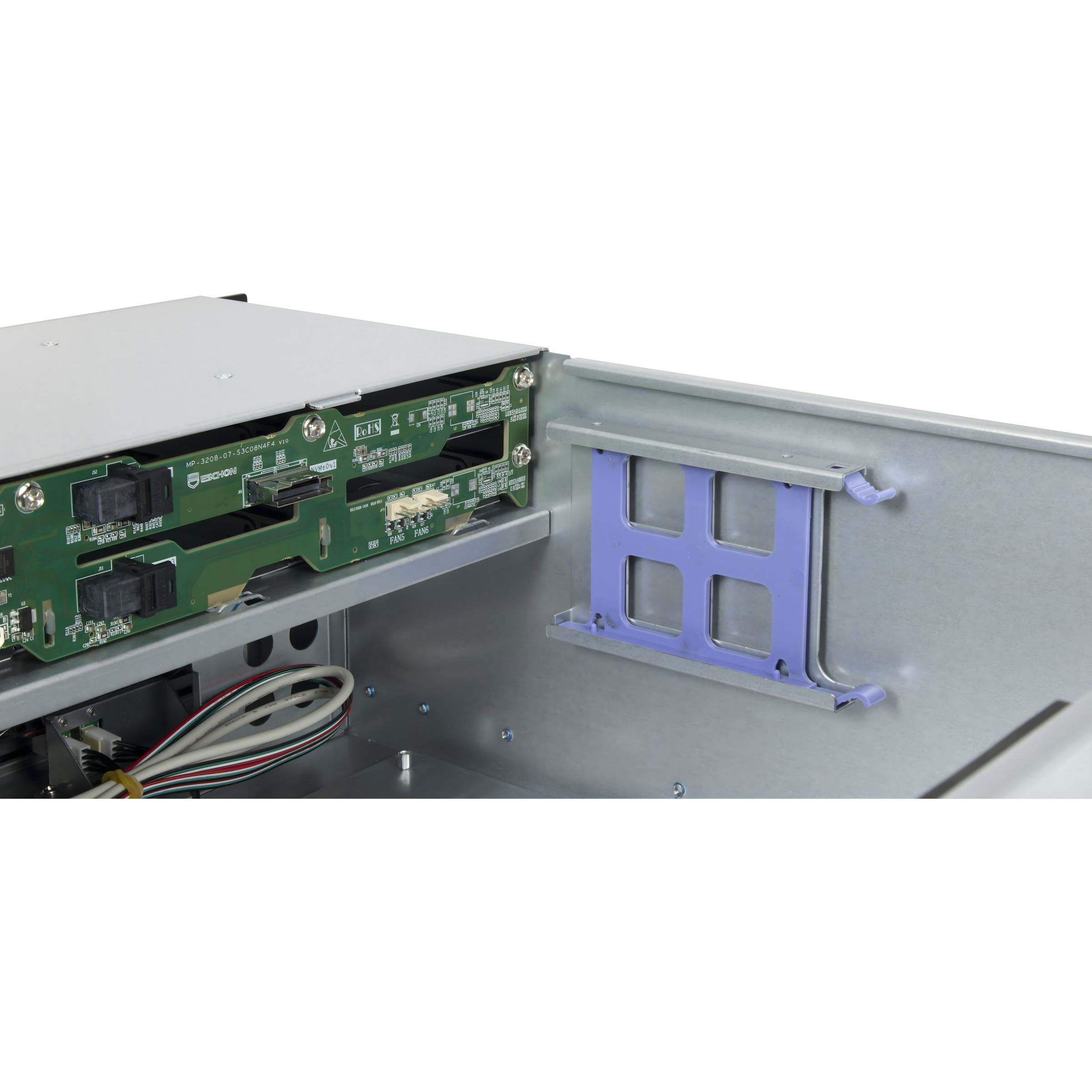

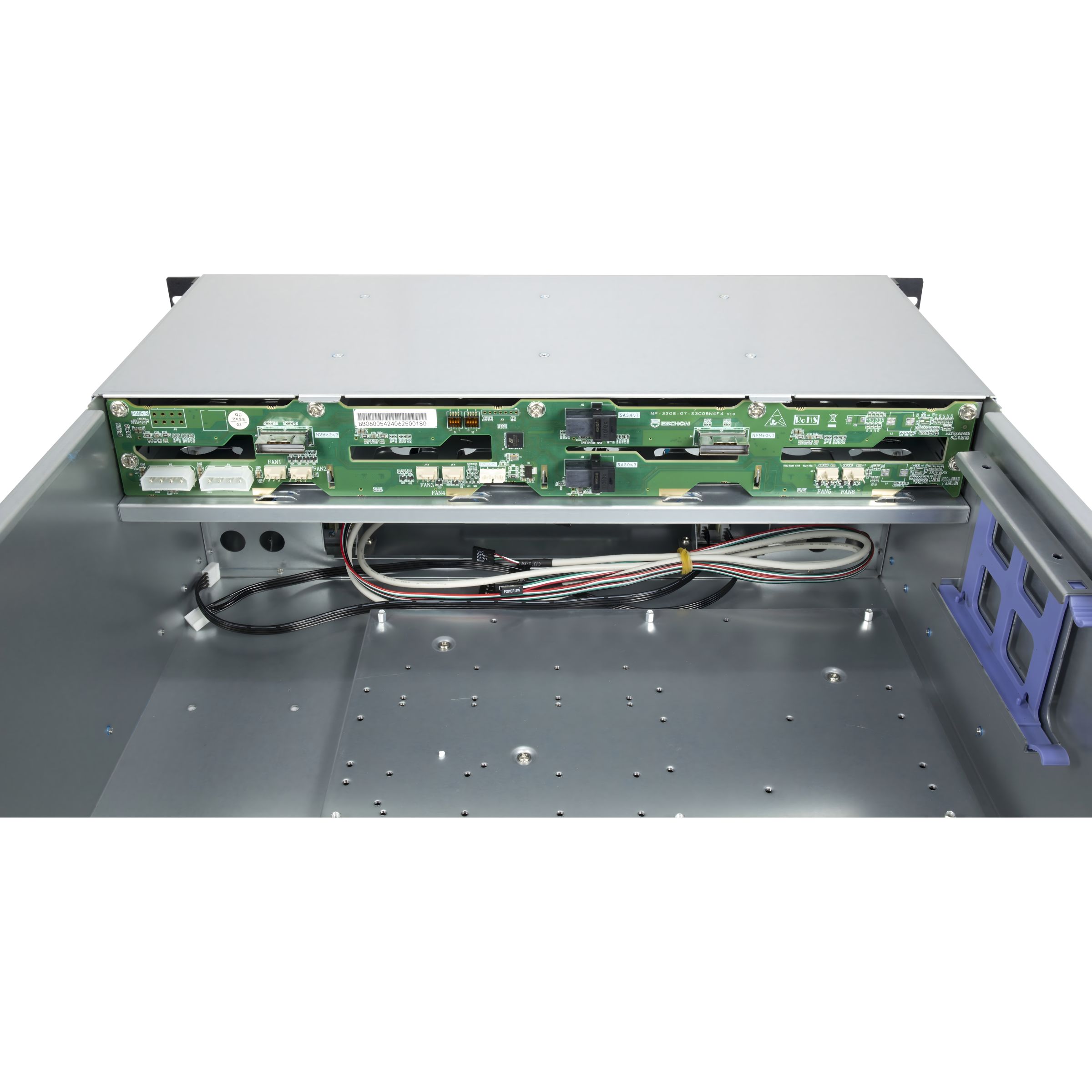

Backplane
|
Quantity Backplanes
Quantity hard disks
Data transfer rate
SATA
SAS
NVMe
Connection HDD
Connection Controller
Electrical connection
|
1
4x NVMe-SSD (U.2/ U.3) or 4x SAS/SATA-SSD/HDD (2.5" or 3.5")
4x SAS/SATA-SSD/HDD (2.5" or 3.5")
6G
12G
16G
4x SFF8639 (U.2/U.3/SAS/SATA)
4x SAS
2x SFF8654-8i (each for 2x NVMe U.2/U.3 SSD)
2x SFF8643 (each for 4x SAS/SATA-SSD/HDD)
2x Molex
|
| |
|
|
Size
|
Mainboard
Case
|
ITX, Micro-ATX, ATX, E-ATX, SSI CEB, SSI EEB
max. 330 x 305 mm
481 x 515 x 178 mm (WxDxH)
|
| |
|
|
HDD/ ODD Mounting space
|
5.25" external
3,5" external
3.5" or 2.5" external
3.5" internal
2.5" internal
3.5" od. 2.5" internal
|
-
-
8 (Hot-Swap frames)
-

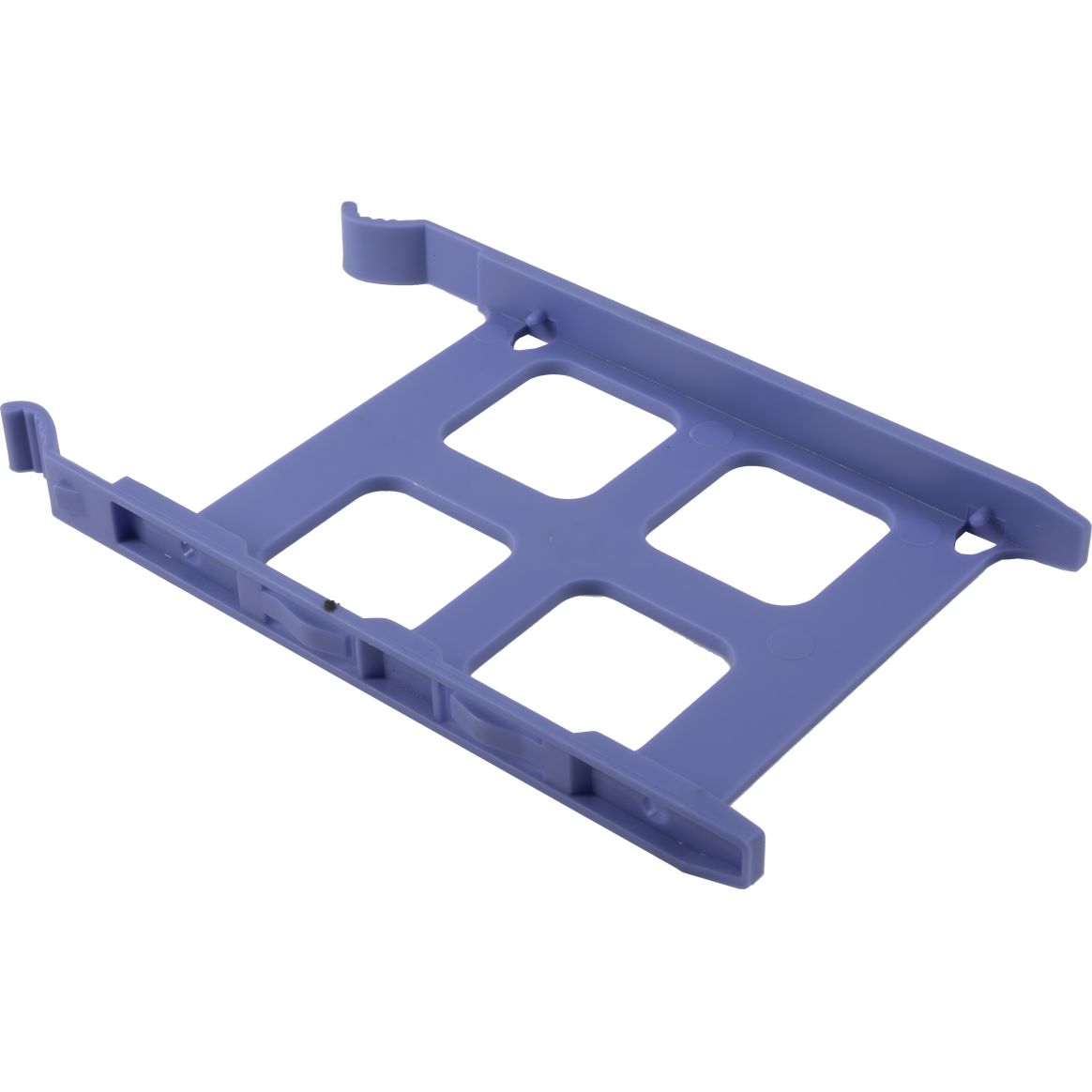

1 (screwless)
-
|
| |
|
|
Front connectors
|
USB A 3.0
USB A 2.0
USB Type C
Headphone
Microphone
Card Reader
|
-
2
-
-
-
-
|
| |
|
|
Mounted fans
|
200mm
140mm
120mm
80mm
60mm
|
-
-
-
6
-
|
| |
|
|
Further mounting options
|
Power supply
PCIe
CPU cooler
Graphic adapter
Fans
External
|
ATX or Mini-Redundant PS/2
7 (Full profile)
max. 150mm
max. 265mm
-
-
|
| |
|
|
Scope of delivery
|
|
Case
Mounting bracket for ATX power supply (mounted)
Mounting bracket for PS/2 power supply
Screws
|
| |
|
|
Warranty
|
|
24 Months
|
| |
|
|
Logistic data
|
Net weight
Gross weight
Article number
GTIN
Packing unit
|
10.215 kgs
12.290 kgs
88887423
4260455649193
1 pcs
15 pcs (pallet)
|
