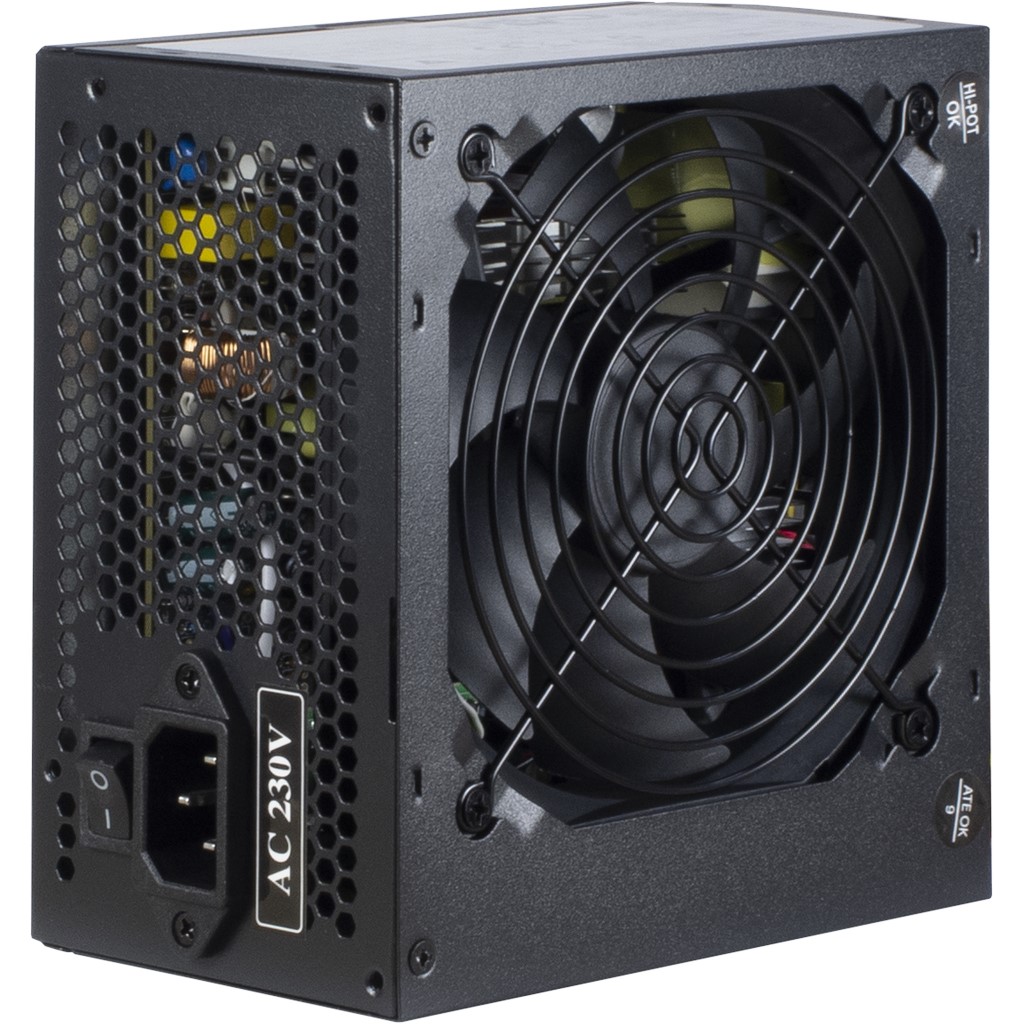

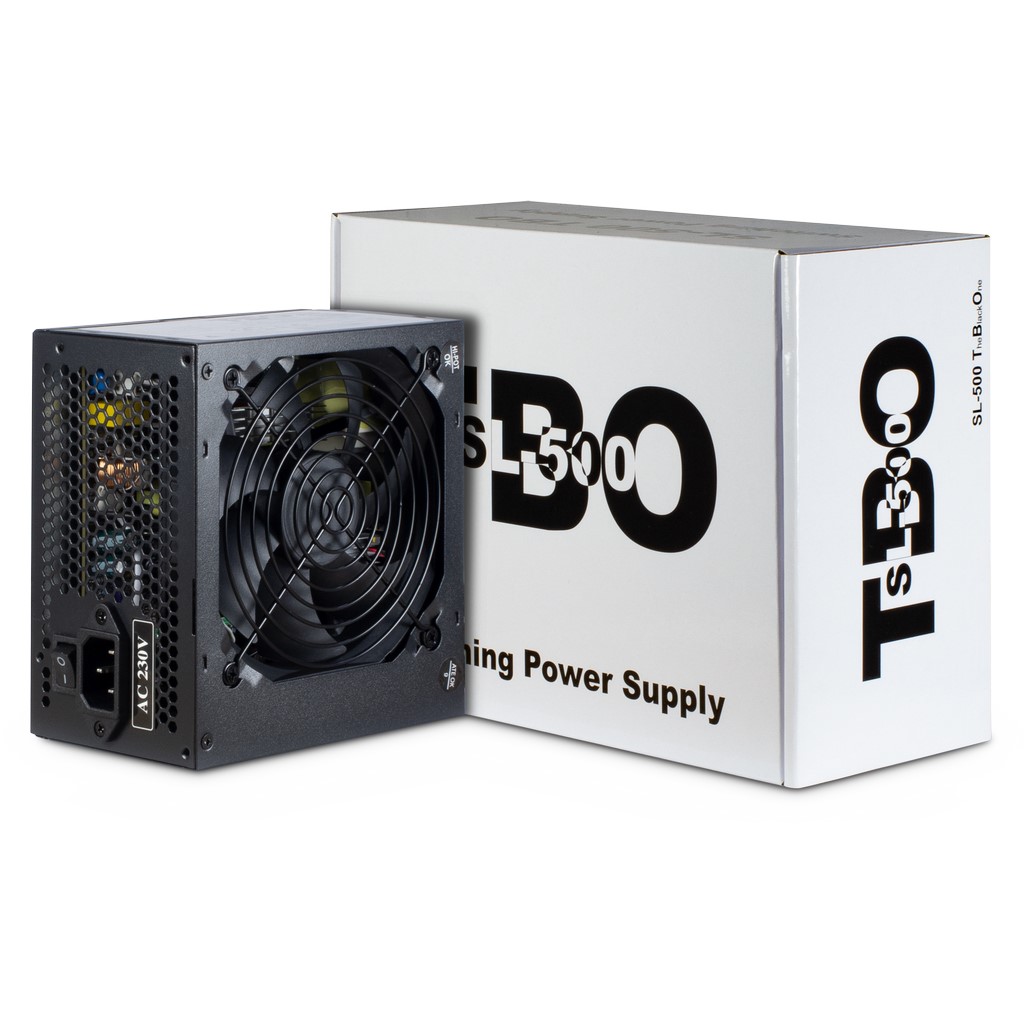

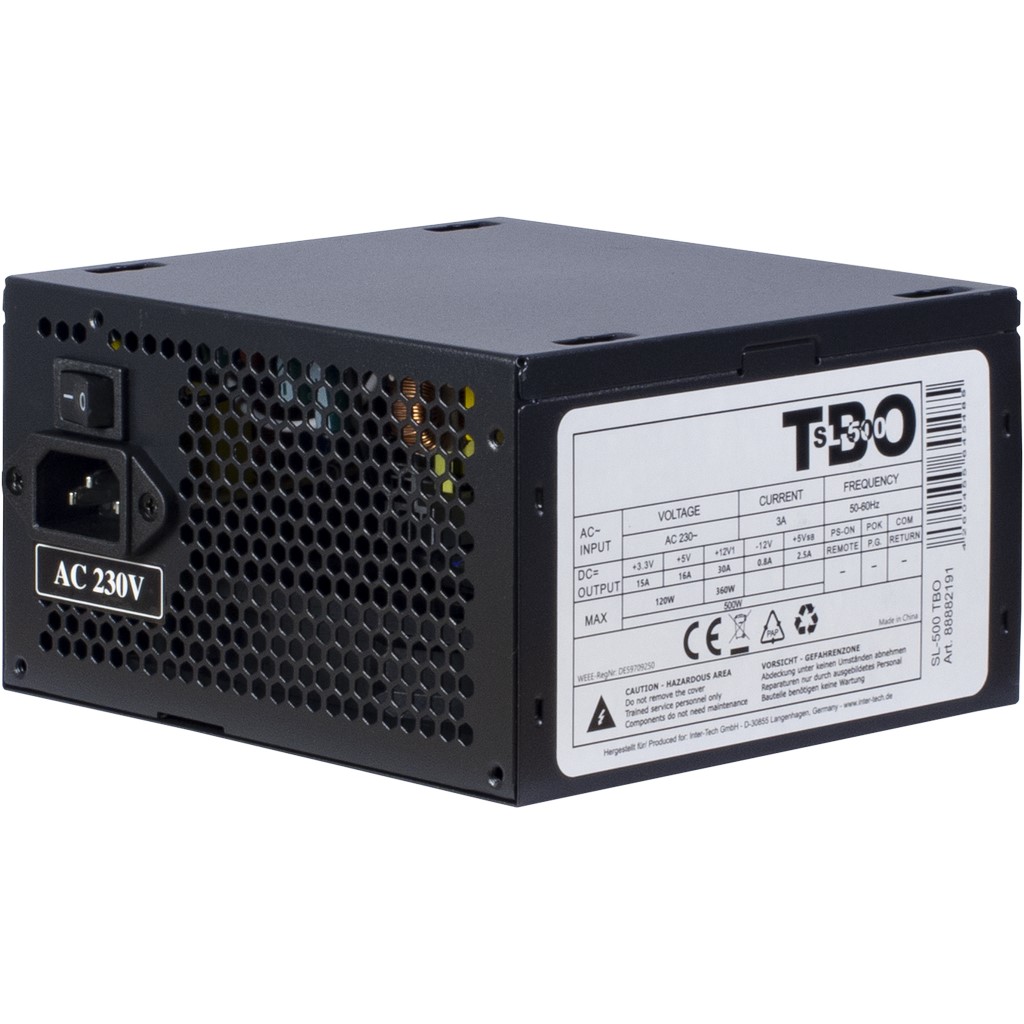

SL-500 TBO
The SL-500 TBO - The cheap power supply for entry level systems
Mostly used in standard PCs or as an exchange power supply the SL-500 TBO has thousands of satisfied customers.
Equipped with 3x S-ATA, 20+4 and 4+4 connectors they suit perfectly to every home and office system. And a super silent fan guarantees a noiseless working.
| POWER & EFFICIENCY | |
|---|---|
| Output | 500Watt |
| ATX-Version | 2.03 |
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / / |
| PCI-Express 6+2Pin | |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 2x |
| S-ATA | 3x |
| Floppy | 1x |
| Fan monitoring | |
| OTHER DATA | |
| Fans / -size | 1x 120mm |
| Fan control | auto |
| Full Range Input | |
| 80PLUS® Certificate | |
| Noise level | 19-25dB |
| Dimension (h/w/d) | 86 x 150 x 140mm |
| Guarantee | 24 months |
| Safeties | OVP, SCP , OPP, OCP, UVP, OS |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Power supply SL-500 TBO Retail package Manual (german) Power cable |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 10 Pcs |
| EU palett | 280 Pcs |
| Weight | net = 1.13kgs gross = 1.44kgs |
| Item number | 88882191 |
| EAN-Code | 4260455645485 |
PERFORMANCE DATA
| AC Input | 230V 3A 50-60Hz | |||||||||
| DC Output | + 3.3V | + 5V | + 12V1 | - 12V | + 5VSB | |||||
| SL-500 TBO | Max. Current |
15A | 16A | 30A | 0.8A | 2.5A | ||||
| Max. Combined Power |
120W | 360W | 9.6W | 12.5W | ||||||
| 500W | ||||||||||

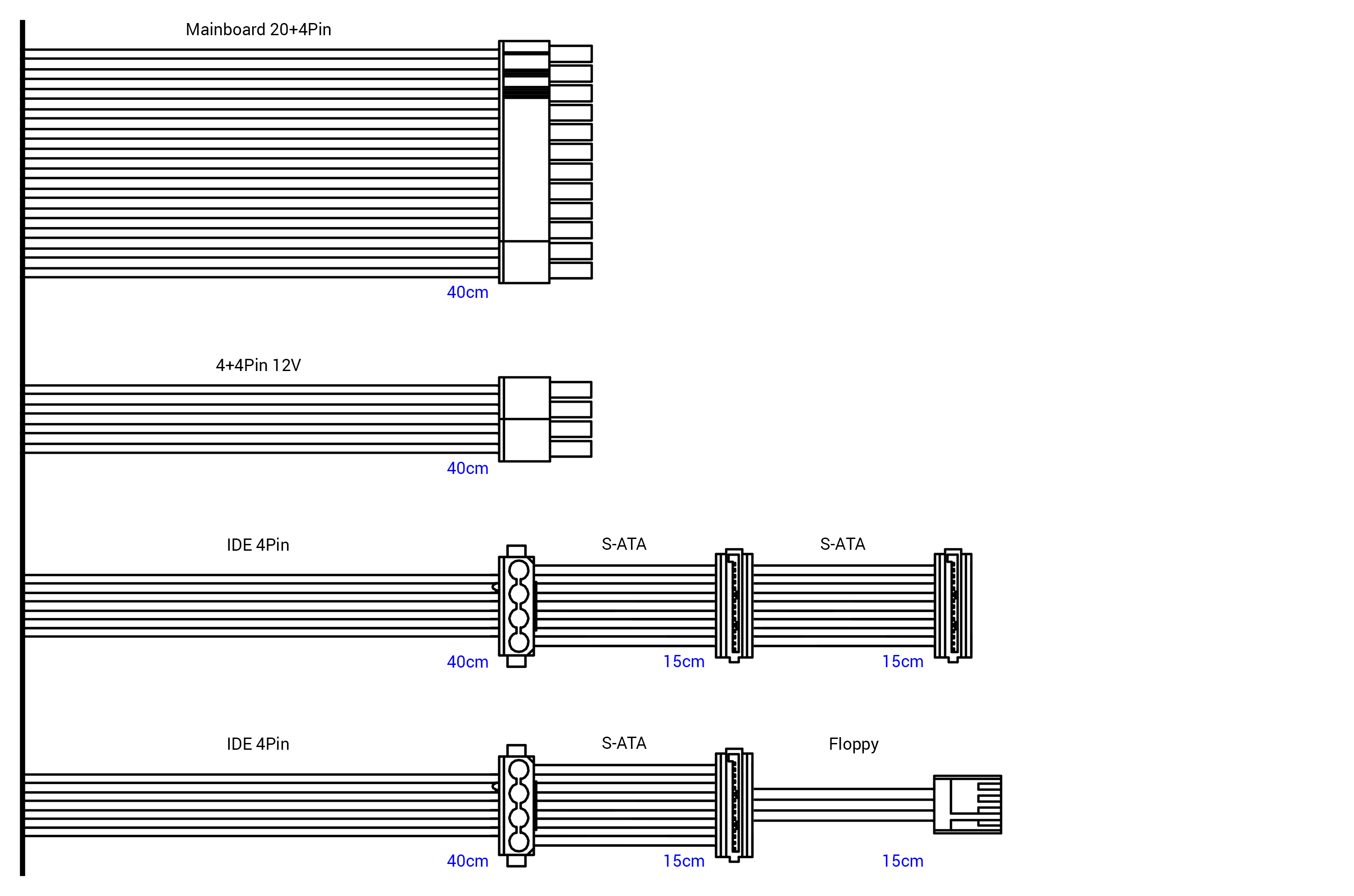

CABLE CONFIGURATION
