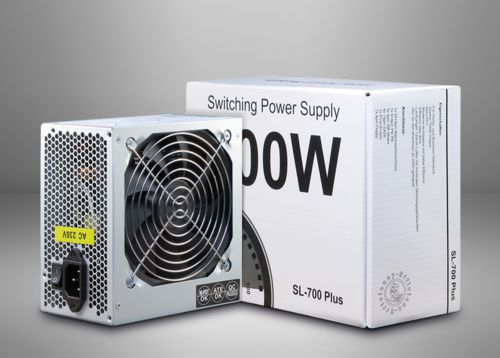

SL-700 PLUS
SL-700 PLUS - The consequent development of the SL-700
The SL-700 PLUS provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet.
With four S-ATA-, three Molex-, two PCIe 6+2pin-, one 4+4pin- and one 20+4pin- connectors the power supply offers a lot of options for configuration. The SL-700 PLUS finds its usage in older and new computer systems.
| POWER & EFFICIENCY | |
|---|---|
| Output | 700Watt |
| Efficiency |
|
| ATX-Version | 2.4 |
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / / |
| PCI-Express 6+2Pin | 2x |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 3x |
| S-ATA | 4x |
| Floppy | 1x |
| Fan monitoring | |
| OTHER DATA | |
| Fans / -size | 1x 120mm |
| Fan control | auto |
| Full Range Input | |
| 80PLUS® Certificate | |
| Noise level | 19-25dB |
| Dimension (h/w/d) | 86 x 150 x 140mm |
| Guarantee | 24 months |
| Safeties | OVP, SCP , OCP, OS |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Power supply SL-700 PLUS Retail package Manual Power cable Velcro cable ties |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 10 Pcs |
| EU palett | 280 Pcs |
| Weight | net = 1.12kgs gross = 1.45kgs |
| Item number | 88882141 |
| EAN-Code | 4260133129115 |
PERFORMANCE DATA
| AC ~ Input |
VOLTAGE | CURRENT | FREQUENCY | |||||||
| 230V | 3A | 50-60Hz | ||||||||
| DC = Output |
+ 3.3V | + 5V | + 12V1 | + 12V2 | - 12V | + 5VSB | PS-ON | POK | COM | |
| 18A | 18A | 24A | 24A | 0.8A | 2.5A | REMOTE | P.G. | RETURN | ||
| MAX | 150W | 540W | 9.6W | 12.5W | - | - | - | |||
| 700W | ||||||||||
CABLE CONFIGURATION
