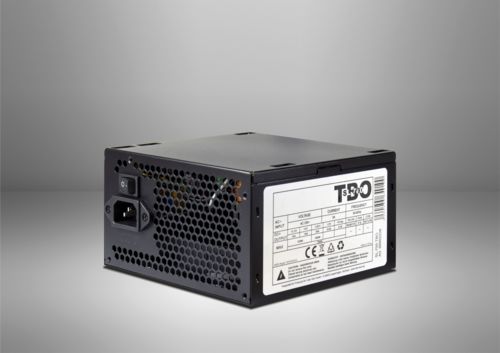

SL-700 Plus TBO BULK

Features

700 Watt power supply according Intel 2.4
High efficiency, more than 85%

Input

Voltage

Frequency

Current

AC 230 V~

50 Hz

3A @230V

Output

Output voltage

+ 3.3V
+ 5V
+ 12V
- 12V
+ 5Vsb

Total power

Power 3.3V + 5V

Power 12V

Current

max. 15A
max. 16A
max. 30A
max. 0.8A
max. 2.5A

max. 700W

max. 120W

max. 360W

Safety

Over voltage protection

Under voltage protection

Short circuit protection

Over current protection

+

+

+

+

Economic data

Efficiency

@ 20% power
@ 50% power
@ 100% power

88.8 %
89.1 %
85.3 %

Environmental

Temperature

Humidity

0°C - 40°C (operating)
-35°C - 70°C (storage)

10% - 90% (operatig, non condensing)
50% - 95% (storage, non condensing)

Scope of delivery

Power supply
Power cord
Screws
Cable ties
Manual

Warranty

24 Months

Logistic data

Dimension

Net weight

Gross weight

Article number

GTIN

Packing unit

150 x 140 x 86 mm

1.10 kg

1.26 kg

88882238

4260455649100

1 pcs
10 pcs (carton)
320 pcs (EU pallet)
