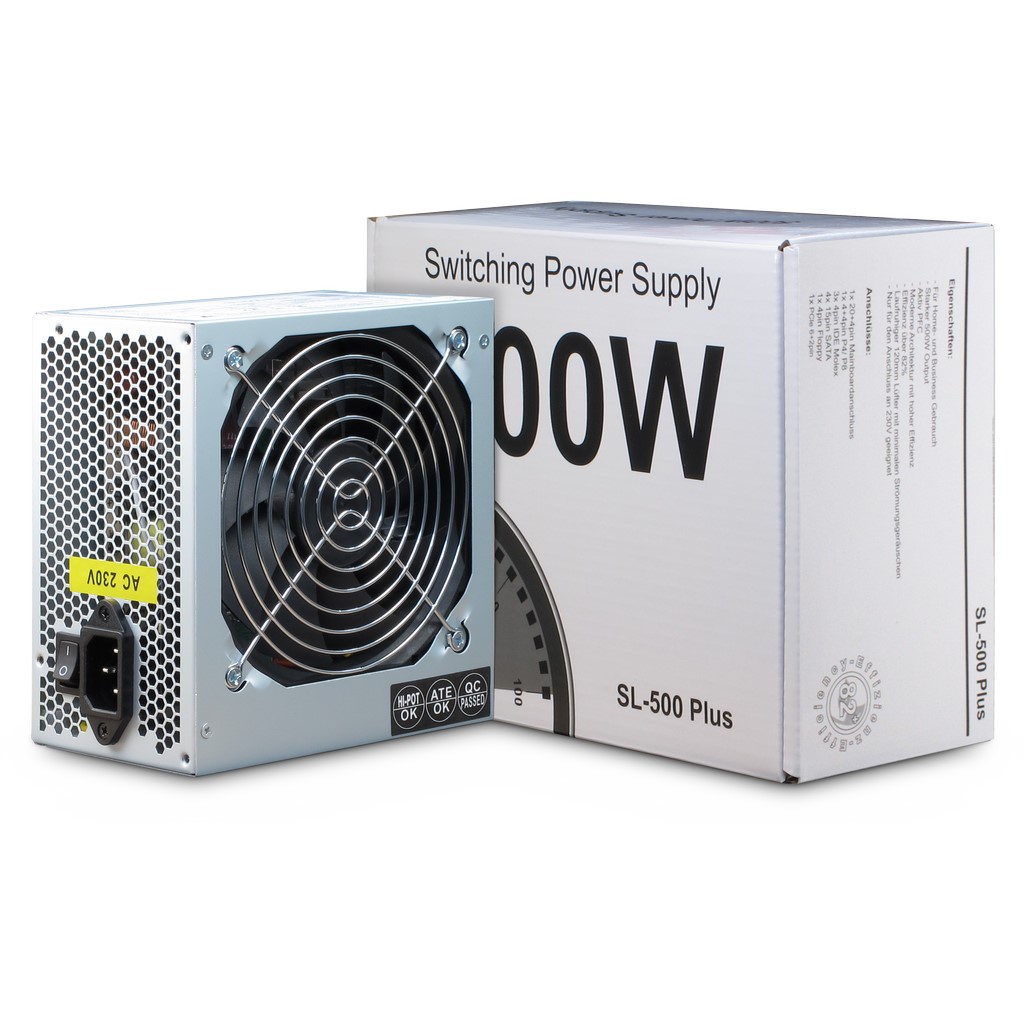

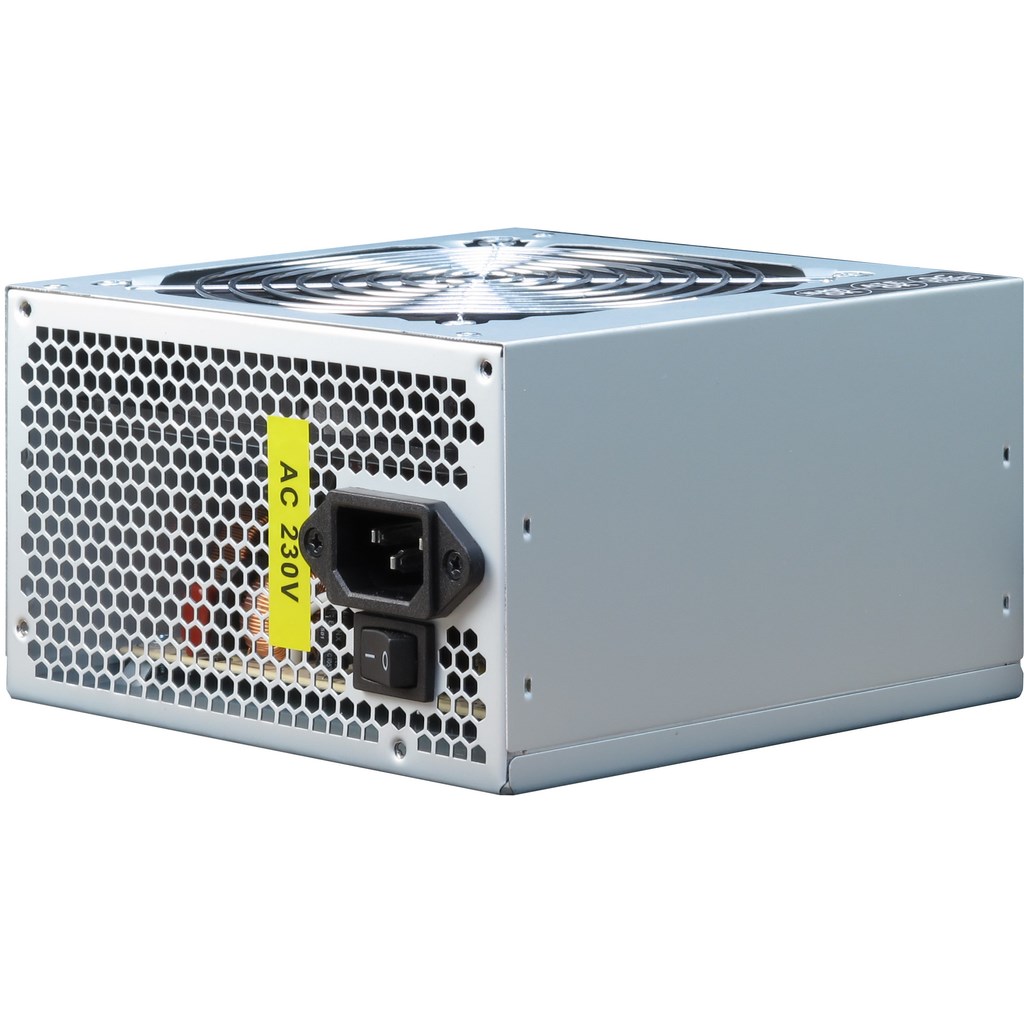

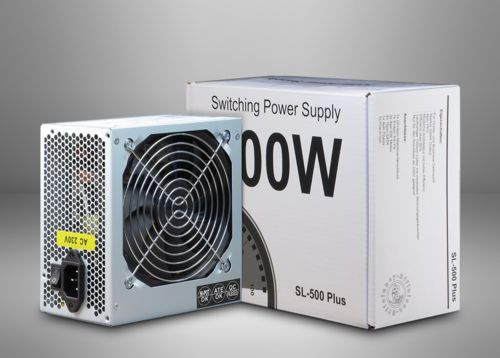

SL-500 PLUS
SL-500 PLUS - The consequent development of the SL-500.
The SL-500 PLUS provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet.
With four S-ATA- and three Molex-connectors, PCIe 6+2pin-, 4+4pin and 20+4pin- connectors the power supply offers a lot of options for configuration. The SL-500 PLUS finds its usage in older and new computer systems.
| POWER & EFFICIENCY | |
|---|---|
| Output | 500Watt |
| Efficiency |
|
| ATX-Version | 2.4 |
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / / |
| PCI-Express 6+2Pin | 1x |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 3x |
| S-ATA | 4x |
| Floppy | 1x |
| Fan monitoring | |
| OTHER DATA | |

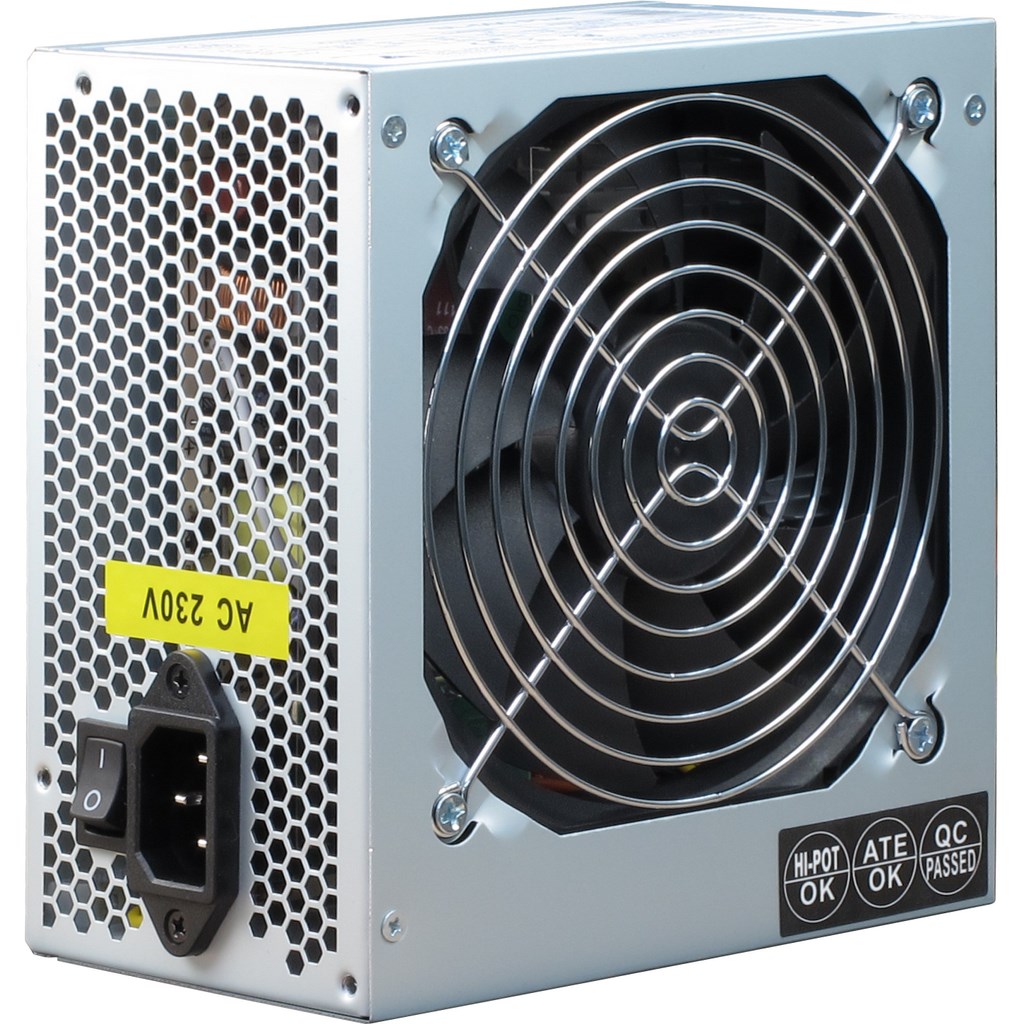

| Fans / -size | 1x 120mm |
| Fan control | auto |
| Full Range Input | |
| 80PLUS® Certificate | |
| Noise level | 19-25dB |
| Dimension (h/w/d) | 86 x 150 x 140mm |
| Warranty | 24 months |
| Safeties | OVP, SCP , OCP, OS |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Power supply SL-500 PLUS Retail package Manual Power cord Velcro cable ties |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 10 Pcs |
| EU palett | 280 Pcs |
| Weight | net = 1.08kgs gross = 1.41kgs |
| Item number | 88882140 |
| EAN-Code | 4260133129108 |

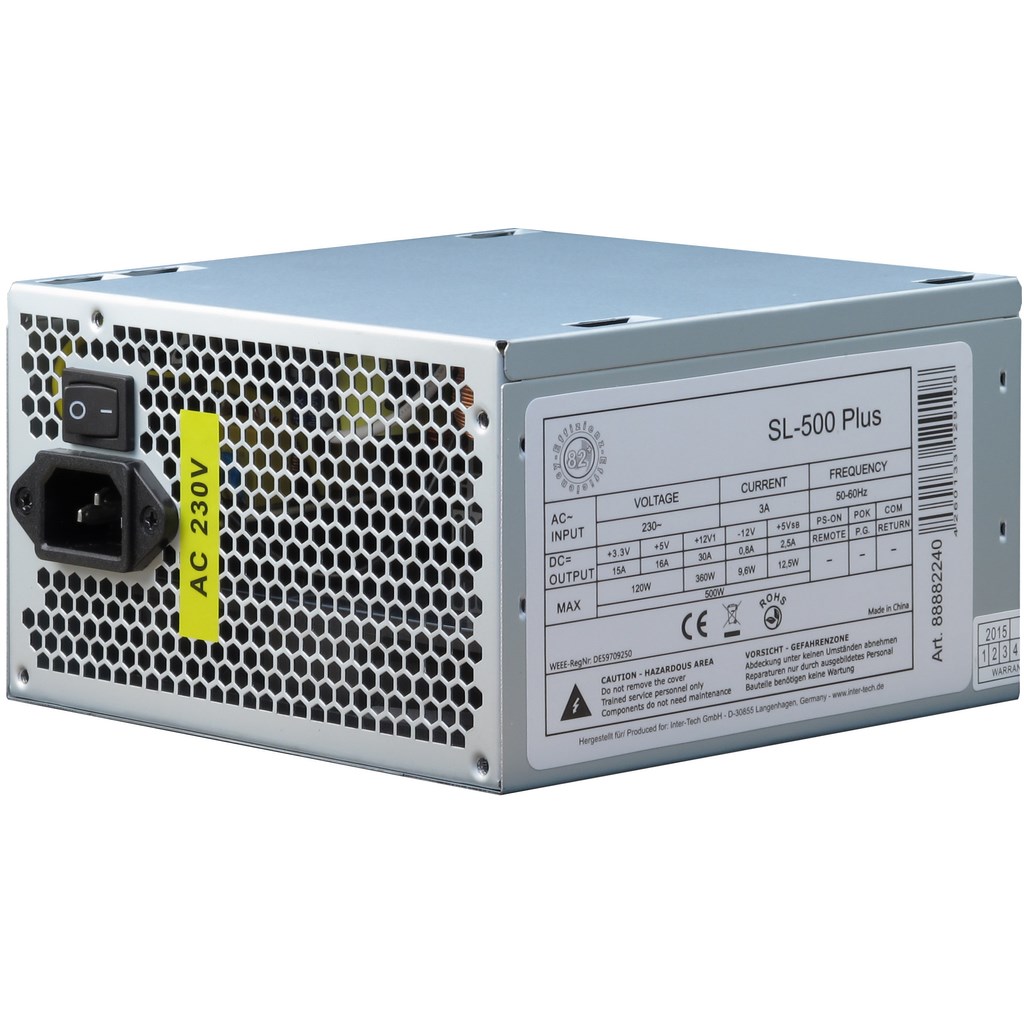

PERFORMANCE DATA
| AC ~ Input |
VOLTAGE | CURRENT | FREQUENCY | ||||||
| 230V | 3A | 50-60Hz | |||||||
| DC = Output |
+ 3.3V | + 5V | + 12V | - 12V | + 5VSB | PS-ON | POK | COM | |
| 15A | 16A | 30A | 0.8A | 2.5A | REMOTE | P.G. | RETURN | ||
| MAX | 120W | 360W | 9.6W | 12.5W | - | - | - | ||
| 500W | |||||||||
CABLE CONFIGURATION
