SP-650W Bulk

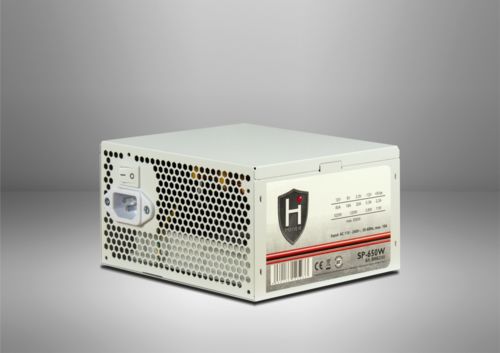

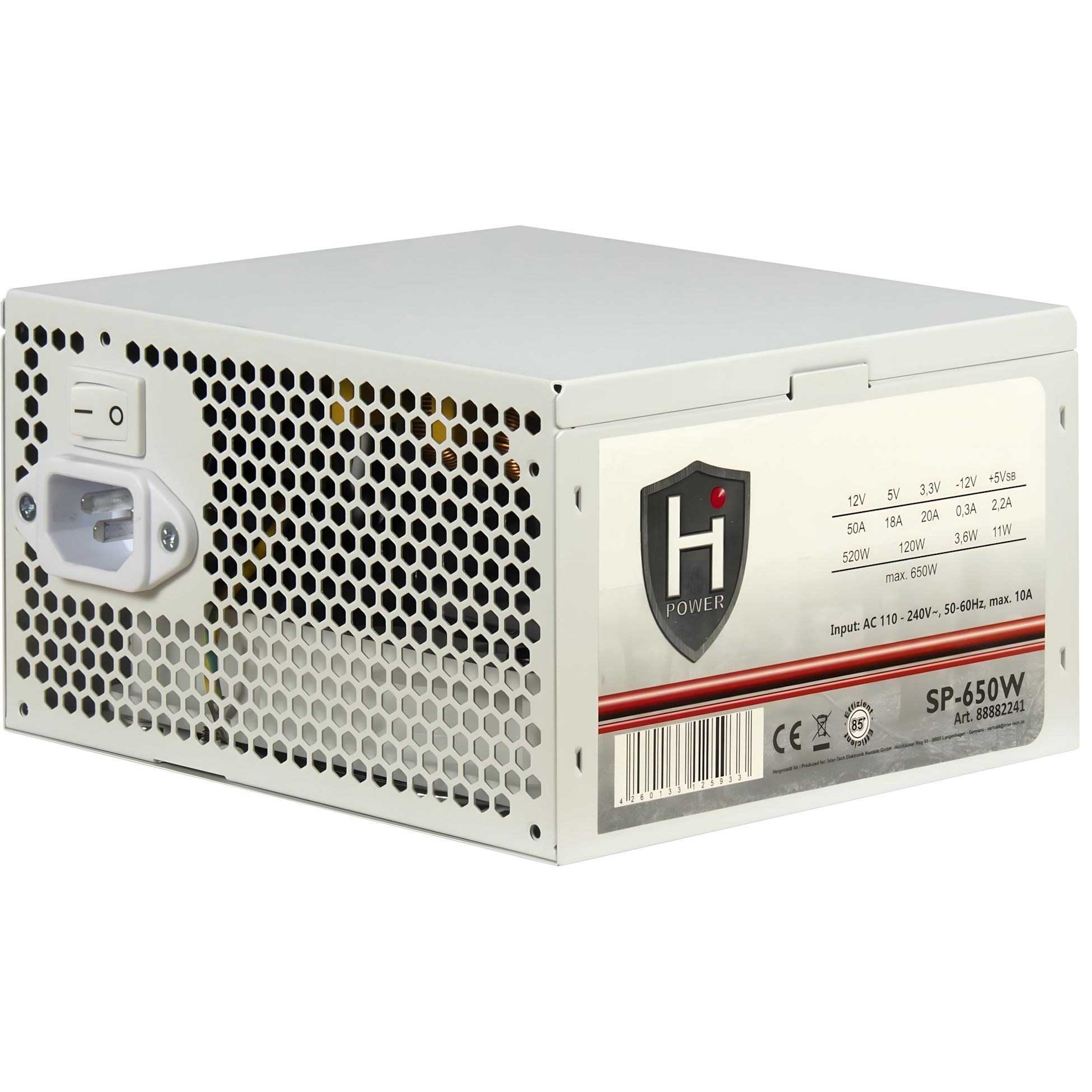

The HiPower SP-650W in an elegant white dress
The 650W version of the HiPower series reliably supplies power-hungry systems with electricity and also saves electricity costs. With an efficiency of over 85%, the power loss is kept low, which is clearly reflected in the power consumption.
With 50A on the 12V line, there is more than enough power available for potent hardware, which is protected from damage by the built-in protective circuits (OPP, OVP and SCP) in all cases.

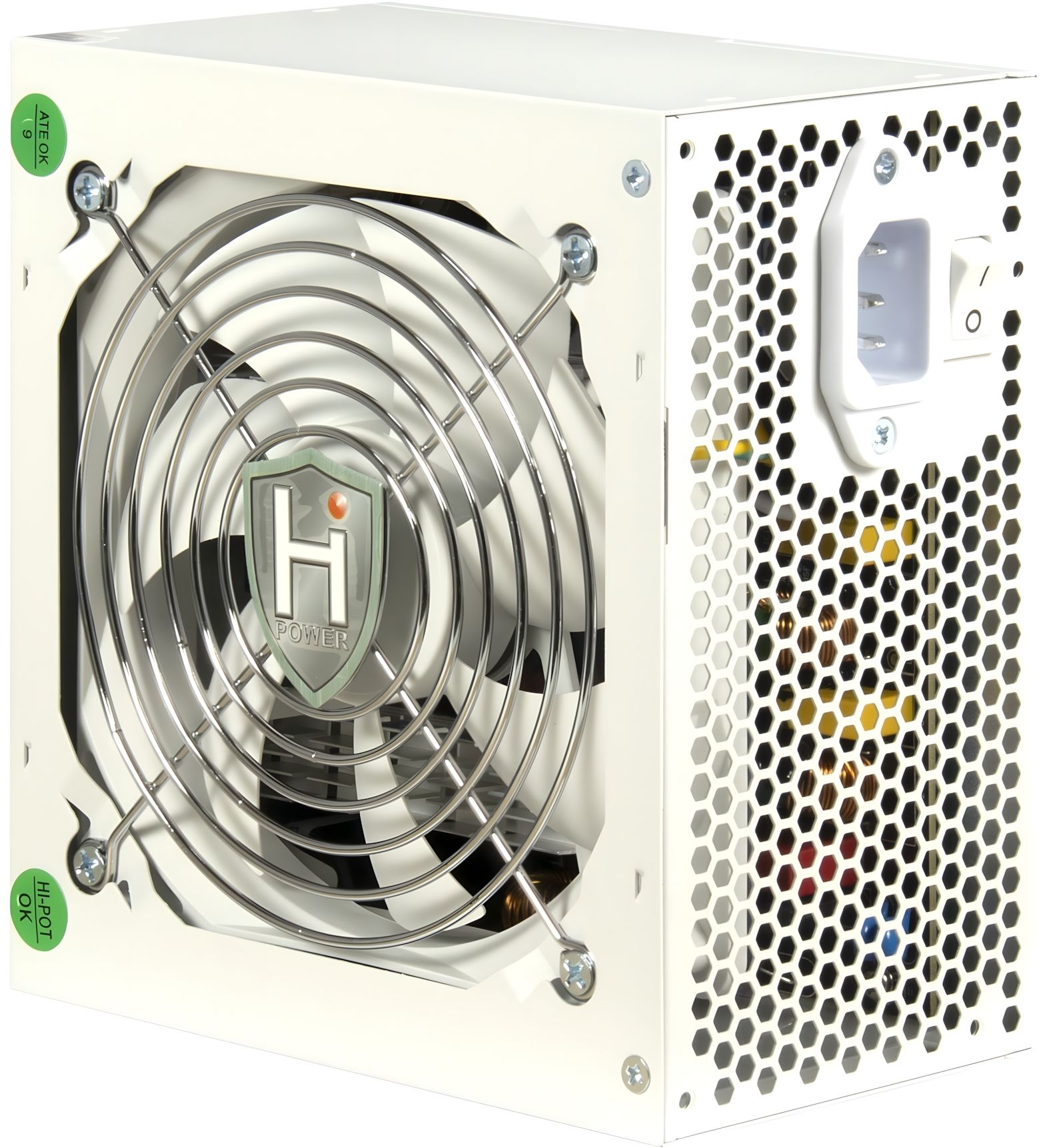

The powerful 120mm fan reliably ensures proper cooling of the power supply and the multitude of connections round off the overall package.
- over 85% efficiency
- 50A on the 12V line
- OPP, OVP, SCP
- powerful 120mm fan
| Power & EFFICIENCY | |
|---|---|
| Output | 650Watt |
| Efficiency |
|
| ATX-Version | 2.4 |
| Connectors | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | /1/ |
| PCI-Express 6+2Pin | 1x |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 4x |
| S-ATA | 4x |
| Floppy | 1x |
| Fan monitoring | |
| Further data | |
| Fans/ size | 1x 120mm |
| Fan control | auto |
| Full range input | auto |
| 80PLUS® Certificate | |
| Noise level | 19-35dB |
| Dimension (h/w/d) | 86 x 150 x 140mm |
| Guarantee | 24 months |
| Safety | OPP , OVP , SCP |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Power supply HiPower SP-650 Power cord |
| LOGISTICAL DATA | |
| Shipping Unit | 1 pcs |
| Packing Unit | 10 pcs |
| EU pallet | 320 Stück |
| Weight | net = 1.16kgs gross = 1.31kgs |
| Item number | 88882241 |
| EAN-Code | 4260455649421 |
Performance data
| AC Input | 100V/240V 50-60Hz max. 10A | |||||
| DC Output | + 3,3V | + 5V | + 12V | - 12V | + 5VSB | |
| SP-650 | Max. Current |
20A | 18A | 50A | 0,3A | 2,2A |
| Max. Combined Power |
120W | 520W | 3,6W | 11W | ||
| 650W | ||||||
CABLE CONFIGURATION
