Argus RGB-750W CM II
Argus RGB-750W CM II – the powerful RGB power supply!

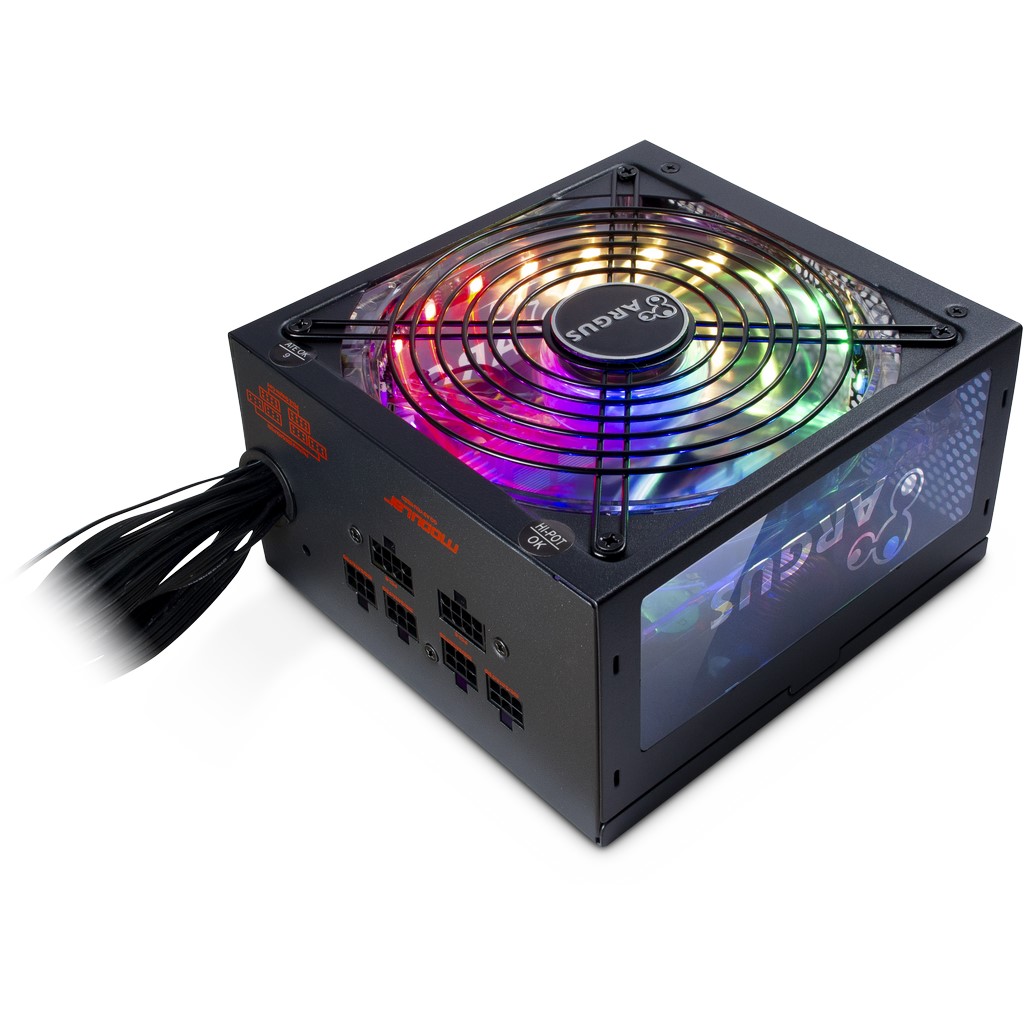

The revision II of the Argus 750W CM RGB power supply impresses with the strong light effects of the 21 RGB LEDs of the quiet, 140mm fan, which can be managed either manually using a button or via the 3pin 5V RGB mainboard control. The side window made of plexiglass, with the engraved Argus logo, also highlights your computer.
Certificated with 80PLUS® Gold, and equipped with active PFC and semi-modular Cable management the Argus RGB-750W CM II offers a variety of connection options and huge flexibility in installing your components. Cables in flat-cable design ensure an easy handling, easy management and an optimum of air circulation. The durable black finish and variety of protection measures complete the great offer.
- Efficiency higher than 87%

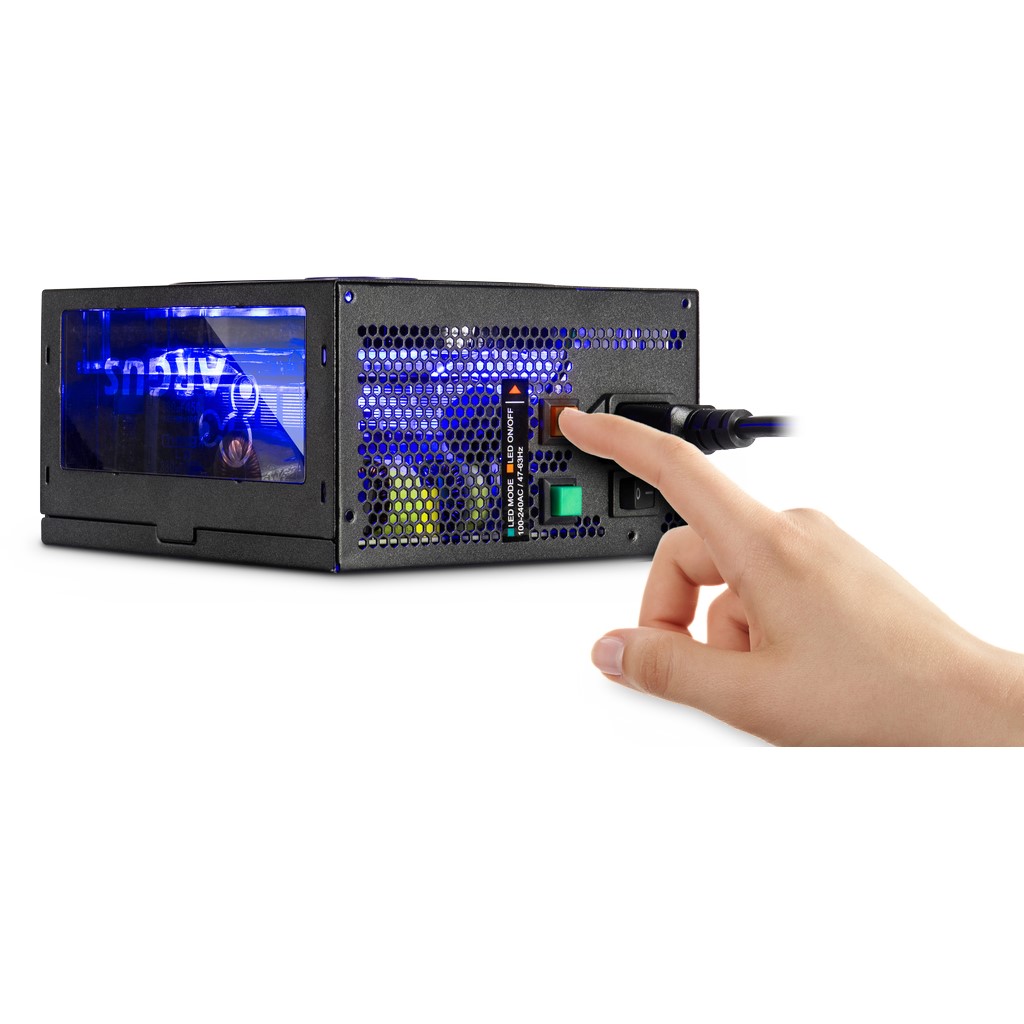

- RGB LEDs controllable via push button or 3pin 5V RGB
- very smooth-running 140mm fan
- 36 months warranty
POWER & EFFICIENCY | |
---|---|
Output | 750Watt |
Efficiency |
|
ATX-Version | 2.3 |
CONNECTORS | |
Mainboard 20+4Pin | 1x |
4Pin / 4+4Pin / 8Pin 12V | / 2x / |
PCI-Express 6+2Pin | 4x |
PCI-Express 6Pin | |
IDE 4Pin (Molex) | 3x |
S-ATA | 8x |
Floppy | 1x |
Fan monitoring | |
OTHER DATA | |
Fans / -size | 1x 140mm |
Fan control | auto |
Full Range Input | auto |
80PLUS® Certificate | 80PLUS® Gold |
Noise level | 19-35dB |
Dimension (h/w/d) | 86 x 150 x 160mm |
Guarantee | 36 months |
Safeties | OPP, OVP, SCP |
SCOPE OF DELIVERY & FEATURES | |
Scope of delivery |
Power supply Argus RGB-750W CM II Retail package Modular cable desing Manual (german, english) Power cord Mounting screws Cable ties |
LOGISTICAL DATA | |
Shipping Unit | 1 Pcs |
Packing Unit | 5 Pcs |
EU palett | 210 Pcs |
Weight | net = 1.56kgs gross = 2.25kgs |
Item number | 88882174 |
EAN-Code | 4260455644969 |
PERFORMANCE DATA
AC Input | 100/240V 47-63Hz | |||||
DC Output | + 3.3V | + 5V | + 12V | - 12V | + 5VSB | |
RGB-750CM II | Max. Current |
20A | 20A | 62A | 0.3A | 2.5A |
Max. Combined Power |
100W | 750W | 3.6W | 12.5W | ||
750W |
CABLE CONFIGURATION
