Argus RGB-500W II
Argus RGB-500W II – the powerful RGB power supply!

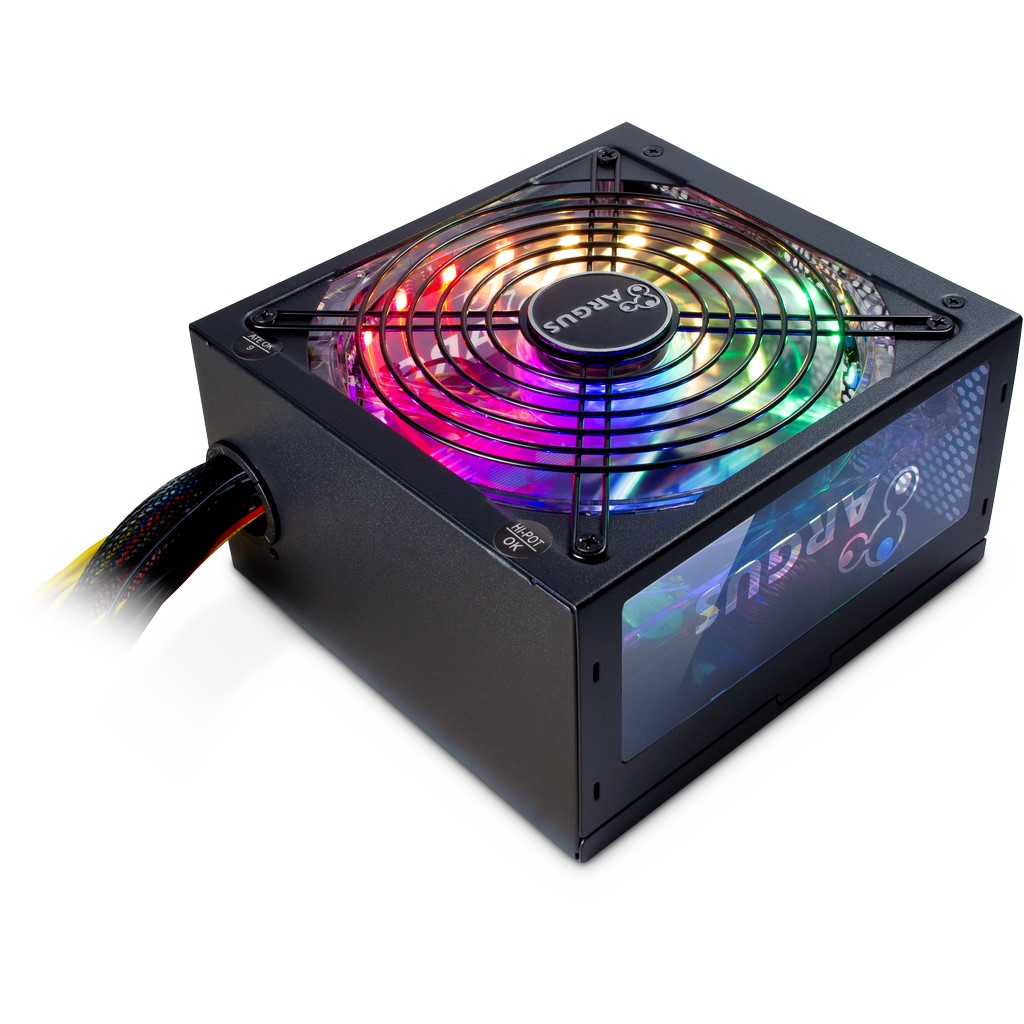

The revision II of the Argus 600W RGB power supply impresses with the strong light effects of the 21 RGB LEDs of the quiet, 140mm fan, which can be managed either manually using a button or via the 3pin 5V RGB mainboard control. The side window made of plexiglass, with the engraved Argus logo, also highlights your computer.
Certificated with 80PLUS® Bronze, and equipped with active PFC and 1x PCI-E connectors the Argus RGB-500W II is the perfect choice for gaming or graphical computers. The durable black finish and the long and flexible cables complete the great offer.
- Efficiency higher than 85%

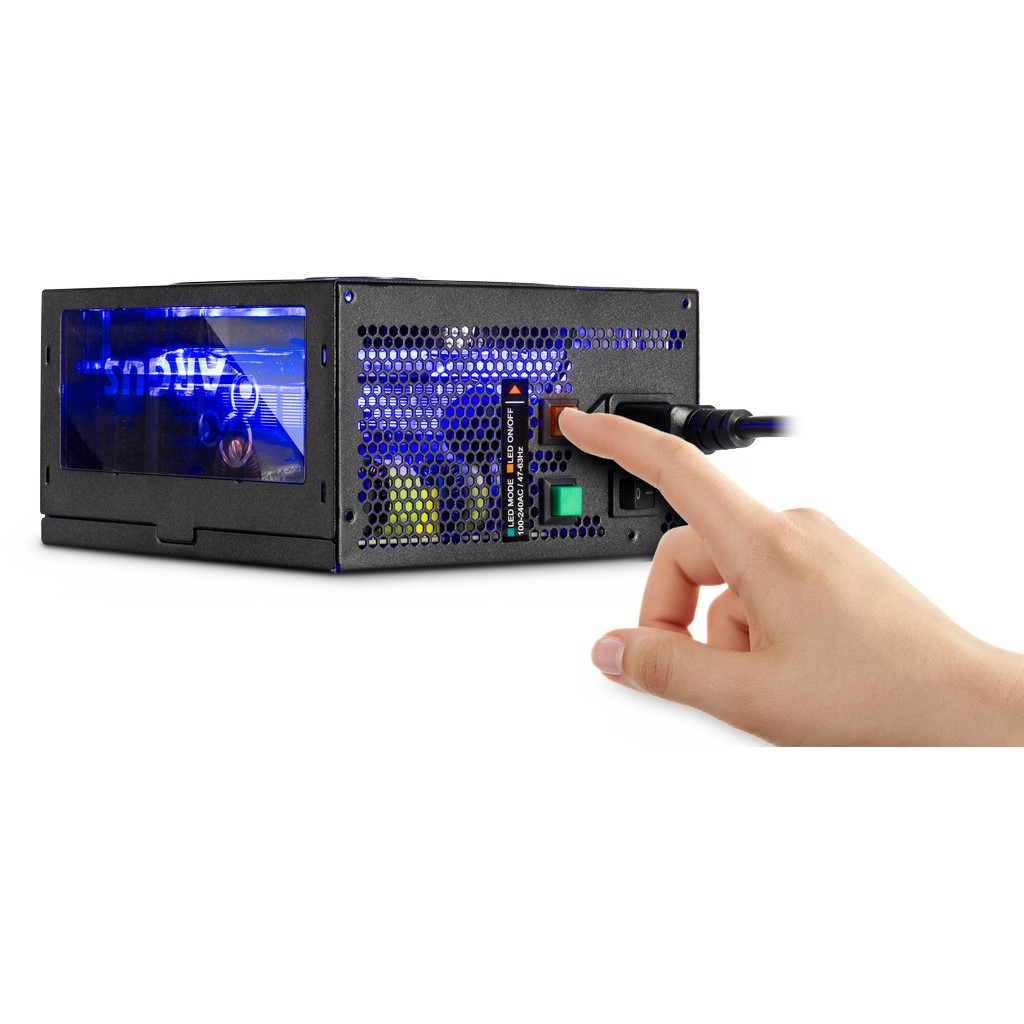

- RGB LEDs controllable via push button or 3pin 5V RGB
- Very smooth-running 140mm fan
- 36 months warranty
| POWER & EFFICIENCY | |
|---|---|
| Output | 500Watt |
| Efficiency |
|
| ATX-Version | 2.3 |
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / / |
| PCI-Express 6+2Pin | 1x |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 4x |
| S-ATA | 4x |
| Floppy | 1x |
| Fan monitoring | |
| OTHER DATA | |
| Fans / -size | 1x 140mm |
| Fan control | auto |
| Full Range Input | auto |
| 80PLUS® Certificate | 80PLUS® Bronze |
| Noise level | 19-35dB |
| Dimension (h/w/d) | 86 x 150 x 160mm |
| Guarantee | 36 months |
| Safeties | OPP, OVP, SCP |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Power supply Argus RGB-500W II Retail package Manual (german, english) Power cord Mounting screws Cable ties |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 10 Pcs |
| EU palett | 320 Pcs |
| Weight | net = 1.29kgs gross = 1.63kgs |
| Item number | 88882192 |
| EAN-Code | 4260455645492 |
PERFORMANCE DATA
| AC Input | 100/240V 47-63Hz | |||||
| DC Output | + 3.3V | + 5V | + 12V | - 12V | + 5VSB | |
| RGB-500 II | Max. Current |
18A | 15A | 40A | 0.3A | 2.5A |
| Max. Combined Power |
100W | 480W | 3.6W | 12.5W | ||
| 500W | ||||||
CABLE CONFIGURATION
