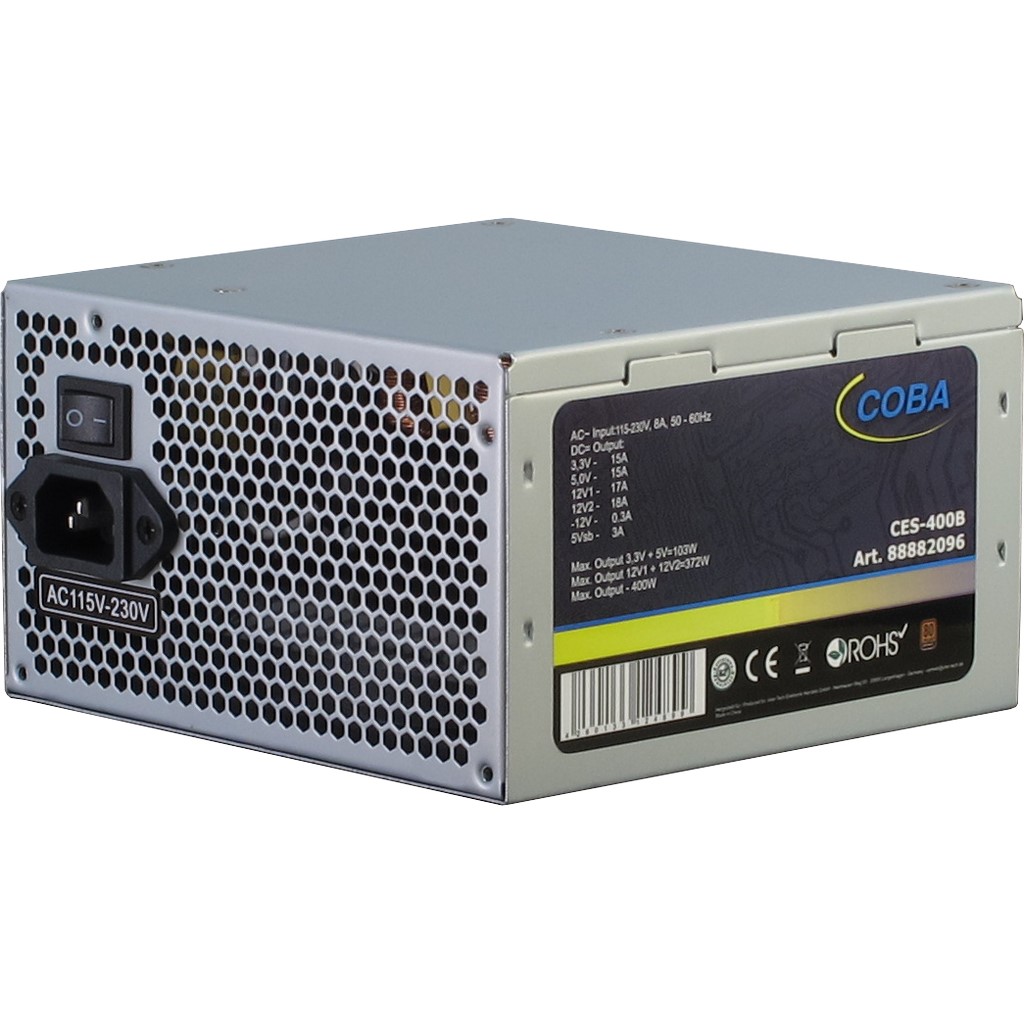

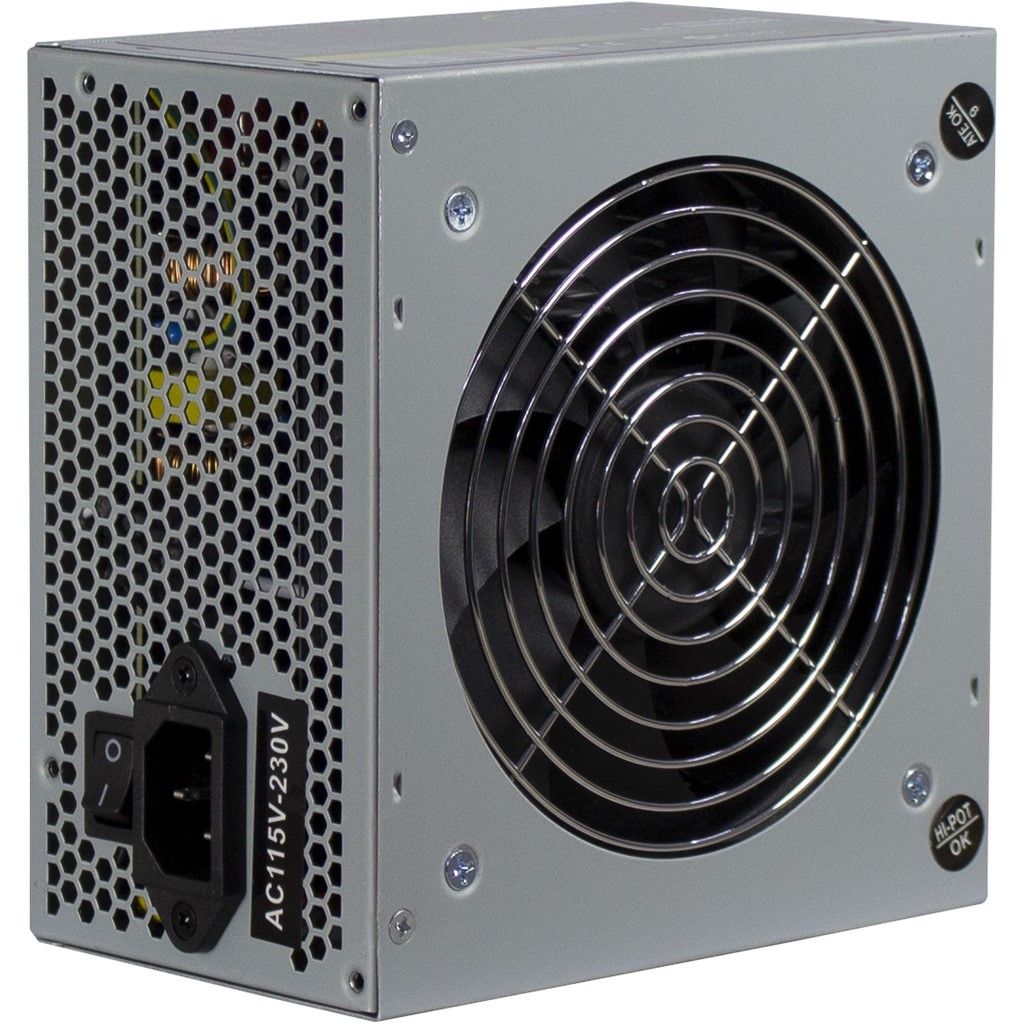

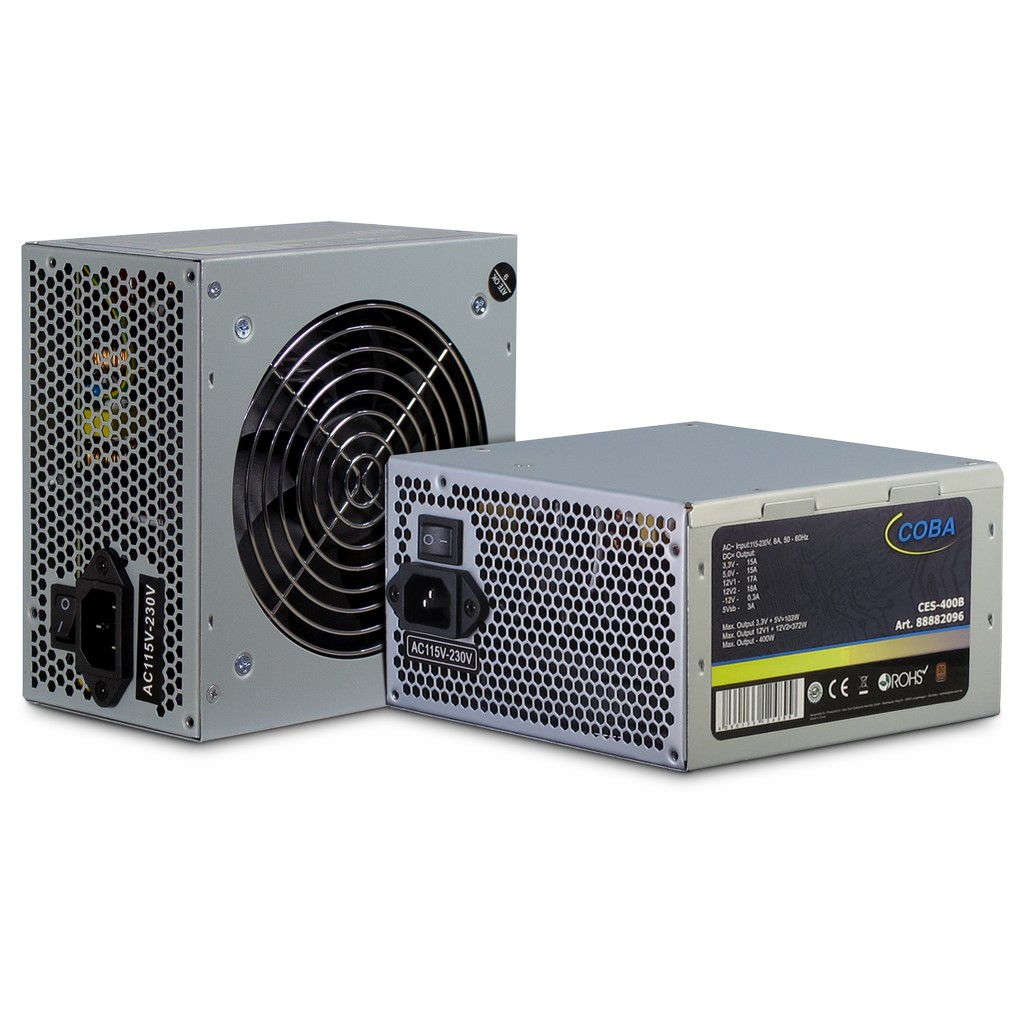

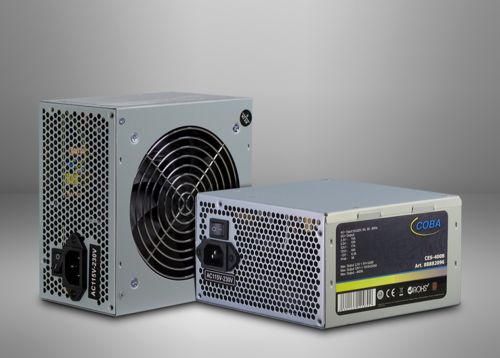

Coba CES-400B
The Coba CES-400B 80+ - The power supply for sytem integraters
The Coba CES-400B 80+ is specifically designed for the demands of assemblers. As a mere bulk product it saves the cost for the retail packages which naturally has a positive effect on the final price.
For the same reason Inter-Tech choose a plain design to place the main priorities on the technical aspects. Whether it is the super silent 120mm fan, the big numbers of connectors (P4+4, PCI-Express etc.) or the two separated 12V-lines, Coba CES-400B 80+ will satisfied all demands.
To prove its high quality standards the power supply has fulfilled all requirements for the 80PLUS® certification. That means that a high efficiency of the power supply is guaranteed and this is not only good for the environment but also helps to safe your money.
| POWER & EFFICIENCY | |
|---|---|
| Output | 400Watt |
| Efficiency |
|
| ATX-Version | 2.3 |
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / / |
| PCI-Express 6+2Pin | 2x |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 2x |
| S-ATA | 4x |
| Floppy | 1x |
| Fan monitoring | |
| OTHER DATA | |
| Fans / -size | 1x 120mm |
| Fan control | auto |
| Full Range Input | auto |
| 80PLUS® Certificate | 80PLUS® Bronze |
| Noise level | 19-25dB |
| Dimension (h/w/d) | 86 x 150 x 140mm |
| Warranty | 36 months |
| Safeties | OVP, SCP , OPP, UVP |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Power supply Coba CES-400B 80+ Power cord |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 10 Pcs |
| EU palett | 320 Pcs |
| Weight | net = 1.36kgs |
| Item number | 88882096 |
| EAN-Code | 4260133124899 |
PERFORMANCE DATA
| AC Input | 115 - 230V 5A 50-60Hz | ||||||
| DC Output | + 3.3V | + 5V | + 12V1 | + 12V2 | - 12V | + 5VSB | |
| Coba CES-400B 80+ |
Max. Current |
15A | 15A | 17A | 18A | 0.3A | 3A |
| Max. Combined Power |
103W | 372W | |||||
| 400W | |||||||
CABLE CONFIGURATION
