Coba Nitrox Nobility 700W

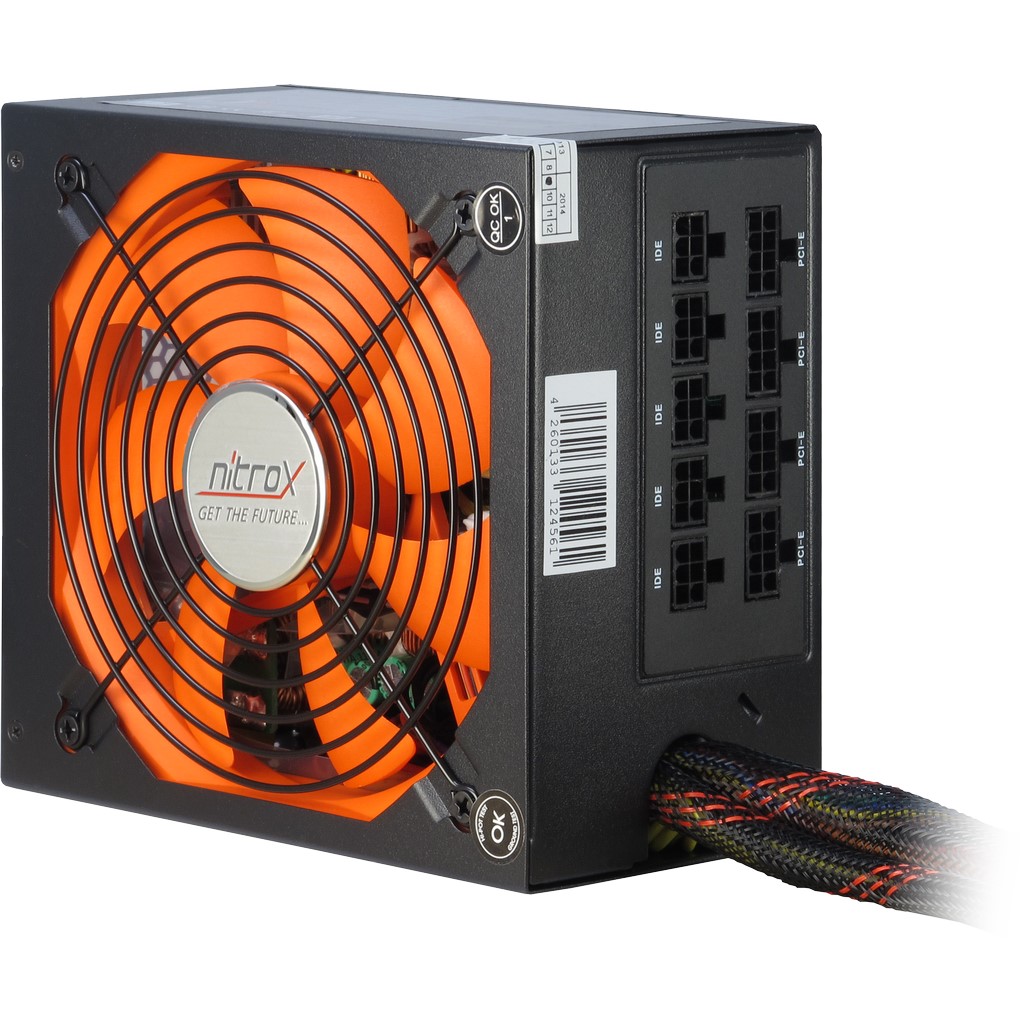

CobaNitrox Nobility CN-700 NS – the high-end power supply from Inter-Tech
EOL
Detachable cable management, all important protection functions as well as an excellent efficiency, that is guaranteed through the use of high quality industrial components - everything offers you the Nobility Series. With two PCI-Express 6+2 ports the Nobility CN-700 NS is well equipped for power-hungry graphics cards. Ferrite cores in the pipes prevent from interference pulse. Thanks to two separately switched 12V rails and two EPS/8-pin connectors, demanding systems are properly provided with enough power. All cables are covered with a soft textile jacket and provide easy handling during installation.
The power supply is designed for long-term use in 24/7 operation. We round this promise with 36 month warranty and the ability to direct exchange from the manufacturer.
| POWER & EFFICIENCY | |
|---|---|
| Output | 700Watt |
| Efficiency |
|
| ATX-Version | 2.3 |
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / 2x / |
| PCI-Express 6+2Pin | 2x |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 3x |
| S-ATA | 6x |
| Floppy | 1x |
| Fan monitoring | |
| Cable management | |
| OTHER DATA | |

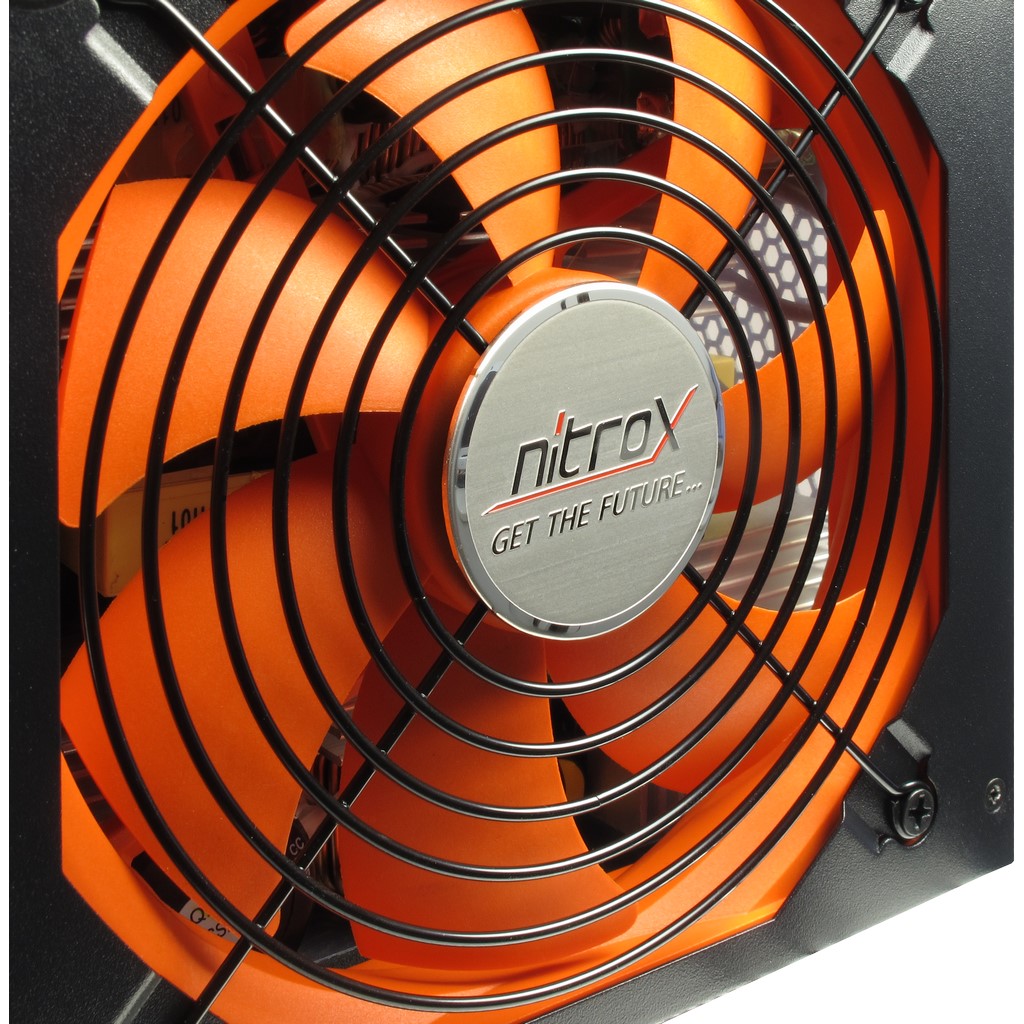

| Fans / -size | 1x 135mm |
| Fan control | auto |
| Full Range Input | auto |
| 80PLUS® Certificate | 80PLUS® Silver |
| Noise level | 19-22dB |
| Dimension (h/w/d) | 86 x 150 x 160mm |
| Warranty | 36 months |
| Safeties | OVP, SCP , OPP, OS |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Power supply Coba Nitrox Nobility 700W Retail package CobaNitrox Mousepad Cable Bag Cable Ties Thumbscrews Power Cable Manual (german) |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 5 Pcs |
| EU palett | 150 Pcs |
| Weight | net = 1.58kgs gross = 3.05kgs |
| Item number | 88882050 |
| EAN-Code | 4260133124547 |
PERFORMANCE DATA
| AC Input | 100 - 240V 50-63Hz max. 5A | ||||||
| DC Output | + 3.3V | + 5V | + 12V1 | + 12V2 | - 12V | + 5VSB | |
| CobaNitrox Nobility CN-700 |
Max. Current |
25A | 25A | 30A | 30A | 0.5A | 2.5A |
| Max. Combined Power |
130W | 670W | 6W | 12.5W | |||
| 700W | |||||||
CABLE CONFIGURATION
 |
