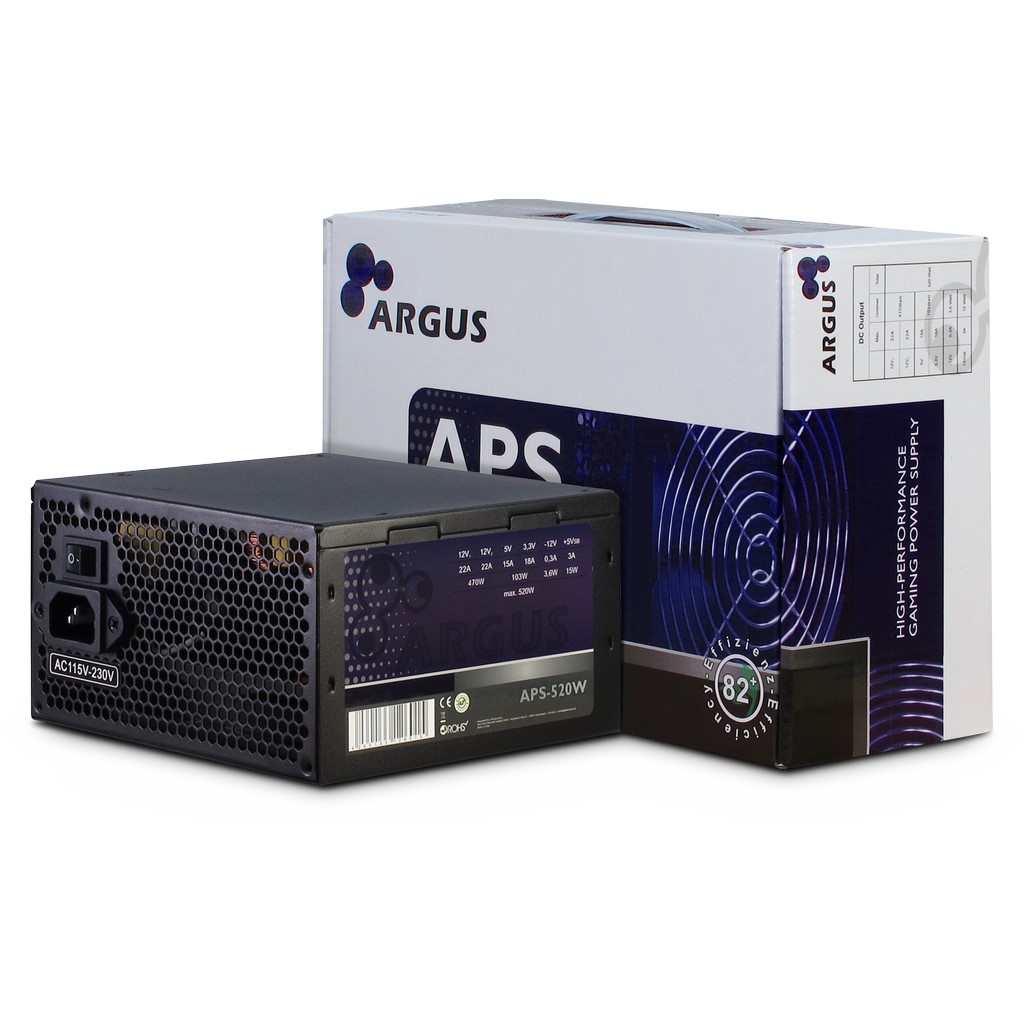

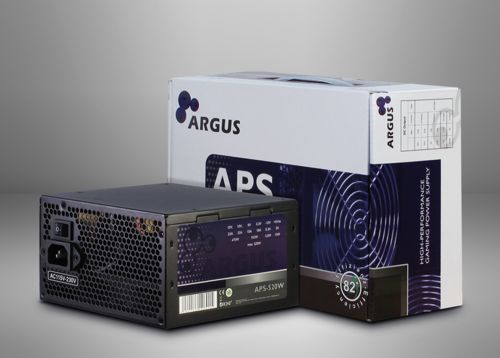

Argus APS-520W

The Argus APS-520W – ideal for sophisticated office and gaming solutions

The Argus APS-520W provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet.

Thanks to the efficient construction and the ideal configured connector layout the APS-520W provides with sufficient performance for the connected components.

The yellow 120mm fan works silently and ensures an optimal cooling of the power supply.

POWER & EFFICIENCY
Output 520Watt
Efficiency

at 20%84.4%
at 50%86.1%
at 100%84.0%

ATX-Version 2.31
CONNECTORS
Mainboard 20+4Pin 1x
4Pin / 4+4Pin / 8Pin 12V /  /
PCI-Express 6+2Pin 1x
PCI-Express 6Pin
IDE 4Pin (Molex) 4x
S-ATA 4x
Floppy 1x
Fan monitoring
OTHER DATA
Fans / -size 1x 120mm
Fan control auto
Full Range Input auto
80PLUS® Certificate
Noise level 19-21dB
Dimension (h/w/d) 86 x 150 x 140mm
Guarantee 24 months
Safeties OVP, SCP , OPP, UVP, OS
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Power supply Argus APS-520W

Retail package

Screws

Power cable

Manual

cable ties

LOGISTICAL DATA
Shipping Unit 1 Pcs
Packing Unit 10 Pcs
EU palett 280 Pcs
Weight net = 1.10kgs
gross = 1.42kgs
Item number 88882117
EAN-Code 4260133126015



PERFORMANCE DATA

AC Input 115 - 230V   47-63Hz
DC Output + 3.3V + 5V + 12V1 + 12V2 - 12V + 5VSB
APS-520 Max.
Current
18A 15A 22A 22A 0.3A 3A
Max.
Combined
Power
120W 470W 3.6W 15W
520W

CABLE CONFIGURATION
