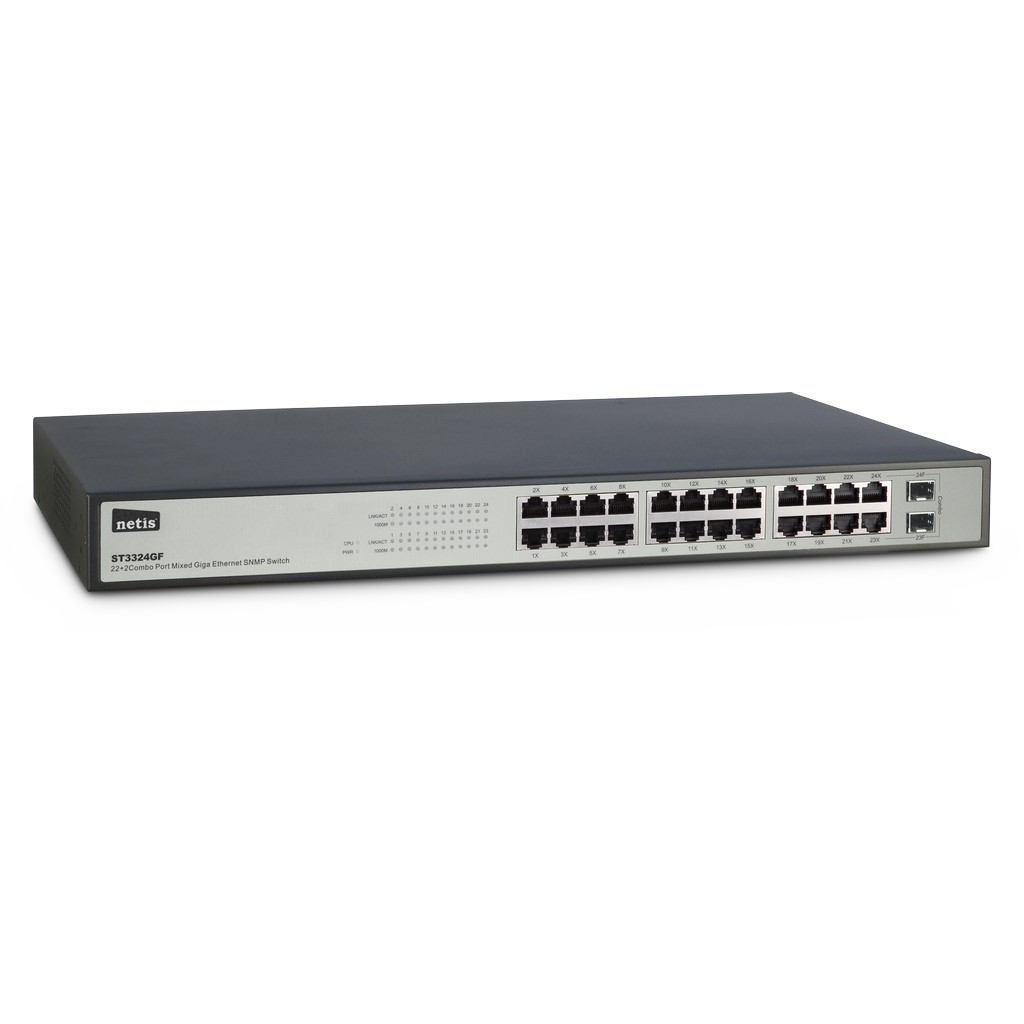

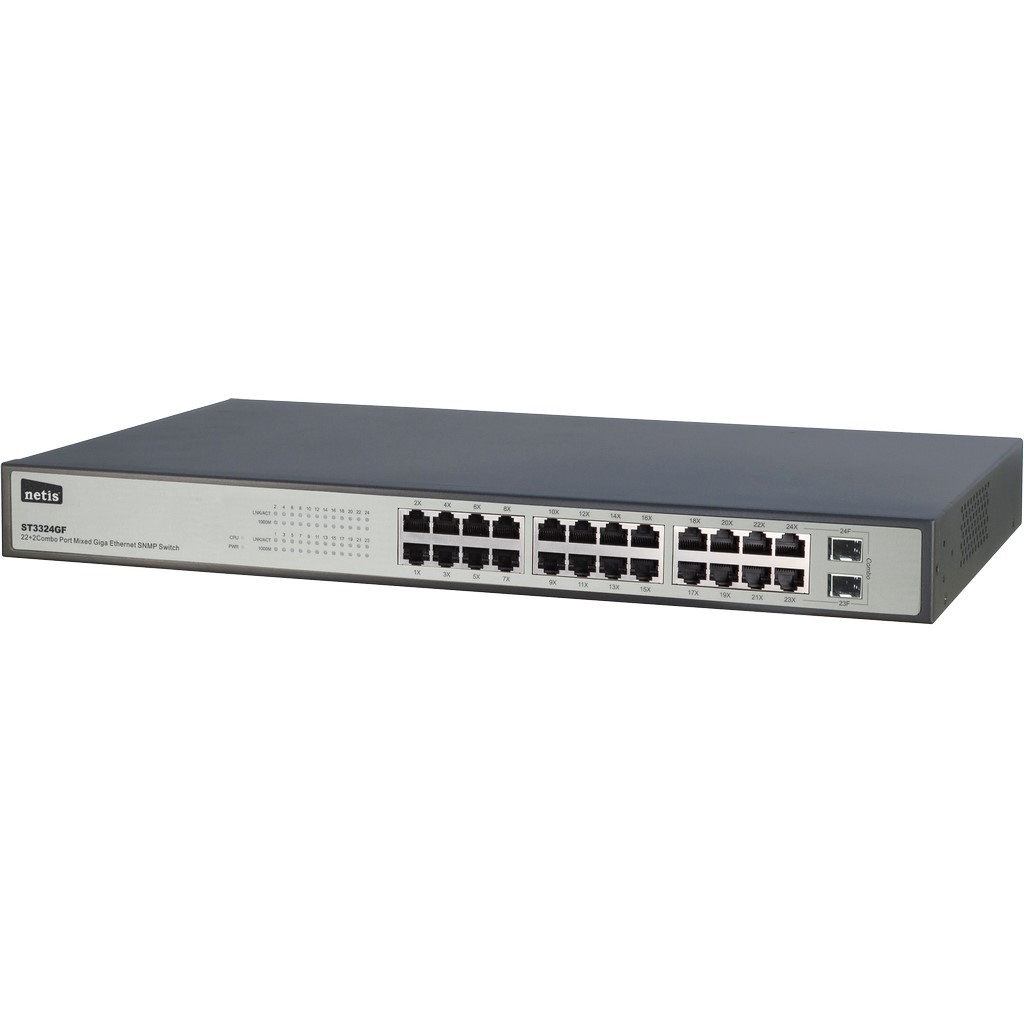

ST3324GF
SALE 22GE + 2 Combo-Port Gigabit Ethernet SNMP Switch
Der Netis ST3324GF 22GE + 2 Combo-Port Gigabit Ethernet SNMP Switch eignet sich für große Businessnetzwerke und ist kompatibel mit IEEE 802.3/802.3u/802.3z Ethernet Standards.
Er ist mit 22 Gigabit Ethernet und 2 Gigabit Combot Ports ausgestattet.
Er bietet Enterprise-level QoS, reichhaltige Sicherheitsfunktionen und echte Layer 2 Management Funktionen, für ein Qualitativ hochwertiges und stabiles Netzwerk.
- 22x 10/100/1000Mbps Ethernet Ports, 2x Combo Gigabit Ports (Kabel und Optisch)
- 48Gbps Switch Bandbreite
- Port VLAN und IEEE 802.1q VLAN
- Link Aggregation Control Protokoll (LACP)
- Spanning Tree Protokoll
- Port Mirroring, Flow mirroring, VLAN mirroring
- LLDP, DLDP
- DHCP Snooping, Relay and Option 82
- IGMP Snooping v1/v2/v3
- Unterstützt Sicherheitsfunktionen wie: ACL, dynamische ARP Untersuchung, IP-MAC-Port-VID Bindung
- Unterstützt SSL und SSH Verschlüsselung
- Unterstützt High Performance Store-and-Forward Architektur, QoS
- Unterstützt SNMP v1/v2c/v3 , SSH v1/v2 Switch Management
HARDWARE | |
---|---|
Anschlüsse | 22x 10/100/1000Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX 2x Combo Port: - 2x 10/100/1000Mbps RJ45 Port - 2x SFP Slot (Mini-GBIC), 1000 full mode unterstützt 1x RS232 Console Port |
LED | Power CPU 1-24 1000M 1-24 LNK/ACT |
Stromversorgung | 100-240V AC/50-60Hz |
SWITCH EIGENSCHAFTEN | |
Standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-LX/SX IEEE 802.3x IEEE 802.3ad IEEE 802.1p IEEE 802.1q IEEE 802.1d IEEE 802.1w IEEE 802.1s IEEE 802.1x |
Switch Durchsatz | 48Gbps |
MAC-Adressentabelle | 8K, auto-learning & auto-aging |
Übertragungsmethode | Store and Forward |
Packetpufferspeicher | 4Mbits |
Link Beschleunigung | Cisco ether-Channel (Static Trunk) IEEE 802.3ad LACP (Link Aggregation Control Protocol) Up to 14 Trunk groups Up to 8 ports per trunk group |
Spanning Tree Protocol (STP) | STP, IEEE 802.1d (Classic Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, Spanning Tree über VLAN) Loopback Erkennung |
Multicast | IGMP Snooping V1/V2/V3 Multicast VLAN Registration (MVR) |
VLAN | IEEE 802.1q Tag-based VLAN Bis zu 4000 VLAN Gruppen, bis zu 4049 VLAN IDs Q-in-Q Tunneling Port VLAN Voice VLAN GVRP Protokoll für VLAN Management |
Flusskontrolle | IEEE 802.3x PAUSE frame Flow Control, Full-Duplex mode Back-Pressure Flow Control, Half-Duplex mode |
Quality of Service (QoS) | 8 Prioritätswarteschlangen Strict Priority (SP) Weighted Round Robin (WRR) SP+WRR CoS Traffic-policing |
DHCP | DHCP Snooping DHCP Relay DHCP option 82 |
Sicherheit | IEEE 802.1x Port-Based / MAC-Based Authentifkation RADIUS / TACACS+ Benutzerzugriffsauthentifikation Access Control List (ACL) Dynamic ARP Inspektion IP-MAC-Port-VID Bindung Broadcast Storm Control SSL and SSH Verschlüsselung |
Management | Konsole / Telnet Command Line Interface Web SNMP v1/v2c/v3 SSH v1/v2 |
WEITERE DATEN | |
Sonstiges | VLAN mapping Port mirroring flow mirroring VLAN mirroring LLDP (Link Layer Discovery Protocol) DLDP (Device Link Detection Protocol) Egress and Ingress Bandwidth Control |
Zertifikate | FCC, CE |
Umgebungsbereich | Arbeitstemperatur: 0°C~40°C Lagertemperatur: -20°C~70°C Arbeitsluftfeuchtigkeit: 10%~90% nicht kondensierend Lagerluftfeuchtigkeit: 5%~90% nicht kondensierend |
Abmessungen (L/B/H) | 432 x 250 x 44mm |
Garantie | 36 Monate |
LIEFERUMFANG & MERKMALE | |
Lieferumfang |

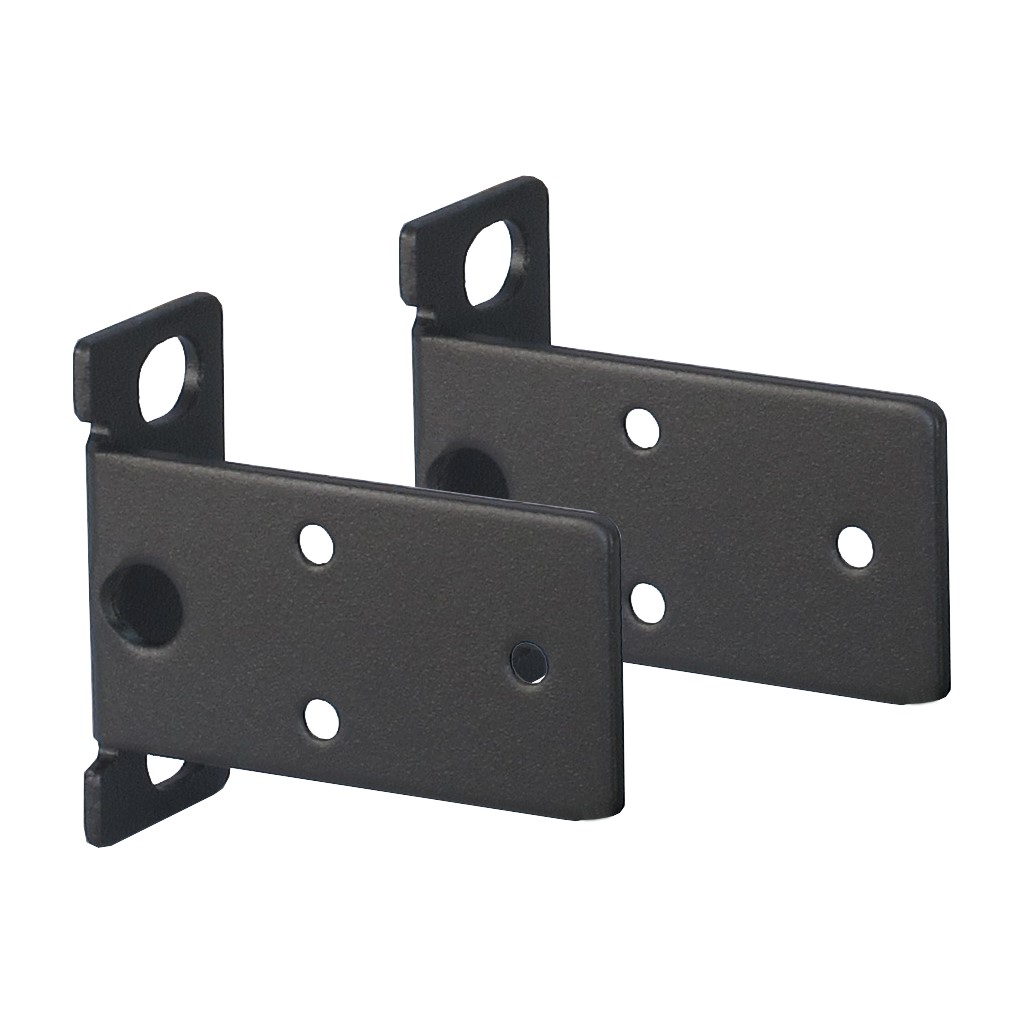

ST3324GF Retailverpackung Netzkabel Befestigungswinkel RS232 Kabel |
Merkmale | |
LOGISTISCHE DATEN | |
Versandeinheit | 1 Stück |
Kartoneinheit | 5 Stück |
Gewicht | netto = 2,59kg brutto = 3,43kg |
Artikelnummer | 88883022 |
EAN-Code | 6951066950744 |
