EPS-750W CM

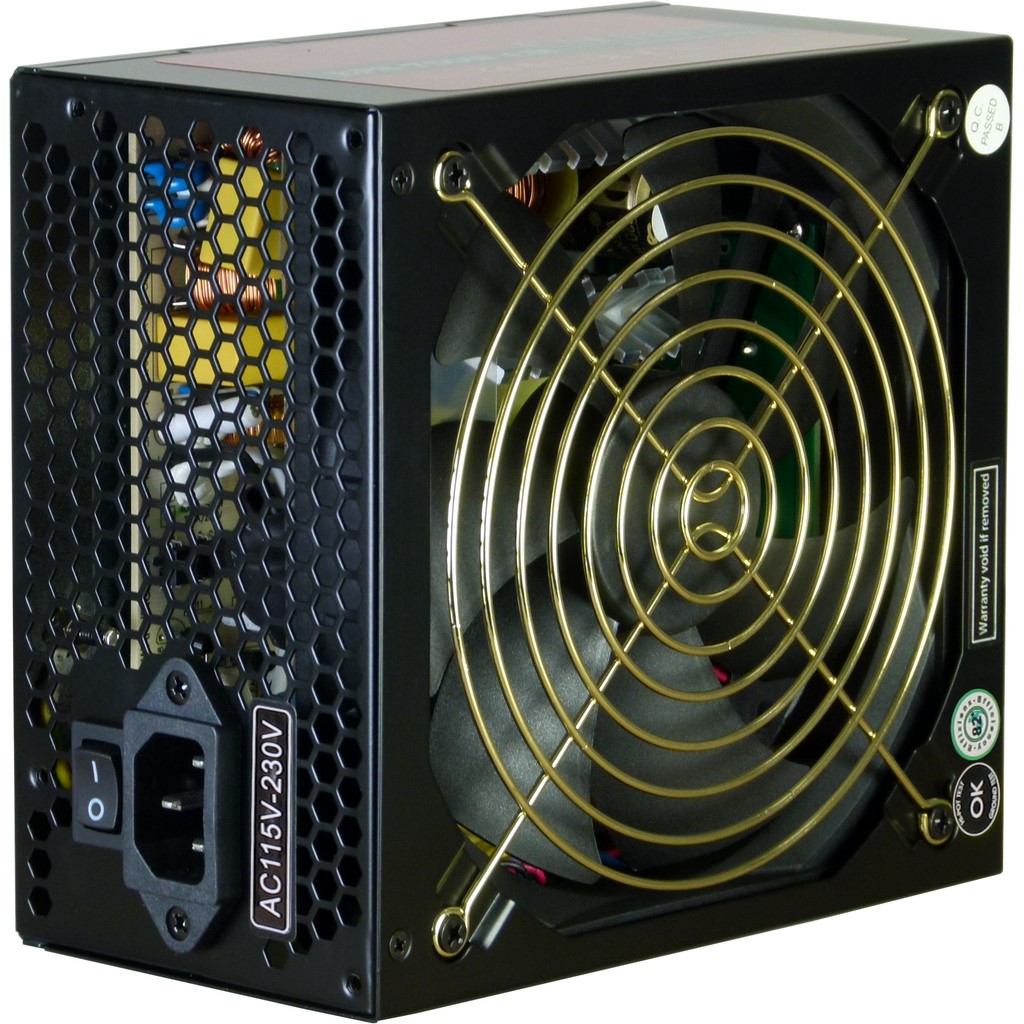

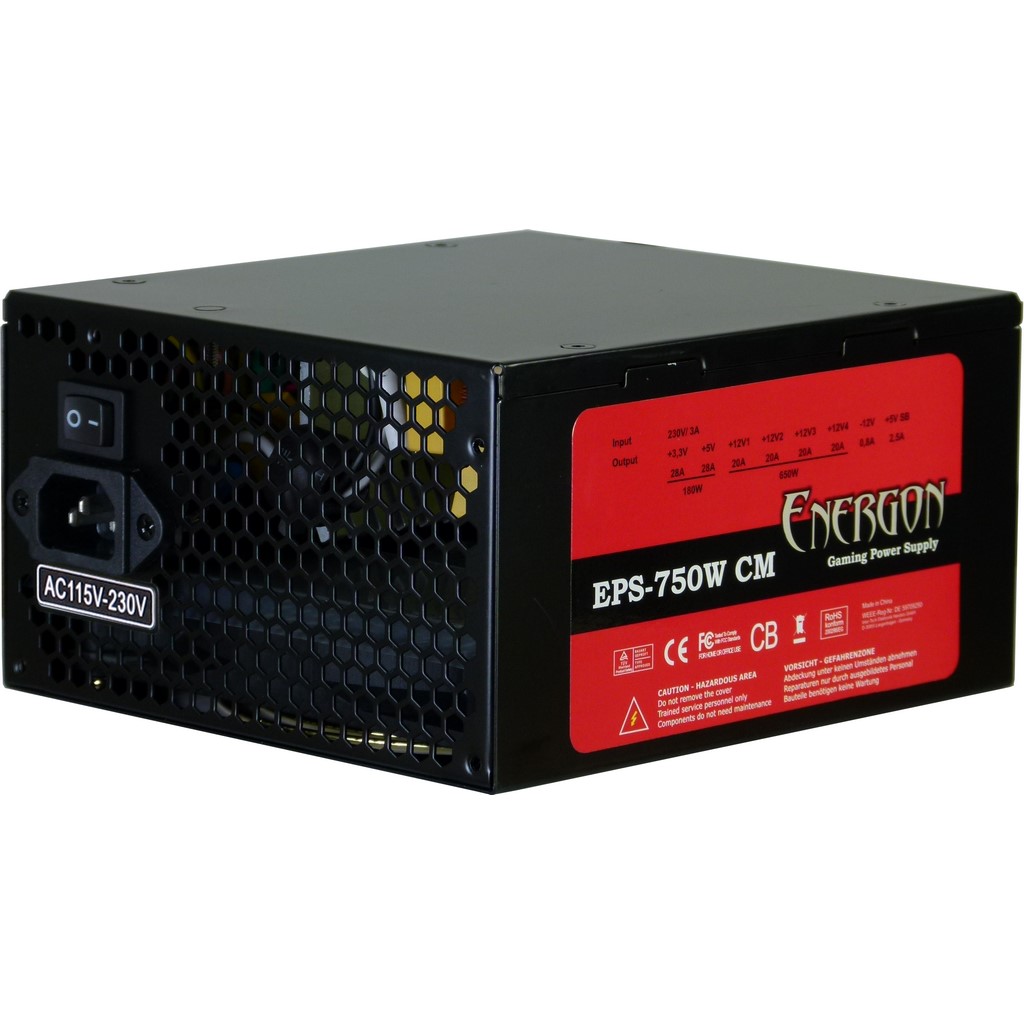

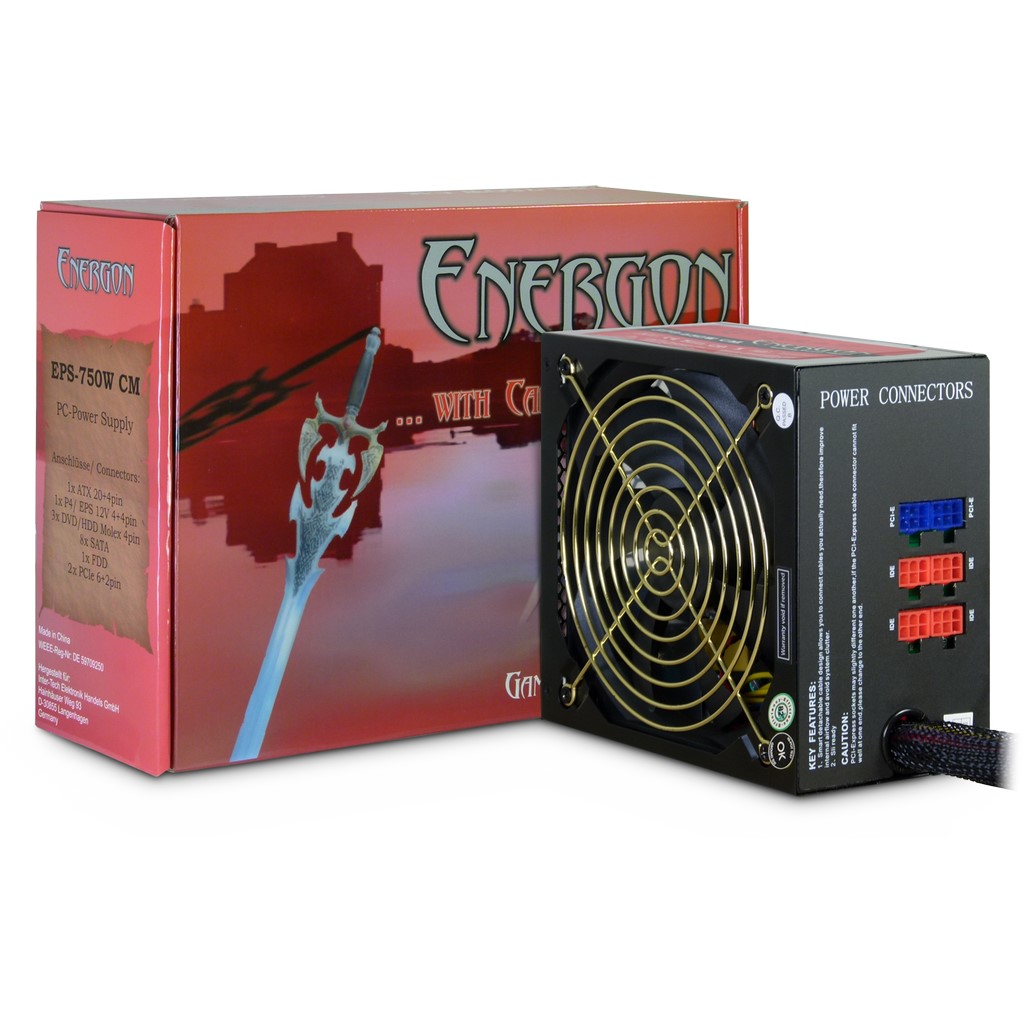

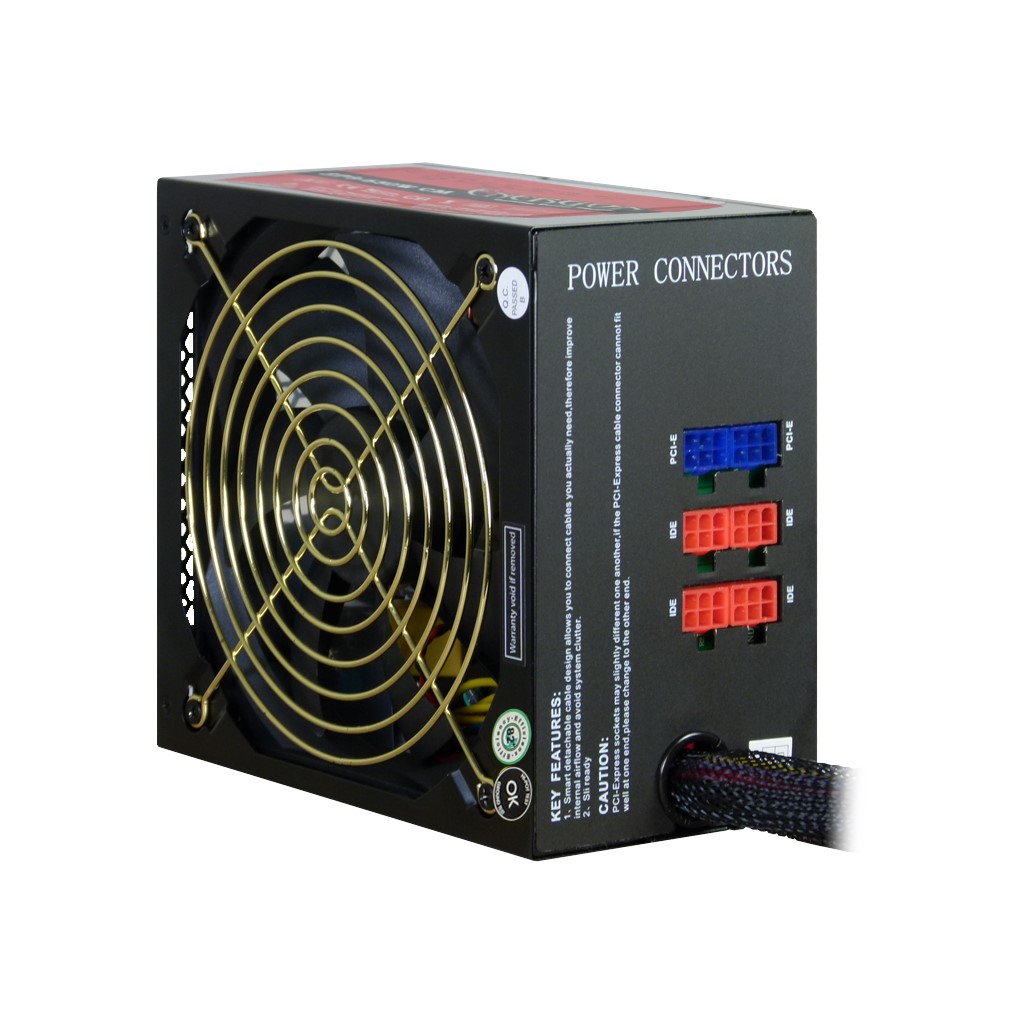

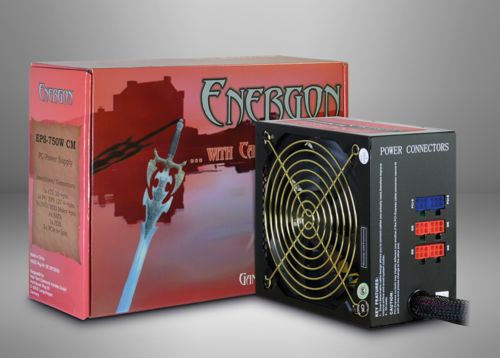

The Energon EPS-750W CM Power Supply with Cable Management

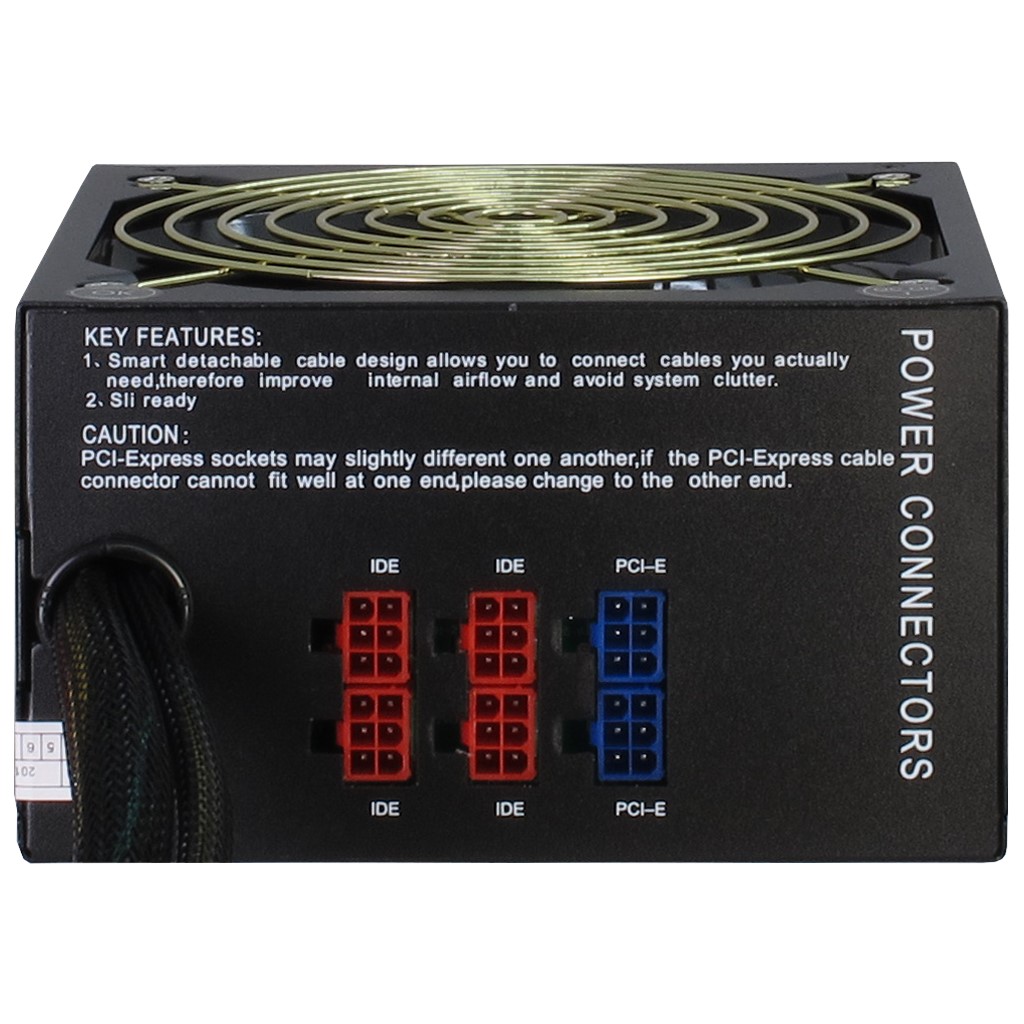

Based on our top selling product Energon EPS-750W, Inter-Tech designed the EPS-750W CM to satisfy the growing demand of the market for power supplies with flexible cable management. Except the basic 20+4 mainboard and P4+4 connectors which are bounded all other connectors are modular.

Additionally, the EPS-750W CM is equipped excellently with a super silent 135mm fan, a PCI-Express and a big array of S-ATA and IDE connectors.

Two standard S-ATA to IDE adapters makes the EPS-750W CM even more flexible in its range of use.

POWER & EFFICIENCY
Output 750Watt
Efficiency

at 20%84.8%
at 50%86.6%
at 100%83.3%

ATX-Version 2.2
CONNECTORS
Mainboard 20+4Pin 1x
4Pin / 4+4Pin / 8Pin 12V /  /
PCI-Express 6+2Pin 2x
PCI-Express 6Pin
IDE 4Pin (Molex) 3x
S-ATA 8x
Floppy 1x
Fan monitoring
Cable management
OTHER DATA
Fans / -size 1x 135mm
Fan control auto
Full Range Input auto
80PLUS® Certificate
Noise level 19-21dB
Dimension (h/w/d) 86 x 150 x 160mm
Guarantee 24 months
Safeties OVP, SCP , OPP, UVP, OS
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Power supply EPS-750W CM

Retail package

2x S-ATA to IDE Adapter

Cable Strips

Thumbscrews

Power Cord

User manual in German

LOGISTICAL DATA
Shipping Unit 1 Pcs
Packing Unit 5 Pcs
EU palett 210 Pcs
Weight net = 1.52kgs
gross = 2.32kgs
Item number 88882091
EAN-Code 4260133123465



PERFORMANCE DATA

AC Input 115V/230V  4.5A  50-60Hz
DC Output + 3.3V + 5V + 12V1 + 12V2 + 12V3 + 12V4 - 12V + 5VSB
Energon
EPS-750W CM
Max.
Current
28A 28A 20A 20A 20A 20A 0.8A 2.5A
Max.
Combined
Power
180W 560W 20W
750W

CABLE CONFIGURATION
