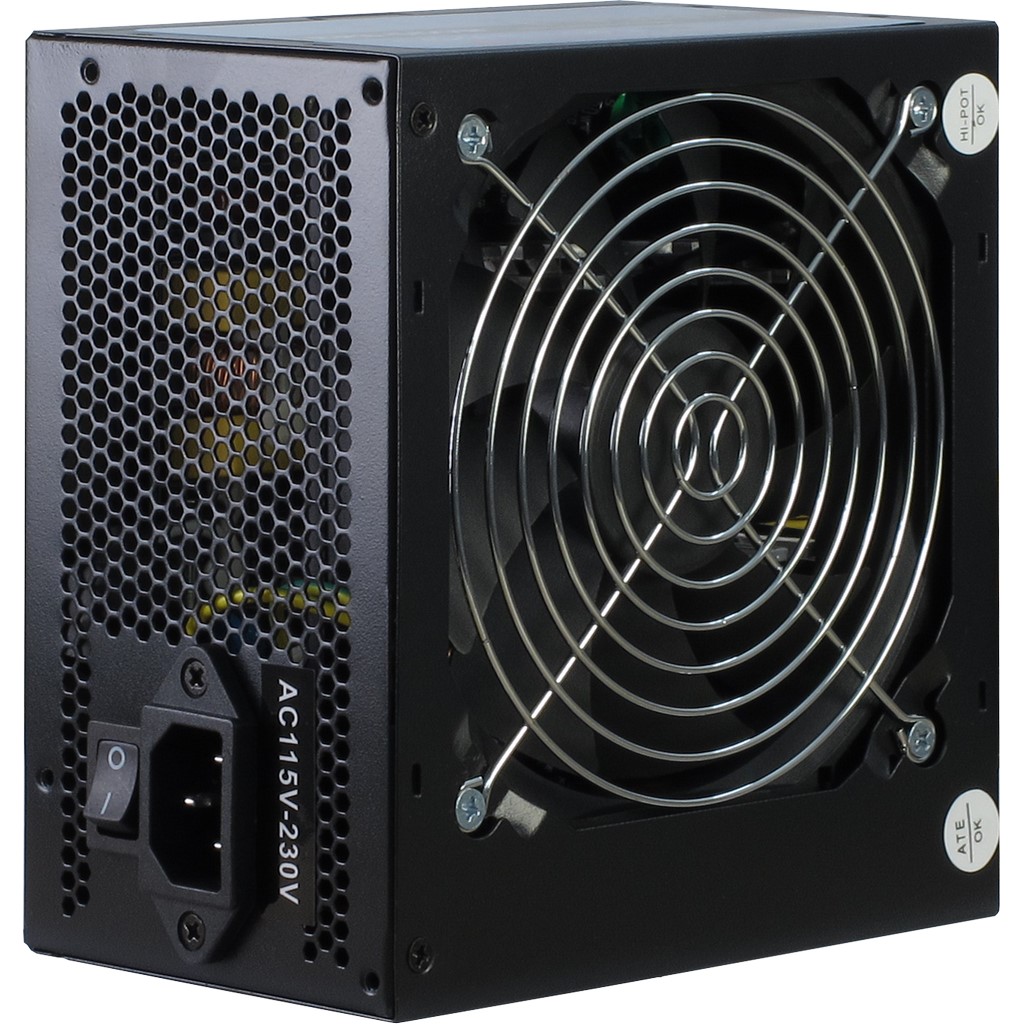

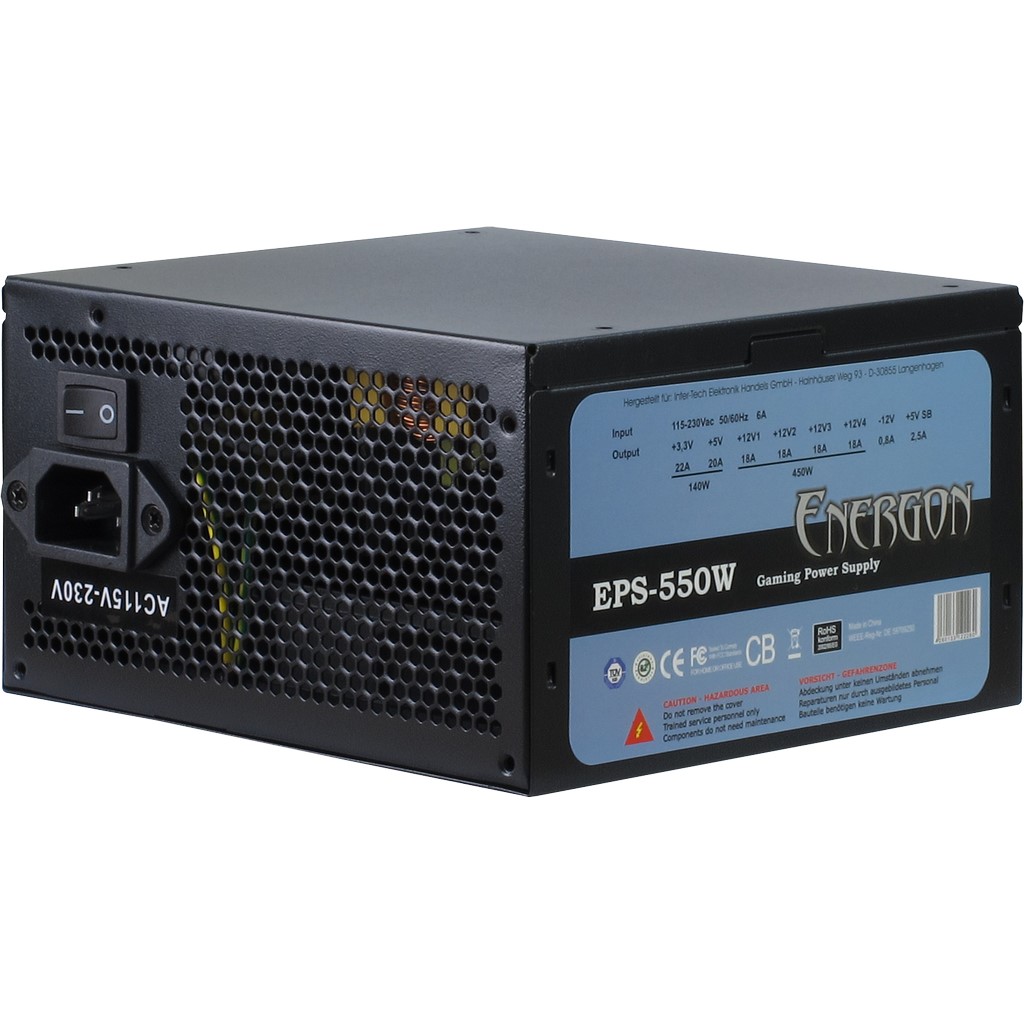

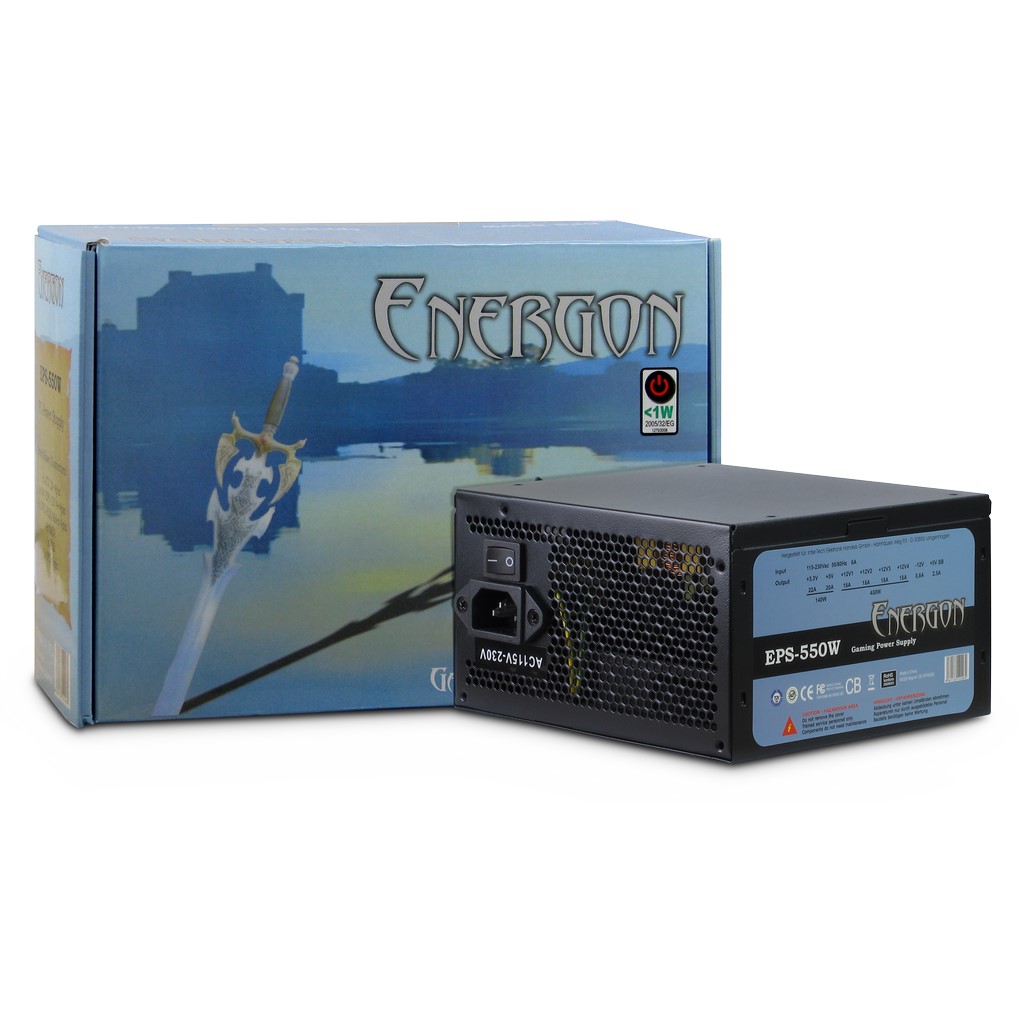

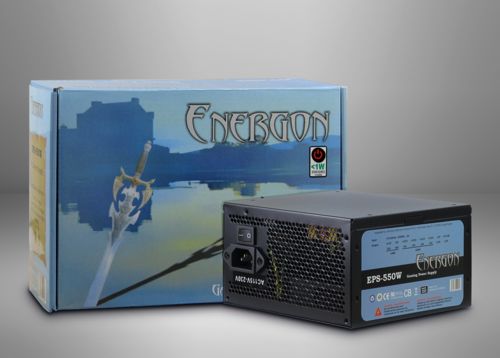

EPS-550W
Energon EPS-550W - More power, less cost
For customers who needs high wattage but don’t want to spend that much money on a power supply the EPS-550W is the perfect choice. Despite the low price, Inter-Tech has made no compromise in technical or quality aspects.
Equipped with active PFC, a super silent fan and P4/EPS connectors the EPS-550W provides all modern extras. PCI-Express connectors for more demanding graphic cards and 4 separated 12V-lines for a more stable power supply makes this device a real option for every gaming or graphic computer system. The sturdy and black finishing as well as long and flexible cables completes this excellent package.
| POWER & EFFICIENCY | |
|---|---|
| Output | 550Watt |
| Efficiency |
|
| ATX-Version | 2.2 |
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / / |
| PCI-Express 6+2Pin | |
| PCI-Express 6Pin | 1x |
| IDE 4Pin (Molex) | 4x |
| S-ATA | 4x |
| Floppy | 1x |
| Fan monitoring | |
| OTHER DATA | |
| Fans / -size | 1x 120mm |
| Fan control | auto |
| Full Range Input | auto |
| 80PLUS® Certificate | |
| Noise level | 19-21dB |
| Dimension (h/w/d) | 86 x 150 x 140mm |
| Guarantee | 24 months |
| Safeties | OVP, SCP , OPP, UVP, OS |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Power supply EPS-550W Retail package manual cable ties screws power cord |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 10 Pcs |
| EU palett | 320 Pcs |
| Weight | net = 1.20kgs gross = 1.48kgs |
| Item number | 88882048 |
| EAN-Code | 4260133122260 |
PERFORMANCE DATA
| AC Input | 115V/230V 4.5A 50-60Hz | ||||||||
| DC Output | + 3.3V | + 5V | + 12V1 | + 12V2 | + 12V3 | + 12V4 | - 12V | + 5VSB | |
| Energon EPS-550W |
Max. Current |
22A | 20A | 18A | 18A | 18A | 18A | 0.8A | 2.5A |
| Max. Combined Power |
140W | 450W | 20W | ||||||
| 550W | |||||||||
CABLE CONFIGURATION
